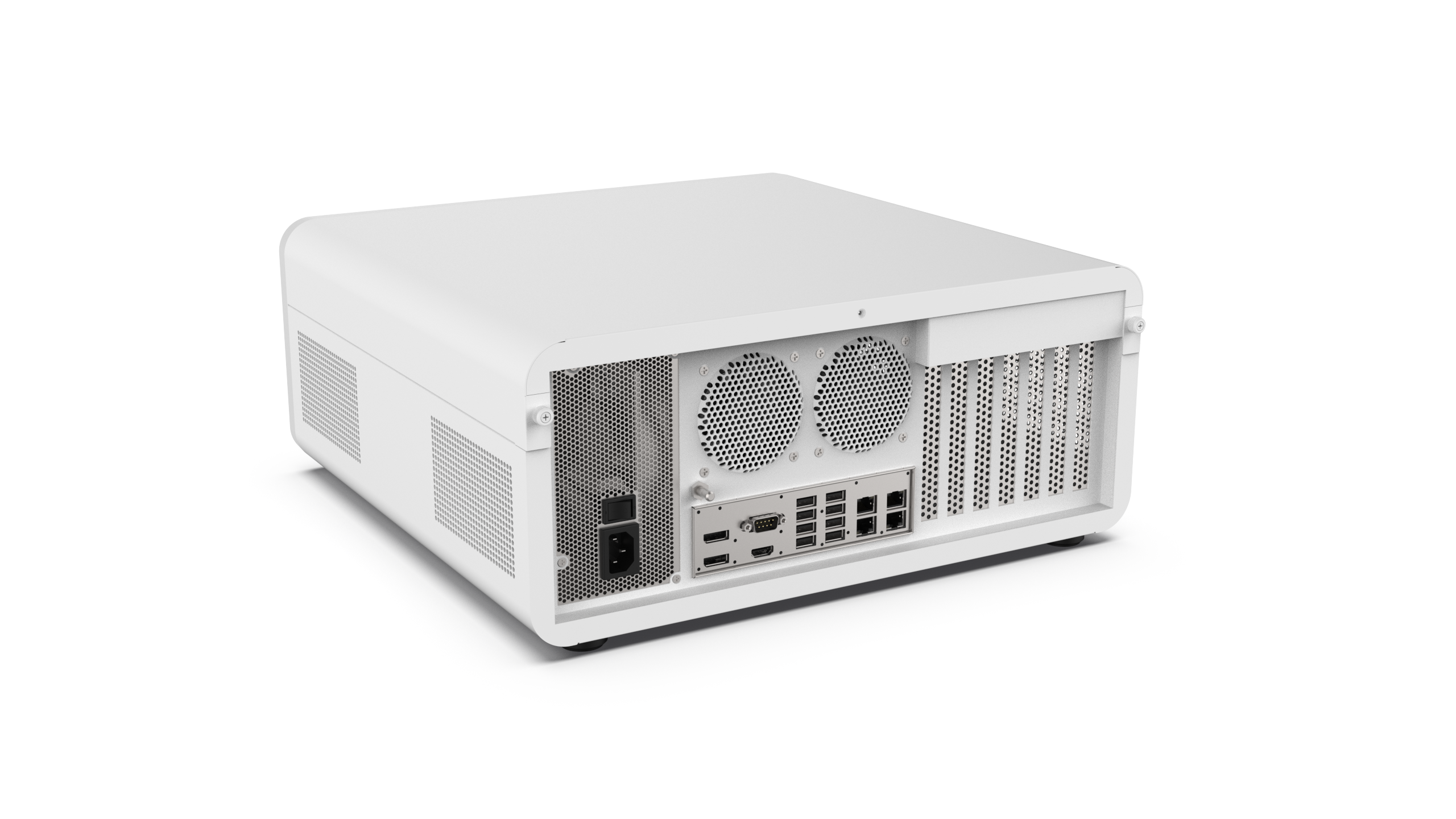

MAB-T690
FEATURE
12/13/14th Generation Intel® Core™ i3/i5/i7/i9 Processors. Max TDP 125W
Intel® R680E Chipset
4 x UDIMM sockets support DDR5 4400MHz up to 192GB (ECC support depending on selected CPU)
2 x DP 1.4, 1 x HDMI
1 x PCIe x16 Gen5 or 2 x PCIe x8 Gen5, 2 x PCIe x4 Gen 4, 1 x PCIe x2 Gen 3, 1 x PCIe x4 Gen3,
2 x M.2 M-Key NVMe
4 x Intel 2.5 GbE LAN
4 x Internal 2.5" or 3.5" Drive bay
8 x USB3.2 Gen2 at Rear, 2 x USB 2.0 at Front
IEC/EN 60601-1 Compliance
Specification
Download
Related Information
System Information
Processor
Intel® 12/13/14th Gen, Alder Lake/Raptor Lake/Raptor Lake-Refresh/Bartlett Lake-S
Core™ i9/i7/i5/i3 Processors, supports LGA 1700 CPU Up to 125W Max
Platform Controller Hub
Intel® R680E Chipset
System Memory
4 x 288-pin DDR5 UDIMM support up to 192GB, optional ECC support (CPU dependent)
I/O Chipset
Nuvoton NCT6126D (eSPI super IO)
BIOS
AMI uEFI BIOS, 256Mbit SPI Flash ROM
Watchdog Timer
H/W Reset, 5~255 seconds/5~255 minutes
H/W Status Monitor
CPU temperature monitoring, Voltages monitoring, CPU fan speed control
RAID
Support RAID 0, 1, 5, 10
TPM
TPM 2.0
iAMT
By CPU (i9/i7/i5)
SBC
EAX-R680BP
Expansion
M.2
2 x M.2 M-Key NVMe 2242/2280/22110 (PCIe Gen4x4, no SATA)
PCIe
1x PCIe x16 Gen5 or 2x PCIe x8 Gen5
2x PCIe x4 Gen4
1x PCIe x4 Gen3
1x PCIe x2 Gen3
Expansion
1x DVD ROM (Black, Optional)
Compatible GPU
GPU supports up to
NVIDIA RTX PRO 5000 Blackwell (Optional)
Storage
M.2
2 x M.2 NVMe Key M 2242/2280/22110 (PCIe Gen4x4, no SATA)
Storage
4 x Internal 2.5”or 3.5”Drive Bay
Front I/O
Power Button
1 x PWR Button
LED Indicator
1 x Power on/off LED
USB
2 x USB 2.0
Rear I/O
USB
8 x USB3.2 Gen 2
COM Port
1 x DB9 Connector at IO support RS-232
Optional up to 5 RS-232 COM port (I/O from PCIe slot)
LAN Port
4 x 2.5GbE RJ45
DP
2 x DP 1.4a
HDMI
1 x HDMI 2.1b
AC/DC Input
AC-In
Display
Graphic Chipset
Intel® Integrated Graphics with up to 32 EU
Spec. & Resolution
2 x DP (DP1.4a): Max: 7680 x 4320@60 Hz
1 x HDMI: HDMI 2.1b, max resolution 4096x2160@60Hz (with HDR)
Audio
Audio Codec
Realtek HD Audio Codec
Audio Amplifier
TI TPA3113D2 Class-D 2 x 6W 8Ω Amplifier
Power Requirement
Power Supply Unit
IT grade 1000W (Default)
Medical grade 1000W (Optional)
Power Mode
AT/ATX mode (Default ATX)
Ethernet
LAN Chipset
2 x Intel® i226-LM 2.5G Gigabit Controller
2 x Intel® i226V 2.5G Gigabit Controller
Data Rate Per Port
i226-LM: 10/100/1000/2500 Base-Tx GbE compatible
i226V: 10/100/1000/2500 Base-Tx GbE compatible
Software Support
OS
Win 11, Linux
Certification
Certification Information
IT CE/FCC
Internal I/O
SATA Signal
4 x SATA III
GPIO
1 x 16-bit GPIO Header
USB Port
2 x 2 x 5 pin, pitch 2.54mm connector for 4 x USB 2.0, +5V, 0.5A (JUSB1/4)
1 x 1 x 5 pin, pitch 2.54mm connector for 1 x USB 2.0, +5V, 0.5A (JUSB2)
COM Port
COM2 : by onboard pin-header support RS232/422/485 selected by BIOS
- 1 x 2 x 5 pin, pitch 2.00mm connector for COM2 to support RS232 (COM2)
- 1 x 2 x 3 pin, pitch 2.00mm connector for COM2 pin9 RI/5V/12V, 0.9A jumper select (JRI2)
- 1 x 2 x 3 pin, pitch 2.00mm connector for COM2 to support RS422/485, Pin 5 with +5V, 0.9A (J1RS2)
COM3: support RS232/422/485 selected by BIOS
COM3~6: support RS232
- 1 x 2 x 20 pin, pitch 2.00mm connector for COM3~6 support RS232 (4COM1)
- 1 x 2 x 3 pin, pitch 2.00mm connector for COM3 pin9 RI/5V/12V, 0.9A jumper select (JRI3)
- 1 x 2 x 3 pin, pitch 2.00mm connector for COM3 to support RS422/485, Pin 5 with +5V, 0.9A (J1RS3)
AT/ATX Selector
1 x 1 x 3 pin pitch 2.00mm connector for AT/ATX jumper (JSATX1)
RTC Battery
1 x Horizontal type battery connector (CR2450 Battery)
Audio
- 1 x 2 x 5 pin, pitch 2.54mm connector for front Audio (Mic-in, Line-out) (FAUD1)
- 1 x 2 x 6 pin, pitch 2.54mm connector for Audio (5.1-CH Audio) (REAR1)
- 1 x 1 x 4 pin, pitch 2.54mm connector for S/PDIF (JSDPIF1)
Buzzer
Onboard
CPU/System FAN
CPU : 65W Cooler FAN (Optional for 125W Cooler FAN)
System : 2 x 5000 RPM 4 pin FAN
AC/DC Input Conn.
1 x 2 x 4 pin ATX 12V power connector
Mechanical & Environmental
Color
White
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F) with 0.5m/s air flow (turbo mode off)
0°C ~ 35°C (32°F ~ 95°F) with 0.5m/s air flow (turbo mode off) for the configuration with TDP 125W CPU and Nvidia RTX PRO Blackwell 5000 (48GB)
Drop Test
Package drop test : One corner, three edges, six faces
ISTA 2A, IEC-60068-2-32
Shock Test
With SSD : 10 Grms, IEC 60068-2-27, half sine, 11ms
Vibration Test
Operating with SSD : 0.5 Grms, IEC 60068-2-64, 5 ~ 500Hz, 0.5hr/axis
Weight
10 kg
Dimension (W x L x H)
437 * 433 * 189.2 mm
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Storage Temp.
-20°C ~ 60°C(-4°F ~ 140°F)
