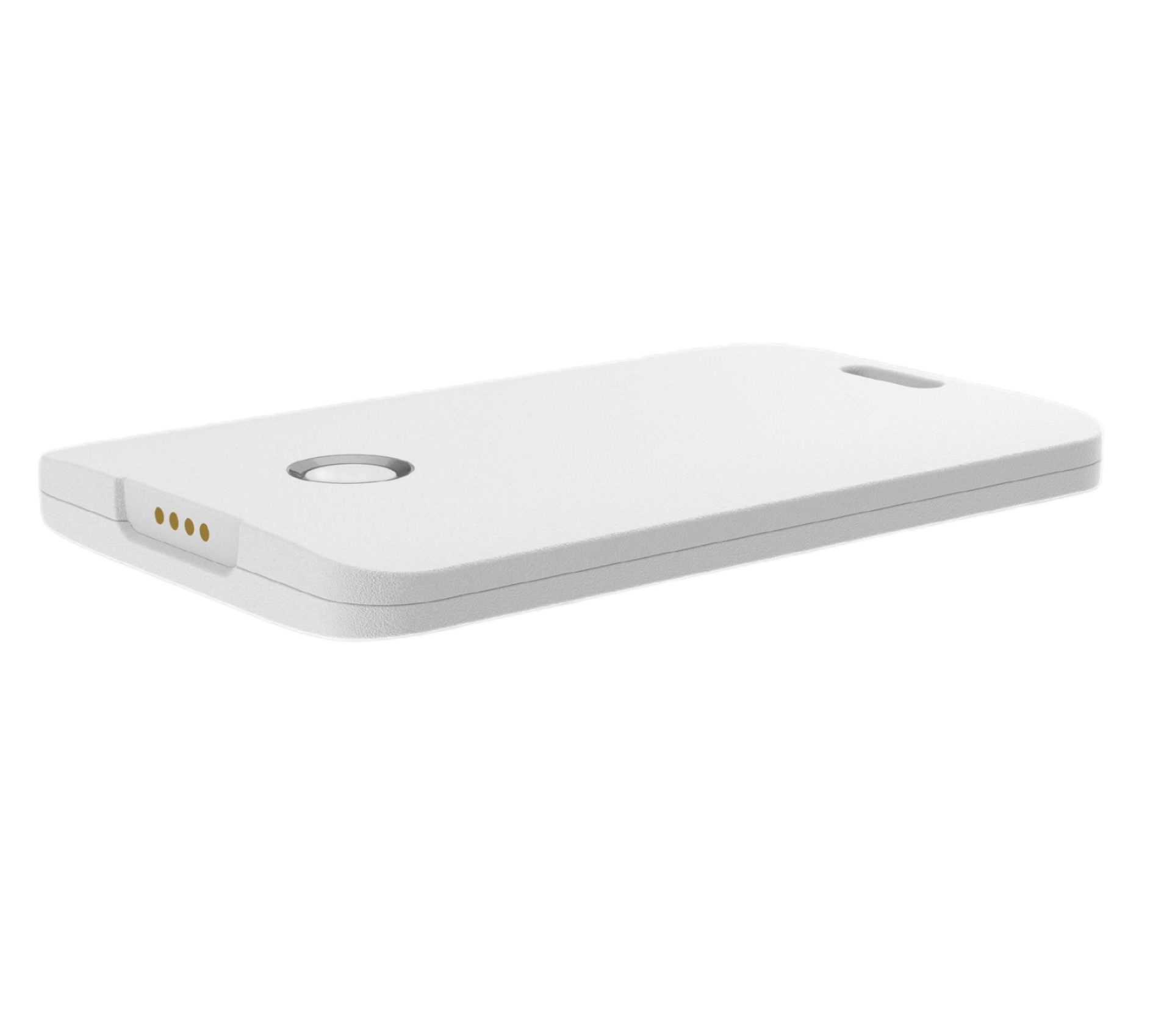

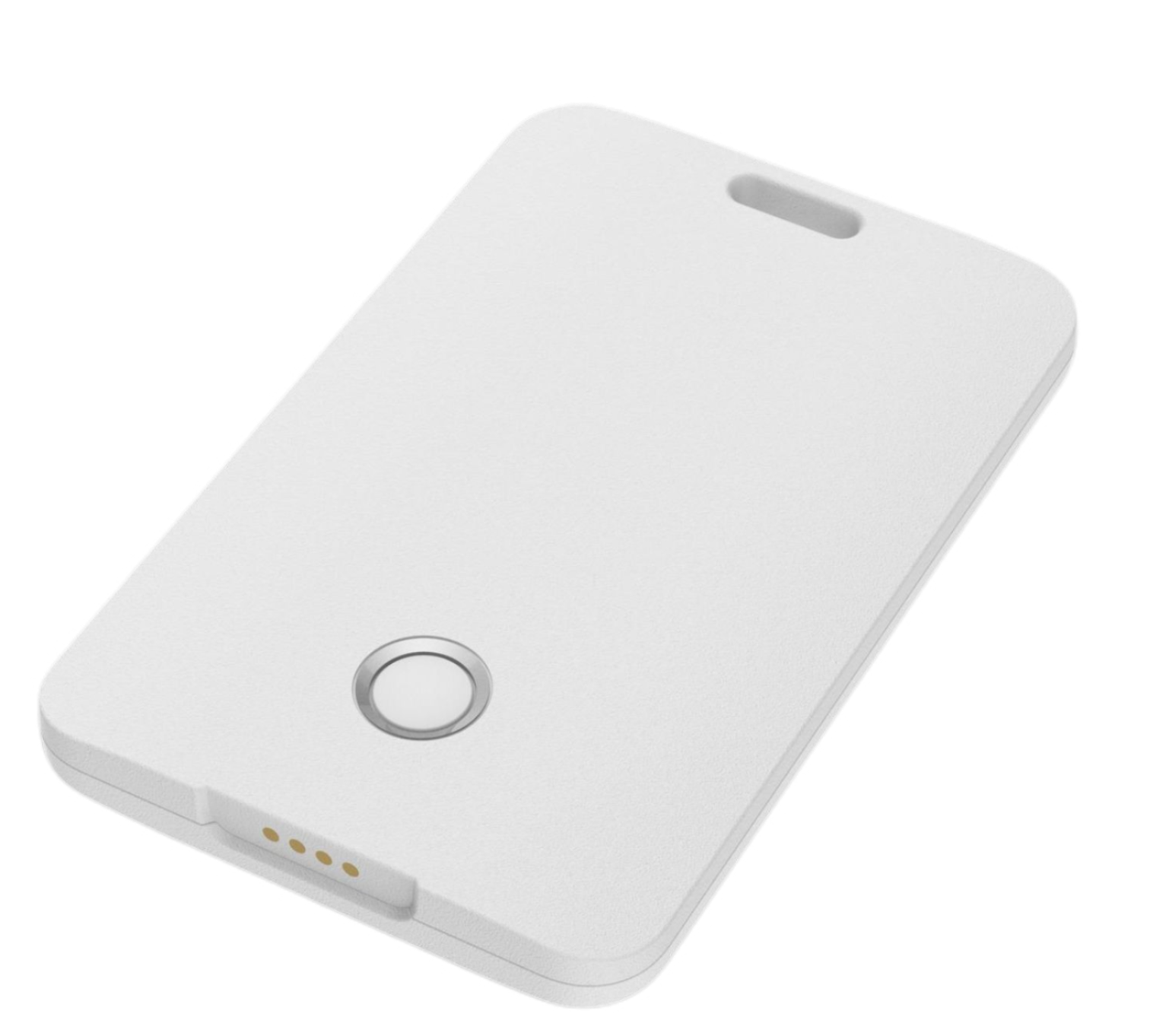

GT-130
The GT-130 is a UWB positioning badge type tag supporting TDoA/ToF modes, suitable for personnel and equipment tracking. Ideal for applications in commercial offices, industrial settings, healthcare, logistics, and more.
FEATURE
IEEE 802.15.4a UWB
BLE 5.0
IPX6
SOS alert
Vibration, Buzzer
RFID
Specification
Download
Mechanical & Environmental
Standard
IEEE802.15.4a
BLE 5.0
External I/O
1 x Function Button
Size
88 mm x 56 mm x 9.1 mm
Weight
40 g
Power Requirement
5V DC-in w/ Magnetic Charging cable
Power Consumption
< 1W (Instant)
LED
Red Flicker: Low Power Status
Green Flicker: Flash while uwb is working
Blue Flicker: Charging Status / BLE connecting mode
Blue Light: Charging Full
Temperature
-20°C ~ 60°C
Humidity
40°C @ 95% Relative Humidity, Non-condensing
Battery Life
ToF：2+ months@1Hz w/ smart sleep
TDoA：3+ months@1Hz w/ smart sleep
IP Rating
IP X6
Functions
SOS alert
Vibration
Buzzer
Smart Rest Mode
RFID
Compliance
FCC: 2A6S5-GA210
NCC: CCAN22LP0590T0
Telec (JP): 201-220408
UWB
Frequency
4492.8MHz (CH3)
Physical Rate
110 Kbps
850 Kbps
6.8 Mbps
Channel Frequency Width
500 MHz
Working Mode
ToF
TDoA
BLE
Frequency
2400 MHz ~ 2483.5 MHz
