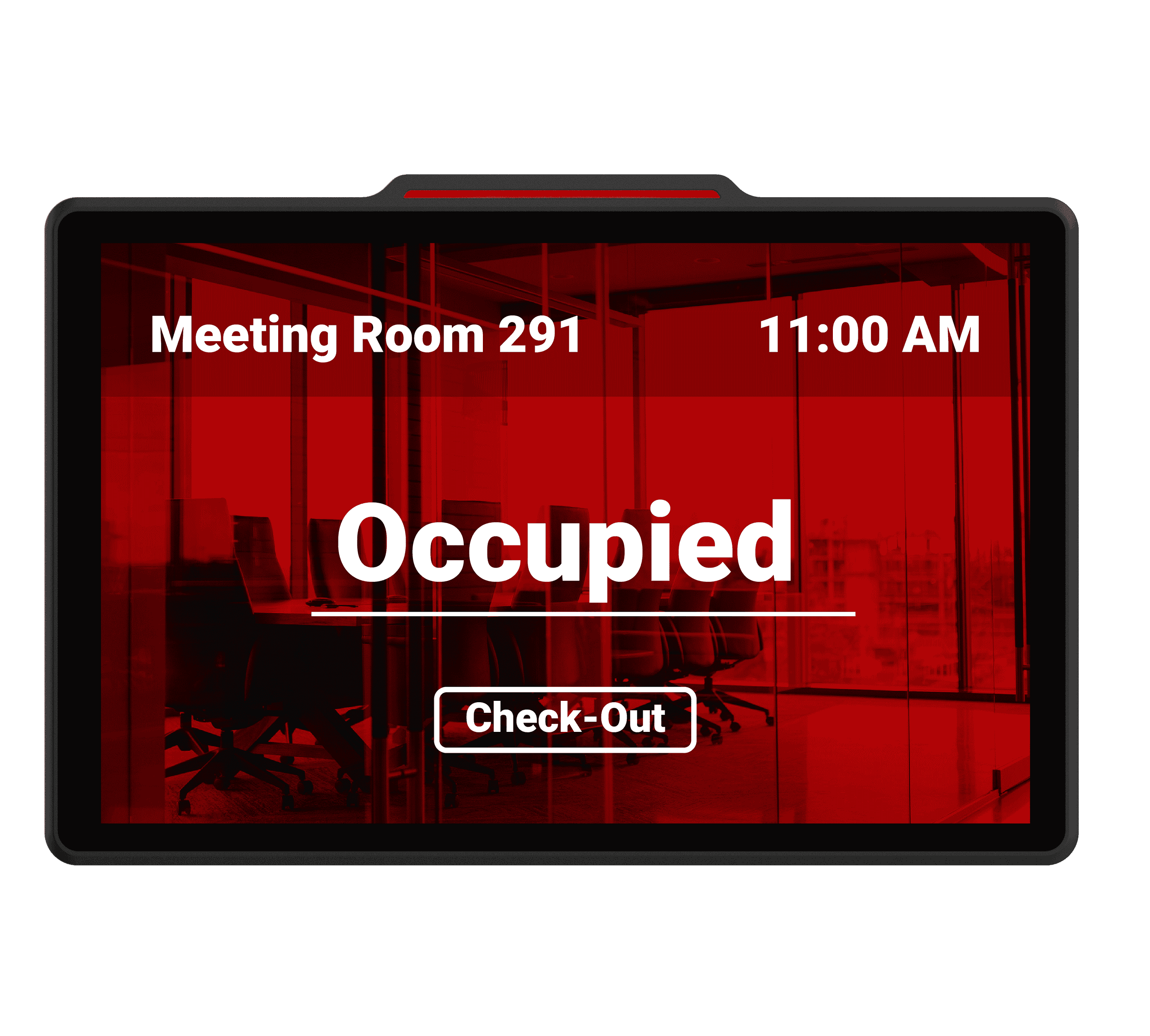

TD-1060 Slim
Lightweight, Slim, and Built to Last.
FEATURE
10.1" 1280 x 800
Android 12
Small Form Factor
Multi-Touch Screen
Dual 2W Speaker
64 bit Processor
PoE+
Independent Watchdog
Landscape Portrait
Specification
Download
System
OS
Android 10/12
CPU
ARM Quad-core 1.5 GHz (64bit)
Memory
2GB DDR3L
Storage
16GB eMMC
Video decoder
H.264 / H.265, VC-1, MPEG-4, VP8
Image codecs
JPEG/BMP/GIF/PNG
Audio codecs
MPEG/OGG/ACC
Features
Programming API
HTML5 / SMIL / Android API
Remote Configuration Center
Yes
PoE+
Yes
Beacon (BLE)
Option
Light bar
Front*1
Media
Speaker
2W x 2
Display
Size(inch)
10.1"
Display Resolution
1280 x 800(16:10)
Brightness
350 nits
Orientation display
Landscape
Contrast ratio
1000:1
Touch
Yes
View angle (H/V)
170° / 170°
Connectivity
WLAN
Opt.: WLAN 802.11b/g/n/ac 2.4 GHz,/5GHz
I/O Interface (External)
Ethernet
1 x RJ45 (10M/100M)
DC Input
Yes
USB 2.0
2 x USB2.0 type A
Audio out(MIC in)
1 x 3.5mm stereo
ADB
1 x Micro USB (ADB)
Reset Button
Yes
Power Button
Yes
Power & Connectivity
Input Voltage (V)
12V
Mechanical & Environment
Dimension (WxDxH) (mm / inch) (Estimated)
248 x 20.8 x 166 mm(9.76"x0.82"x6.54")
Net. Weight (Estimated)
615g / 21.75Oz / 1.375lbs
Mounting type
Glass / Surface / Recessed
Material
Plastic
Certification & Safety
Certification
CE/FCC/BSMI/NCC/RoHS
Warranty
Warranty Period
1 yr
Accessory
Screw
Option
Bracket
Option
Tape
Option
QSG
Yes
Adapter/Plug
Opt.: DC 12V, 1.5A
Sticker
Option
