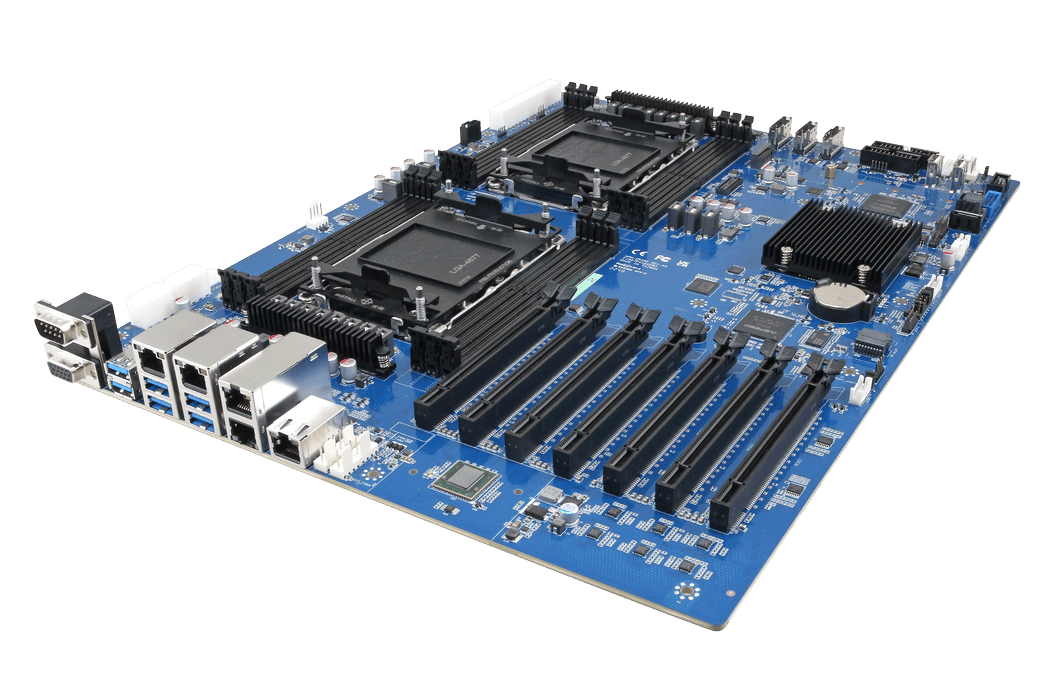

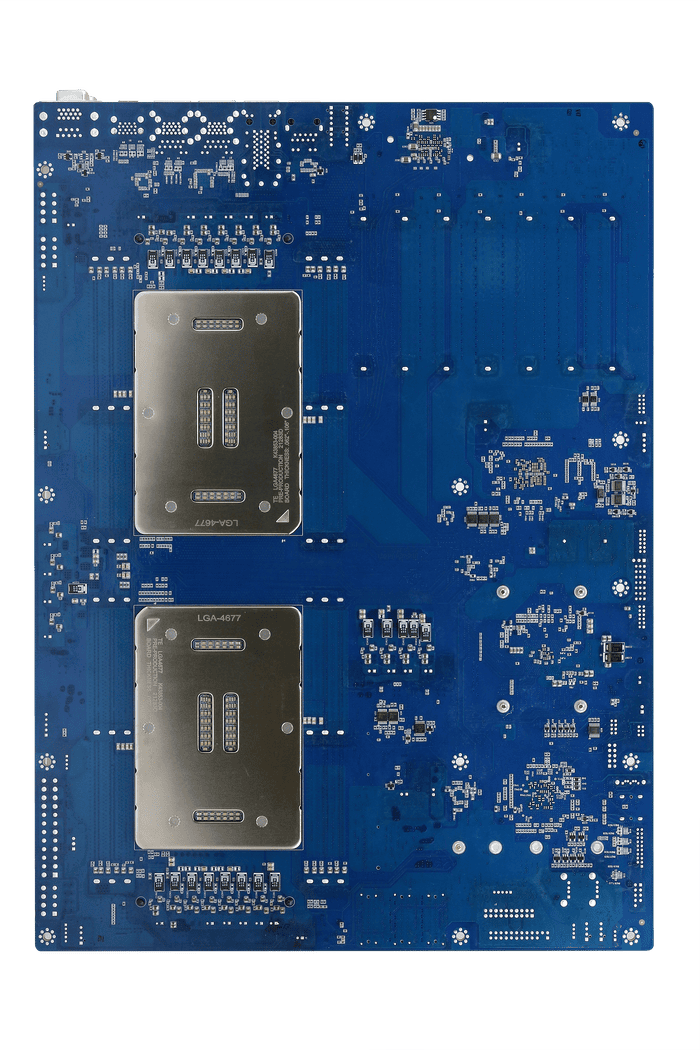

Processor

Dual Intel LGA4677 Sockets support 4th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W each)

Platform Controller Hub

Intel® C741 Chipset

System Memory

12 x DDR5 4800/ 4400 MHz RDIMM up to 3TB

Watchdog Timer

System reset event 0 ~ 6553 seconds

BIOS

AMI UEFI BIOS

H/W Status Monitor

CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

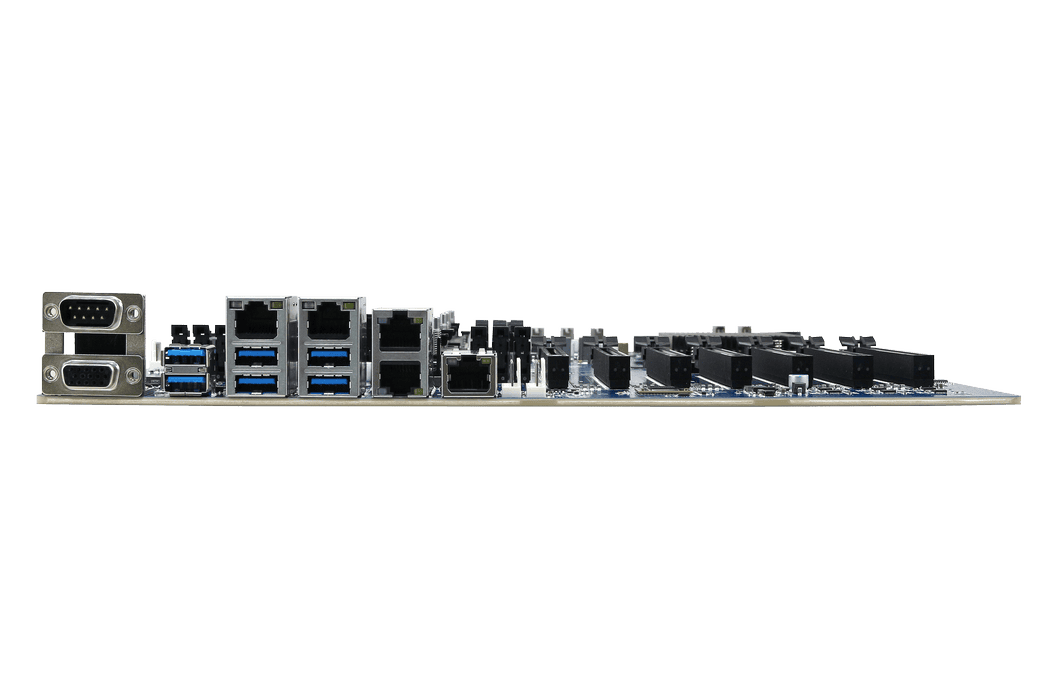

USB

6 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port

RJ-45

5 x RJ45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shared with IPMI access
LAN2 port for 2.5GbE
LAN3 and 4 ports for 10GbE

VGA

1 x VGA port

Graphic Chipset

AST2600 BMC controller

Resolution

1 x VGA port
VGA: 1920 x 1200 @ 60Hz 32bpp

Expansion

7 x PCIe Gen5 x16 slots
Slot 1, PCIe 5.0 x16 from 2nd CPU
Slot 2, PCIe 5.0 x16 from 1st CPU
Slot 3, PCIe 5.0 x16 from 2nd CPU
Slot 4, PCIe 5.0 x16 from 1st CPU
Slot 5, PCIe 5.0 x16 from 2nd CPU
Slot 6, PCIe 5.0 x16 from 1st CPU
Slot 7, PCIe 5.0 x16 from 2nd CPU (Slot 7 is the slot closest to CPU)

M.2

1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor

USB

2 x Internal USB 3.2 Gen1 ports
2 x Internal USB 2.0 type A receptacle
2 x Internal USB 2.0 ports

SATA

5 x SATA III (Note:SATA 1~4 support RAID 0,1,5,10)
(1 x Mini-SAS HD 4i (from PCH for 4 xSATA or 1 x4 NVMe interface) & 1 x 7pin SATA connector)

Serial

1 x Internal RS232 port

Other

3 x Slim SAS 8i (SFF-8654) connectors (from 1st CPU)

CMOS Battery

1 x Horizontal Socket Type CMOS Battery Holder with CR2450

LAN Chipset

1 x Intel I210AT 1GbE controller
1 x Intel I226-LM 2.5GbE controller
1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

5 x RJ45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shared with IPMI access
LAN2 port for 2.5GbE
LAN3 and 4 ports for 10GbE

Operating Temp.

0 ~ 50°C (32 ~ 122°F)to support up to 250W TDP CPU
0 ~ 40°C (32 ~ 104°F)to support up to 270W TDP CPU

Storage Temp.

-40 ~ 85°C

Operating Humidity

40°C @95% Relative Humidity, Non-condensing

Weight

2.2KG

Power Connector

1 x Std. 24 Pin ATX connector
3 x 8 Pin SSI 12V connectors

Dimension (L x W)

12” x 16.452” (304.8mm x417.88mm), PCB thickness is 2.86mm

OS

Windows 10 IoT Enterprise LTSC 2021
Windows 11
Windows Server IoT 2019 with VT-d disabled
Windows Server IoT 2022
Ubuntu 21.10, 22.04 LTS or later
Red Hat Enterprise Linux (RHEL) 8.2 and later

Ordering Information

HPM-SRSDEA-A1R
EATX 2xLGA4677 Intel 4th Gen.C741/X550 12xDDR5/4xPCIex16/2x10GbE/1x1GbE/1x2.5GbE/8xUSB3/5xSATA3

HPM-SRSDEL-A1R
EATX 2xLGA4677 Intel 4th Gen.C741 12xDDR5/4xPCIex16/1x1GbE/1x2.5GbE/8xUSB3/5xSATA3
