Processor

AMD SP6 Socket supports 4th Generation AMD EPYC Processor ( Max. TDP at 225W)

System Memory

6 x DDR5 4800/ 4400 MHz RDIMM up to 1.5TB

Watchdog Timer

System reset event 0 ~ 6553 seconds

BIOS

AMI UEFI BIOS

H/W Status Monitor

CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

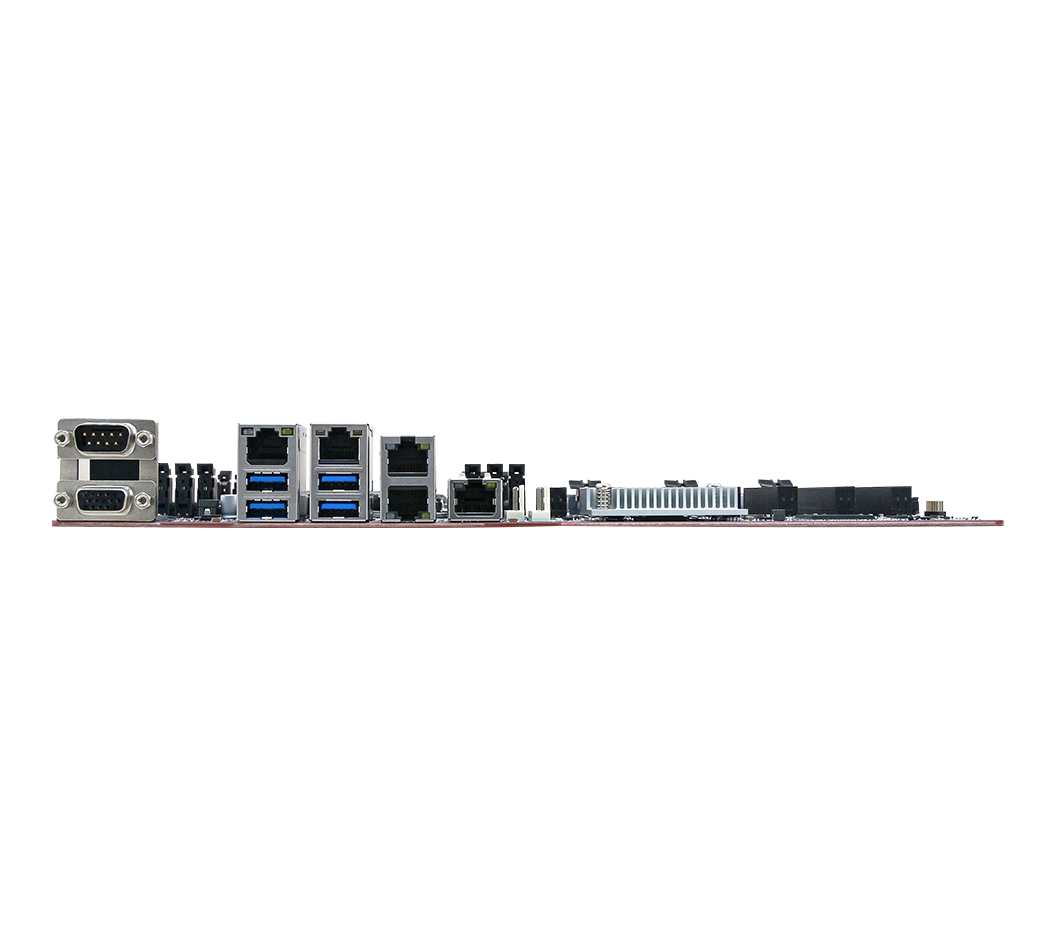

USB

4 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port

RJ-45

5 x RJ45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shared with IPMI access
LAN2 port for 2.5GbE
LAN3 and 4 ports for 10GbE

VGA

1 x VGA port

Graphic Chipset

AST2600 BMC controller

Resolution

1 x VGA port
VGA: 1920 x 1200 @ 60Hz 32bpp

Expansion

3 x PCIe Gen5 x16 slots and 4 x PCIe Gen5 x8 slots
Slot 1, PCIe 5.0 x8
Slot 2, PCIe 5.0 x16
Slot 3, PCIe 5.0 x8
Slot 4, PCIe 5.0 x16
Slot 5, PCIe 5.0 x8
Slot 6, PCIe 5.0 x16
Slot 7, PCIe 5.0 x8 (Slot 7 is the slot closest to CPU)

M.2

2 x M.2 M-Key PCIe 5.0 x4 NVMe SSD/SATA ,2260/2280/22110 form factor

USB

2 x Internal USB 3.2 Gen1 ports

SATA

4 x SATA III
(1 x Mini-SAS HD 4i (for 4 xSATA or 1 x4 NVMe interface)

Serial

1 x Internal RS232 port

CMOS Battery

1 x Horizontal Socket Type CMOS Battery Holder with CR2450

LAN Chipset

1 x Intel I210AT 1GbE controller
1 x Intel I226-LM 2.5GbE controller
1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

5 x RJ45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shared with IPMI access
LAN2 port for 2.5GbE
LAN3 and 4 ports for 10GbE

Operating Temp.

0 ~ 45°C (32 ~ 113°F)to support up to 225W TDP CPU

Storage Temp.

-40 ~ 85°C

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.97KG

Power Connector

1 x Std. 24 Pin ATX connector
3 x 8 Pin SSI 12V connectors

Dimension (L x W)

12" x 9.6" (304.8mm x 243.84mm), PCB thickness is 2.0mm

OS

Windows Server 2019 bare-metal support (KB5017379) & Hyper-V support (KB5018419)
Windows Server 2022.
Ubuntu 20.04 LTS & 22.04 LTS or later
Red Hat Enterprise Linux (RHEL) 9.0 or later

Ordering Information

HPM-SIEUAA-A1R
ATX AMD SP6 Socket 4th Gen./X550 6xDDR5/3xPCIex16/2x10GbE/1x1GbE/1x2.5GbE/6xUSB3/4xSATA3
HPM-SIEUAL-A1R
ATX AMD SP6 Socket 4th Gen. 6xDDR5/3xPCIex16/1x1GbE/1x2.5GbE/6xUSB3/4xSATA3
