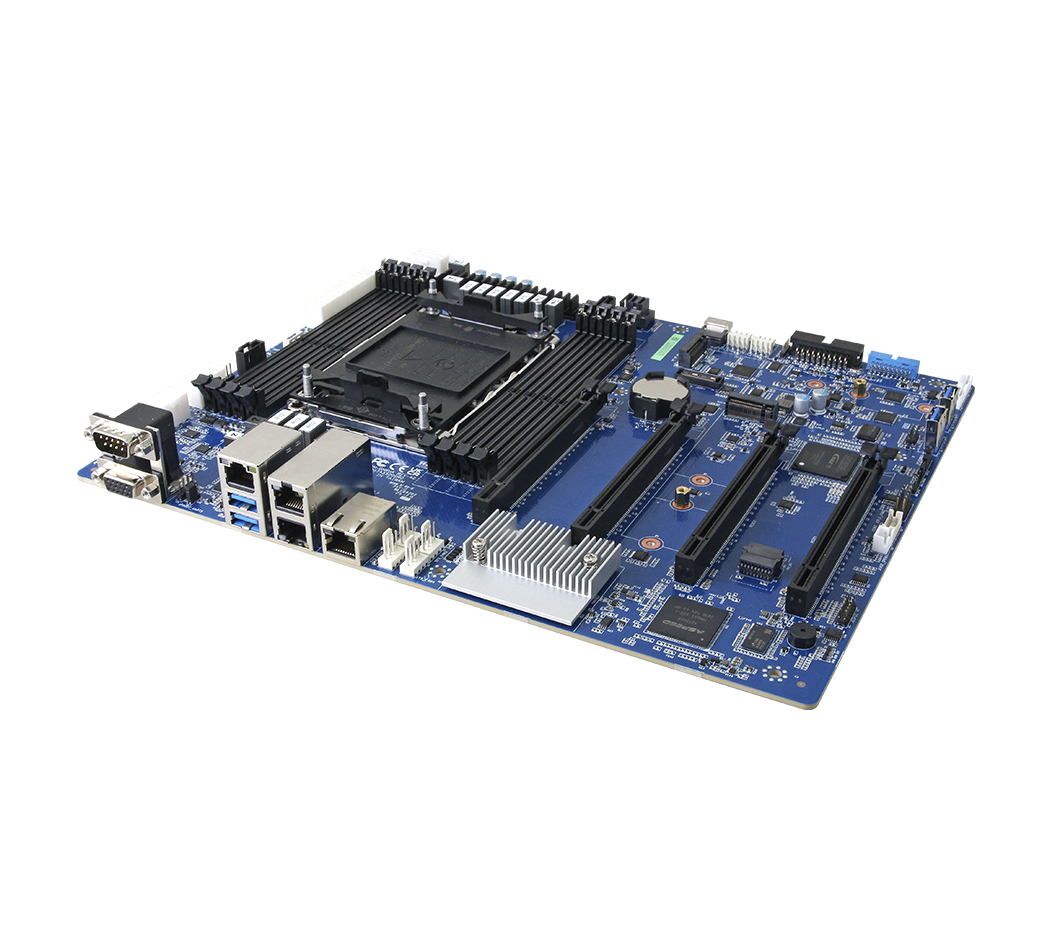

HPM-GNRUA
Single Intel®Xeon® 6 Processor ATX Server Board and IPMI2.0. Processor supports up to 350W TDP
FEATURE
Intel LGA4710 Socket supports Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W)
8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM up to 2TB
TPM 2.0 onboard
IPMI 2.0 with AST 2600 BMC controller onboard.
1 x Intel I210AT 1GbE controller
1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports
5 x SATA III(1 x MiniSAS HD 4i (for 4x SATA Only) & 1 x 7 pin SATA connector)
1 x RS232 port
2 x USB 3.2 Gen1 ports at Edge I/O
2 x M.2 M-Key slots PCIe 5.0 x4 NVMe SSD 2260/2280/22110 form factor
12” x9.6” (304.8mm x 243.84mm), PCB thickness is 2.59 mm
Specification
Download
Related Information
System Information
Processor
Intel LGA4710 Socket supports Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W )
System Memory
8 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 2TB
Watchdog Timer
System reset event 0 ~ 6553 seconds
BIOS
AMI UEFI BIOS
H/W Status Monitor
CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection
TPM
TPM 2.0 onboard
IPMI
IPMI 2.0 with AST 2600 BMC controller onboard

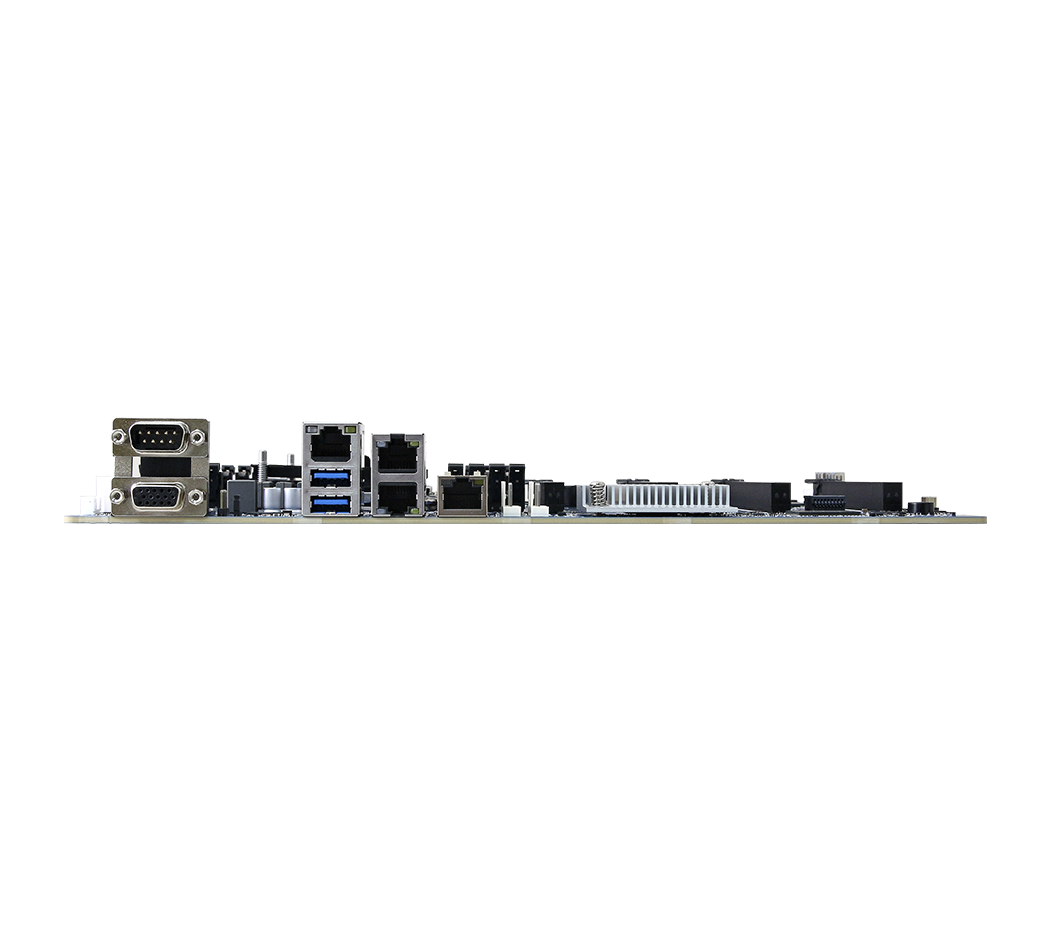

Rear I/O
USB
2 x USB 3.2 Gen1 ports
COM Port
1 x RS232 port
RJ-45
4 x RJ45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shared with IPMI access
LAN2 and 3 ports for 10GbE
VGA
1 x VGA port
Display
Graphic Chipset
AST2600 BMC controller
Resolution
1 x VGA port
VGA: 1920 x 1200 @ 60Hz 32bpp
Expansion
Expansion
4 x PCIe Gen5 x16 slots
Slot 1, PCIe Gen5 x16
Slot 2, NA
Slot 3, PCIe Gen5 x16
Slot 4, NA
Slot 5, PCIe Gen5 x16
Slot 6, NA
Slot 7, PCIe Gen5 x16(This Slot is closest to the CPU)
Storage
M.2
2 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU 2260/2280/22110 form factor
I/O
USB
4 x Internal USB 3.2 Gen1 ports
SATA
5 x SATA III
(1 x Mini-SAS HD 4i (for 4 xSATA only) & 1 x 7pin SATA connector)
Serial
1 x Internal RS232 port
Other
1 x Slim SAS 4i (SFF-8654) connector
CMOS Battery
1 x Horizontal Socket Type CMOS Battery Holder with CR2450
Ethernet
LAN Chipset
1 x Intel I210AT 1GbE controller
1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports
LAN Port
4 x RJ45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shared with IPMI access
LAN2 and 3 ports for 10GbE
Mechanical & Environmental
Operating Temp.
0 °C to 60 °C (without Intel E610-XAT2)
0 °C to 55 °C (with Intel E610-XAT2)
Storage Temp.
-40 °C to 85 °C
Operating Humidity
40°C 95% non-condensing
Dimension (L x W)
12” x9.6” (304.8mm x 243.84mm) , PCB thickness is 2.59mm
Software Support
OS
Windows 11 SAC and LTSC
Windows Server 2025
Ubuntu
Red Hat Enterprise Linux (RHEL)
Ordering Information
Ordering Information
HPM-GNRUAA-A1R
ATX 1xLGA4710 Intel Xeon6/E610
8xDDR5/4xPCIex16/2x10GbE/1x1GbE/6xUSB3/5xSATA3
HPM-GNRUAL-A1R
ATX 1xLGA4710 Intel Xeon6/
8xDDR5/4xPCIex16/1x1GbE/6xUSB3/5xSATA3
