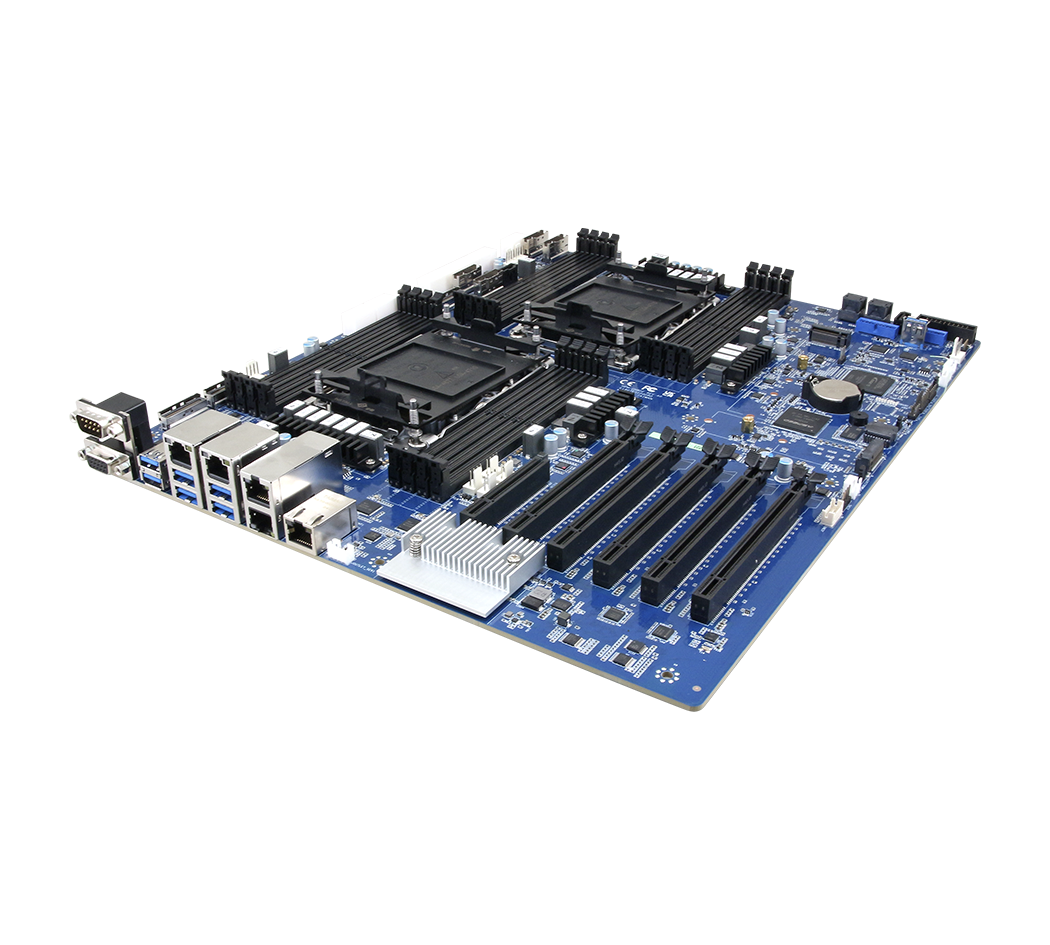

Processor

Dual Intel LGA4710 Sockets support Intel® Xeon® 6 6500P & 6700P series Processor (Max. TDP at 350W each)

System Memory

16 x DDR5 6400 MHz RDIMM & 8000 MHz MRDIMM Up to 4TB

Watchdog Timer

System reset event 0 ~ 6553 seconds

BIOS

AMI UEFI BIOS

H/W Status Monitor

CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

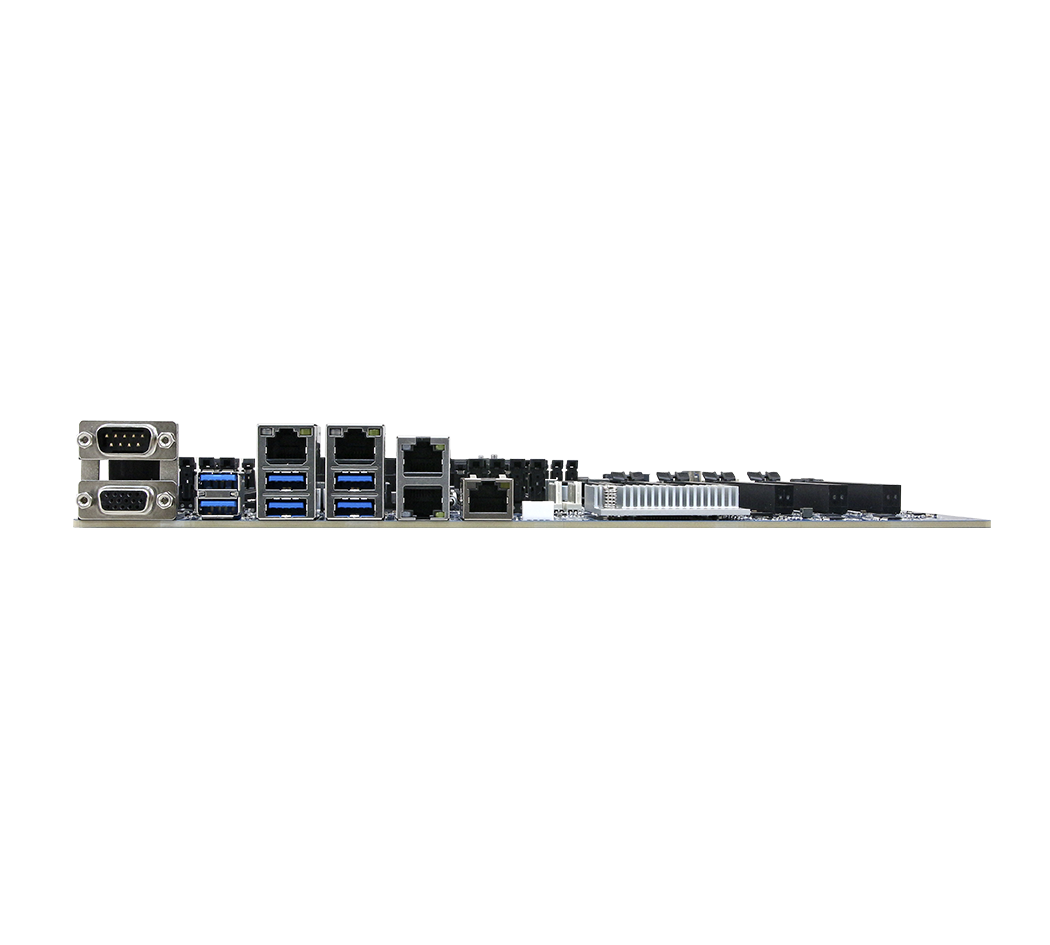

USB

6 x USB 3.2 Gen2 ports

COM Port

1 x RS232 port

RJ-45

5 x RJ45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shared with IPMI access
LAN2 port for 1GbE
LAN3 and 4 ports for 10GbE

VGA

1 x VGA port

Graphic Chipset

AST2600 BMC controller

Resolution

1 x VGA port
VGA: 1920 x 1200 @ 60Hz 32bpp

Expansion

5 x PCIe Gen5 x16 slots & 1 x PCIe Gen5 x8 slot
Slot 1, PCIe 5.0 x16 from 1st CPU
Slot 2, PCIe 5.0 x16 from 2nd CPU
Slot 3, PCIe 5.0 x16 from 2nd CPU
Slot 4, PCIe 5.0 x16 from 2nd CPU
Slot 5, PCIe 5.0 x16 from 2nd CPU
Slot 6, PCIe 5.0 x8 from 1st CPU(Slot 7 is the slot closest to CPU)

M.2

1 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU 2242/2260/2280/22110 form factor
1 x M.2 M-Key slots to support 1 x PCIe 5.0 x4 NVMe SSD from 1st CPU 2242/2260/2280 form factor

USB

4 x Internal USB 3.2 Gen1 ports
1 x Internal USB 3.2 Gen1 type A receptacle

SATA

9 x SATA III
(2 x Mini-SAS HD 4i (for 4 xSATA only)
& 1 x 7pin SATA connector)

Serial

1 x Internal RS232 port
*(S/W disable, only supported Ubuntu 24.02 if enable function)

Other

4 x Slim SAS 8i (SFF-8654) connectors (from 1st CPU)
3 x MCIO x8 connectors (SFF-TA-1016) (from 2nd CPU)

CMOS Battery

1 x Horizontal Socket Type CMOS Battery Holder with CR2450

LAN Chipset

2 x Intel I210AT 1GbE controllers
1 x Intel E610-XAT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

5 x RJ45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shared with IPMI access
LAN2 port for 1GbE
LAN3 and 4 ports for 10GbE

Operating Temp.

0 ~ 50°C (32 ~ 122°F)to support up to 350W TDP CPU
0 ~ 50°C (32 ~ 122°F)to support up to 270W TDP CPU

Storage Temp.

-40 °C to 85 °C

Operating Humidity

40°C 95% non-condensing

Power Connector

1 x Std. 24 Pin ATX connector
4 x 8 Pin SSI 12V connectors

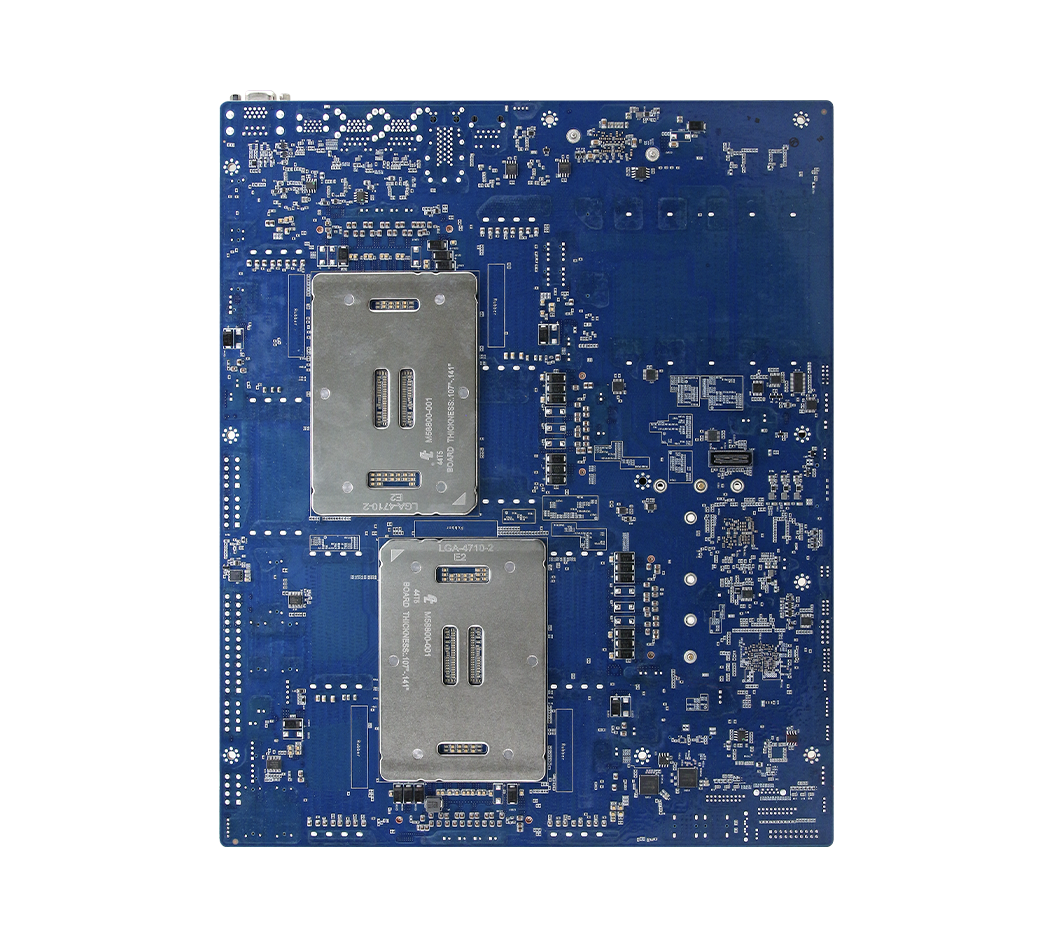

Dimension (L x W)

12” x 13.974” (304.8mm x354.94mm), PCB thickness is 2.8mm

OS

Windows 11 SAC and LTSC
Windows Server 2025
Ubuntu
Red Hat Enterprise Linux (RHEL)

Ordering Information

HPM-GNRDEA-A1R
EATX 2xLGA4710 Intel Xeon6/E610
16xDDR5/5xPCIex16/2x10GbE/2x1GbE/11xUSB3/9xSATA3
HPM-GNRDEL-A1R
EATX 2xLGA4710 Intel Xeon6/
16xDDR5/5xPCIex16/2x1GbE/11xUSB3/9xSATA3
