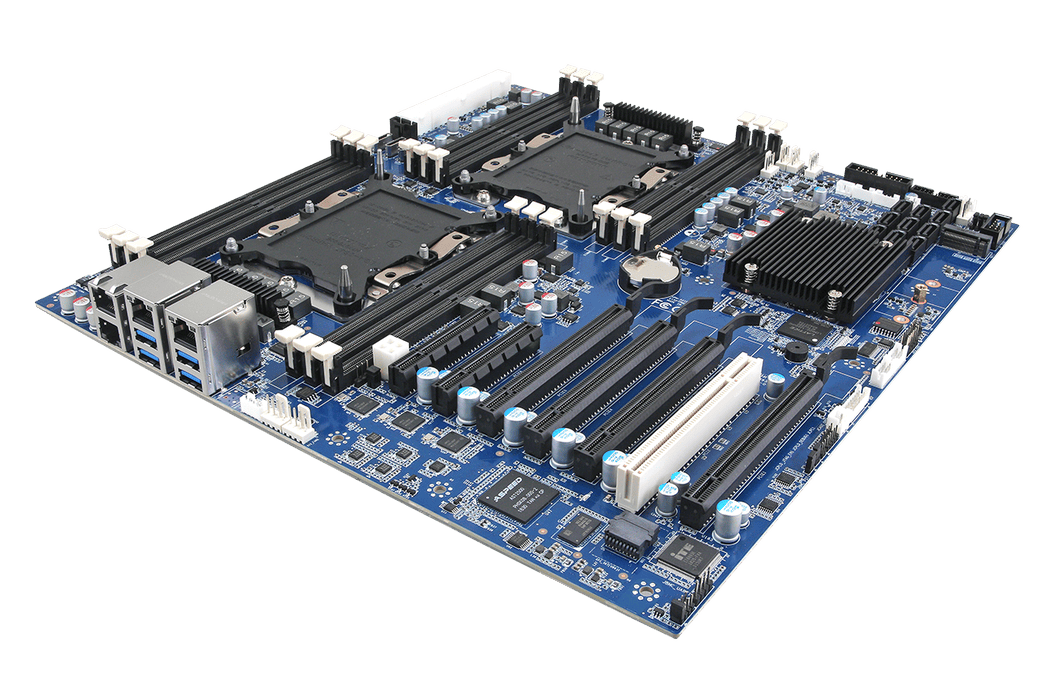

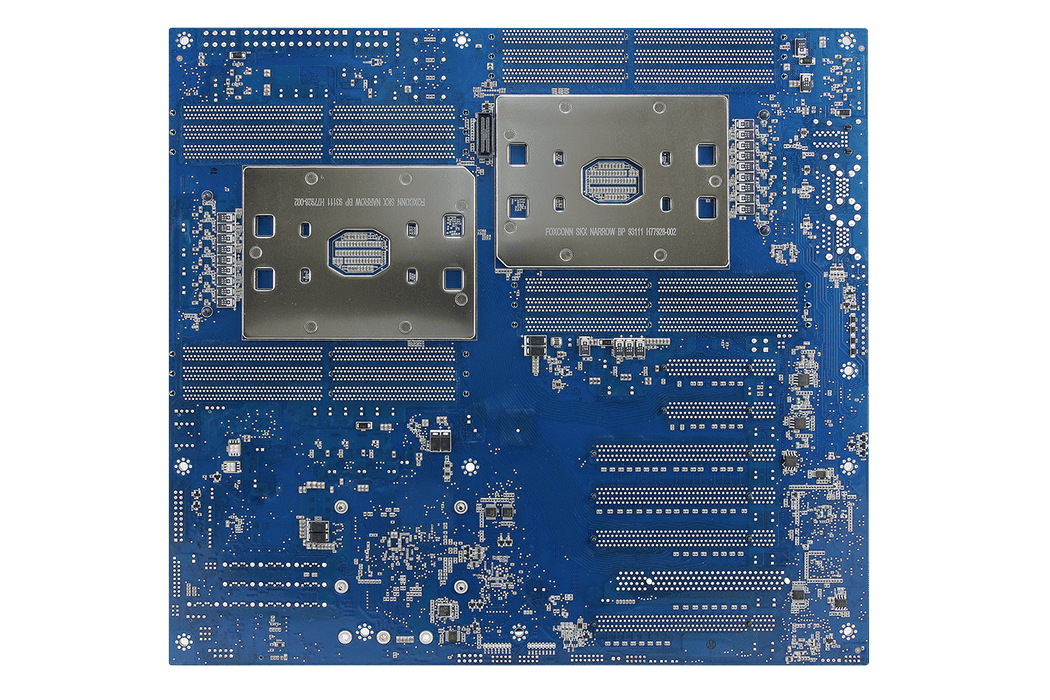

HPM-621DE
Dual 1st and 2nd Generation Intel® Xeon® Scalable Processors EATX Server Board with Intel® C621 Chipset and IPMI2.0. Processor supports up to 150W TDP
FEATURE
Dual Intel FCLGA3647 Sockets support 1st and 2nd Generation Intel® Xeon® Scalable Processors (Max. TDP at 150W each)
Intel® C621 Chipset
12 x DDR4 2933/ 2666/ 2400/ 2133 MHz RDIMM/ LRDIMM Up to 1.5TB
TPM 2.0 onboard
IPMI 2.0 with AST 2500 BMC controller onboard
4 x Intel I210AT 1GbE controllers
10 x SATA III support RAID 0,1,5,10
2 x Internal RS232 ports
4 x USB 3.2 Gen1 ports at Edge I/O
2 x Internal USB 2.0 ports & 2 x internal USB 3.2 Gen1 ports
1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280 form factor
12” x 13” (304.8mm x 330.2mm), PCB thickness is 2.0mm
Specification
Download
System Information
Processor
Dual Intel FCLGA3647 Sockets support 1st and 2nd Generation Intel® Xeon® Scalable Processor (Max. TDP at 150W each)
Platform Controller Hub
Intel® C621 Chipset
System Memory
12 x DDR4 2933/ 2666/ 2400/ 2133 MHz RDIMM/ LRDIMM up to 1.5TB
Watchdog Timer
System reset event 0 ~ 6553 seconds
BIOS
AMI UEFI BIOS
H/W Status Monitor
CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection
TPM
TPM 2.0 onboard
IPMI
IPMI 2.0 with AST 2500 BMC controller onboard

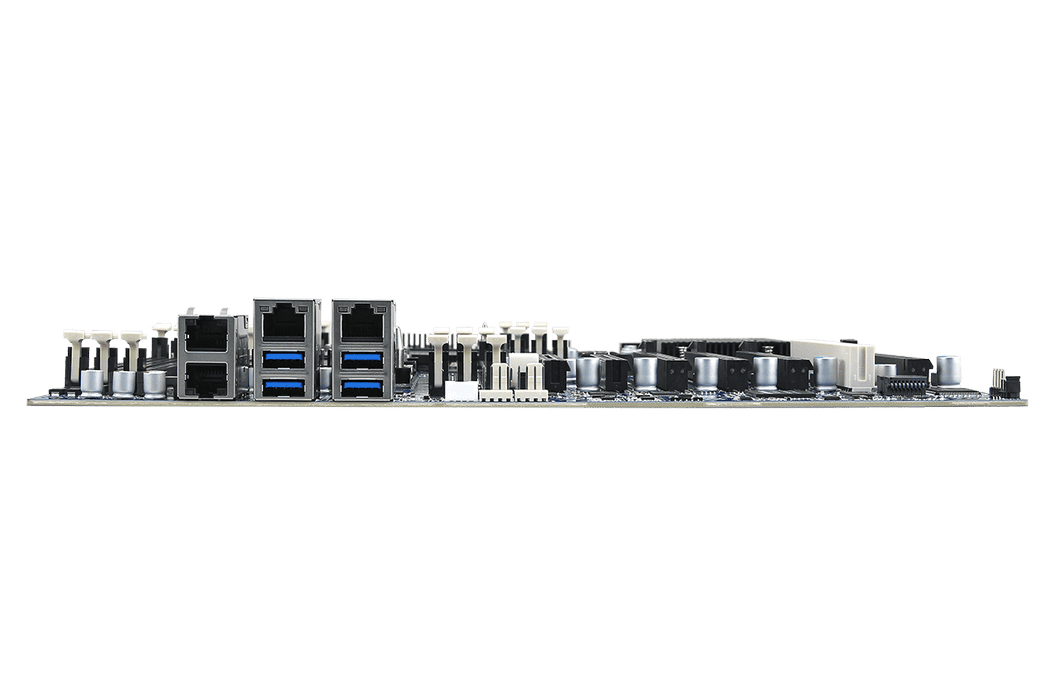

Rear I/O
USB
4 x USB 3.2 Gen1 ports
RJ-45
4 x RJ45 (LAN1 shares IPMI port)
Display
Graphic Chipset
AST 2500 BMC controller
Resolution
1 x VGA port
VGA: 1920 x 1200 @ 60Hz 32bpp
Expansion
Expansion
4 x PCIe Gen3 x16 slots, 2 x PCIe Gen3 x8 slots, 1 x PCI 3.0 slot
Slot 1, PCIe 3.0 x16 from CPU1
Slot 2, PCI 3.0
Slot 3, PCIe 3.0 x16 from CPU1
Slot 4, PCIe 3.0 x16 from CPU2
Slot 5, PCIe 3.0 x16 from CPU2
Slot 6, PCIe 3.0 x8 from CPU1
Slot 7, PCIe 3.0 x8 from CPU1 (Slot 7 is the slot closest to CPU)
Storage
M.2
1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280 form factor
I/O
USB
2 x Internal USB 2.0 ports
2 x Internal USB 3.2 Gen1 ports
SATA
10 x SATA III Support RAID 0,1,5,10
Serial
2 x Internal RS232 ports
VGA
1 x Internal VGA port
Other
4 x OCuLink ports from CPU 2 for U.2 SSD
CMOS Battery
1 x Horizontal Socket Type CMOS Battery Holder with CR2450
Ethernet
LAN Chipset
4 x Intel I210AT 1GbE controllers
LAN Port
4 x RJ45 (LAN1 shares IPMI port)
Mechanical & Environmental
Operating Temp.
0 ~ 60°C (32 ~ 140°F)
Storage Temp.
-40 ~ 85°C
Operating Humidity
40°C @95% Relative Humidity, Non-condensing
Weight
1.8KG
Power Connector
1 x Std. 24 Pin ATX connector
2 x 8 Pin SSI 12V connectors
Dimension (L x W)
12" x 13" (304.8mm x 330.2mm), PCB thickness is 2.0mm
Software Support
OS
Windows 10 IoT Enterprise
Windows Server 2016
Windows Server 2019
Ubuntu* 18.04 LTS or Later
Ordering Information
Ordering Information
HPM-621DEA-A1R
EATX 2xLGA3647 Intel 1st/2nd Gen. C621 w/12xDDR4/4xPCIex16/4x1GbE/6xUSB3.1/10xSATA3.0
