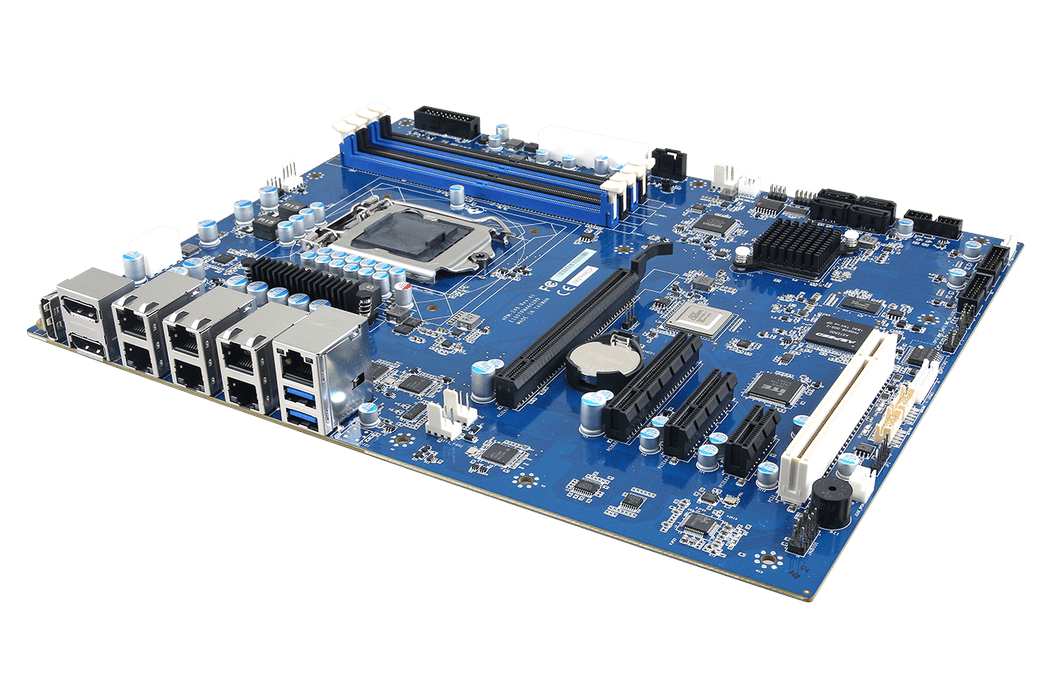

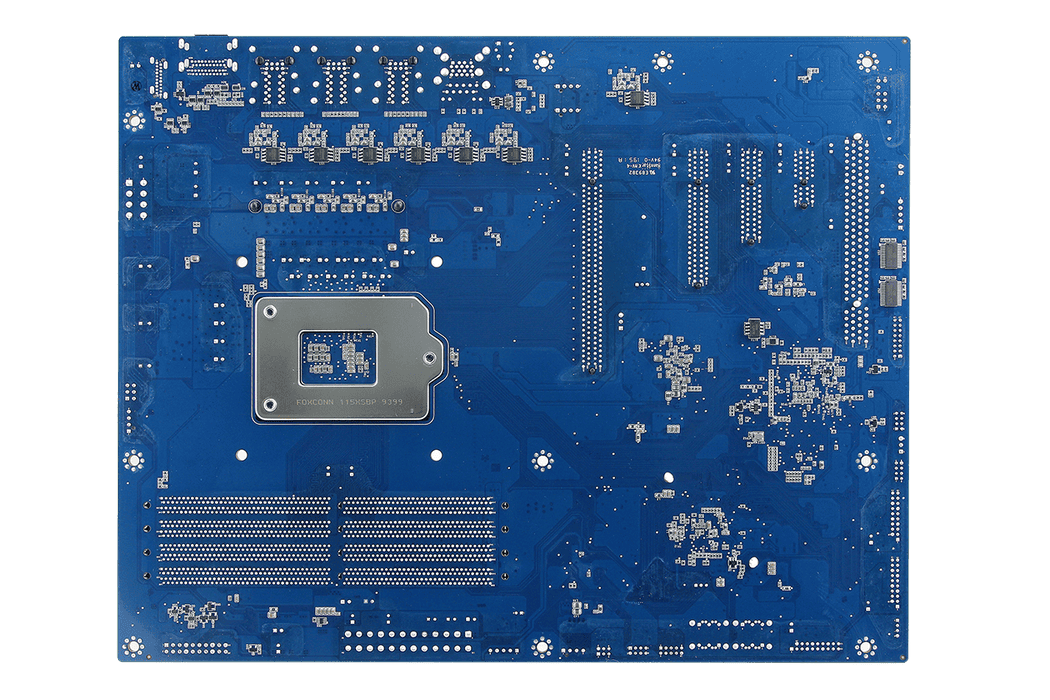

HPM-246UA
8/9th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron®/Xeon® E Processor ATX Server Board with Intel® C246 Chipset and IPMI2.0. Processor supports up to 95W TDP
FEATURE
Intel LGA1151 Socket supports 8th/9th Generation Intel® Core i7/i5/i3/Pentium/Celeron/Xeon E Processors(Max. TDP at 95W)
Intel® C246 Chipset
4 x DDR4 2666MHz ECC and Non-ECC DIMM support up to 128GB (ECC memory supported by specific CPU SKUs)
TPM 2.0 onboard
IPMI 2.0 with AST 2500 BMC controller onboard
7 x Intel I210AT 1GbE controllers
4 x SATA III
2 x Internal RS232 ports
2 x USB 3.2 Gen2 ports at Edge I/O
6 x Internal USB 3.2 Gen1 ports
12" x 9.6" (304.8mm x 243.84mm), PCB thickness is 2.0mm
Specification
Download
System Information
Processor
Intel LGA1151 Socket supports 8th/9th Generation Intel® Core i7/i5/i3/Pentium/Celeron/Xeon E Processor (Max. TDP at 95W)
Platform Controller Hub
Intel® C246 Chipset
System Memory
4 x DDR4 2666MHz ECC and Non-ECC DIMM support up to 128GB (ECC memory supported by specific CPU SKUs)
I/O Chipset
Nuvoton NCT6106D
Watchdog Timer
System reset event 5~255 seconds/5~255 minutes
BIOS
AMI UEFI BIOS
H/W Status Monitor
CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection
TPM
TPM 2.0 onboard
IPMI
IPMI 2.0 with AST 2500 BMC controller onboard

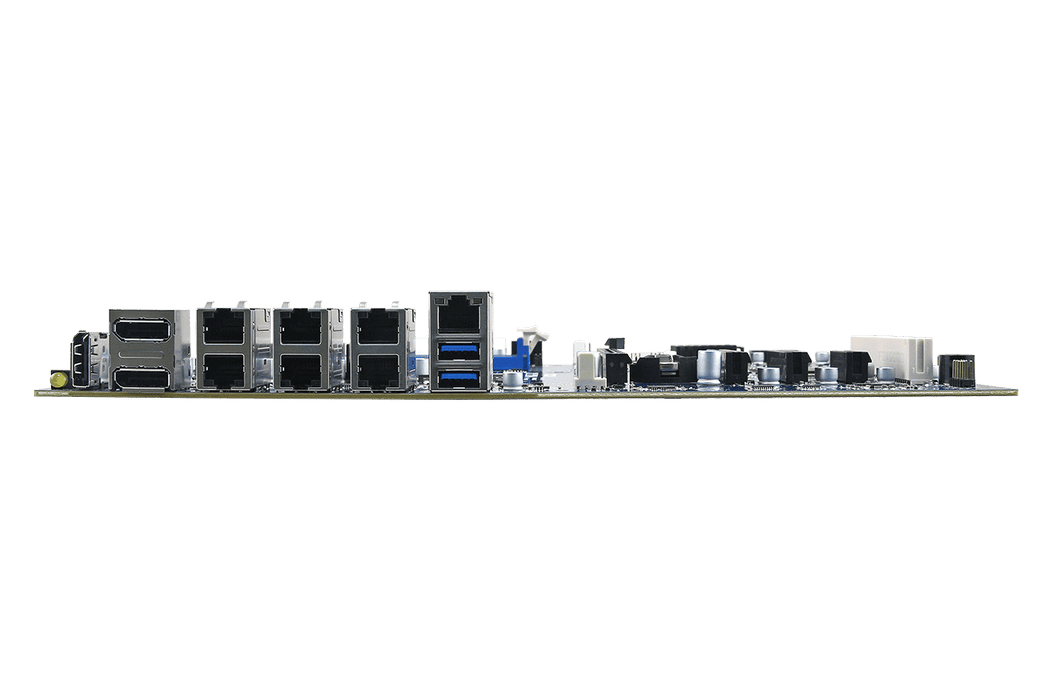

Rear I/O
USB
2 x USB 3.2 Gen2 ports
DP
3 x DP++ ports
RJ-45
7 x RJ45 (LAN1 shares IPMI port)
Display
Graphic Chipset
Intel 8th/9th Generation CPU integrated
AST 2500 BMC controller
Resolution
3 x DP++ ports
DP: 4096 x 2304 @ 60Hz HDMI : 4096 x 2160 @ 30Hz
1 x VGA port
VGA: 1920 x 1200 @ 60Hz 32bpp
Expansion
Expansion
1 x PCIe Gen3 x16 slot, 1 x PCIe Gen2 x8 slot, 1 x PCIe Gen3 x4 slot, 1 x PCIe Gen3 x1 slot, 1 x PCI 3.0 slot
Slot 1, PCI 3.0
Slot 2, PCIe Gen 3.0 x 1
Slot 3, PCIe Gen 3.0 x 4
Slot 4, PCIe Gen 2.0 x 8
Slot 5, PCIe Gen 3.0 x 16 (Slot 5 is the slot closest to CPU)
I/O
USB
6 x Internal USB 3.2 Gen1 ports
SATA
4 x SATA III
Serial
2 x Internal RS232 ports
VGA
1 x Internal VGA port
CMOS Battery
1 x Horizontal Socket Type CMOS Battery Holder with CR2450
Ethernet
LAN Chipset
7 x Intel I210AT 1GbE controllers
LAN Port
7 x RJ45 (LAN1 shares IPMI port)
Mechanical & Environmental
Operating Temp.
0 ~ 60°C (32 ~ 140°F)
Storage Temp.
-25 ~ 70°C
Operating Humidity
40°C @95% Relative Humidity, Non-condensing
Weight
0.7KG
Power Connector
1 x Std. 24 Pin ATX connector
1 x 8 Pin SSI 12V connector
Dimension (L x W)
12" x 9.6" (304.8mm x 243.84mm), PCB thickness is 2.0mm
Software Support
OS
Windows 10 IoT Enterprise
Windows Server 2016
Windows Server 2019
Ordering Information
Ordering Information
HPM-246UAA-A1R
ATX LGA1151 Intel 8th/9th Gen. C246 w/4xDDR4/1xPCIex16/7x1GbE/8xUSB3.2/4xSATA3.0
HPM-246UAL-A1R
ATX LGA1151 Intel 8th/9th Gen. C246 Lite version w/4xDDR4/1xPCIex16/3x1GbE/8xUSB3.2/4xSATA3.0
