Processor

Dual Intel FCLGA4677 Sockets support 4th Generation Intel® Xeon® Scalable Processors (Max. TDP at 270W each)

Platform Controller Hub

Intel® C741 Chipset

System Memory

12 x DDR5 4800/ 4400 MHz RDIMM up to 3TB

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2600 BMC controller onboard

SBC

HPM-SRSDE

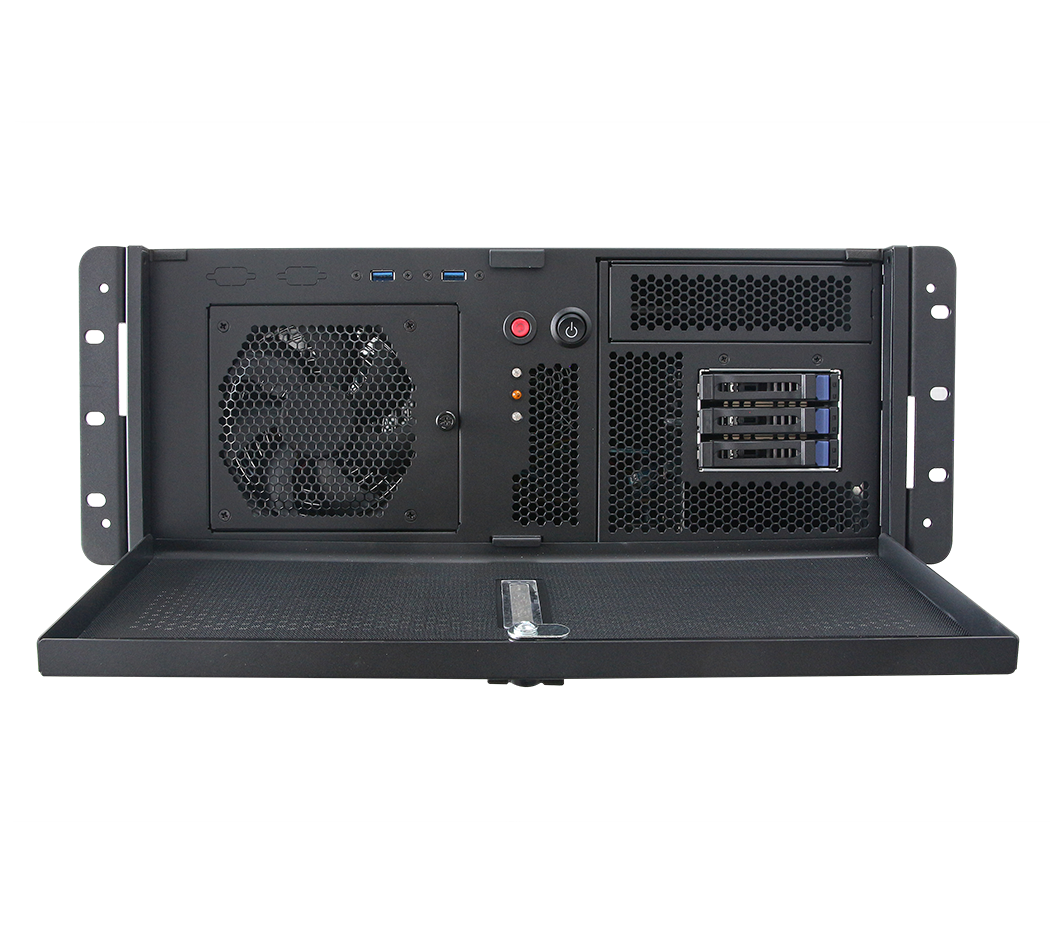

USB

2 x USB 3.2 Gen1 ports

Power Button

1 x Power button

Reset Button

1 x Reset button

LED Indicator

1 x Power status indicator
1 x Disk activity indicator
1 x Network activity indicator

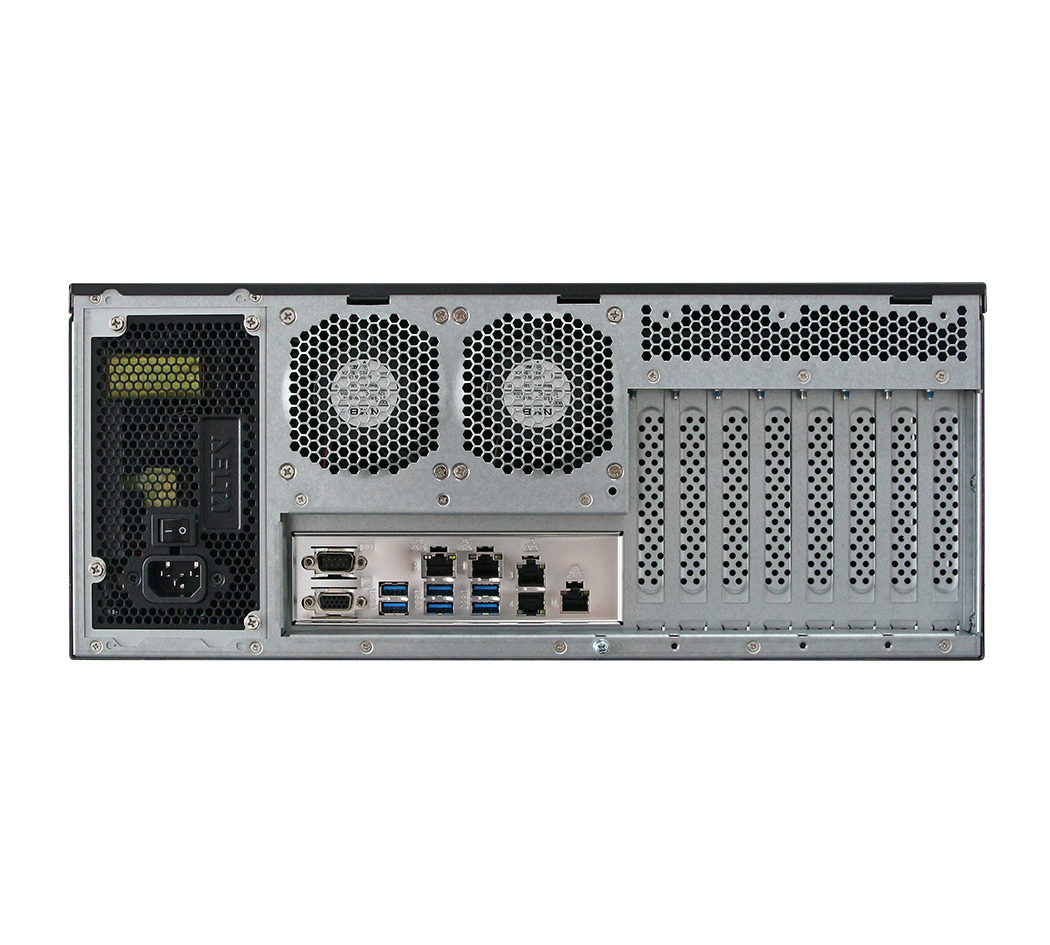

USB

6 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port

VGA

1 x VGA port

RJ-45

5 x RJ45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shares with IPMI access
LAN2 port for 2.5GbE
LAN3 and 4 ports for 10GbE

Graphic Chipset

AST 2600 BMC controller

Resolution

1 x VGA port
VGA: 1920 x 1200 @ 60Hz 32bpp

Power Supply Unit

1 x 1300W PS2 ATX PSU (Default)
1 x 1600W CRPS (Option)

Expansion

7 x PCIe Gen5 x16 slots
Slot 1, PCIe 5.0 x16 from 2nd CPU
Slot 2, PCIe 5.0 x16 from 1st CPU
Slot 3, PCIe 5.0 x16 from 2nd CPU
Slot 4, PCIe 5.0 x16 from 1st CPU
Slot 5, PCIe 5.0 x16 from 2nd CPU
Slot 6, PCIe 5.0 x16 from 1st CPU
Slot 7, PCIe 5.0 x16 from 2nd CPU (Slot 7 is the slot closest to CPU)

M.2

1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor

2.5 Drive Bay

3 x Front accessible 2.5" storage bays

LAN Chipset

1 x Intel I210AT 1GbE controller
1 x Intel I226-LM 2.5GbE controller
1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports

LAN Port

5 x RJ45
MGMT port for dedicated IPMI access only
LAN1 port for 1GbE shares with IPMI access
LAN2 port for 2.5GbE
LAN3 and 4 ports for 10GbE

Operating Temp.

0 ~ 35°C (L6 system with 1300W ATX PSU)
0 ~ 40°C (L6 system with 1600W CRPS)

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab
70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

Operating Humidity

35°C @95% Relative Humidity, Non-condensing

Weight

25.8KG

Dimension (W x L x D)

19" 4U Chassis
430mm(W) x 174.8mm(H) x 650mm(D)
482.6mm(W) x 174.8mm(H) x 650mm(D) with ear mount

OS

Windows 10 IoT Enterprise LTSC 2021
Windows 11
Windows Server IoT 2019 with VT-d disabled
Windows Server IoT 2022
Ubuntu 21.10, 22.04 LTS or later
Red Hat Enterprise Linux (RHEL) 8.2 and later

Ordering Information

HPS-SRSD4AD-A1R
L6 19" 4U Rackmount w/HPM-SRSDEA/1300W/1x5.25"/3x2.5"
HPS-SRSD4AU-A1R
L6 19" 4U Rackmount w/HPM-SRSDEA/1600W/1x5.25"/3x2.5"
