HPS-ERSU2A
Single 4th/5th Generation Intel® Xeon® Scalable Processor with Intel® C741 Chipset, 500W, 5x RJ-45, IPMI2.0 Workstation
FEATURE
19" 2U Chassis
432.4mm(W) x 88mm(H) x 661mm(D)
1 x 500W ATX PSU
3 x Internal 2.5" storage bays
Intel LGA4677 Socket supports 4th/5th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W)
Intel® C741 Chipset
6 x DDR5 5600 MHz RDIMM up to 1.5TB
IPMI 2.0 with AST 2600 BMC controller onboard
1 x Intel I210AT 1GbE controller
1 x Intel I226-LM 2.5GbE controller
1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports
Specification
Download
System Information
Processor
Intel LGA4677 Socket supports 4th/5th Generation Intel® Xeon® Scalable Processor (Max. TDP at 270W)
Front I/O
USB
2 x USB 3.2 Gen1 ports

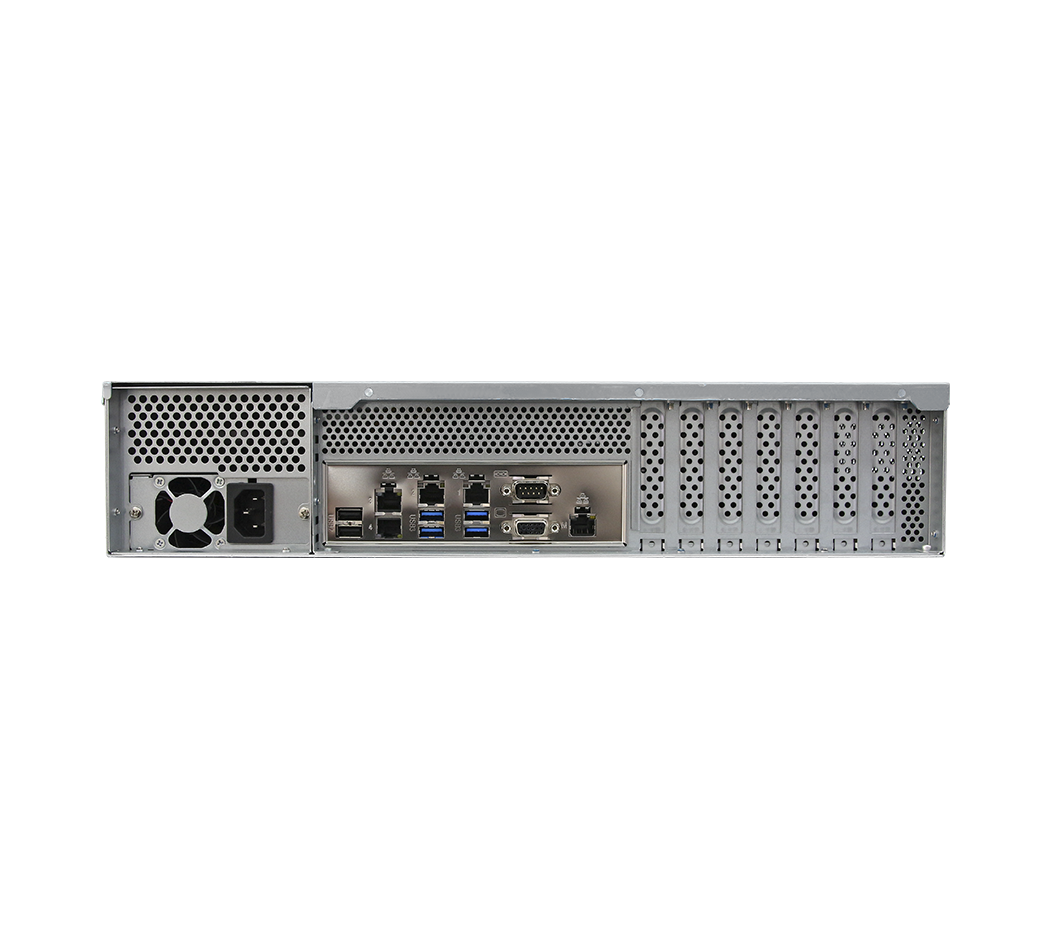

Rear I/O
USB
4 x USB 3.2 Gen1 ports
2 x USB 2.0 type A ports
Display
Graphic Chipset
AST 2600 BMC controller
Power Requirement
Power Supply Unit
1 x 500W ATX PSU
Expansion
Expansion
4 x PCIe Gen5 x16 slots and 3 x PCIe Gen5 x4 slots
Slot 1, PCIe 5.0 x16
Slot 2, PCIe 5.0 x4
Slot 3, PCIe 5.0 x16
Slot 4, PCIe 5.0 x4
Slot 5, PCIe 5.0 x16
Slot 6, PCIe 5.0 x4
Slot 7, PCIe 5.0 x16 (Slot 7 is the slot closest to CPU)
Storage
M.2
1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor
Ethernet
LAN Chipset
1 x Intel I210AT 1GbE controller
1 x Intel I226-LM 2.5GbE controller
1 x Intel X550AT2 10GbE controller supports 2 x 10GbE Ethernet ports
Mechanical & Environmental
Operating Temp.
0 ~ 35°C (L6 system)
Software Support
OS
Windows 10 IoT Enterprise LTSC 2021
Windows 11
Windows Server IoT 2019 with VT-d disabled
Windows Server IoT 2022
Ubuntu 21.10, 22.04 LTS or later
Red Hat Enterprise Linux (RHEL) 8.2 and later
Ordering Information
Ordering Information
HPS-ERSU2A5-A1R
L6 19" 2U Rackmount w/HPM-ERSUAA/500W/2x5.25"/3x2.5"
