Processor

Intel FCLGA3647 Socket supports 1st and 2nd Generation Intel® Xeon® Scalable Processors (Max. TDP at 150W)

Platform Controller Hub

Intel® C621 Chipset

System Memory

6 x DDR4 2933/ 2666/ 2400/ 2133 MHz RDIMM/ LRDIMM up to 768GB

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2500 BMC controller onboard

SBC

HPM-621UA

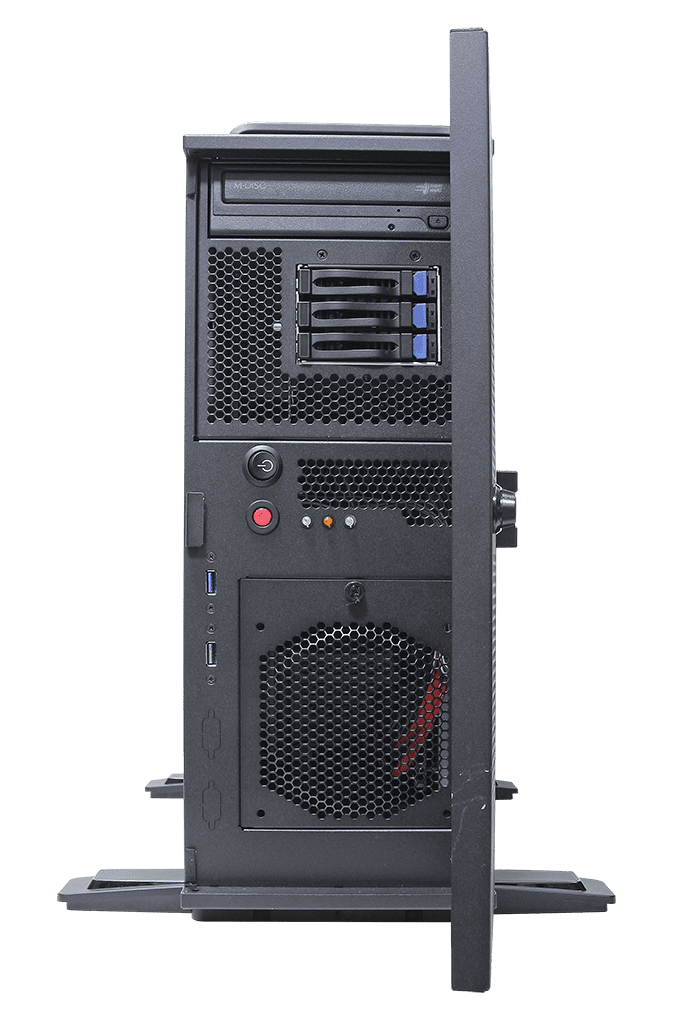

USB

2 x USB 3.2 Gen1 ports

Power Button

1 x Power button

Reset Button

1 x Reset button

LED Indicator

1 x Power status indicator
1 x Disk activity indicator
1 x Network activity indicator

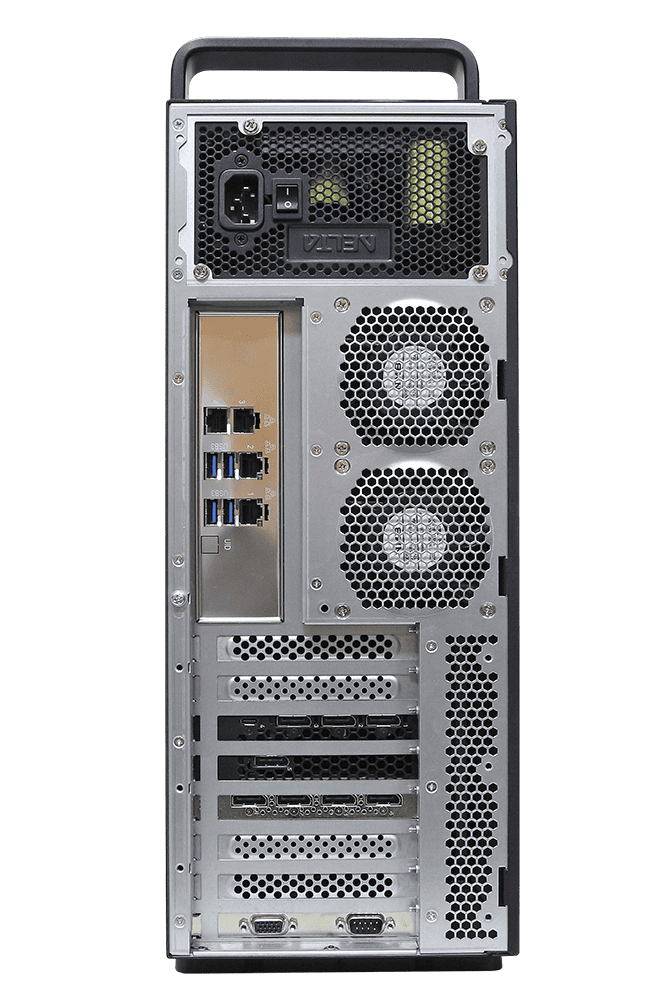

USB

4 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port (Bracket shares with VGA port, RS232 on the top)

VGA

1 x VGA port (Bracket shares with Serial port, VGA on the bottom)

RJ-45

4 x RJ45 (LAN1 shares IPMI port)

Graphic Chipset

AST 2500 BMC controller

Resolution

1 x VGA port
VGA: 1920 x 1200 @ 60Hz 32bpp

Power Supply Unit

1 x 1300W PS2 ATX PSU

Expansion

1 x PCI 3.0 slot, 3 x PCIe Gen3 x16 slots or 6 x PCIe Gen3 x8 slots
Slot 1, PCI 3.0
Slot 2, PCIe 3.0 x8
Slot 3, PCIe 3.0 x16 (x16 will switch to x8 automatically when Slot 2 is used)
Slot 4, PCIe 3.0 x8
Slot 5, PCIe 3.0 x16 (x16 will switch to x8 automatically when Slot 4 is used)
Slot 6, PCIe 3.0 x8
Slot 7, PCIe 3.0 x16 (Slot 7 is the slot closest to CPU, x16 will switch to x8 automatically when Slot 6 is used)

M.2

1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280 form factor

2.5 Drive Bay

3 x Front accessible 2.5" storage bays

LAN Chipset

4 x Intel I210AT 1GbE controllers

LAN Port

4 x RJ45 (LAN1 shares IPMI port)

Operating Temp.

0 ~ 40°C (L6 system)

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab
70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

Operating Humidity

40°C @95% Relative Humidity, Non-condensing

Weight

19.2KG

Dimension (W x L x D)

Tower Chassis
340mm(W) x 488mm(H) x 528mm(D) with external handles & pedestal stand
174.8mm(W) x 430mm(H) x 528mm(D) without external handles & pedestal stand

OS

Windows 10 IoT Enterprise
Windows Server 2016
Windows Server 2019
Ubuntu 18.04 LTS or Later

Ordering Information

HPS-621UTAD-A1R
L6 Tower Workstation w/HPM-621UAA/1300W/1x5.25"/3x2.5"
