Processor

Dual Intel FCLGA3647 Sockets support 1st and 2nd Generation Intel® Xeon® Scalable Processors (Max. TDP at 150W each)

Platform Controller Hub

Intel® C621 Chipset

System Memory

12 x DDR4 2933/ 2666/ 2400/ 2133 MHz RDIMM/ LRDIMM up to 1.5TB

BIOS

AMI UEFI BIOS

Watchdog Timer

System reset event 0 ~ 6553 seconds

H/W Status Monitor

CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection

TPM

TPM 2.0 onboard

IPMI

IPMI 2.0 with AST 2500 BMC controller onboard

SBC

HPM-621DE

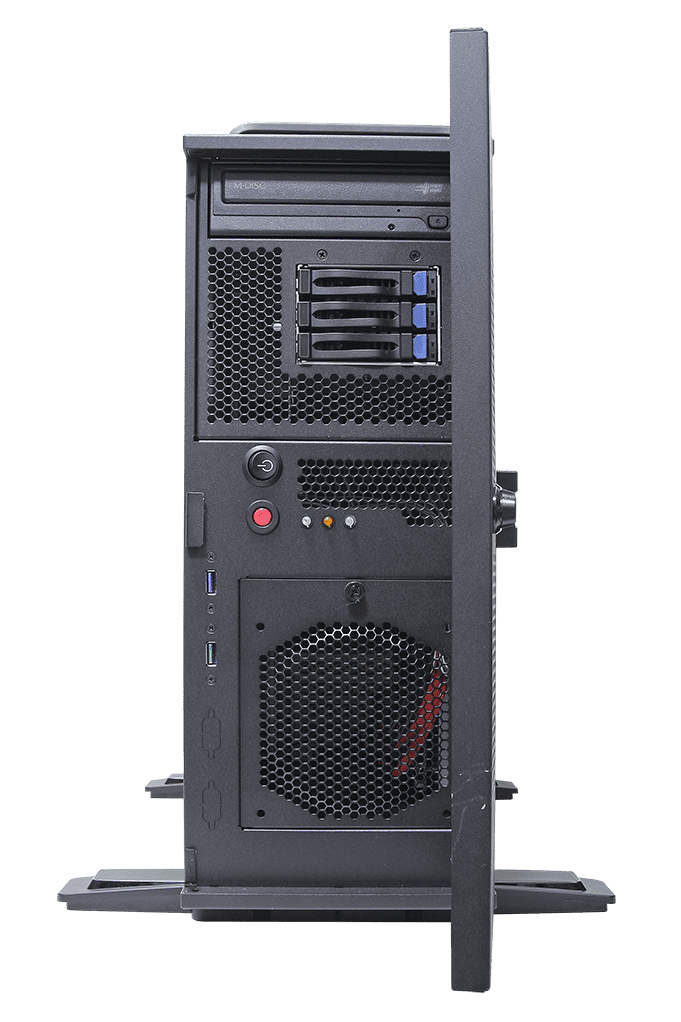

USB

2 x USB 3.2 Gen1 ports

Power Button

1 x Power button

Reset Button

1 x Reset button

LED Indicator

1 x Power status indicator
1 x Disk activity indicator
1 x Network activity indicator

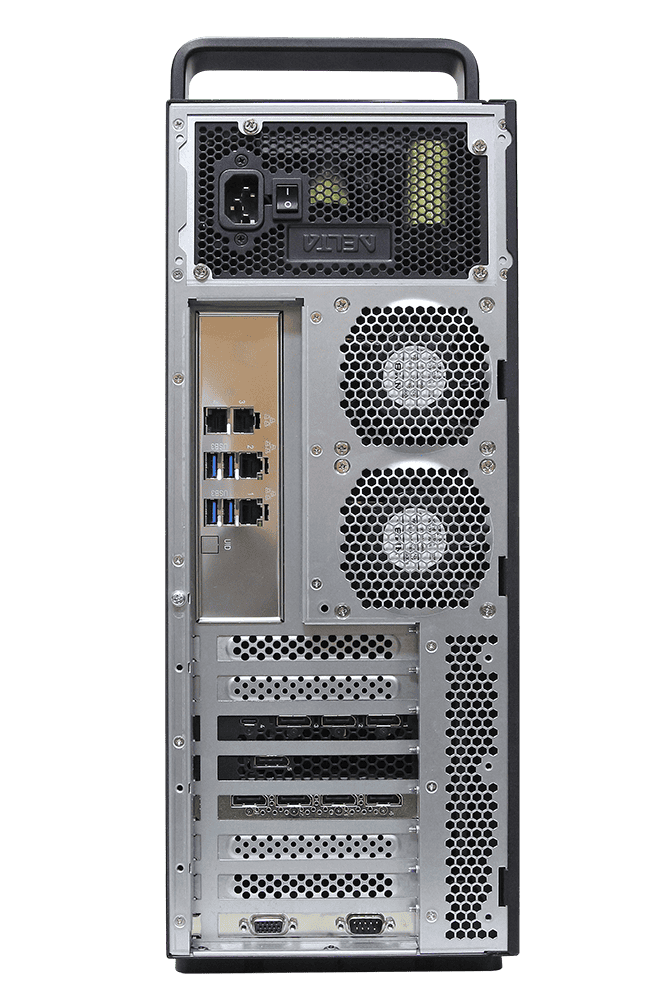

USB

4 x USB 3.2 Gen1 ports

COM Port

1 x RS232 port (Bracket shares with VGA port, RS232 on the top)

VGA

1 x VGA port (Bracket shares with Serial port, VGA on the bottom)

RJ-45

4 x RJ45 (LAN1 shares IPMI port)

Graphic Chipset

AST 2500 BMC controller

Resolution

1 x VGA port
VGA: 1920 x 1200 @ 60Hz 32bpp

Power Supply Unit

1 x 1300W PS2 ATX PSU

Expansion

4 x PCIe Gen3 x16 slots, 2 x PCIe Gen3 x8 slots, 1 x PCI 3.0 slot
Slot 1, PCIe 3.0 x16 from CPU1
Slot 2, PCI 3.0
Slot 3, PCIe 3.0 x16 from CPU1
Slot 4, PCIe 3.0 x16 from CPU2
Slot 5, PCIe 3.0 x16 from CPU2
Slot 6, PCIe 3.0 x8 from CPU1
Slot 7, PCIe 3.0 x8 from CPU1 (Slot 7 is the slot closest to CPU)

M.2

1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280 form factor

2.5 Drive Bay

3 x Front accessible 2.5" storage bays

LAN Chipset

4 x Intel I210AT 1GbE controllers

LAN Port

4 x RJ45 (LAN1 shares IPMI port)

Operating Temp.

0 ~ 40°C (L6 system)

Storage Temp.

-40°C 24hrs IEC60068-2-1 Cold test Test: Ab
70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca

Operating Humidity

40°C @95% Relative Humidity, Non-condensing

Weight

20.8KG

Dimension (W x L x D)

Tower Chassis
340mm(W) x 488mm(H) x 528mm(D) with external handles & pedestal stand
174.8mm(W) x 430mm(H) x 528mm(D) without external handles & pedestal stand

OS

Windows 10 IoT Enterprise
Windows Server 2016
Windows Server 2019
Ubuntu 18.04 LTS or Later

Ordering Information

HPS-621DTAD-A1R
L6 Tower Workstation w/HPM-621DEA/1300W/1x5.25"/3x2.5"
