HPS-246U4A
8/9th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron®/Xeon® E Processor with Intel® C246 Chipset, 500W, 7 x RJ-45, IPMI2.0 Workstation
FEATURE

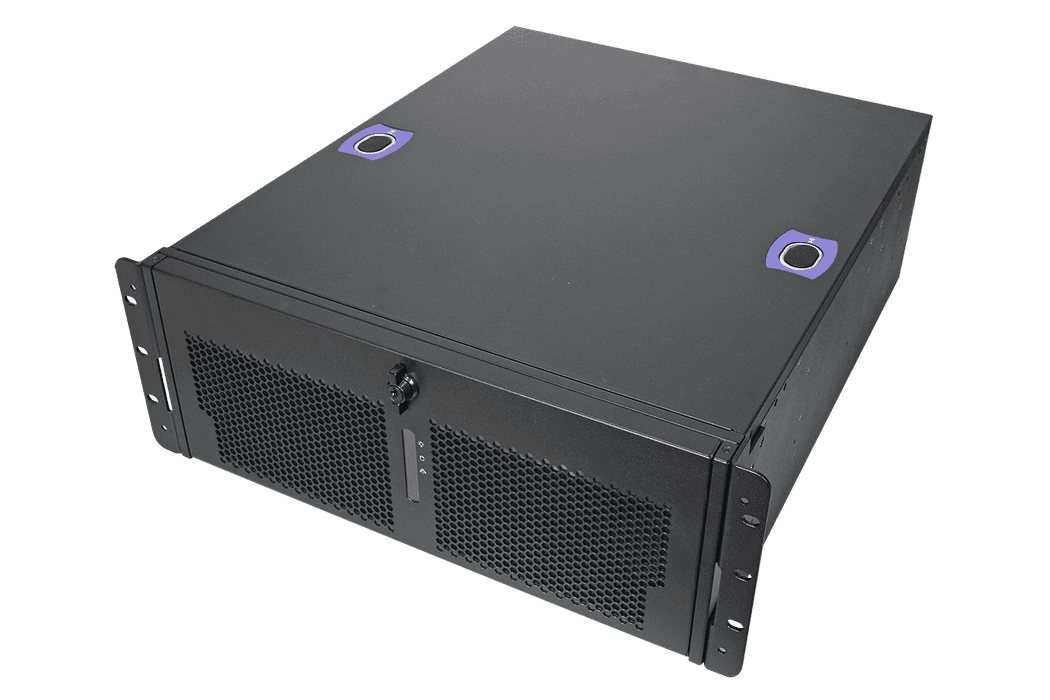

19" 4U Chassis
430mm(W) x 174.8mm(H) x 528mm(D)
1 x 500W PS2 ATX PSU
3 x Front accessible 2.5" storage bays
Intel LGA1151 Socket supports 8th/9th Gen. Core i7/i5/i3/Pentium/Celeron/Xeon E processors
Intel® C246 Chipset
4 x DDR4 2666MHz ECC and Non-ECC DIMM support up to 128GB (ECC memory supported by specific CPU SKUs)
IPMI 2.0 with AST 2500 BMC controller onboard
7 x Intel I210AT 1GbE controllers
Specification
Download
System Information
Processor
Intel LGA1151 Socket supports 8th/9th Generation Intel® Core i7/i5/i3/Pentium/Celeron/Xeon E Processors (Max. TDP at 95W)
Platform Controller Hub
Intel® C246 Chipset
System Memory
4 x DDR4 2666MHz ECC and Non-ECC DIMM support up to 128GB (ECC memory supported by specific CPU SKUs)
I/O Chipset
Nuvoton NCT6106D
BIOS
AMI UEFI BIOS
Watchdog Timer
System reset event 5~255 seconds/5~255 minutes
H/W Status Monitor
CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection
TPM
TPM 2.0 onboard
IPMI
IPMI 2.0 with AST 2500 BMC controller onboard
SBC
HPM-246UA
Front I/O
USB
2 x USB 3.2 Gen1 ports
Power Button
1 x Power button
Reset Button
1 x Reset button
LED Indicator
1 x Power status indicator
1 x Disk activity indicator
1 x Network activity indicator

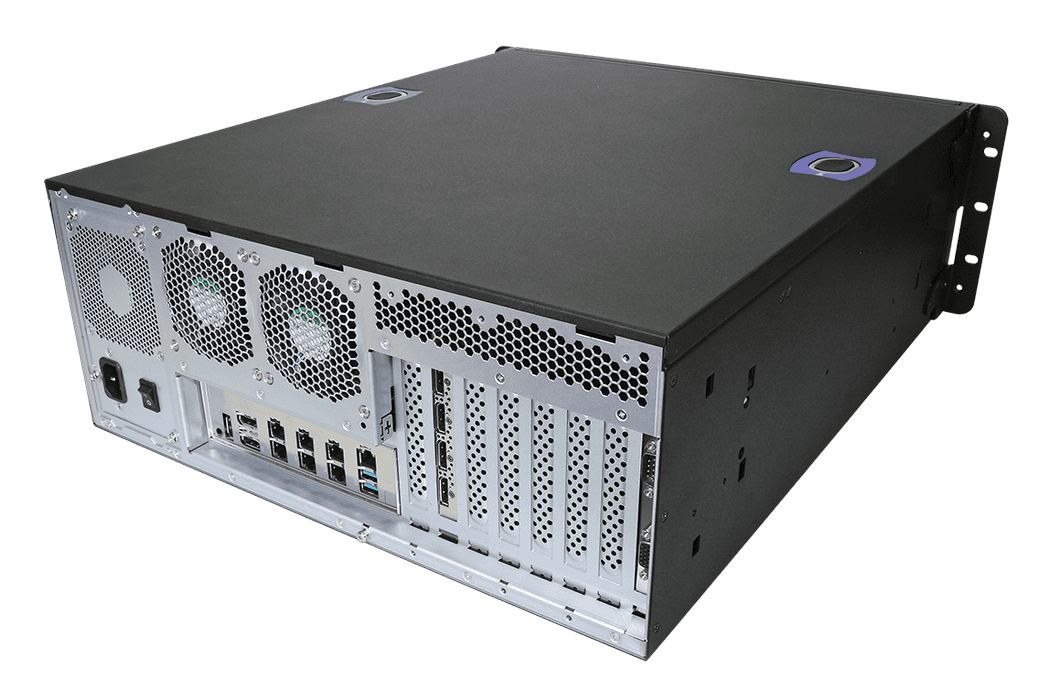

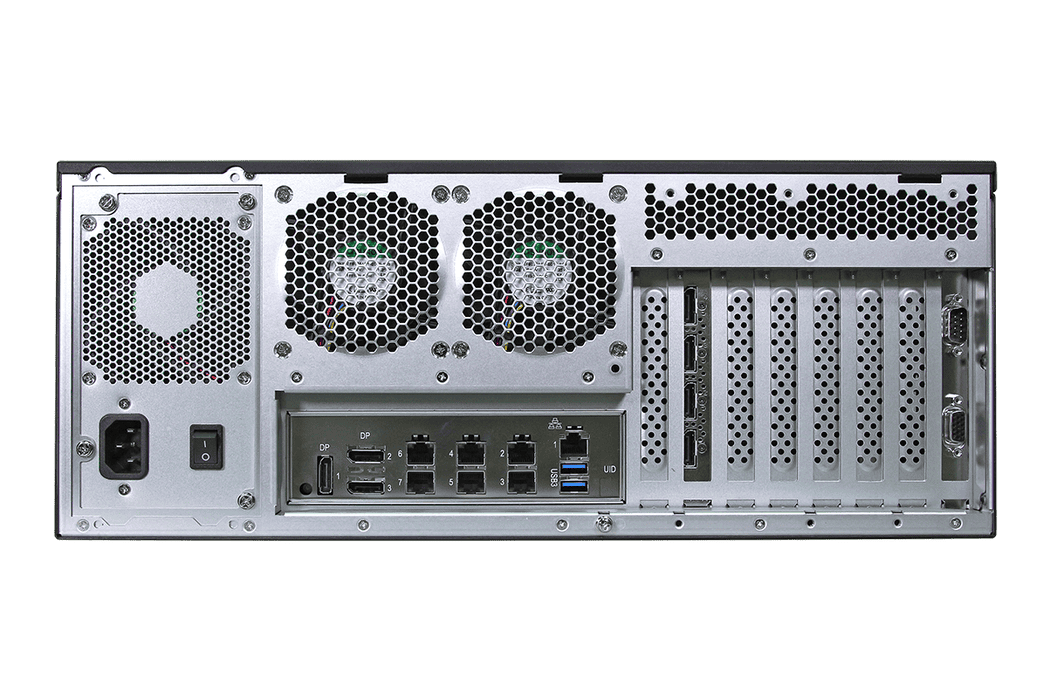

Rear I/O
USB
2 x USB 3.2 Gen2 ports
COM Port
1 x RS232 port (Bracket shares with VGA port, RS232 on the top)
DP
3 x DP++ ports
VGA
1 x VGA port (Bracket shares with Serial port, VGA on the bottom)
RJ-45
7 x RJ45 (LAN1 shares IPMI port)
Display
Graphic Chipset
Intel 8th/9th Generation CPU integrated
AST 2500 BMC controller
Resolution
3 x DP++ ports
DP: 4096 x 2304 @ 60Hz HDMI : 4096 x 2160 @ 30Hz
1 x VGA port
VGA: 1920 x 1200 @ 60Hz 32bpp
Power Requirement
Power Supply Unit
1 x 500W PS2 ATX PSU
Expansion
Expansion
1 x PCIe Gen3 x16 slot, 1 x PCIe Gen2 x8 slot, 1 x PCIe Gen3 x4 slot, 1 x PCIe Gen3 x1 slot, 1 x PCI 3.0 slot
Slot 1, PCI 3.0
Slot 2, PCIe Gen 3.0 x 1
Slot 3, PCIe Gen 3.0 x 4
Slot 4, PCIe Gen 2.0 x 8
Slot 5, PCIe Gen 3.0 x 16 (Slot 5 is the slot closest to CPU)
Storage
2.5 Drive Bay
3 x Front accessible 2.5" storage bays
Ethernet
LAN Chipset
7 x Intel I210AT 1GbE controllers
LAN Port
7 x RJ45 (LAN1 shares IPMI port)
Mechanical & Environmental
Operating Temp.
0 ~ 45°C (L6 system)
Storage Temp.
-40°C 24hrs IEC60068-2-1 Cold test Test: Ab
70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca
Operating Humidity
40°C @95% Relative Humidity, Non-condensing
Weight
15KG
Dimension (W x L x D)
19" 4U Chassis
430mm(W) x 174.8mm(H) x 650mm(D)
482.6mm(W) x 174.8mm(H) x 650mm(D) with ear mount
Software Support
OS
Windows 10 IoT Enterprise
Windows Server 2016
Windows Server 2019
Ordering Information
Ordering Information
HPS-246U4A5-A1R
L6 19" 4U Rackmount w/HPM-246UAA/500W/1x5.25"/3x2.5"
