EQM-BYT2

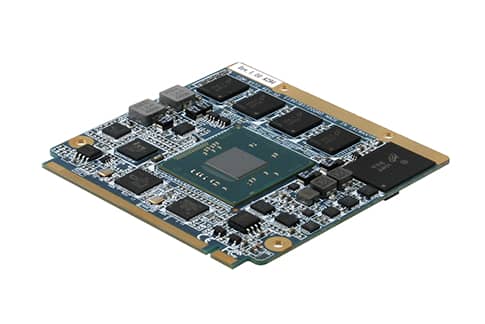

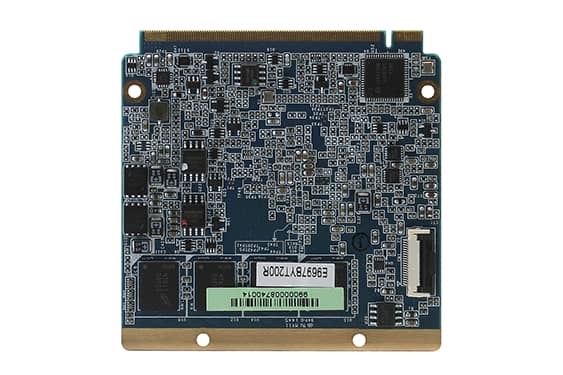

EQM-BYT2 (Qseven 2.0)
Specification
Download
System Information
Processor
Intel® Atom™ E3845 4-Core 1.91GHz Processor
Intel® Atom™ E3825 2-Core 1.33GHz Processor
System Memory
2GB DDR3 (E3825)
4GB DDR3 (E3845)
I/O Chipset
EC iTE IT8528
BIOS
AMI 64M-bit SPI BIOS
Expansion
Expansion
3 x PCIe x1
Storage
Storage
8GB eMMC (E3825)
32GB eMMC (E3845)
Display
Multiple Display
HDMI + LVDS
LVDS
Dual channel 24-bit LVDS
Audio
Audio Interface
HD audio I/F
Ethernet
LAN Chipset
1 x Intel® I211 GbE
Ethernet Interface
10/100/1000 Base-Tx Gigabit Ethernet Compatible
Software Support
OS
Ubuntu 12.04 / Win 7 / 8.1 / 10
Certification
Certification Information
CE, FCC Class, RoHS Compliant
I/O
USB
1 x USB 3.0
5 x USB 2.0
GPIO
LPC/ SMBus/ I2C/ UART
DIO
2 x SATA
3 x PCIe x1
1 x SDIO 8bit
1 x MIPI CSI camera (Linux only)
1 x LPC
1 x SMBus
1 x I2C
1 x UART
5 x USB 2.0
1 x USB 3.0
HDMI
HDMI + LVDS HDMI (2560x1080 Resolution)
Mechanical & Environmental
Operating Temp.
Normal 0°C ~ 60°C (32°F ~ 140°F)
Industrial -40°C ~ 85°C (-40°F ~ 185°F)
Storage Temp.
-40°C to 85°C
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Power Requirement
+5V
Dimension (L x W)
2.75" x 2.75" (70mm x 70mm)
Ordering Information
Ordering Information
EQM-BYT2-25-A1-1R
Baytrail E3825, 2GB RAM, 8GB eMMC, 0 ~ 60°C
EQM-BYT2-45-A1-1R
Baytrail E3845, 4GB RAM, 32GB eMMC, 0 ~ 60°C
EQM-BYT2-25-A1-2R
Baytrail E3825, 2GB RAM, 8GB eMMC, -40 ~ 85°C
EQM-BYT2-45-A1-2R
Baytrail E3845, 4GB RAM, 32GB eMMC, -40 ~ 85°C
ACC-HSK-2230-1R
Heatsink for EQM-BYT2
ACC-HSP-2230-1R
Heatspeader for EQM-BYT2
