Specification
Download
System Information
Processor
Intel® Twin Lake N150 Processor
System Memory
Onboard LPDDR5 8GB
I/O Chipset
EC IT8784E
TPM
TPM 2.0
Expansion
Expansion
1 x 2 slot for WiFi module (option)
Storage
Storage
Onboard 128GB eMMC
Display
Graphic Chipset
Intel® UHD Graphics
Audio
Audio Codec
Realtek ALC897
Audio Interface
2 x 2W
Ethernet
LAN Chipset
2 x RJ45 Gigabit LAN RTL8125BG
Power Requirement
DC Input
+24V
DC Input Connector
DC Jack
Software Support
OS
Win 10 / Win 11/ Linux
Certification
Certification Information
CE/FCC/UKCA/VCCI

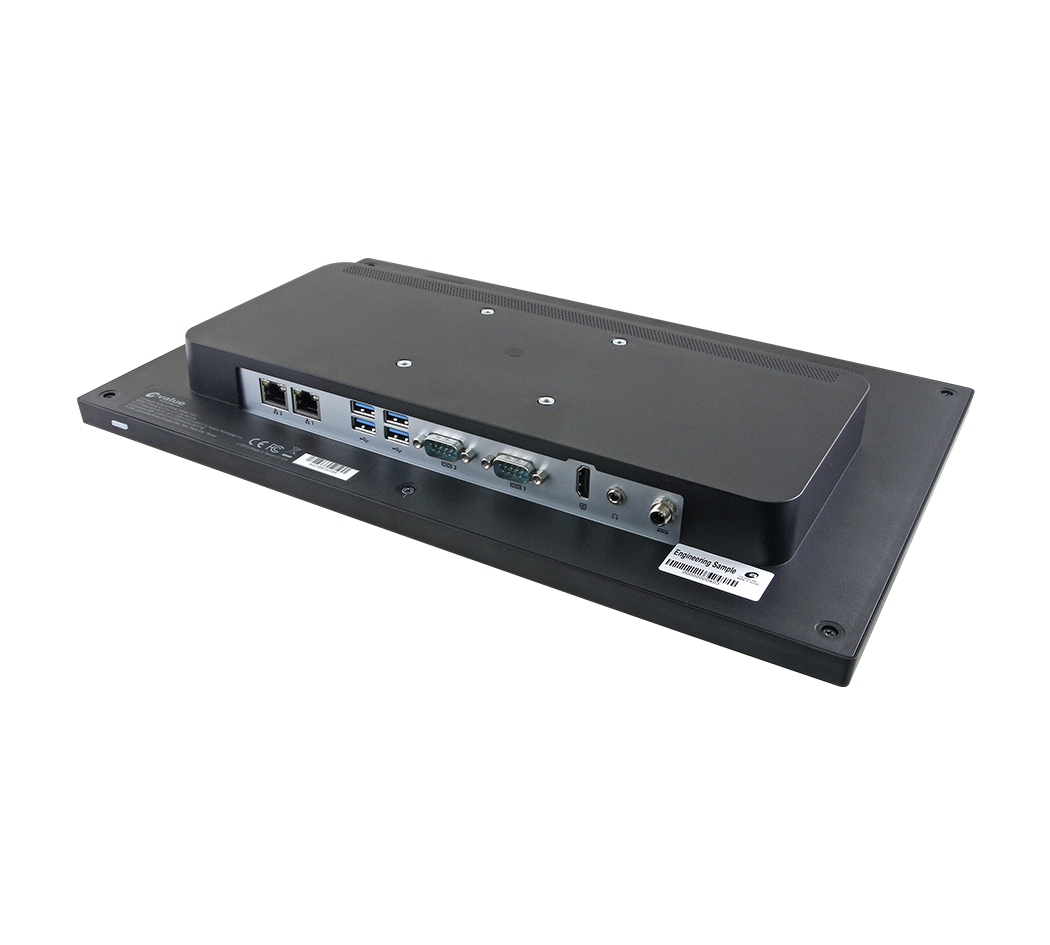

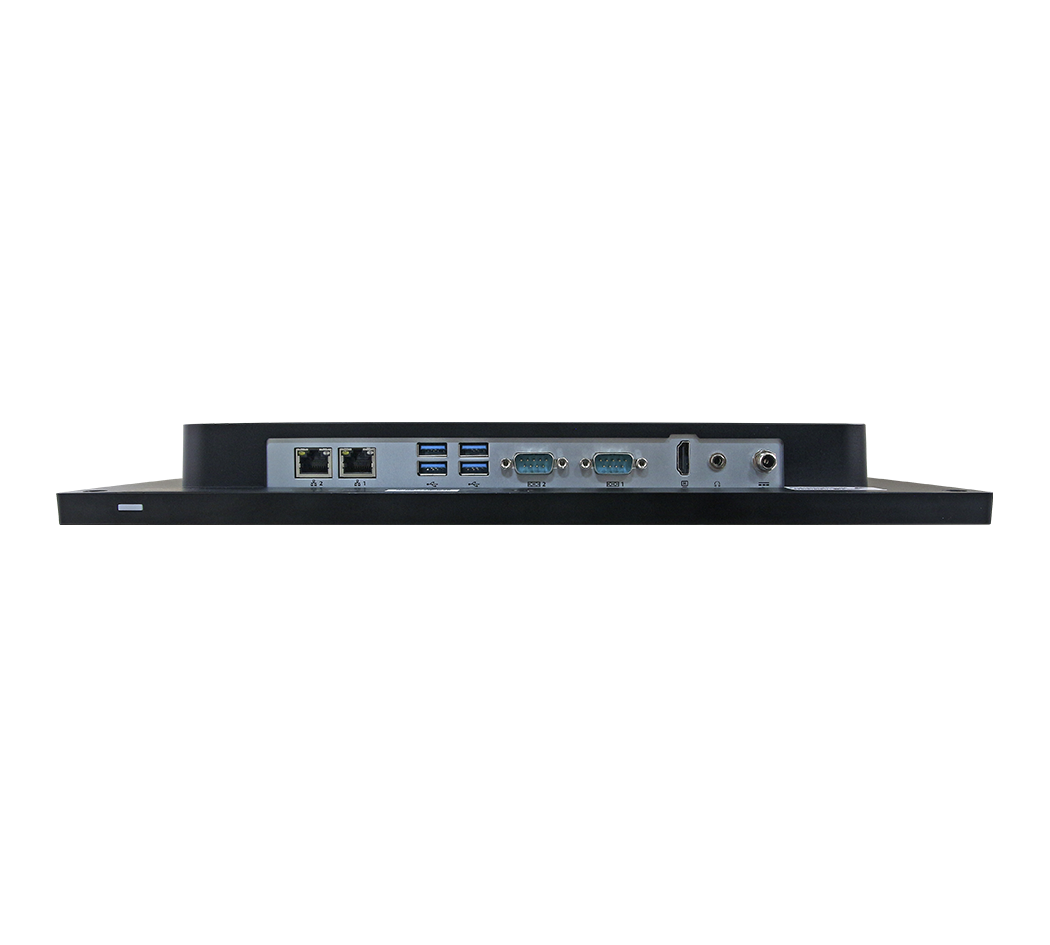

External I/O
USB Port
4 x USB 3.0
Audio Port
1 x Line-out
LAN Port
2 x LAN
COM Port
2 x COM
HDMI Port
1 x HDMI
Panel
LCD Size
15.6"
Display Type
Full HD
Resolution
1920 x 1080
Pixel pitch
0.179 x 0.179
Luminance
350 cd/m2
Contrast ratio
1500
Viewing angle
89 (U), 89 (D), 89 (L), 89 (R)
Response time
25ms
Backlight
LED
Touch Type
Projective capacitive
Touch Controller
USB interface
Wireless Communication
WLAN
Option IEEE 802.11 a/b/g/n/AC
Bluetooth
Option Bluetooth 5.0
Mechanical & Environmental
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.
-10°C ~ 60°C (14°F ~ 140°F)
Dimension (W x L x H)
390 x 247 x 42mm
Weight
2.5 Kg
Vibration Test
1.5 Grms, IEC 60068-2-64, random, 5~500Hz, 30min/axis
Shock Test
10 Grms, IEC60068-2-27, half sine, 11ms
IP Rating
IP65 for front panel
Power Mode
ATX
System Fan
Fanless
Construction - Front
Black/white
Construction - Rear
Black/white
Construction
Plastic
Component
Adapter
Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (24V @2.5A)
Ordering Information
Ordering Information
EU Power Cord E1702031000R
US Power Cord E1702031833R
JP Power Cord E1702031834R
UK Power Cord E170P060380R
