ISS-15K5

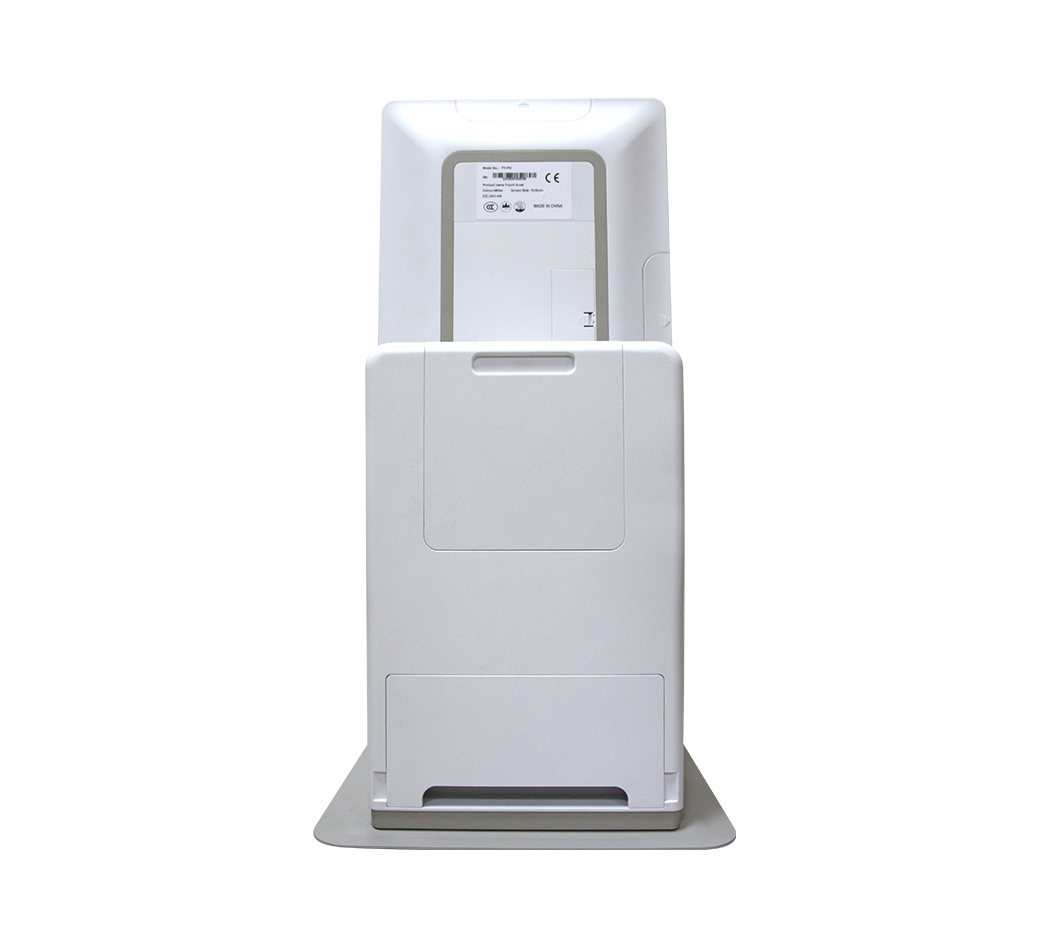

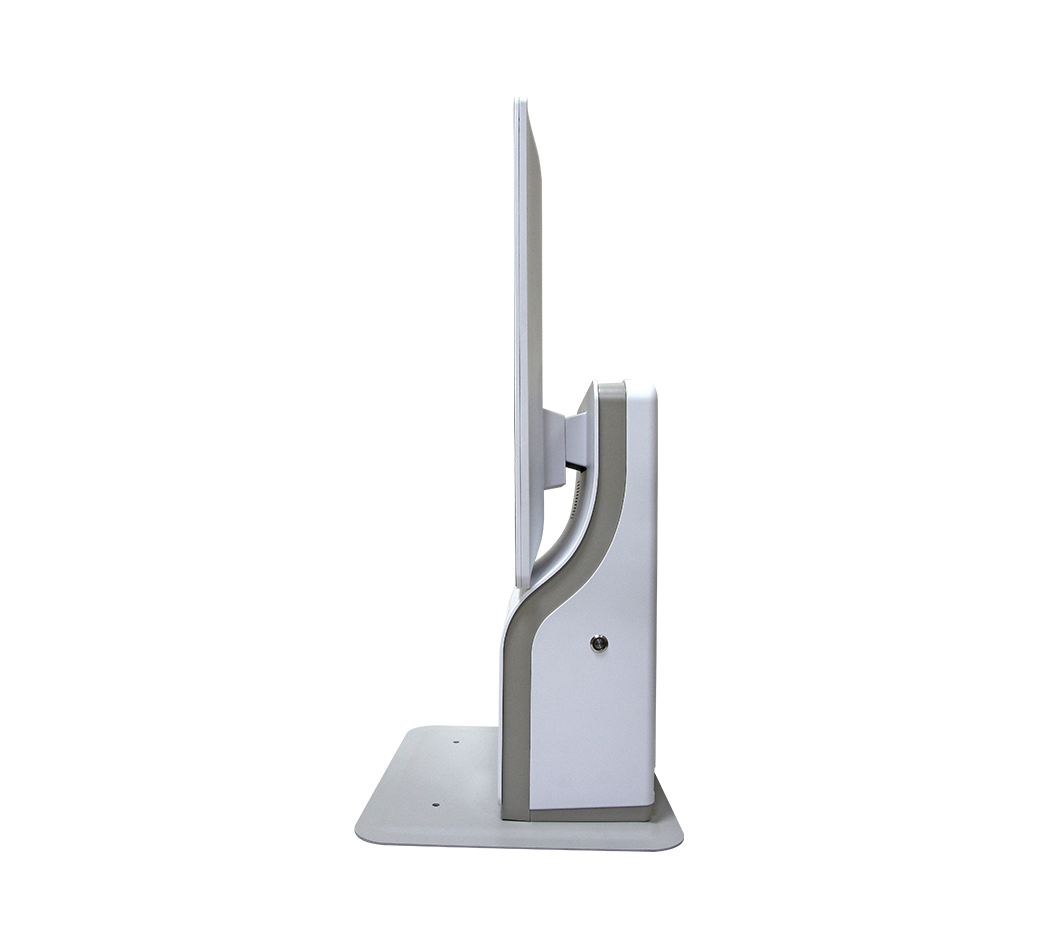

15.6" Rockchip RK3568 Multi-Touch Fanless Desktop self order kiosk
FEATURE
15.6 inch screen, IPS LCD 1080P Resolution
Screen is covered white tempered glass, high permeability, anti-scratch
Built-in 80mm thermal printer, printing speed 250mm/s (Max)
Built-in 1D/2D scanner
Built-in NFC Card reader
Reserved rich interface for peripherals such as cash drawer
Specification
Download
System Information
Processor
Rockchip RK3568 Quad-core Cortex-A55 up to 2.0GHz
System Memory
Onboard 4GB RAM
Speaker
4Ω 3W Speaker
Storage
Solid State Drive
Onboard 32GB eMMC
Power Requirement
DC Input
+24V DC input
DC Input Connector
Mini Din 4-pin DC Jack
Power Mode
ATX
Software Support
OS
Android 11
Certification
Certification Information
CE/FCC/VCCI/BSMI
External I/O
USB Port
4 x USB
LAN Port
1 x 10/100M by RJ-45
Switch
1 x Power Button
1 x Printer door Button
DC in Connector
+24V DC in, 4 pin
Others
1 x RJ11 for COM
1 x RJ12 for Cashdrawer
Peripheral
Thermal Printer
Automatic paper cutting (full cut /half cut), printing paper width: 79.5±0.5mm, printing
width: 72mm, paper roll specification: outer diameter--ф80mm (max), printing speed:
250mm/s (Max), printing density: 8 dots/mm, print dots: 576dots/line
NFC reader
Support agreement:ISO14443A
Support card :Mifare（1K/4K）；NXP S50,NXP S70，CPU card
Interface: USB
working frequency :13.56MHZ
2D scanner
1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 (ASCII full code),
Code 32, Trioptic Code 39, Interleaved Code 25, Industry 25 Code, Matrix 25, Codabar
(NW7), 128, UCC/EAN 128 (GS1-128), ISBT128, 93, 11 (USD-8), MSI/Plessey, UK/Plessey,
China Post code, GS1 DataBar (formerly: RSS) series
2D: PDF417, MicroPDF4
Panel
LCD Size
15.6", 16:9
LCD Control Board
LCD Build-in
B/L Inverter/Converter
LCD Build-in
Resolution
1920 x 1080
Touch Screen
10points G+G Capacitive touch screen
Touch Controller
Touch Build-in
Wireless Communication
WLAN
2.4G，802.11b/g/n
Bluetooth
BT4.2
Mechanical & Environmental
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.
-10°C ~ 60°C (14°F ~ 140°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
300 x 250 x 599.9mm
Weight
6 Kg
IP Rating
Front IP65
Power Mode
ATX
System Fan
Fanless
Construction - Front
Plastic + ABS
Construction - Rear
Plastic + ABS
Component
Adapter
AC/DC 96W adapter 24V/4A
