OFT-07WR2
7" Open Frame Tablet with Rockchip RK3568
FEATURE
7" 600 x 1024 Open Frame Table with PCAP touch
Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz
2GB DDR4 / 32GB eMMC
Fanless operation from -20°C ~ 60°C (-4°F ~ 140°F)
Support Android 11, Debian 11
Specification
Download
System Information
Processor
Rockchip RK3568 Arm Quad Cortex-A55, up to 2.0GHz
System Memory
2GB DDR4 on board
Storage
Storage
32GB eMMC
Power Requirement
DC Input
DC 12V~24V
Software Support
Software
Android 11 / Debian 11
Certification
Certification Information
CE, FCC Class A
External I/O connector

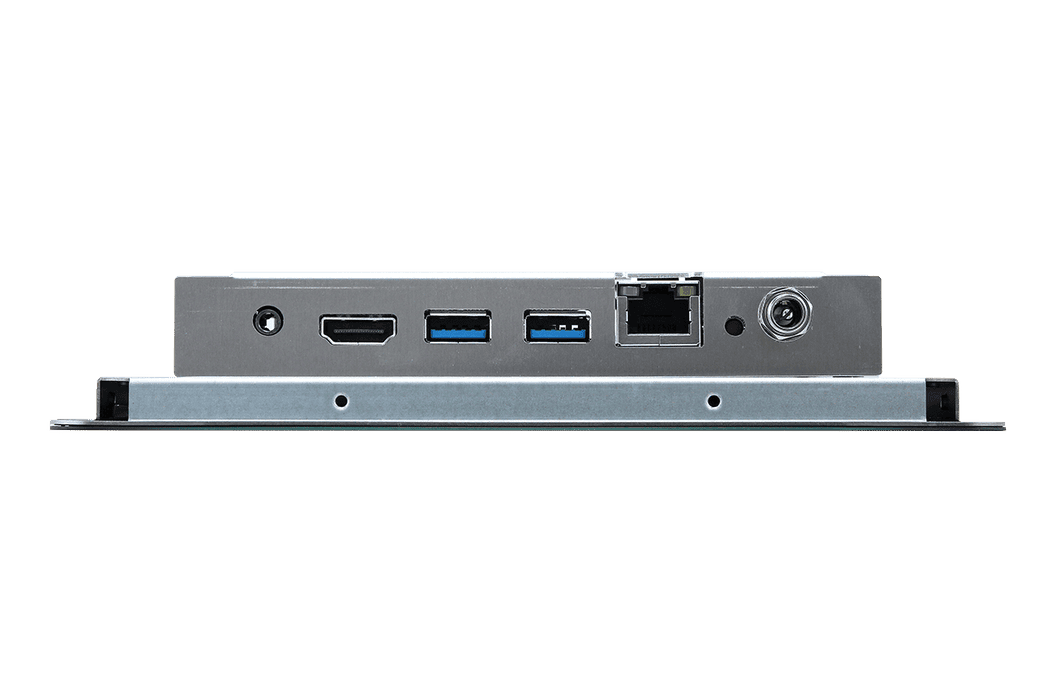

External IO connector
1 x RJ45
1 x DC Jack
1 x Headphone Jack
1 x HDMI 1.4 Out
1 x Reset
2 x USB 3.0 Type A
Internal IO connector
Internal IO connector
1 x A-MIC
1 x DC Input
1 x GPIO
1 x I2C Sensor Interface
1 x M.2 3042 B-Key
1 x Mic-in
1 x Micro SD slot
1 x MIPI DSI
2 x RS232
1 x RS485
1 x RTC battery
1 x Speaker
1 x Touch Button
1 x USB CAM_DMIC Interface
1 x USB Touch interface
Panel
Touch Type
PCAP
Touch Controller
EETI
LCD Size
7”
Resolution
600 x 1024
Touch Screen
ST-070C30A_V01 (USB interface)
Wireless Communication
Bluetooth
Optional BT 5.0
WLAN
Optional Wi-Fi 802.11ac/a/b/g/n
Mechanical & Environmental
Dimension (W x L x D)
190 x 130 x 31.8 mm
Weight
0.5 kg
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
Fanless
Yes
Color
Metallic
Ordering Information
Ordering Information
OFT-07WR2-6803-A1R : OFT-07WR2-Android 11-DC in
