Module Compatibility

NVIDIA Jetson Orin NX 16GB

AI Performance

100 TOPS

GPU

1024 Core NVIDIA Ampere, with 32 Tensor Cores

CPU

8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3

Memory

16GB 128-bit LPDDR5 102.4 GB/s

Storage

1 x M.2 NVMe M-Key 2242 (128GB built-in)

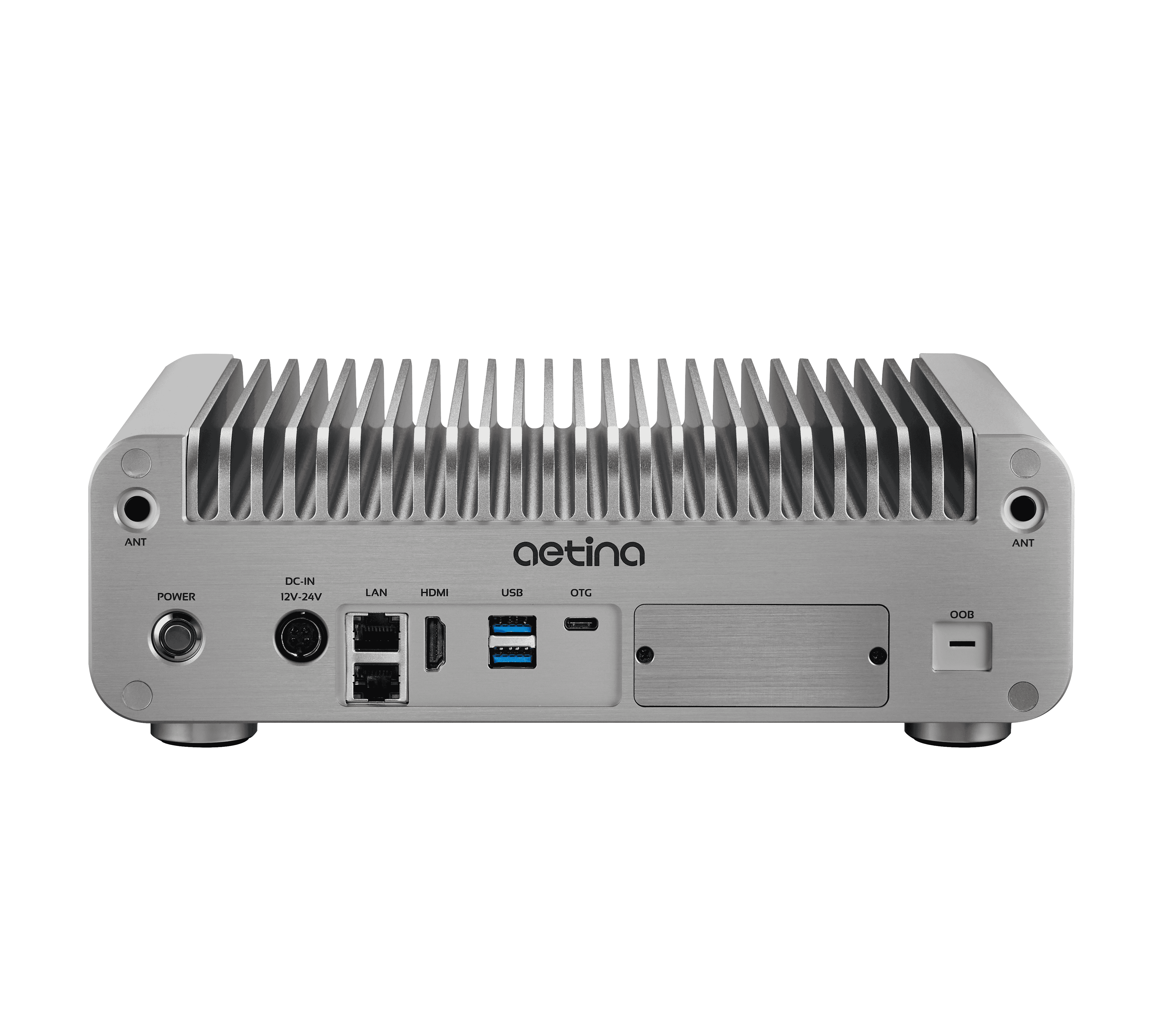

USB

2 x USB 3.2 Gen2 Type A (support up to 10 Gbps shared)
1 x OTG Type-C

LAN

2 x RJ-45 GbE ports

Display

1 x HDMI 2.0 Type A

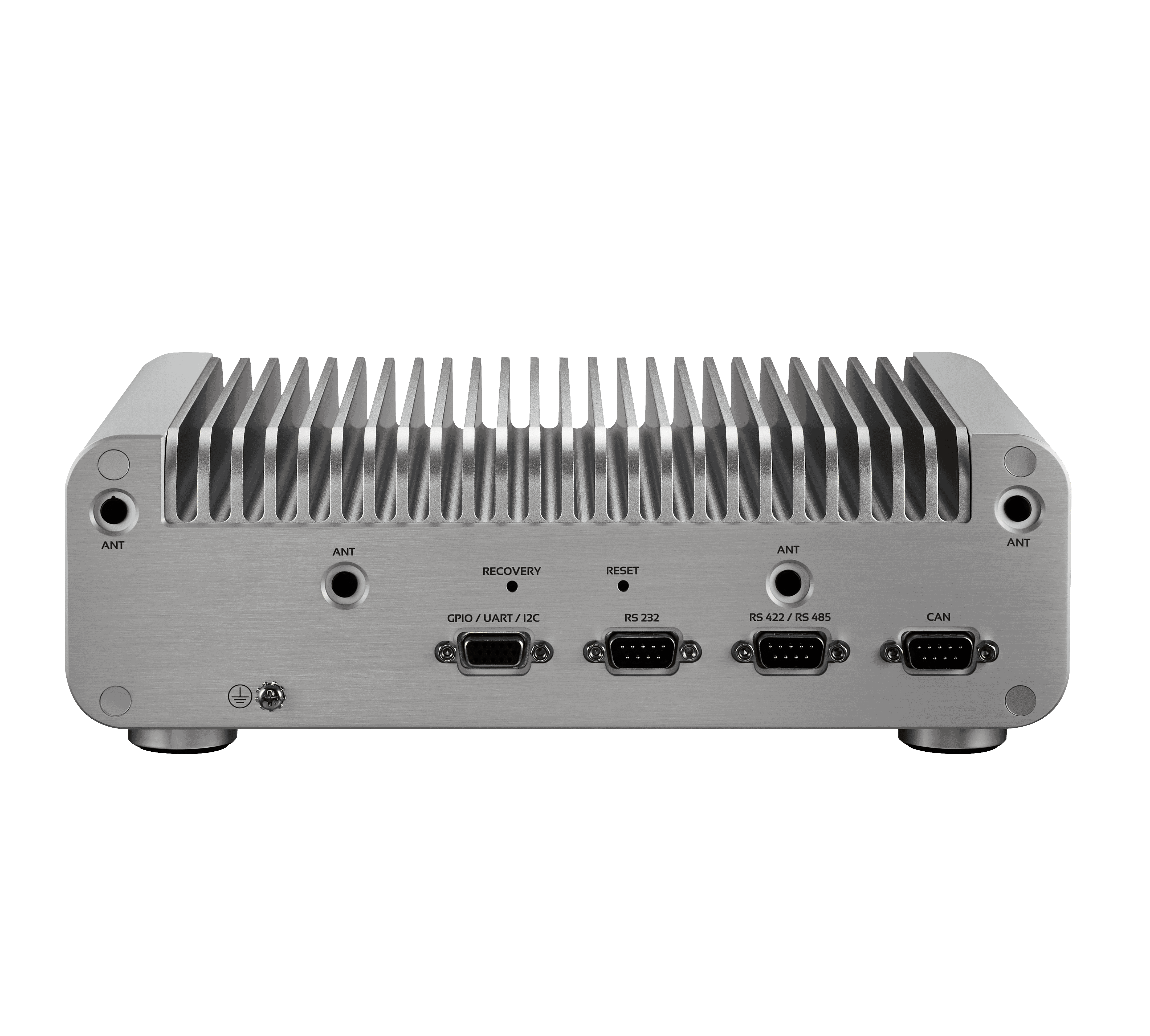

I/O Interfaces

5 x GPIO,
1 x UART,
1 x I2C,
1 x RS-232,
1 x RS-422/485,
1 x CAN (isolation; support CAN FD)

Expansion

1 x M.2 B-Key 3042/3052 (LTE/5G)
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2242 (NVMe 128GB built-in)
2 x M.2 M-Key 2280 (PCIe)

Power Input / Connector

DC-in 12-24VDC / 4-Pin DC Jack Power Connector

Power Consumption

Idle: 6.413 W
Full Loading: 43.13* W

*For more test condition information, please refer to user manual

Dimension (W x D x H)

270 x 195 x 80 mm (10.63 x 7.67 x 3.15 in)

Mounting

Wall Mount (optional) / Din Rail (optional)

Net Weight

TBC kg (TBC lb)

Vibration

1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock

10 G, IEC 60068-2-27, half sine, 11 ms duration

Temperature

Operating Temp. -25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air flow
Storage Temp. -40°C ~ +85°C (-40°F ~ +185°F)

Humidity

95% @ 40°C (104°F) (non-condensing)

Software Support

Linux (Support Jetpack 5.0 above)

Certification

CE / FCC Class A / UKCA

TPM

Not supported

MISC. Function

1 x Power Button / 1 x Recovery Button / 1 x Reset Button
