Processor

Intel® Core™ Ultra Processor Meteor Lake-U
Intel® Core™ Ultra 7 Processor 165U (By project)
Intel® Core™ Ultra 7 Processor 155U
Intel® Core™ Ultra 5 Processor 135U (By project)
Intel® Core™ Ultra 5 Processor 125U

System Memory

2 x 262-pin SODIMM socket Max. up to 64GB DDR5 5600MT/s

BIOS Information

AMI uEFI BIOS 256 Mbit SPI Flash ROM

Watchdog Timer

H/W Reset, 1sec. ~ 65535sec.

H/W Status Monitor

CPU & system temperature monitoring and Voltages monitoring

TPM

TPM 2.0

M.2

1 x M.2 Key-B 2242/3042/3052 support SATA3 / PCIe Gen4x1/ USB3.2 Gen2 and SIM slot (Internal)
1 x M.2 Key-E 2230 for Wi-Fi & BT Module (USB2.0 / PCIe Gen4x1)

IET

1 x IET interface (1 x DDI, 4 x PCIe Gen4x1, 3 x USB2.0, 1 x SMBus, eSPI)

M.2

1 x M.2 Key-M 2280 (1 x PCIe Gen4x4), support NVMe
1 x M.2 Key-B 2242, support SATA (share with expansion slot)

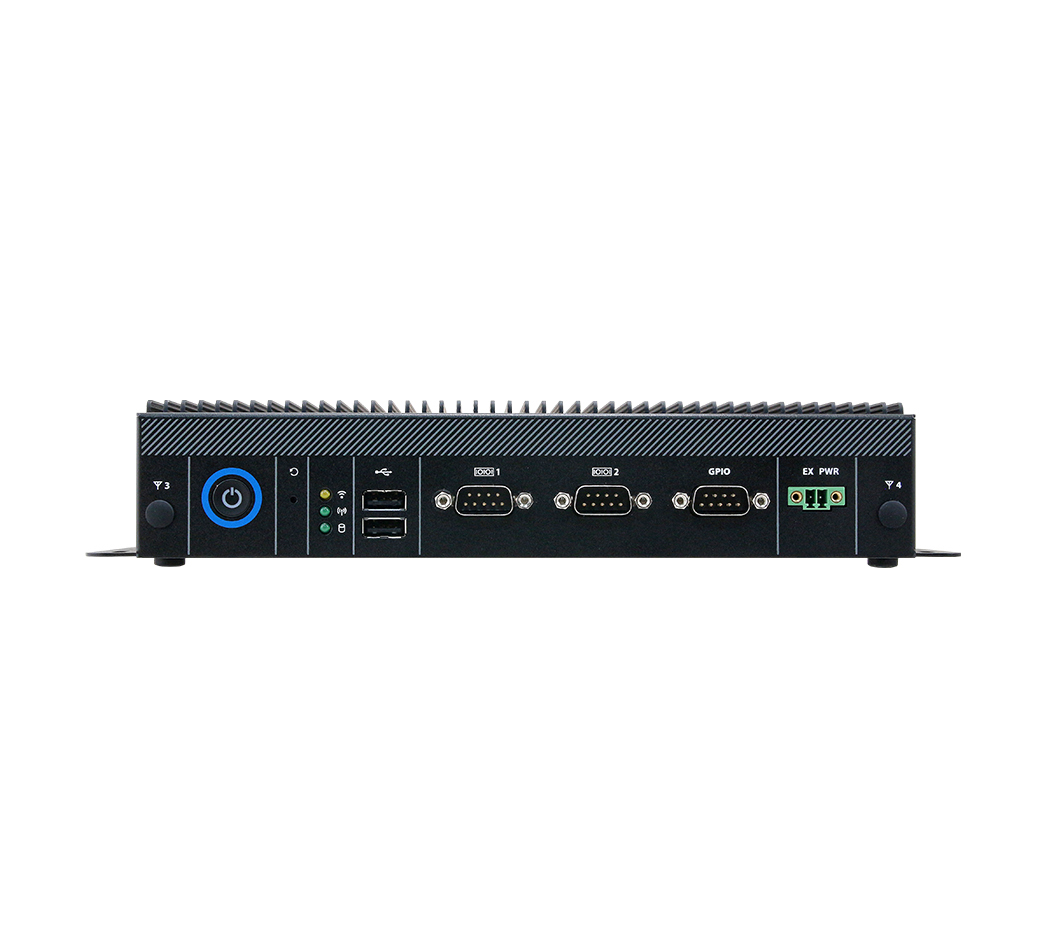

Power Button

1 x Push Button for Power on/off

Reset Button

1 x Push Button for Reset

LED Indicator

1 x Power LED (Blue)
1 x Storage LED (Yellow)
1 x LTE LED (Green)
1 x Wi-Fi LED (Green)

USB

2 x USB2.0

COM Port

2 x COM RS232/422/485(BIOS & Jumper)

Digital I/O

1 x 8-bit GPIO (DB9)

Wire-Control Power On/Off

1 x 2-Pin Terminal Block for wire-control power on/off

Antenna

2 x Antenna with dust cover

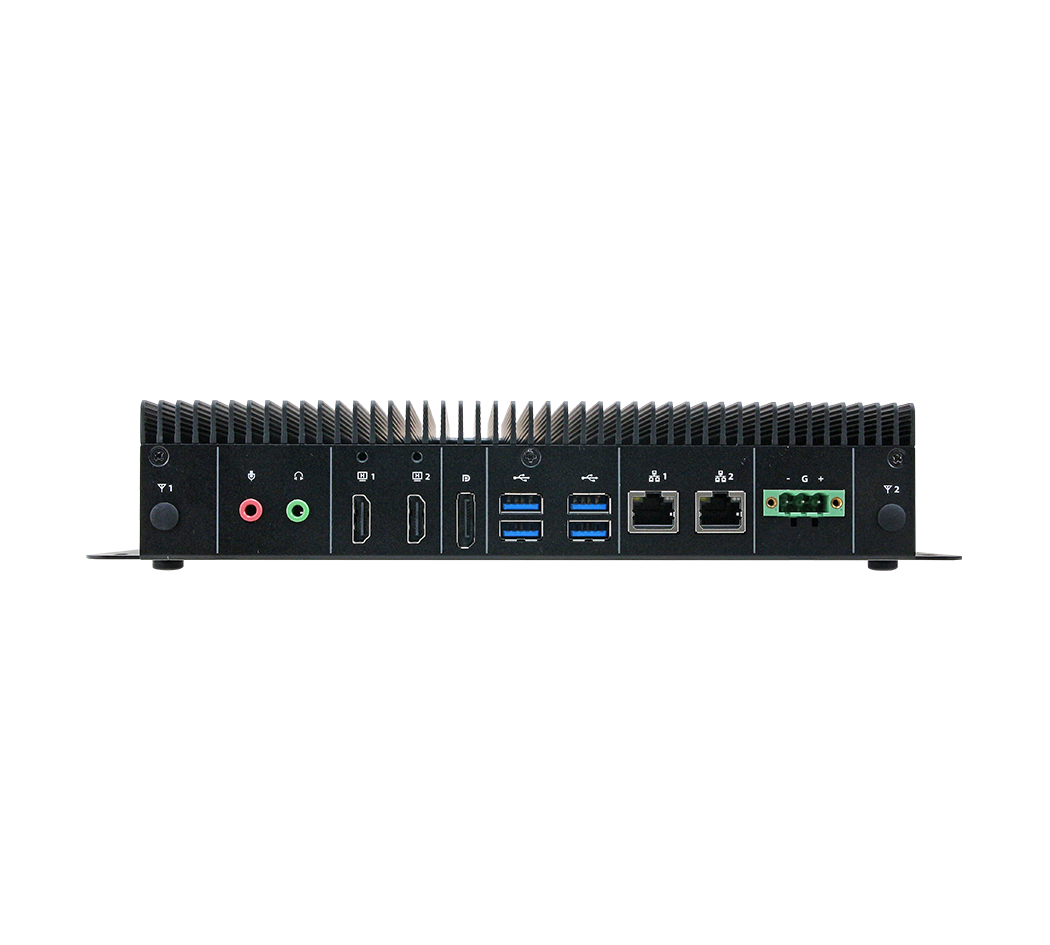

USB

4 x USB 3.2 Gen.1 (5Gbp/s)(w/ USB 2.0)

LAN Port

2 x RJ-45

Audio

1 x Mic-In
1 x Line-Out

DP

1 x DP++

HDMI

2 x HDMI

Antenna

2 x Antenna with dust cover

AC/DC Input

1 x 3-Pin Terminal Block (V+. V-, GND)

Antenna

2 x Antenna with dust cover

Antenna

2 x Antenna with dust cover

Graphic Chipset

Intel® Graphics

Resolution

DP++ : Max. resolution 4096x2304 @ 60Hz
HDMI : Max. resolution 4096x2304 @ 60Hz

Audio Codec

Realtek ALC888S HD codec

LAN Chipset

2 x Intel I226-IT

Specification

2 x 10/100/1000/2.5G GbE compatible

Voltage Input Spec.

DC in typical 12/24V (+9V ~ +36V), wide voltage single power input
TVS component for surge protection
Reverse current/voltage protection(Max. Currency: 13A)

Voltage Input Connector

1 x 3-pin Phoenix connector

ACPI

Single power ATX Support S0, S4, S5
ACPI 5.0 Compliant

Power Mode

AT/ATX (ATX is default setting)

OS

Win 10 / Win 11/ Linux

Certification Information

CE, FCC Class B

Operating Temp.

-40°C ~ 65°C (w/SSD) ambient air flow (w/ 32G DDR5)
-40°C ~ 60°C (w/SSD) ambient air flow (w/ 64G DDR5, Maximum capacity)

Storage Temp.

-30°C ~ 70°C (-22°F ~ 158°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Dimension (W x L x H)

240mm x 150mm x 49 mm (Standard)
240mm x 150mm x 75 mm (w/ IET module)

Weight

2.1 kg (System)
2.9 kg (w_Package)

Vibration Test

With SSD : 2Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 0.5hr/axis

Shock Test

With SSD : 55Grms, IEC 60068-2-27, Half Sine, 11ms

IP Rating

IP 50

Mounting Kit

Wall mount (standard)
Din rail (optional)
