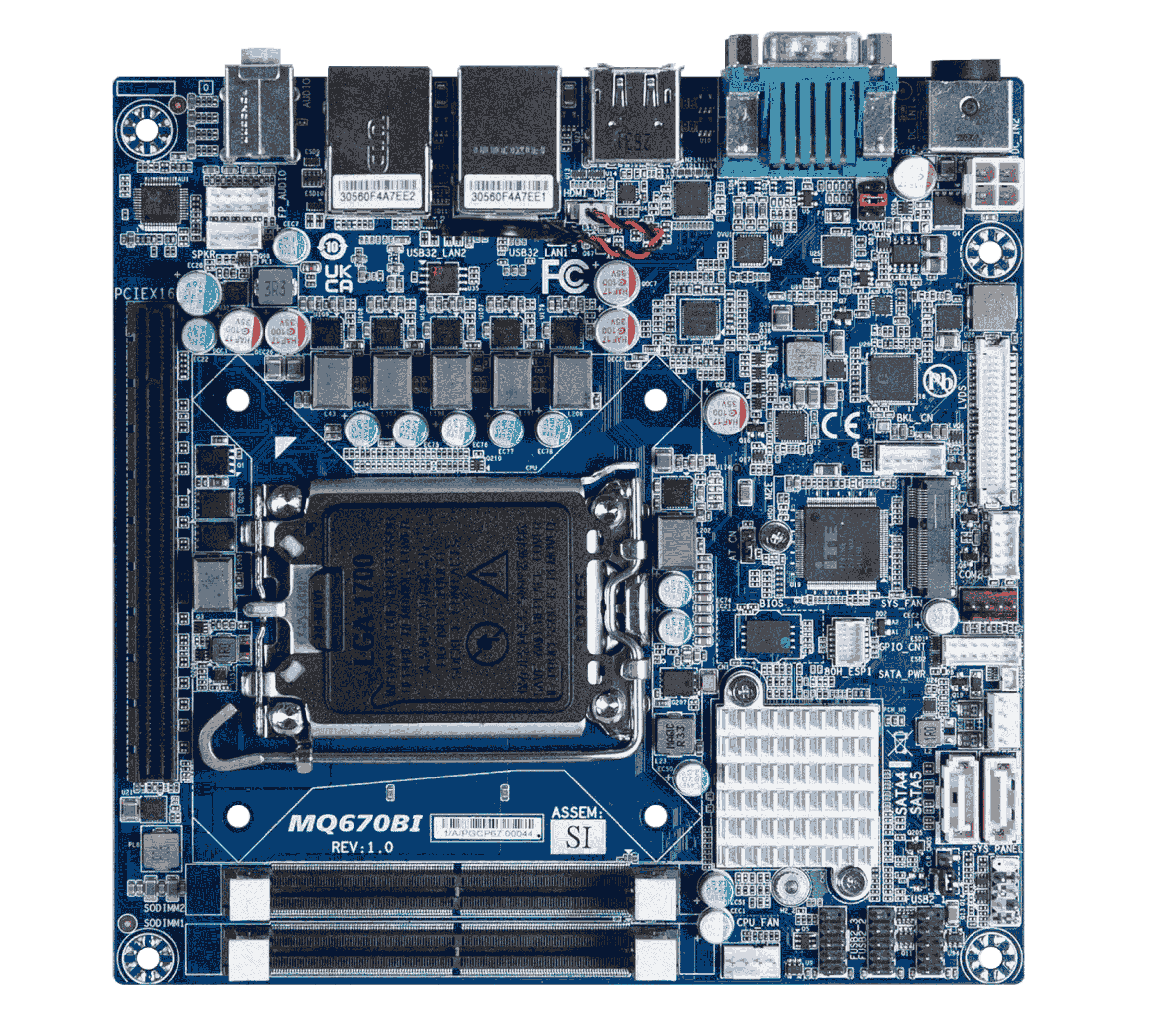

mITX-Q670B
The mITX-Q670B is a Mini-ITX industrial motherboard powered by the Intel® Q670 chipset, designed to support 13th/14th Gen processors for demanding edge computing tasks. It features versatile connectivity and rich expansion options, making it an ideal choice for automated industrial applications.
FEATURE
Mini-ITX form factor
Support 14th/13th/12th Generation Intel® Core™ Processors
HDMI, Display Port, VGA, LVDS ports for multiple display
Dual Channel DDR5, 2 x SO-DIMMs
10 x USB
Specification
Download
System Information
Processor
Support for 14th/13th/12th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1700 package
TDP under 65W
System Memory
2 x DDR5 SO-DIMM sockets, Max. Capacity 96 GB
Support Dual channel DDR5 5600 MHz memory modules
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
Board
Mini-ITX
170W x 170D(mm)
Expansion
Expansion
1 x PCIe x16 (Gen4 x16)
1 x 2280 M.2 M-Key (PCIe x4)
1 x 2230 M.2 E-Key (WiFi/BT)
Storage
Storage
2 x SATA 6Gb/s Ports
Display
Digital Display Interface
Integrated Graphics Processor - depends on CPU:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
(4 independent display outputs)
Audio
Speaker Output
Realtek® ALC897
Ethernet
LAN Port
1 x GbE LAN Port (Intel® I219LM)
1 x 2.5GbE LAN Port (Intel® I226V)
Power Requirement
Power Type
1 x DC Jack (+12V/+19V~+24VDC)
1 x 4-pin ATX main power connector
Software Support
OS
Windows 11 IoT Enterprise LTSC 2024 (x64)
Windows 10 IoT Enterprise LTSC 2021 (x64)
Certification
Certification Information
CE, FCC, RoHS Compliant

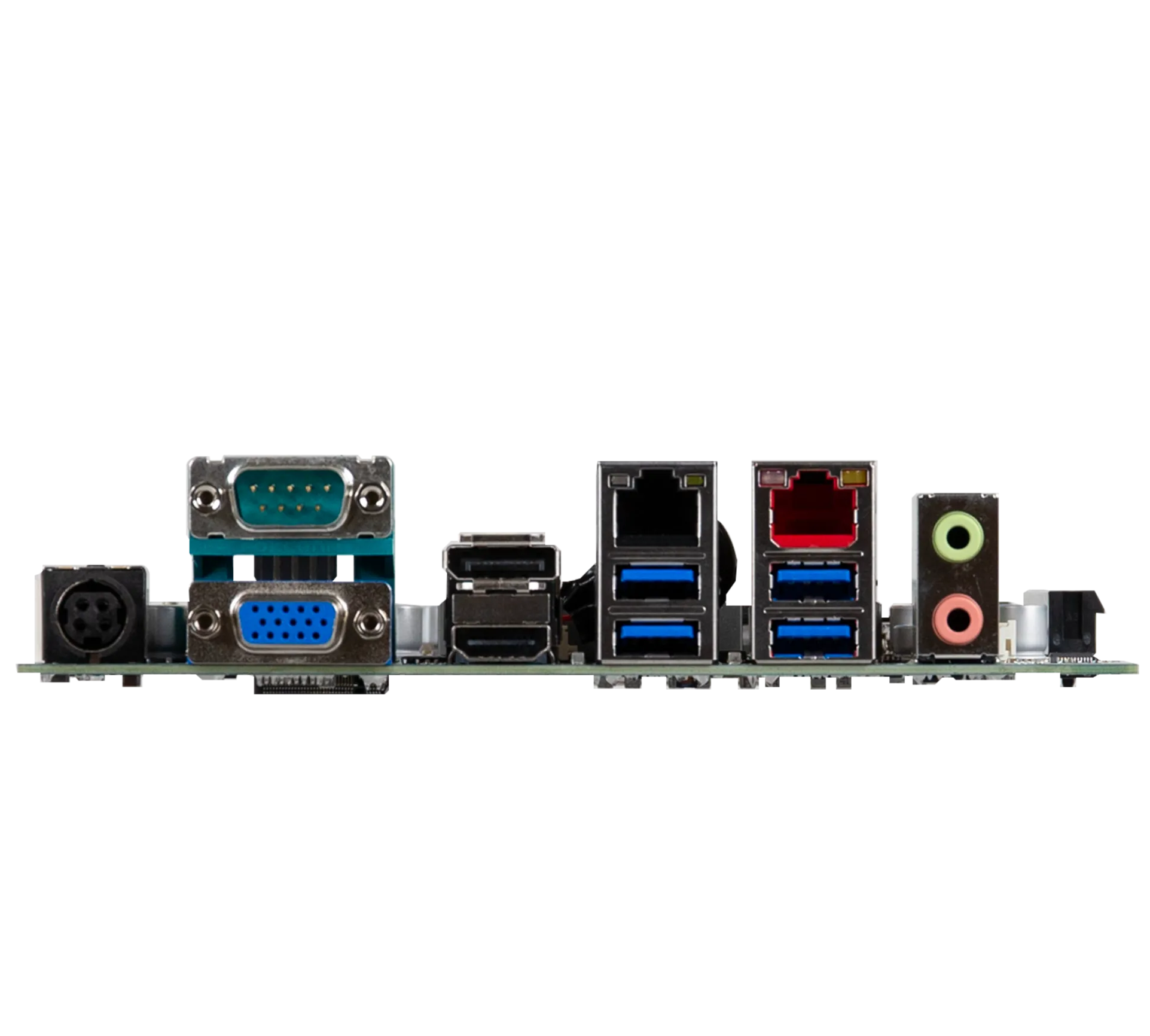

External I/O
USB
4 x USB 3.2 Gen 1
6 x USB 2.0 headers
LAN Port
1 x GbE LAN Port
1 x 2.5GbE LAN Port
Reliability
Operating Humidity
Operating temperature: 0°C to 60°C
Operating humidity: 60°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 85°C @ 95% (non-condensing)
Mechanical & Environmental
Power Connector
DC In Jack 4 pin Din
ATX 2x2 pin power Connector
Ordering Information
Ordering Information
9MQ670BIMR-SI (Box packing)
Optional Kit
CPU Cooler : 25ST0-037820-Y0R
CPU Cooler Backplate : 12KRH-0A1700-00R
