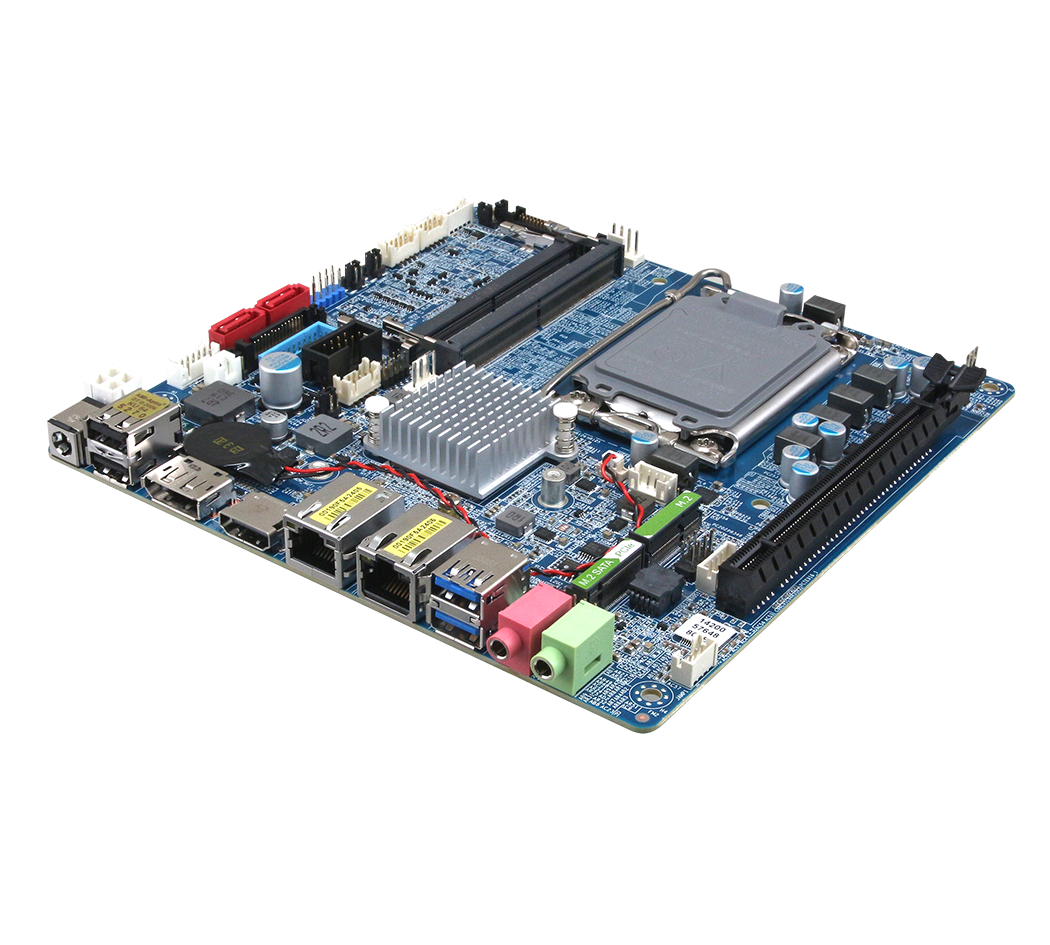

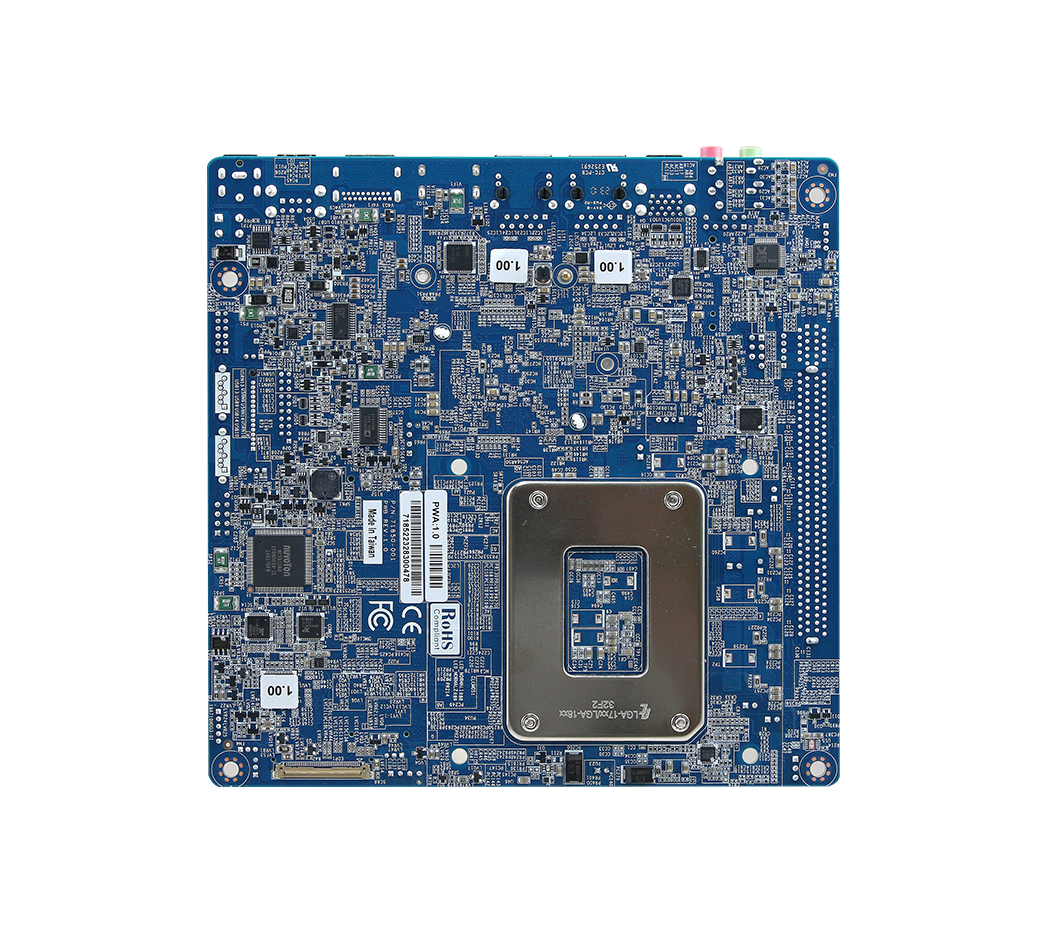

MX610HD
12/13/14th Gen. Intel® Core™ i9/i7/i5/i3 Processors, Thin Mini ITX Motherboard With Intel® H610E Chipset
FEATURE
12/13/14th Gen. Intel® Core™ i9/i7/i5/ i3/Pentium/Celeron Processor with Intel® H610E Chipset
2 x 262-Pin DDR5 4800 MHz SO-DIMM Socket Supports Up to 64GB (Non-ECC)
HDMI, LVDS, Optional eDP
1 x PCIe x16 (Gen4)
1 x Intel® I219V, 1 x Intel® I225LM
4 x USB 3.2, 6 x USB 2.0
1 x M.2 M-Key 2242/2280, 1 x M.2 E-Key 2230
3 x COM
DC in +12V~24V
Specification
Download
System Information
Processor
LGA 1700 Socket Supports 12/13/14th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron Processors (Max. TDP at 65W)
Platform Controller Hub
Intel® H610E Chipset
System Memory
2 x 262-Pin DDR5 4800MHz SO-DIMM Socket Supports Up to 64GB (Non-ECC)
I/O Chipset
nuvoton NCT6126D
Watchdog Timer
H/W Reset, 5~255 Seconds/5~255 Minutes
BIOS
AMI uEFI BIOS, 256Mbit SPI Flash ROM
H/W Status Monitor
CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control
TPM
Onboard infineon SLB 9670VQ2.0 support TPM2.0
Board
Thin Mini ITX
Expansion
Expansion
1 x PCIe x16 (Gen4)
1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III)
1 x M.2 E-Key 2230 with CNVi Support (PCIe x1 + USB 2.0)
Display
Graphic Chipset
Intel® Integrated UHD Graphic with Xe Architecture (CPU Dependent)
Spec. & Resolution
1 x HDMI 1.4b 4K@30Hz
1 x Dual Mode DisplayPort (DP++) 1.2a 4K@60Hz
Dual Channel 18/24-bits LVDS
Multiple Display
Triple Display
LVDS
Dual Channel 18/24-bits LVDS
Audio
Audio Codec
Realtek ALC897 HD Audio Decoding Controller
Audio Interface
Mic-in, Line-out
Audio Amplifier
3W per channel Amplifier
Ethernet
LAN Chipset
1 x Intel® I219V Gigabit Ethernet
1 x Intel® I225LM 2.5 Gigabit Ethernet
Ethernet Interface
10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet
LAN Port
2 x RJ-45
Software Support
OS
Windows 11, Linux
Certification
Certification Information
CE, FCC, RoHS Compliant

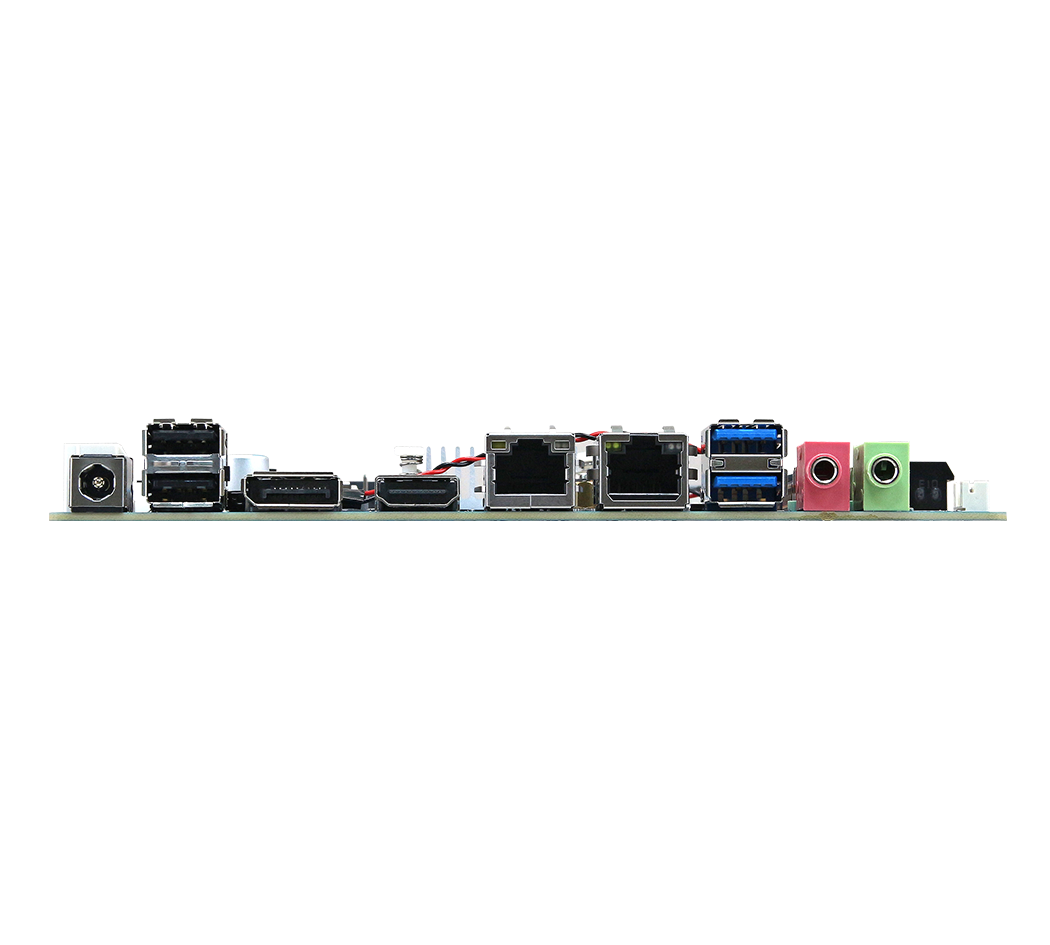

I/O
USB
2 x USB 3.2
2 x USB 2.0
2 x USB 3.2 Gen1x1 by pin header
2 x USB 2.0 by pin header
COM Port
1 x RS-232
2 x RS-232/422/485
SATA
2 x SATA III
2 x SATA power
DIO
1 x 8-bit GPIO
Mechanical & Environmental
Operating Temp.
0°C to 60°C (32°F ~ 140°F)
Storage Temp.
-20° C ~ 80° C (-4°F ~ 176°F)
Operating Humidity
5% to 90% Non-condensing
Weight
0.88lbs (0.4Kgs)
Power Requirement
DC in +12V~24V
Power Mode
AT/ATX (Default Setting: ATX)
Dimension (L x W)
6.7" x 6.7" (170mm x 170mm)
Ordering Information
Ordering Information
71852-IA
Intel® 12th/13/14th Gen. Core™ i9/i7/i5/i3 Processor Thin Mini ITX Motherboard with Intel® H610E PCH
