Processor

LGA 1851 Socket Supports Intel® Core™ Ultra Processors (Max. TDP at 125W)

Platform Controller Hub

Intel® W880 Chipset

System Memory

2 x 262-Pin DDR5 6400MHz Dual Channel SO-DIMM Socket Supports Up to 96GB

I/O Chipset

uBMC IT5792(IPMI) or equivalent

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control

TPM

Onboard NuvoTon NPCT760AABYX support TPM2.0

Board

Mini ITX

Expansion

1 x PCIe x16 Gen5 (from CPU) support graphic & NVMe
1 x M.2 (2230) E-Key, Support WiFi Module with PCIe x2 Gen4 & USB 2.0
1 x M.2 (2242/2280) M-Key, Support PCIe x4 Gen4 & SATA signal SSD (PCBA TOP)
1 x M.2 (2280 with bracket)/22110 M-Key, Support PCIe x4 Gen4 SSD (PCBA Bottom)

Graphic Chipset

Intel® Xe LPG graphics architecture CPU integrated

Spec. & Resolution

1 x DP 2.1: 7680 x 4320@60Hz
1 x USB4 Type C at I/O with DP-alt mode
1 x HDMI 2.1: 8K@60Hz
1 x LVDS: 1920 x 1080@60Hz Dual channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) Or 1 x eDP 1.4b 1920 x 1080@60Hz (2 Lanes)

Multiple Display

4 Independent Displays

LVDS

Dual Channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) or 1 x eDP 1920 x 1080@60Hz (2 Lanes)

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Support Line-out & Mic-in & Front Audio Pin-header

Audio Amplifier

2 x 3W 4Ω Amplifier

LAN Chipset

1 x Intel® i226LM, 2 x Intel® i226V 2.5 Gigabit, 1 x Intel® i210AT Controller

Ethernet Interface

100/1000/2500 Base-Tx GbE compatible Gigabit Ethernet

LAN Port

4 x RJ-45

OS

Windows 11, Linux

Certification Information

CE, FCC, RoHS Compliant

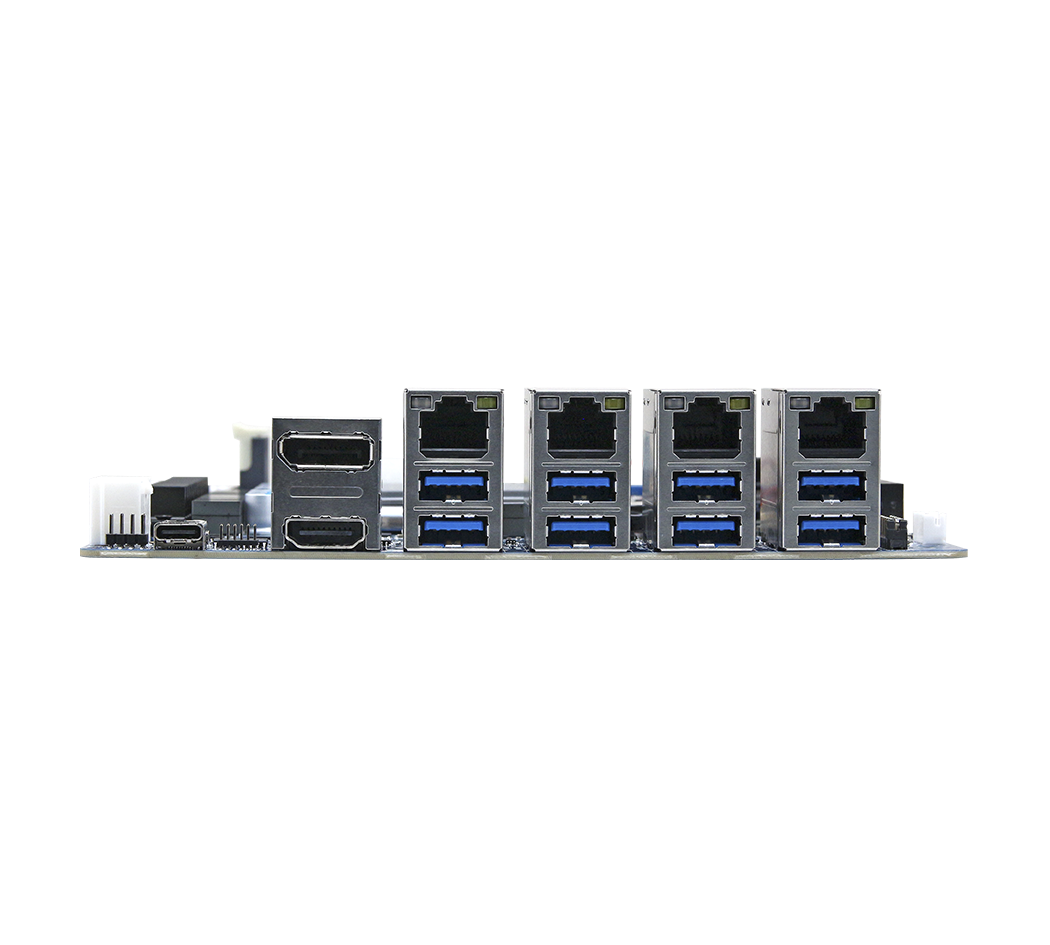

USB

4 x USB 3.2 Gen2 at I/O (one USB4 Type C Gen1 x2 with 15W PD, 5V@3A & DP-Alt mode)
4 x USB 3.2 Gen1 at I/O
2 x USB 3.2 Gen2 by pin header
2 x USB 2.0 by pin header

COM Port

3 x RS232
2 x RS232/422/485

SATA

2 x SATA III

RAID

Support RAID 0, 1

DIO

1 x 16-bit GPIO

Operating Temp.

0~55°C (32~131°F) w/HDD/SSD, ambient 0.5m/s air flow

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.88lbs (0.4Kgs)

Power Requirement

+12V / +5V / 5VSB /+3.3V /-12V

Power Mode

AT/ATX (Default Setting: ATX)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Ordering Information

EMX-W880P-A1R

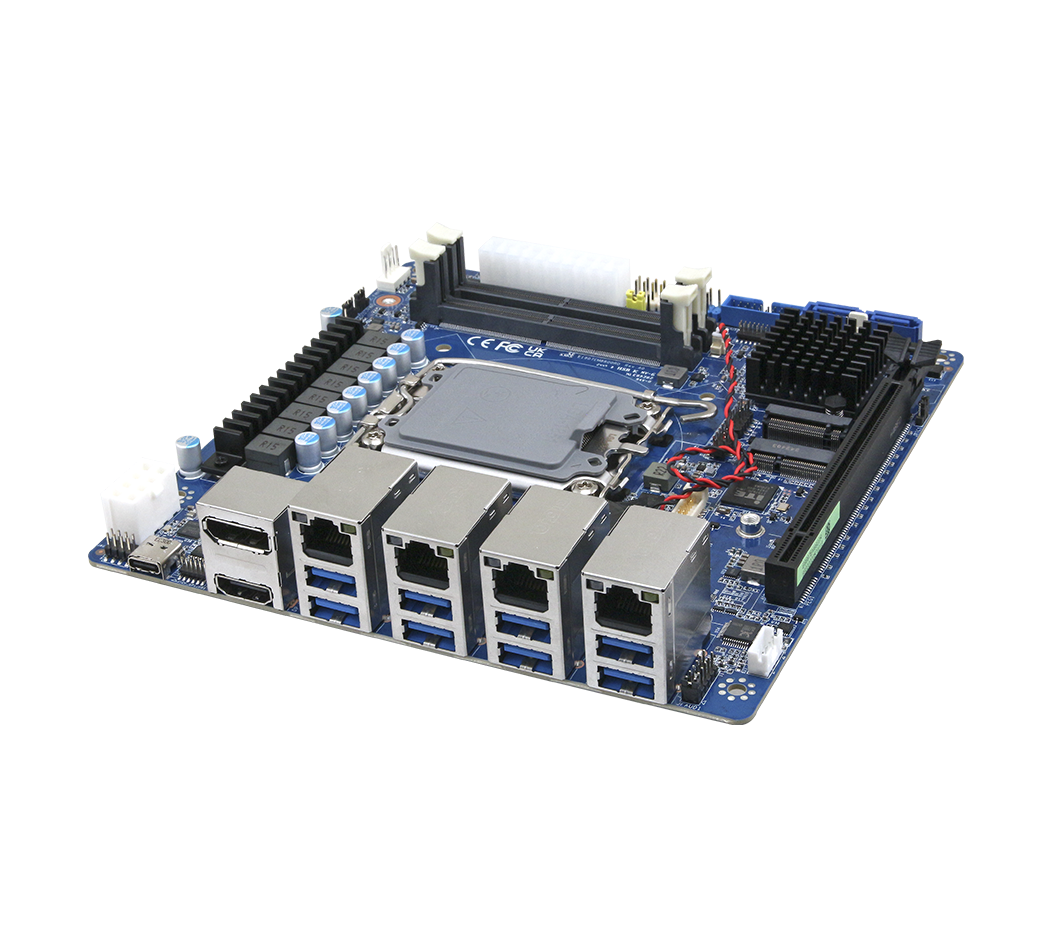

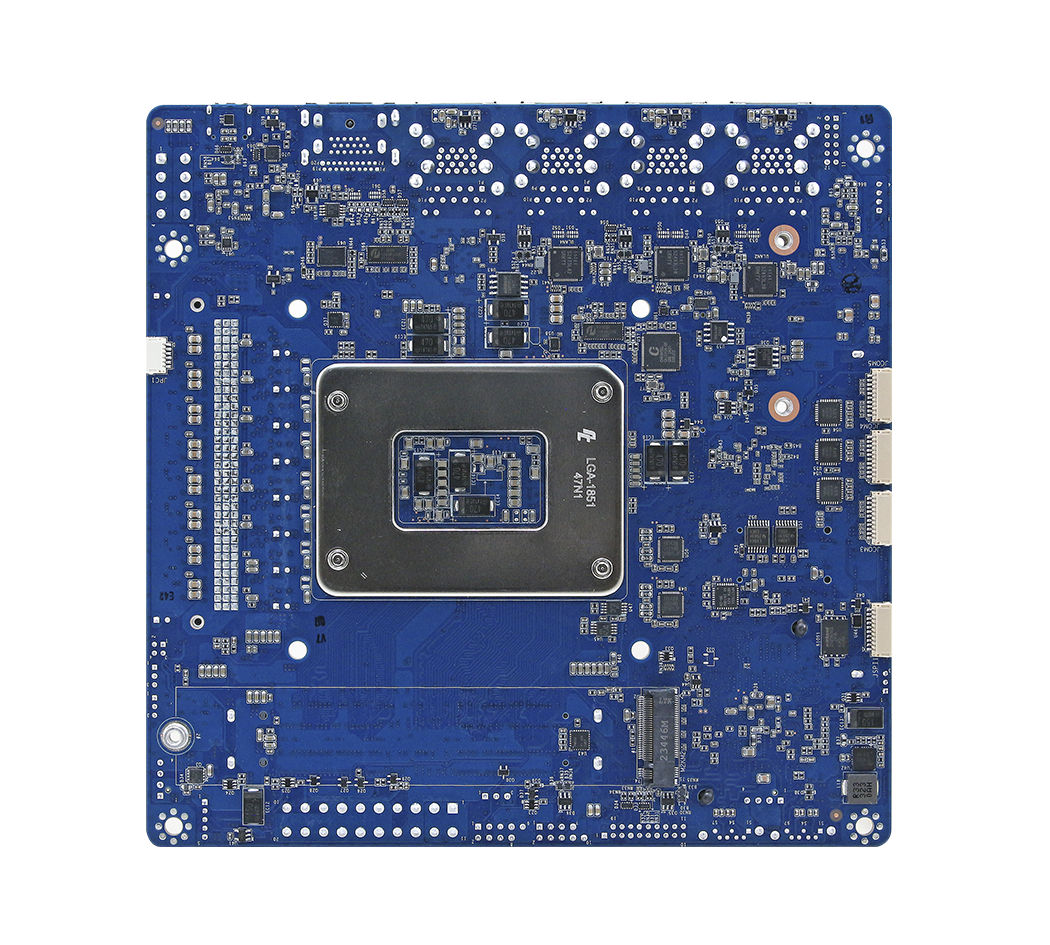

Intel® Core™ Ultra Processors Mini ITX motherboard
