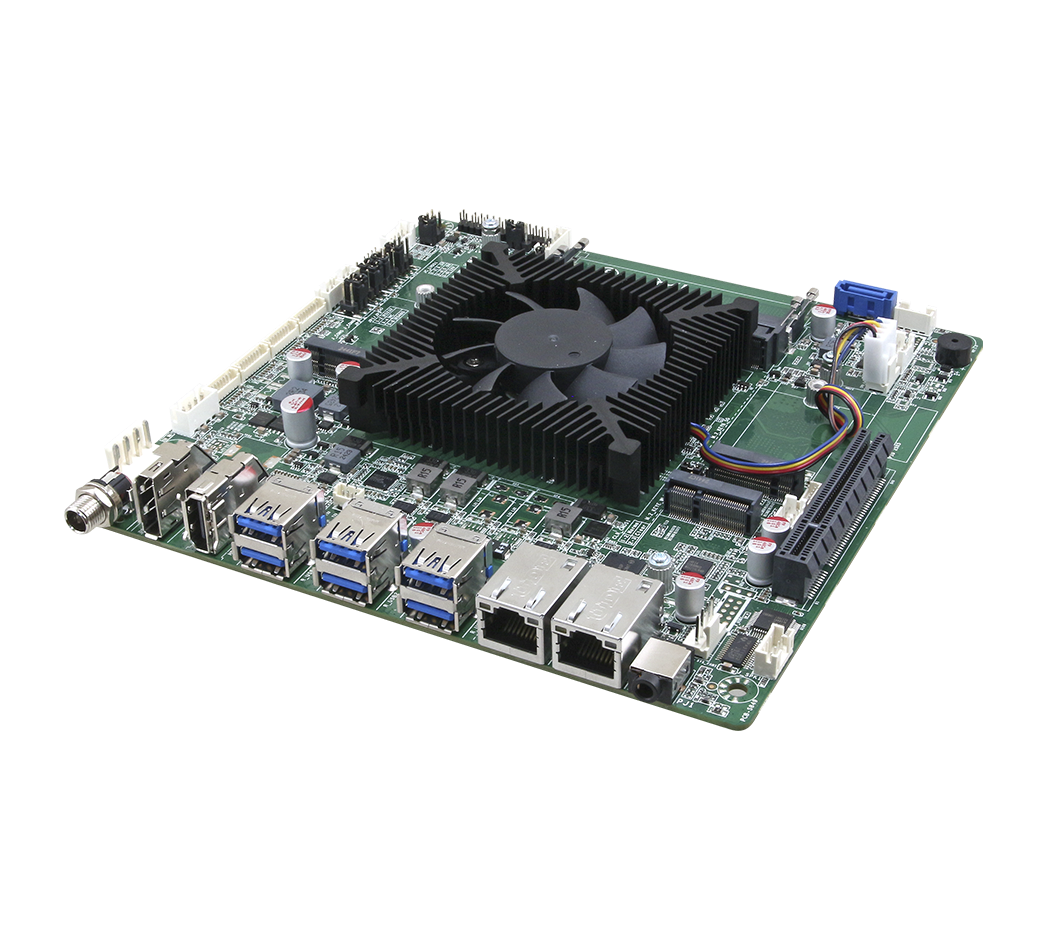

EMX-RLUC
12th Gen Intel® Core™ SoC i5/i3 BGA Processor, Thin Mini ITX motherboard
FEATURE
13th Gen Intel® Core™ SoC i5/i3 BGA Processor
2 x 260-Pin DDR4 3200MHz non-ECC SO-DIMM Socket Supports Up to 2 x 32GB
1 x HDMI2.0, 1 x DP++ 1.4a, 1 x LVDS, Supports up to triple independent displays
1 x PCIe x4 Gen4 with PCIe x8 slot
2 x Intel® Gigabit Ethernet Controllers (I210AT and I219-LM)
6 x USB3.2 Gen1, 2 x USB2.0
1 x M.2 Key-B 2242/3052, 1 x M.2 Key-E 2230, 1 x M.2 Key-M 2280
6 x COM Ports (4 x RS232, 2 x RS232/485)
Specification
Download
System Information
Processor
Onboard 13th Gen Intel® Core™ SoC i5/i3 BGA Processor
System Memory
2 x 260-Pin DDR4 3200MHz non-ECC SO-DIMM Socket Supports Up to 2 x 32GB
I/O Chipset
Super I/O, ITE IT8786E-I
Watchdog Timer
H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step
BIOS
AMI uEFI BIOS, 256Mbit SPI Flash ROM for i5 CPU / 128Mbit SPI Flash ROM for i3 CPU
H/W Status Monitor
CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control
TPM
Onboard Infineon SLB 9670VQ2.0 support TPM2.0
Board
Thin Mini ITX
Expansion
Expansion
1 x PCIe x4 Gen4 with PCIe x8 slot
1 x M.2 Key-B 2242/3052
1 x M.2 Key-E 2230
1 x M.2 Key-M 2280
1 x Wafer connector for SIM Card Cable (Option)
Display
Graphic Chipset
Intel® Iris® Xe Graphics eligible
Spec. & Resolution
1 x HDMI 2.0: 4096 x 2340@60 Hz
1 x DP++ 1.4a: Max 4096 x 2340@60 Hz
1 x LVDS: 1920 x 1200 Dual channel 18/24-bits LVDS
Multiple Display
Triple Display
LVDS
Dual channel 18/24-bits (LVDS CapStone CS5211) 1920 x 1200@60Hz
Audio
Audio Codec
Realtek ALC888S HD Audio Decoding Controller
Audio Interface
Line-out + Mic-in 2in1 3.5mm Jack on rear I/O
Audio Amplifier
2 x 3W 8Ω Amplifier (TI TPA3113D2PWP)
Ethernet
LAN Chipset
1 x Intel® I210AT Gigabit Ethernet Controller
1 x Intel® I219-LM for core i5 CPU or 1 x Intel® I219V for i3 CPU Gigabit Ethernet Controller
Ethernet Interface
LAN1: Intel® I210AT 10/100/1000 Base-Tx GbE compatible
LAN2: Intel® I219-LM/I219V 10/100/1000 Base-Tx GbE compatible
LAN Port
2 x RJ-45
Power Requirement
DC Input
DC in +12V
Software Support
OS
Windows 10, Windows 11, Linux
Certification
Certification Information
CE, FCC, RoHS Compliant
I/O
USB
6 x USB3.2 Gen1x1
2 x USB2.0
COM Port
4 x RS232
2 x RS232/485
SIM Slot
1 x 6 pin, pitch 1.25mm wafer connector for SIM Card (J_SIM1)
SATA
1 x SATA III
DIO
8-bit GPIO (4 x GPI, 4 x GPO)
Mechanical & Environmental
Operating Humidity
40°C at 95% relative humidity, non-condensing
Weight
0.88lbs (0.4Kgs)
Power Requirement
DC in +12V
Power Mode
AT/ATX mode Switchable Through Jumper
Dimension (L x W)
6.7" x 6.7" (170mm x 170mm)
Ordering Information
Ordering Information
EMX-RLUC-1335-A1R
Thin MINI-ITX w/i5-1335U/6COM/8USB/I219-LM/15W/A1
