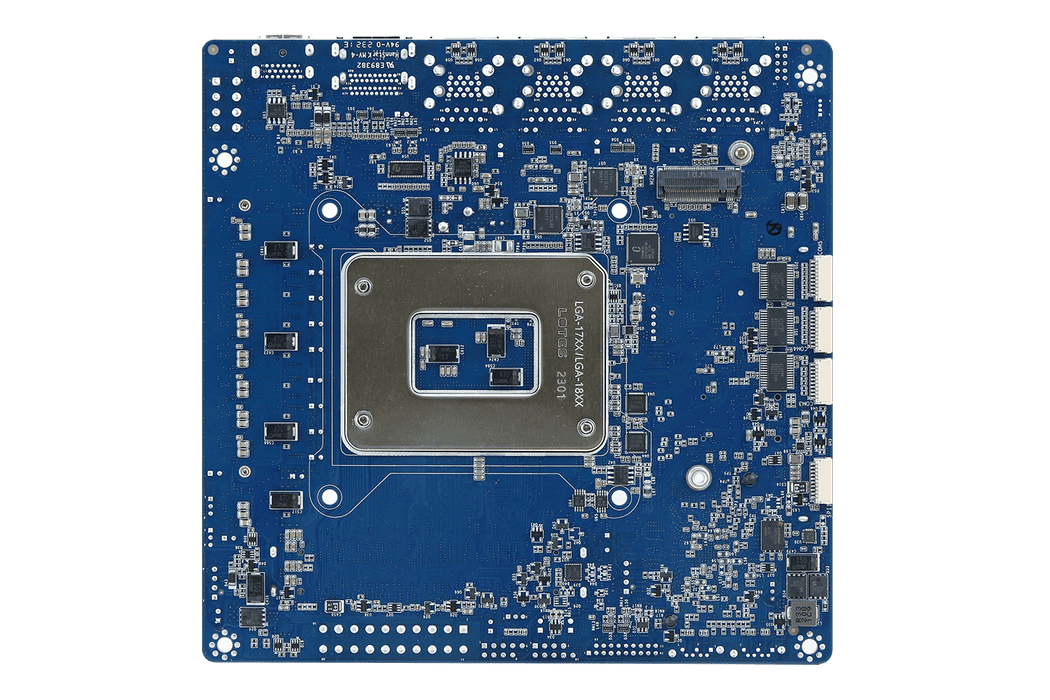

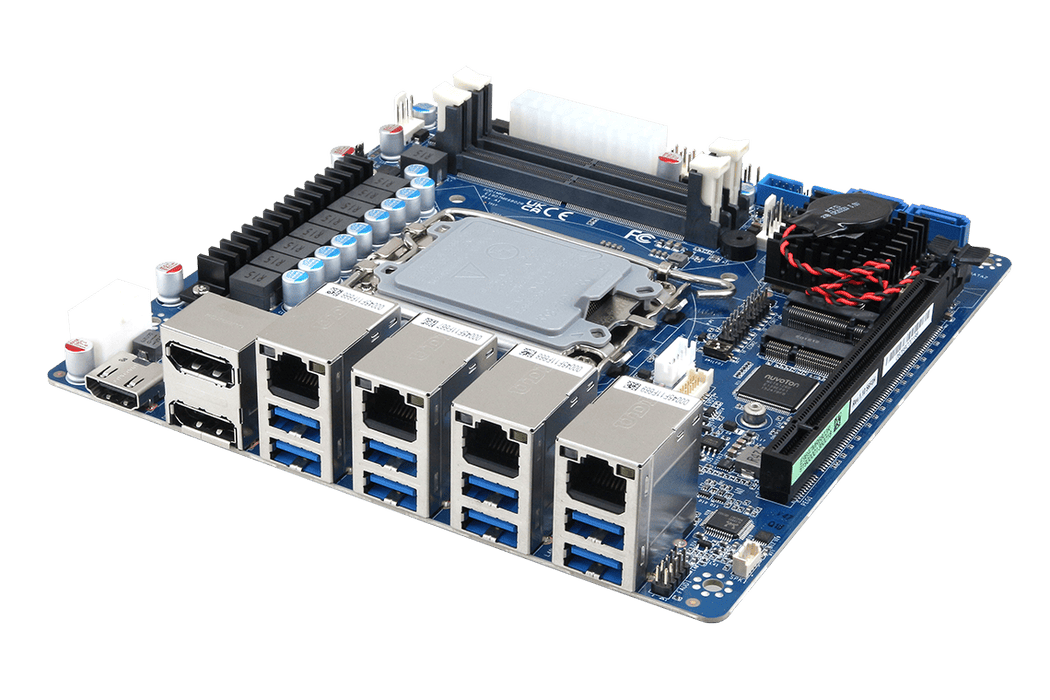

EMX-R680P
12th/13th Gen. Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® Processors, Mini ITX Motherboard with Intel® R680E Chipset
FEATURE
LGA 1700 Socket Supports 12/13th Generation Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® Processors with Intel® R680E Chipset (Max. TDP at 125W)
2 x 262-Pin DDR5 4800MHz Dual Channel SO-DIMM Socket Supports Up to 64GB

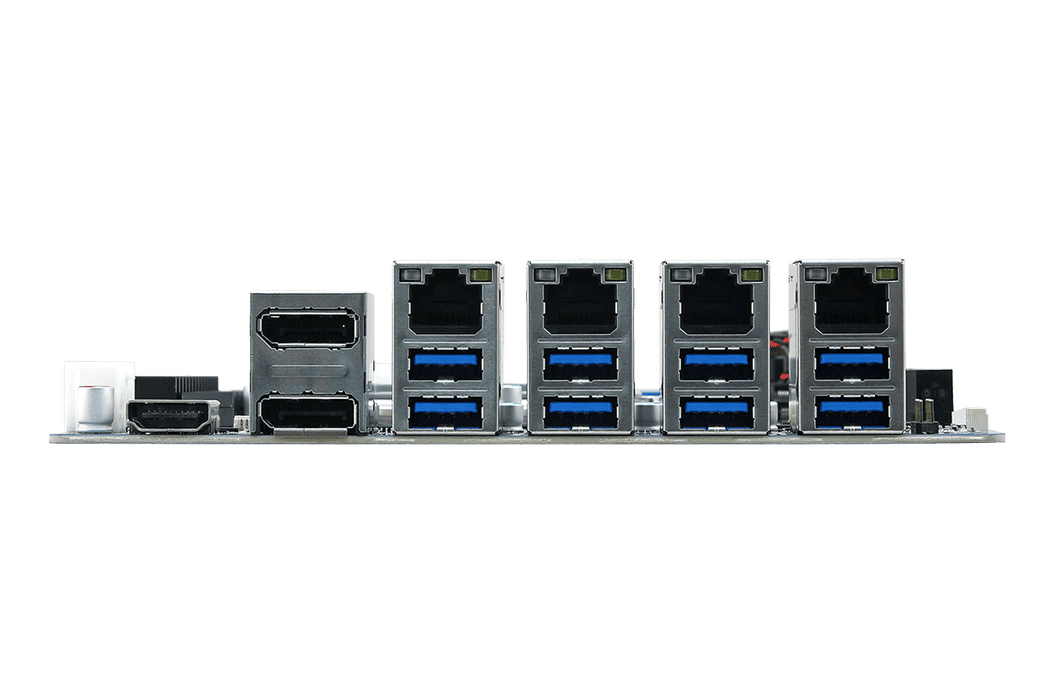

2 x DP++, 1 x HDMI 2.1b, 1 x eDP or LVDS
1 x PCIe x16 (Gen5)
4 x Intel® i226LM 2.5 Gigabit Ethernet
4 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen1, 2 x USB 2.0
1 x M.2 (2230) E-Key, 2 x M.2 (2242/2280) M-Key
5 x COM
ATX Power
Specification
Download
System Information
Processor
LGA 1700 Socket Supports 12/13th Generation Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® Processors (Max. TDP at 125W)
Platform Controller Hub
Intel® R680E Chipset
System Memory
2 x 262-Pin DDR5 4800MHz Dual Channel SO-DIMM Socket Supports Up to 64GB
I/O Chipset
nuvoTon NCT6126D
Watchdog Timer
H/W Reset, 5~255 Seconds/5~255 Minutes
BIOS
AMI uEFI BIOS, 256Mbit SPI Flash ROM
H/W Status Monitor
CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control
TPM
fTPM (Firmware TPM)
Board
Mini ITX
Expansion
Expansion
1 x PCIe x16 (Gen5)
1 x M.2 (2230) E-Key, Support WiFi Module with PCIe x2 Gen 4 & USB 2.0
2 x M.2 (2242/2280) M-Key, Support PCIe x4 Gen 4 SSD
Display
Graphic Chipset
Intel® 12/13th Generation CPU Integrated
Spec. & Resolution
1 x HDMI 2.1b
2 x DP++: 4096 x 2304@60Hz / 5120 x 3200@60Hz
1 x LVDS: 1920 x 1080@60Hz Dual Channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) or 1 x eDP 1920 x 1080@60Hz (2 Lanes)
Multiple Display
4 Independent Displays
LVDS
Dual Channel 18/24-bits LVDS (Chrontel CH7513A-BF eDP to LVDS) or 1 x eDP 1920 x 1080@60Hz (2 Lanes)
Audio
Audio Codec
Realtek ALC888S HD Audio Decoding Controller
Audio Interface
Support Line-out & Mic-in & Front Audio Pin-header
Audio Amplifier
2 x 2W 4Ω Amplifier
Ethernet
LAN Chipset
4 x Intel® i226LM 2.5 Gigabit Ethernet
Ethernet Interface
100/1000/2500 Base-Tx GbE compatible Gigabit Ethernet
LAN Port
4 x RJ-45
Software Support
OS
Windows 10, Windows 11, Linux
Certification
Certification Information
CE, FCC, RoHS Compliant
I/O
USB
4 x USB 3.2 Gen2
4 x USB 3.2 Gen1
2 x USB 3.2 Gen1
2 x USB 2.0
COM Port
3 x RS232
2 x RS232/422/485
SATA
2 x SATA III
RAID
Support RAID 0, 1
DIO
1 x 16-bit GPIO
Mechanical & Environmental
Operating Temp.
0~55°C (32~131°F)
Storage Temp.
-40 ~ 75°C (-40 ~ 167°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Weight
0.88lbs (0.4Kgs)
Power Requirement
+12V / +5V / 5VSB /+3.3V /-12V
Power Mode
AT/ATX (Default Setting: ATX)
Dimension (L x W)
6.7" x 6.7" (170mm x 170mm)
Ordering Information
Ordering Information
EMX-R680P-A1R
Intel® 12/13th Gen Core™ i9/i7/i5/i3 / Pentium® / Celeron® Processors
