Processor

Intel® Core™ Ultra 5 Processor 125U & 125H BGA Processor (TDP: 15W & 28W)

System Memory

2 x 262-Pin DDR5 5600MHz SO-DIMM Socket Supports Up to 64GB

I/O Chipset

EC iTE IT5782VG

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control

TPM

Onboard nuvoTon NPCT760AABYX support TPM 2.0

Board

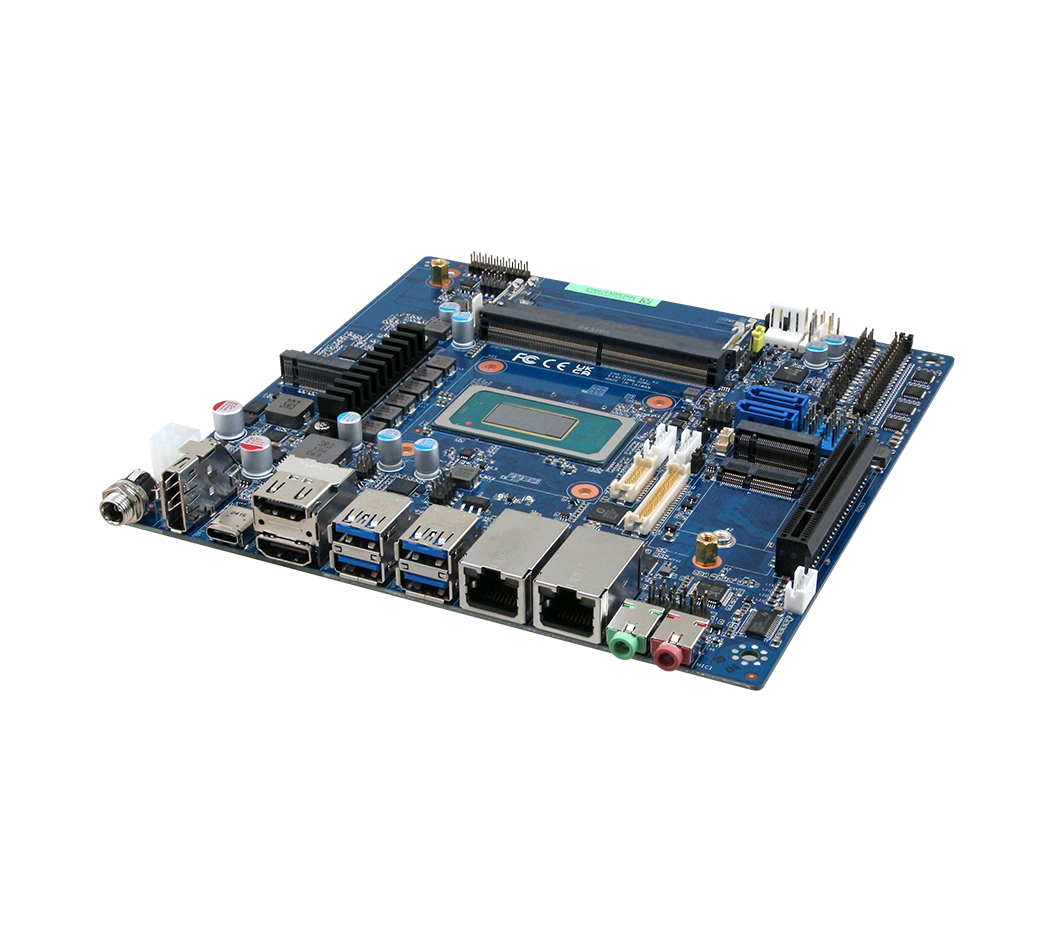

Thin Mini ITX

Expansion

1 x M.2 Type B 2242/3042/3052 (with 1 x PCIe x1 (Default), USB2.0, USB 3.2 Gen2 with 1 x SIM Card Slot Support WWAN+GNSS (Note: this Type B conn. shares SATA signal with SATA2, supports SSD storage)
1 x M.2 Key E 2230 Support Wi-Fi Module and CNVi (1 x PCIe x1 & USB 2.0 Signal)
2 x M.2 Key M 2280 (PCIe x4) Slot for Storage NVMe SSD

Graphic Chipset

Intel® Xe LPG Graphics

Spec. & Resolution

2 x HDMI 2.0: 3840 X 2160 @60Hz
1 x DP1.4a: Max: 7680 x 4320@30Hz
1 x USB Type C supports 3840 x 2160@60Hz
LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)
eDP1.2: Max 4096 x 2304@60 Hz

Multiple Display

2 x DP, 2 x HDMI, 1 x LVDS, 1 x eDP
(Maximum: 6 for Quadruple Independent Displays)

LVDS

1 x Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Support Line-out & Mic-in on rear I/O

Audio Amplifier

2 x 6W 8Ω Amplifier

LAN Chipset

1 x Intel® i226LM 2.5 Gigabit Ethernet Controller
1 x Intel® i226V 2.5 Gigabit Ethernet Controller

Ethernet Interface

10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet

LAN Port

2 x RJ-45

DC Input

12~24V

OS

Windows 11 LTSC
Linux

Certification Information

CE, FCC, RoHS Compliant

USB

3 x USB 3.2 Gen2 (1 from Type C)
2 x USB 3.2 Gen1
6 x USB 2.0

COM Port

4 x RS232 (JCOM1 ~ JCOM4)
2 x RS22/485 (JCOM1 and JCOM2, need to modify BIOS Setup settings and change pin header & cable)

SATA

2 x SATA III
1 x SATA Power

DIO

1 x 16-bit GPIO

Operating Temp.

125U (15W) with fanless support: 0~55°C.
125H (28W) with CPU cooler support: 0~50°C.
With HDD/SSD, ambient with 0.5 m/s Air flow.

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

15W (shipping with heatsink): 1.127lbs (0.51Kgs)
28W (shipping w/o cooler): 0.603lbs (0.27kgs)

Power Requirement

DC in +12V~24V

Power Mode

AT/ATX (Default Setting: ATX)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Ordering Information

EMX-MTLP-125U-A1R (Intel®Core Ultra 5 125U/15W)
EMX-MTLP-125H-A1R (Intel®Core Ultra 5 125H/28W)
