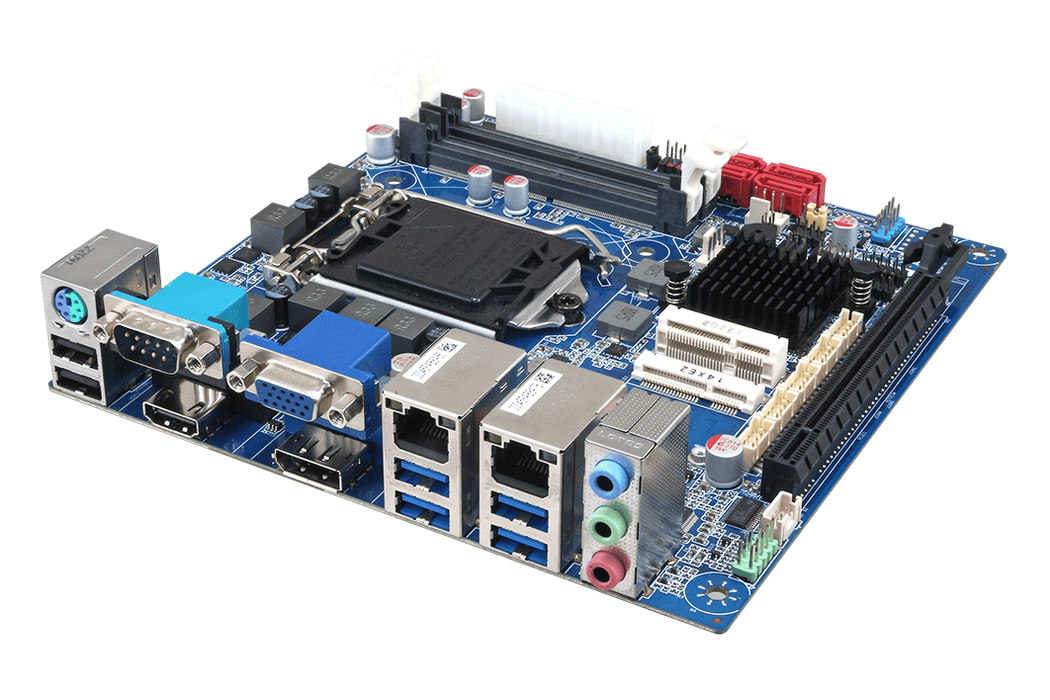

EMX-H110KP
6/7th Gen. Intel® Core™ Processors, Mini ITX Motherboard with Intel® H110 Chipset
FEATURE
Intel® 7th Generation Core™ Processor with Intel® H110 Chipset (Max. TDP at 95W)
2 x 260-pin DDR4 2133 MHz SO-DIMM Supports Up to 32GB
1 x VGA, 1 x HDMI, 1 x DP++, 1 x Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)
1 x PCIe x16
1 x Intel® I219LM Gigabit Ethernet PHY, 1 x Intel® I210AT PCIe Gigabit Ethernet
4 x USB 3.0, 2 x USB 2.0 at I/O, 2 x USB 2.0 pin header
5 x RS232, 1 x RS232/422/485
ATX Power
Specification
Download
System Information
Processor
LGA1151 Socket Supports 6/7th Generation Intel® Core™ i7/ i5/ i3 / Pentium® / Celeron® Processors (Max. TDP at 95W)
Platform Controller Hub
Intel® H110 Chipset
System Memory
2 x 260-Pin DDR4 2133MHz SO-DIMM Socket Supports Up to 32GB
I/O Chipset
nuvoton NCT6106D
Watchdog Timer
H/W Reset, 5~255 Seconds/5~255 Minutes
BIOS
AMI uEFI BIOS, 128Mbit SPI Flash ROM
H/W Status Monitor
CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control
TPM
Onboard infineon SLB9665 supports TPM 2.0 (Optional)
Board
Mini ITX
Expansion
Expansion
1 x PCIe x 16
1 x Full Size Mini PCIe Supports mSATA (By Auto Switch IC)
1 x Half Size Mini PCIe
Display
Graphic Chipset
Intel® 7th Generation CPU Integrated
Spec. & Resolution
VGA: 2048 x 1536@50Hz
HDMI: 4096 x 2160@24Hz
DP: 4096 x 2304@60Hz
Multiple Display
Dual Display
LVDS
Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)
Audio
Audio Codec
Realtek ALC888S HD Audio Decoding Controller
Audio Interface
Mic-in, Line-out, Line-in
Audio Amplifier
2 x 6W 8Ω Amplifier
Ethernet
LAN Chipset
1 x Intel® I219LM Gigabit Ethernet PHY
1 x Intel® I210AT PCIe Gigabit Ethernet
Ethernet Interface
10/100/1000 Base-Tx GbE compatible
LAN Port
2 x RJ-45
Software Support
OS
Windows 10, Linux
Certification
Certification Information
CE, FCC, RoHS Compliant
I/O
USB
4 x USB 3.0
4 x USB 2.0
COM Port
5 x RS232
1 x RS232/422/485
SATA
3 x SATA III
1 x SATA III or 1 x mSATA III Switch by BIOS Selection
DIO
1 x 8-bit GPIO
MIO
1 x PS/2 Keyboard or 1 x PS/2 Mouse
Mechanical & Environmental
Operating Temp.
0~60°C (32~140°F)
Storage Temp.
-40 ~ 75°C (-40 ~ 167°F)
Operating Humidity
40°C @ 95% relative humidity, non-condensing
Weight
0.88lbs (0.4Kgs)
Power Requirement
+12V/+5V/5VSB/+3.3V/-12V
Power Mode
AT/ATX (Default Setting: ATX)
Dimension (L x W)
6.7" x 6.7" (170mm x 170mm)
Ordering Information
Ordering Information
EMX-H110KP-B1R
Intel® 6/7th Generation CoreTM i7/ i5/ i3 Processor Mini ITX Motherboard with Intel® H110 Chipset
