Processor

Onboard Alder Lake-P 12th Intel® Core™ SoC i7/i5/i3/Celeron Processor (TDP: 15~45W)
H-Series: 25~45W, P-Series: 20~28W, U-Series: 12~15W

System Memory

2 x 262-Pin DDR5 4800MHz SO-DIMM Socket Supports Up to 64GB (non ECC only)

I/O Chipset

EC iTE IT5782VG

Watchdog Timer

H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control

TPM

Onboard nuvoTon NPCT754AABYX support TPM 2.0

Board

Mini ITX

Expansion

1 x M.2 Type B 3042/3052 (with 1 x PCIe x1 (Default), USB2.0, USB 3.2 Gen2 with 1 x SIM Card Slot Support WWAN+GNSS
1 x M.2 Key E 2230 support Wi-Fi Module and CNVi (1 x PCIe x1 & USB 2.0 Signal)
1 x M.2 Key B 2242 (SATA Signal, Shared with SATA2) Slot Support SSD Storage
1 x M.2 Key M 2280 (PCIe x4) Slot for Storage NVMe SSD
H-series: 1 x PCIe x8 Gen 4 Slot (with Redriver mux (DS160PR421 3.2US x1 & DS160PR412 3.2US x1)
P/U-series: 1 x PCIe x4 Gen 4 Slot (with Redriver mux (DS160PR421 3.2US x1 & DS160PR412 3.2US x1)

Graphic Chipset

Intel® Iris® Xe Graphics (For Core i5 & i7)
Intel® UHD Graphics for 12th Gen Intel® Processors (For Core i3 & Celeron)

Spec. & Resolution

DP1+DP3 (DP1.4): Max: 7680 x 4329@60Hz
DP2+DP4 (DP1.4): Max: 7680 x 4329@60Hz
Single DP port (2021/2 Lab test): 5120 x 2160@60Hz, Check Max: 7680 x 4329@60Hz
Intel resolution as below:
2 x DP++ : 1920 x 1080@60Hz
2 x DP: 4096 x 2304@60Hz
LVDS: 1920 x 1080 Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)
eDP 4096 x 2304@60Hz
*2 x DP++, LVDS, eDP Default (Thin Mini ITX), Optional: DP3 and DP4 for Full Height
(Maximum: 6 for Quadruple Independent Displays)

Multiple Display

2 x DP++/2 x DP/1 x LVDS/1 x eDP
(Maximum: 6 for Quadruple Independent Displays)

LVDS

Dual Channel 18/24-bits LVDS (Chrontel CH7511B eDP to LVDS)
1 x eDP

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Support Line-out & Mic-in & Front Audio Pin-header

Audio Amplifier

2 x 6W 8Ω Amplifier

LAN Chipset

3 x Intel® i226LM 2.5 Gigabit Ethernet (LAN2~4)
1 x Intel® i219LM Gigabit Ethernet PHY
*LAN3~4 for Full height

Ethernet Interface

10/100/1000 Base-Tx GbE compatible & 2.5 Gigabit Ethernet

LAN Port

4 x RJ-45

OS

Windows 11, Linux

Certification Information

CE, FCC, RoHS Compliant

USB

2 x USB 3.2 Gen2
2 x USB 3.2 Gen1
4 x USB 2.0

COM Port

4 x RS232
2 x RS422/485

SATA

2 x SATA III
1 x SATA Power

DIO

1 x 16-bit GPIO

Operating Temp.

0~60C (32~140°F) w/HDD/SSD, ambient with 0.5 m/s Air flow

Storage Temp.

-40 ~ 75°C (-40 ~ 167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

0.88lbs (0.4Kgs)

Power Requirement

DC in +12V~24V

Power Mode

AT/ATX (Default Setting: ATX)

Dimension (L x W)

6.7" x 6.7" (170mm x 170mm)

Ordering Information

EMX-ADLP-U15-A1R (i3-1215UE, 15W, Thin, 2DP/2LAN)
EMX-ADLP-U45-A1R (i5-1245UE, 15W, Thin, 2DP/2LAN)
EMX-ADLP-P20-A1R (i3-1220PE, 28W, Full, 4DP/4LAN)

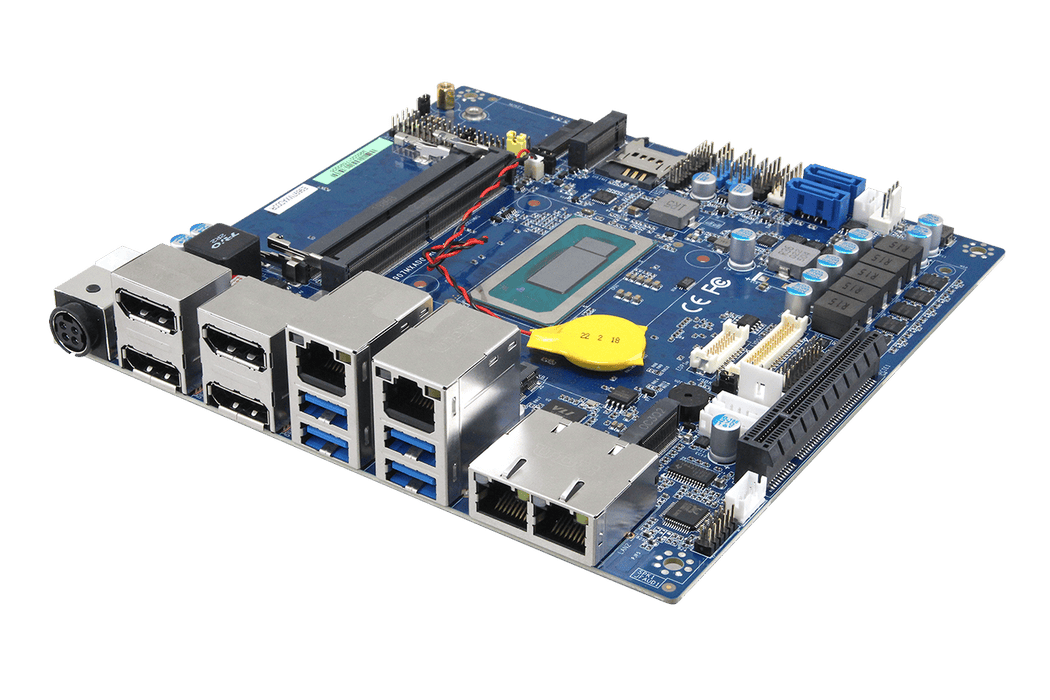

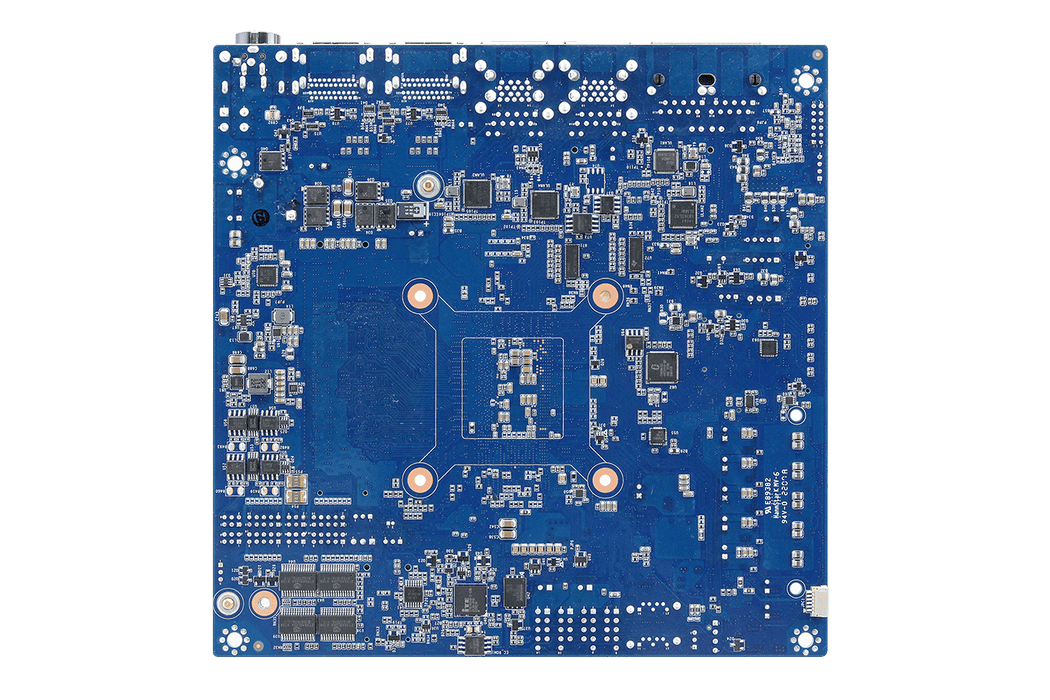

Intel® 12th Gen. Core™ SoC i5/i3 & Celeron®BGA Processor Mini ITX Motherboard
