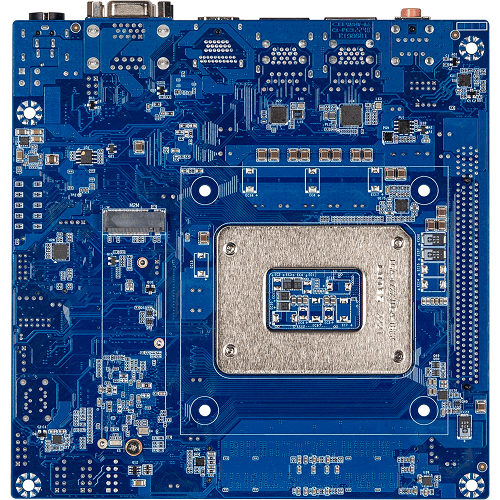

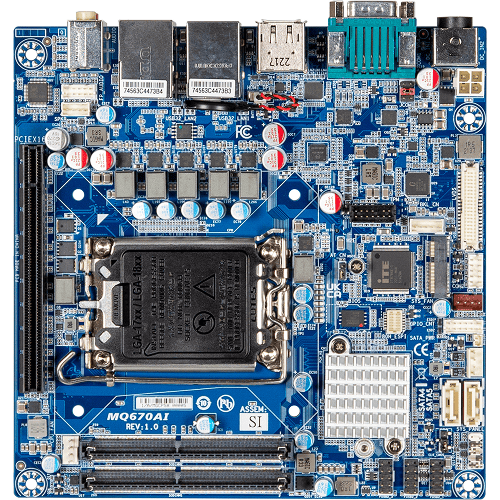

EMB-Q670A (mITX-Q670A)
Mini-ITX with Intel® Q670 Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 2 x COM, 10 x USB, 2 x SATA 6Gb/s
FEATURE
Mini-ITX form factor
Support 14th/13th/12th Generation Intel® Core™ Processors
Intel® Q670 Chipset
Dual Channel DDR4, 2 x SO-DIMMs
1 x GbE LAN Port
1 x 2.5GbE LAN Port
2 x SATA 6Gb/s Ports
HDMI, Display Port, VGA, LVDS ports for multiple display
1 x COM Port (RS-232)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
Specification
Download
Mechanical Specification
Form Factor
Mini-ITX
170W x 170D(mm)
System
CPU
Support for 14th/13th/12th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1700 package
TDP under 65W
Socket
1 x LGA 1700
Chipset
Intel® Q670 Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 3200 MHz memory modules
I/O & Connectivity
Ethernet
1 x GbE LAN Port (Intel® I219LM)
1 x 2.5GbE LAN Port (Intel® I226V)
Video
Integrated Graphics Processor - depends on CPU:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
(4 independent display outputs)
Audio
Realtek® Audio codec
Internal I/O
1 x 4-pin ATX main power connector
2 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
6 x USB 2.0 headers
1 x COM header (RS-232)
1 x GPIO (8-bits) & SMBUS header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer header
1 x AT/ATX mode select jumper
Rear I/O
2 x Audio Jacks (Line out, Mic in)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x Display Port
1 x VGA
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V~+24VDC)
Storage
Storage
2 x SATA 6Gb/s Ports
RAID
RAID 0/1
Expansion
Expansion Slots
1 x PCIe x16 (Gen4 x16)
1 x 2280 M.2 M-Key (PCIe x4)
1 x 2230 M.2 E-Key (WiFi/BT)
Security / System Management
TPM
1 x TPM Header
Software Support
OS Compatibility
Windows 10/11 (x64)
Environmental
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packaging
Packing Content
Carton size: 465 x 351 x 217 (mm)
Ordering Information
Ordering Information
9MQ670AIMR-SI (Box packing)
Optional Accessories
Optional Kit
CPU Cooler : 25ST0-037820-Y0R
CPU Cooler Backplate : 12KRH-0A1700-00R
TPM 2.0 module: 9CTM010NR-00
