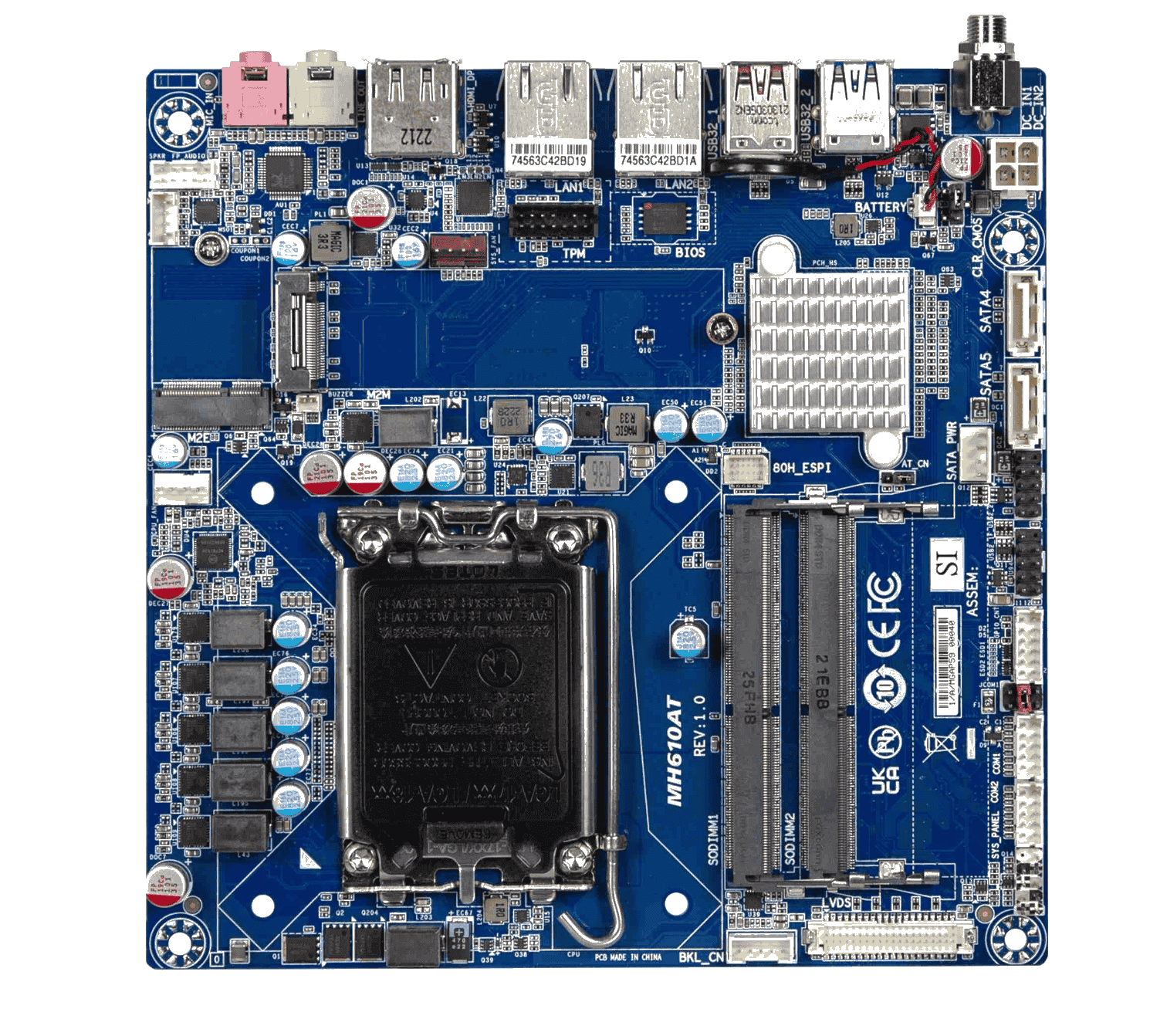

EMB-H610A (iTXL-H610A)
Thin Mini-ITX with Intel® H610 Chipset, support 14th/13th/12th Generation Intel® Core™ Processor, Dual Channel DDR4 Memory, 2 x COM, 8 x USB, 2 x SATA 6Gb/s
FEATURE
Thin Mini-ITX form factor
Support 14th/13th/12th Generation Intel® Core™ Processors
Intel® H610 Express chipset
HDMI, Display Port, LVDS ports for Multiple Display
1 x COM Port (RS-232/422/485 & RI/5V/12V)
Specification
Download
Expansion
Expansion
1 x 2280 M.2 M-Key (PCIe x4)
1 x 2230 M.2 E-Key (PCIe x1, USB 2.0)
Storage
Storage
2 x SATA 6Gb/s Ports
Display
Digital Display Interface
Integrated Graphics Processor - Intel® HD Graphics support:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
(3 independent display outputs)
Audio
Speaker Output
2 x Audio Jacks (Line out, Mic in)
Ethernet
LAN Port
2 x GbE LAN Ports
Power Requirement
Power Type
DC
Software Support
OS
Windows 10/11 (x64)

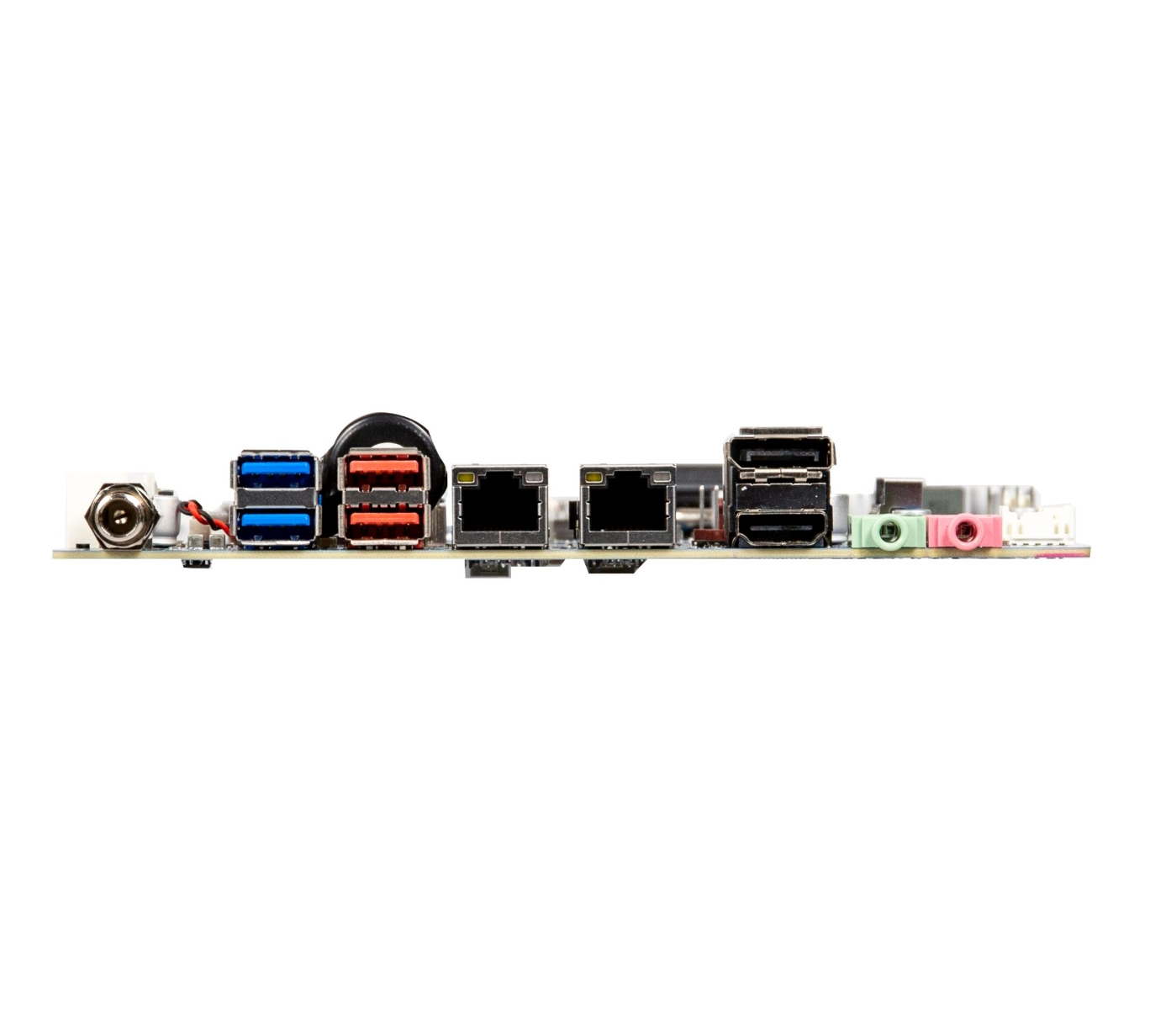

External I/O
USB
4 x USB 2.0 headers
2 x USB 3.2 Gen 2x1
2 x USB 3.2 Gen 1
DC In / Out Connector
Input Power Connector
1 x DC Jack
DC In / Out Characteristics
Working Voltage
+12V/+19V~24VDC
Reliability
Operating Humidity
Operating humidity: 0-90% (non-condensing)
Mechanical & Environmental
Power Connector
DC In Jack
ATX 2x2 Pin Power connector
Ordering Information
Ordering Information
9MH610ATMR-SI (Box Packing)
