Processor

Support for 14th/13th/12th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® & Celeron® processors in the LGA1700 package
TDP under 125W

System Memory

4 x DDR5 DIMM sockets, Max. Capacity 128 GB
Support Dual channel DDR5 4800 MHz memory modules

TPM

Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0

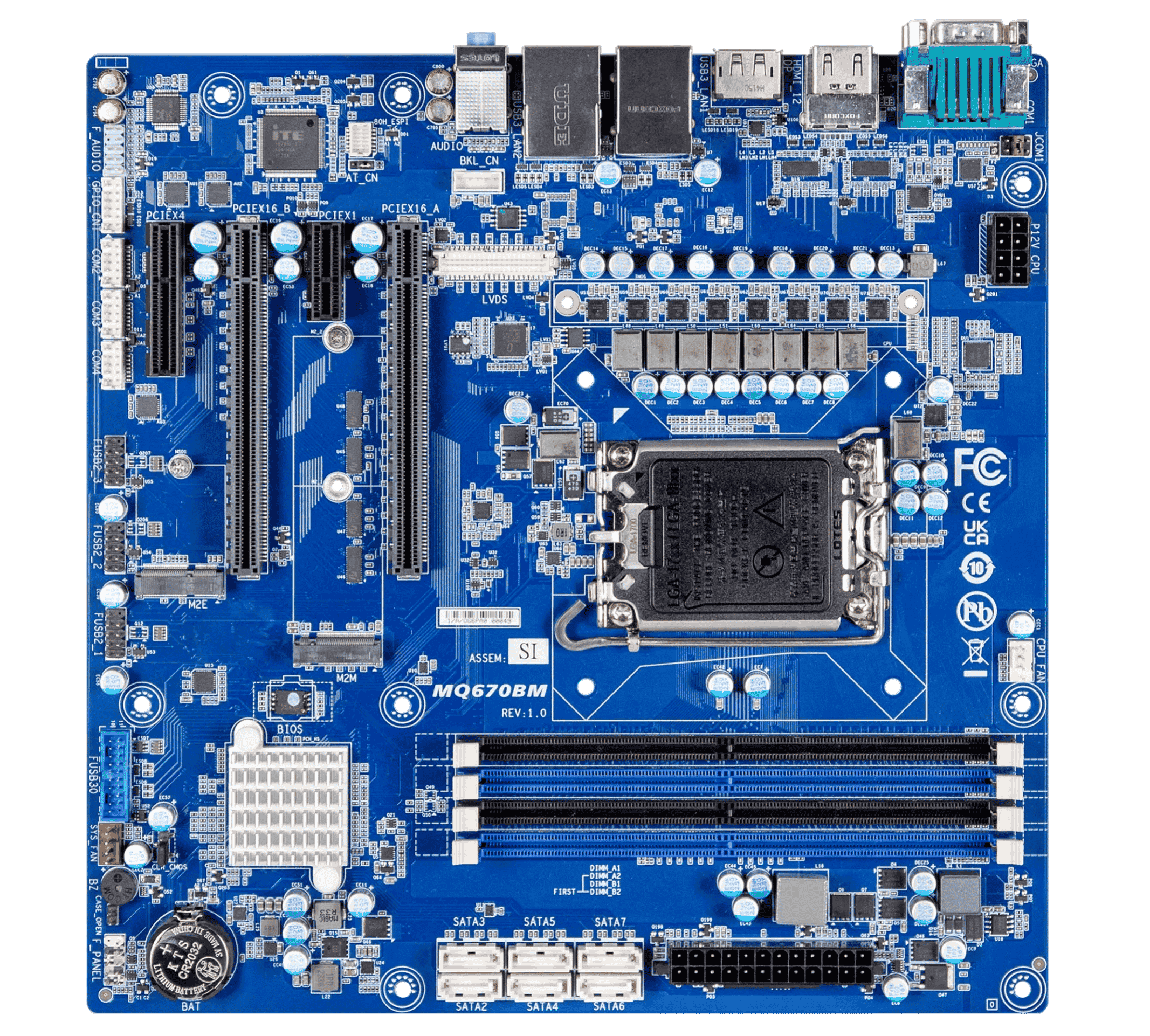

Board

Micro-ATX

Expansion

1 x PCIe x16 (Gen 4x16)(PCIEX16_A)
* The PCIEX16_A slot shares bandwidth with the PCIEX16_B slot.
* The PCIEX16_A slot operates at up to x8 mode when a device is installed in the PCIEX16_B slot.
1 x PCIe x16 (Gen 4x8)(PCIEX16_B)
1 x PCIe x1 (Gen 3x1)
1 x PCIe x4 (Gen 3x4)
1 x 2280/2242 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key

Storage

6 x SATA 6Gb/s Ports

Digital Display Interface

Integrated Graphics Processor - depends on CPU:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz

(4 independent display outputs)

Speaker Output

Realtek® ALC897

LAN Port

1 x GbE LAN Port (Intel® I219LM)
1 x 2.5GbE LAN Port (Intel® I226V)

OS

Windows 10/11 (x64)

Certification Information

CE, FCC, RoHS Compliant

USB

2 x USB 3.2 Gen 2x1
2 x USB 3.2 Gen 1

Operating Humidity

Operating humidity: 0-90% (non-condensing)

Operating Temp.

0°C to 60°C

Operating Humidity

0-90% (non-condensing)

Weight

1.27 lbs

Power Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Dimension (L x W)

244W x 244D(mm)

Ordering Information

9MQ670BMMR-SI (Box packing)
