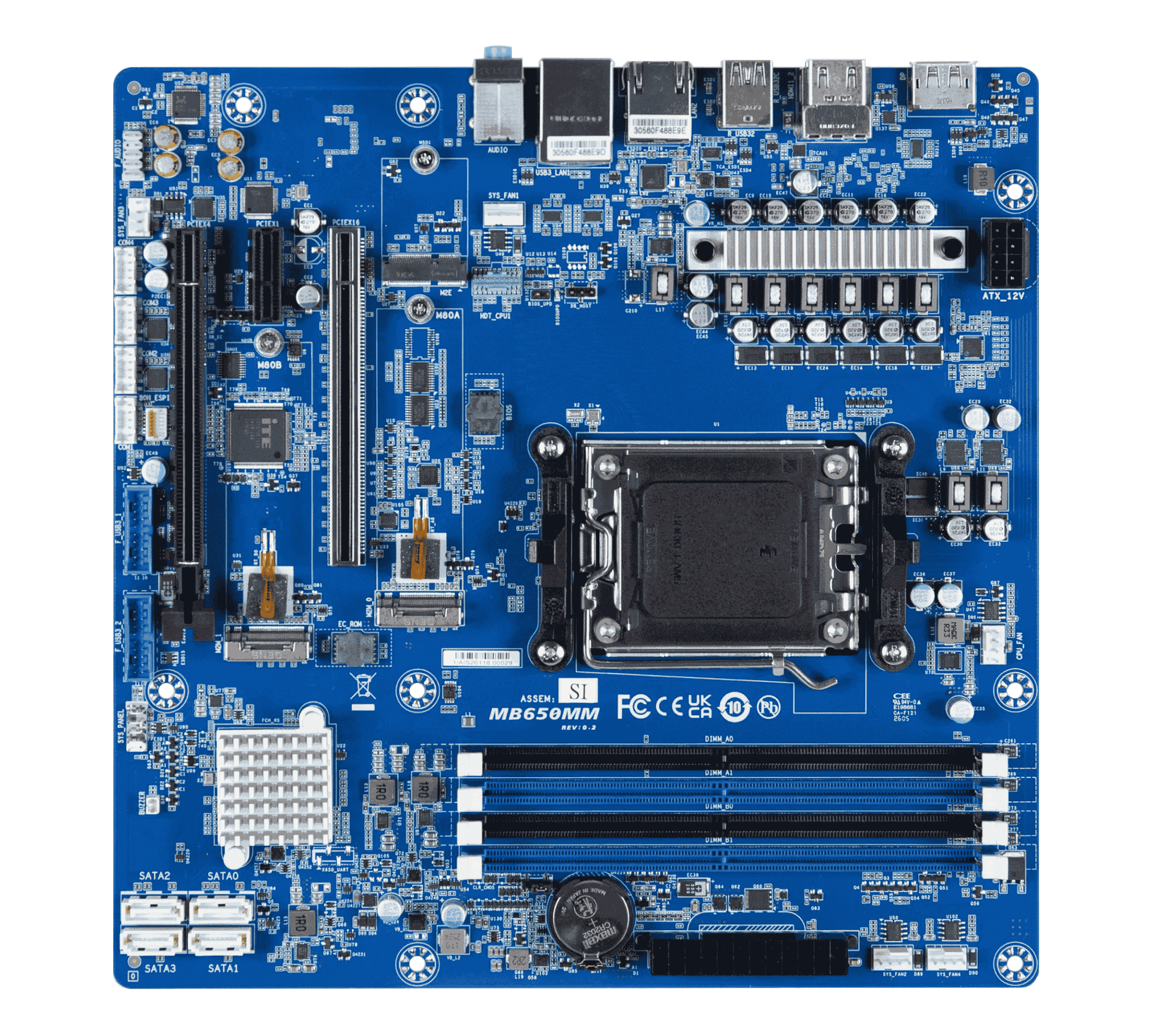

Micro-ATX Compatible-sized embedded board

Processor

AMD® Ryzen™ Embedded 7000/9000 Series & AMD® EPYC™ Embedded 4005 Series

System Memory

4 x DDR5 DIMM sockets, Max Capacity 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support Non-ECC UDIMM memory modules

I/O Chipset

AMD® B650

TPM

Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0

Expansion

1 x PCIe x16 (Gen5 x16)
1 x PCIe x16 (Gen4 x4)
1 x PCIe x1 (Gen4 x1)
2 x 2280 M.2 M-Key (PCIe Gen5 x4)
1 x 2230 M.2 E-Key (PCIe x1, USB 2.0)

Storage

4 x SATA 6Gb/s Ports

Digital Display Interface

2 x HDMI 2.1 port (TMDS), supporting a maximum resolution of 4096x2160 @60Hz
1 x DP 1.2 port, supporting a maximum resolution of 4096x2160 @60Hz

Audio Codec

Realtek® ALC897
High Definition audio 7.1-channel

LAN Port

1 x 2.5G LAN Port (Realtek® RTL8125B)
1 x GbE DASH LAN Port (Realtek® RTL8111EPP)

DC Input Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

OS

Windows 10 IoT Enterprise LTSC 2021, x64
Windows 11 IoT Enterprise, version 24H2 x64
Windows 11 IoT Enterprise LTSC 2024, x64
Windows 11 Enterprise LTSC 2024
Windows 11 IoT Enterprise, version 25H2, x64
Ubuntu 24.04.4 LTS

Certification Information

CE,FCC

USB

3 x USB 3.2 Gen 2x2 Type A (10 Gbps)
1 x USB 3.2 Type C (10 Gbps)

COM Port

4 x COM Ports (RS-232)

SATA

4 x SATA 6Gb/s Ports

RAID

RAID 0/1/10

Internal I/O Connector

1 x CPU fan header
4 x System fan headers
1 x Front panel header
1 x Front panel audio header
4 x USB 3.2 Gen 1 headers (5 Gbps)
4 x COM headers (RS-232)
1 x Clear CMOS jumper
1 x Buzzer

Operating Temp.

Operating temperature: 0°C to 60°C

Storage Temp.

Non-operating temperature: -40°C to 85°C

Operating Humidity

Operating humidity: 60°C @ 20-95% (non-condensing)

Dimension (L x W)

Micro ATX
244W x 244D(mm)

Ordering Information

9MB650MMMR-SI (Box Packing)
