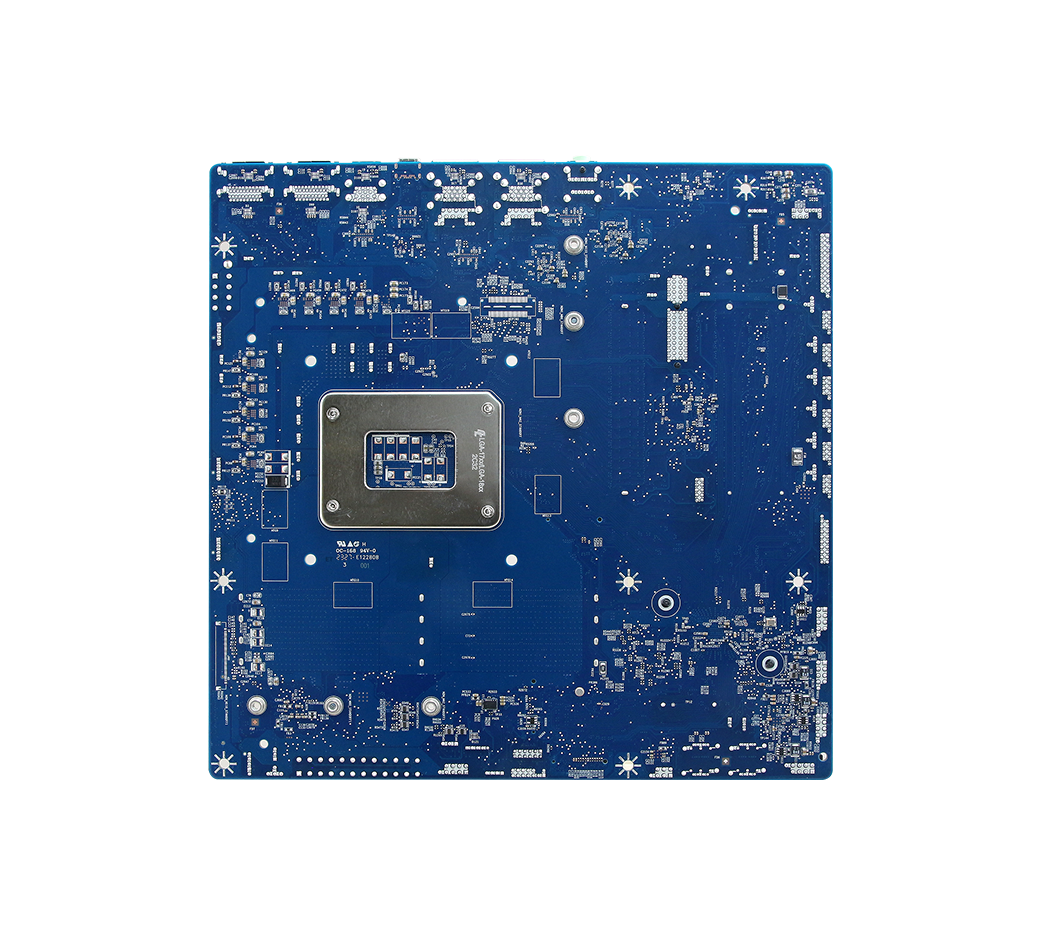

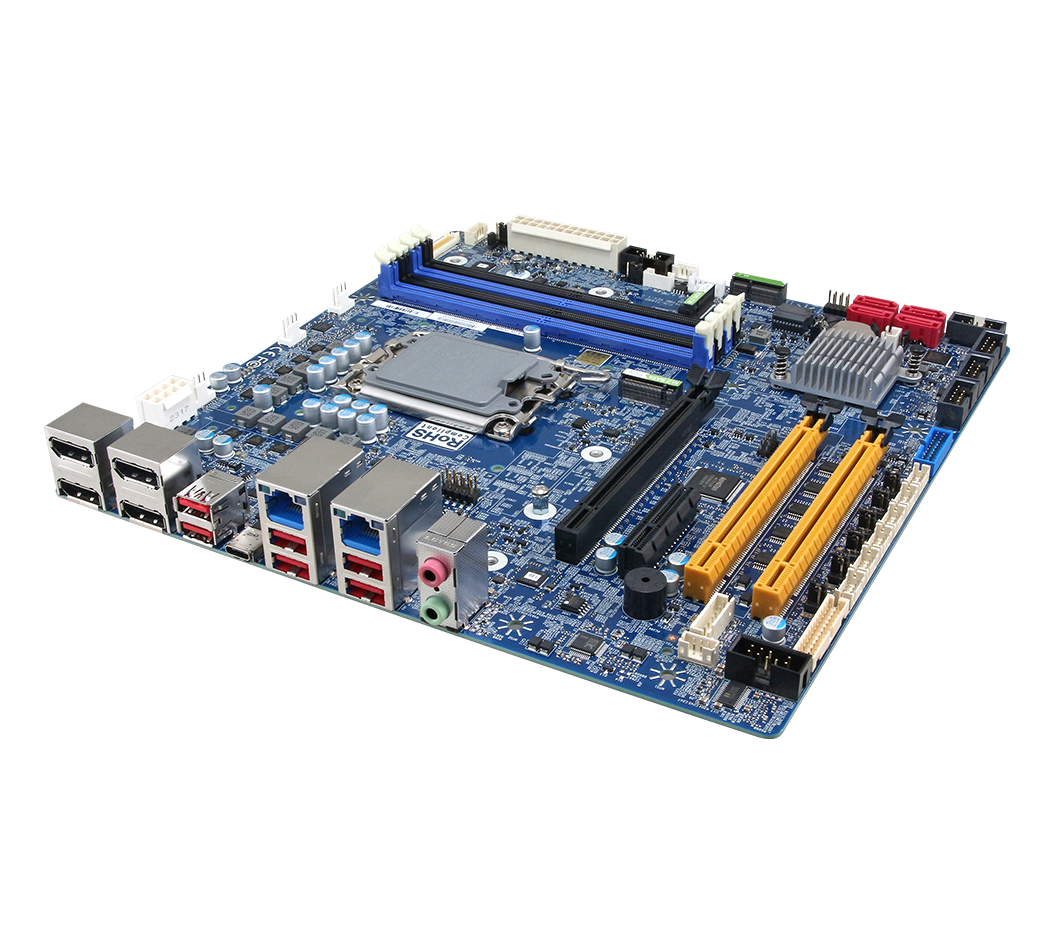

RX680R
12/13th Gen. Intel® Core™ i9/i7/i5/i3 Processor, LGA 1700 Socket, Micro ATX Motherboard With Intel® R680E
FEATURE
LGA 1700 Socket Supports 12/13th Gen. Intel® Core™ i9/i7/i5/i3 Processors, Intel® R680E Chipset
4 x 288 Pin DDR5 Dual Channel U-DIMM Socket, Support up to 128GB (ECC Memory Support by CPU)
4 x DP, 1 x LVDS Header
1 x Gen 5 PCIe x16, 2 x Gen 4 PCIe x4, 1 x Gen 3 PCIe x4 Open Ended
2 x RJ45, Intel® I225-LM/I226-LM 2.5 Gigabit Ethernet Controller
1 x USB 3.2 Gen 2x2 Type C, 6 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 2, 8 x USB 2.0
2 x M.2 M-Key 2242/2280/22110 NVMe, 1 x M.2 E-Key 2230
1 x RS-232/422/485, 5 x RS-232
ATX Power
Specification
Download
System Information
Processor
LGA 1700 Socket Supports 12/13th Generation Intel® Core™ i9/i7/i5/i3 Processors (Max. TDP at 65W)
Platform Controller Hub
Intel® R680E Chipset
System Memory
4 x 288 Pin DDR5 4400MHz Dual Channel U-DIMM Socket, Support up to 128GB (ECC Memory Support by CPU)
I/O Chipset
nuvoton NCT6126D
Watchdog Timer
H/W Reset, 5~255 Seconds/5~255 Minutes
BIOS
AMI uEFI BIOS, 256Mbit SPI Flash ROM
H/W Status Monitor
CPU Temperature Monitoring
Voltages Monitoring
CPU Fan Speed Control
TPM
infineon TPM 2.0
Board
Micro ATX
Expansion
Expansion
1 x Gen 5 PCIe x16
2 x Gen 4 PCIe x4 (x16 Physical Yellow)
1 x Gen 3 PCIe x4 Open Ended
1 x M.2 M-Key 2242/2280/22110 NVMe (Gen 4 PCIe x4 + SATA III)
1 x M.2 M-Key 2242/2280/22110 NVMe (Gen 3 PCIe x4 + SATA III)
1 x M.2 E-Key 2230 with CNVi Support (PCIe x1 + USB 2.0)
Display
Graphic Chipset
Intel® 12/13th Generation CPU Integrated
Spec. & Resolution
4 x DP (DP1.4a): Max: 4096 x 2304@60Hz
Multiple Display
Four Diaplay
LVDS
1 x LVDS Header
1 x eDP Header (Optional)
Audio
Audio Codec
Realtek ALC888S HD Audio Decoding Controller
Audio Interface
Line-out, Mic-in
Audio Amplifier
2 x 3W 8Ω Amplifier
Ethernet
LAN Chipset
2 x Intel® I225LM/I226LM 2.5 Gigabit Ethernet
LAN Port
2 x RJ45
Power Requirement
Power Mode
AT/ATX (Default Setting: ATX)
Software Support
OS
Windows 10, Windows 11, Linux
Certification
Certification Information
CE, FCC Class B, RoHS Compliant
I/O
USB
1 x USB 3.2 Gen2x2 Type C
6 x USB 3.2 Gen2x1
2 x USB 3.2 Gen2x1 by pin header
8 x USB 2.0 by pin header
COM Port
5 x RS-232 by pin header
1 x RS-232/422/485 by pin header
SATA
4 x SATA III
RAID
Support RAID 0, 1, 5, 10
DIO
1 x 8-bit GPIO
MIO
1 x PS/2 Header
1 x LPT Header
Mechanical & Environmental
Operating Temp.
0°C ~ 60°C (32°F ~ 140°F)
Storage Temp.
-20°C ~ 80°C (-4°F ~ 176°F)
Operating Humidity
5% ~ 90% Relative Humidity, Non-condensing
Weight
1.45lbs (0.65kg)
Power Requirement
+12V/+5V/5VSB/+3.3V/-12V
Power Mode
AT/ATX (Default Setting: ATX)
Dimension (L x W)
9.6" x 9.6" (243.84mm x 243.84mm)
Ordering Information
Ordering Information
71882-IA
LGA 1700 socket supports 12/13th Gen Intel® Core™ i9/i7/i5/i3 Processors Micro ATX Motherboard with Intel® R680E PCH
