Processor

LGA 1700 Socket Supports 12/13/14th Generation Intel® Core™ i9/i7/i5/i3 Processors (Max. TDP at 65W)

Platform Controller Hub

Intel® H610E Chipset

System Memory

2 x 288-Pin DDR5 4800MHz Dual Channel U-DIMM Socket Supports Up to 64GB

I/O Chipset

nuvoton NCT6126D

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring
Voltages Monitoring
CPU Fan Speed Control

TPM

infineon TPM 2.0

Board

Micro ATX

Expansion

1 x Gen 5 PCIe x16 (x16 Physical Black) (Slot 1)
1 x Gen 3 PCIe x1 (x4 Physical Open Ended) (Slot 2)
2 x Gen 3 PCIe x1 (x16 Physical Yellow) (Slot 3 & 4)
1 x M.2 M-Key 2242/2280/22110 NVMe (PCIe x4 + SATA III)
1 x M.2 E-Key 2230 with CNVi Support (PCIe x 1 Share with Slot4 + USB 2.0)
3 x SATA III
1 x SATA III Shared with M.2

Graphic Chipset

Intel® 12/13th Generation CPU Integrated

Spec. & Resolution

1 x HDMI (2.0b) 4K x 2K@60Hz (with HDR)
2 x DP (DP1.4a): Max: 7680 x 4320@60Hz
(2 x DP++: 1920 x 1080@60Hz)

Multiple Display

Triple Display

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-out, Mic-in

Audio Amplifier

2 x 6W 8Ω Amplifier

LAN Chipset

1 x Intel® I219V Gigabit Ethernet
1 x Intel® I225LM 2.5 Gigabit Ethernet

LAN Port

2 x RJ45

Power Mode

AT/ATX (Default Setting: ATX)

OS

Windows 10, Windows 11, Linux

Certification Information

CE, FCC Class B, RoHS Compliant

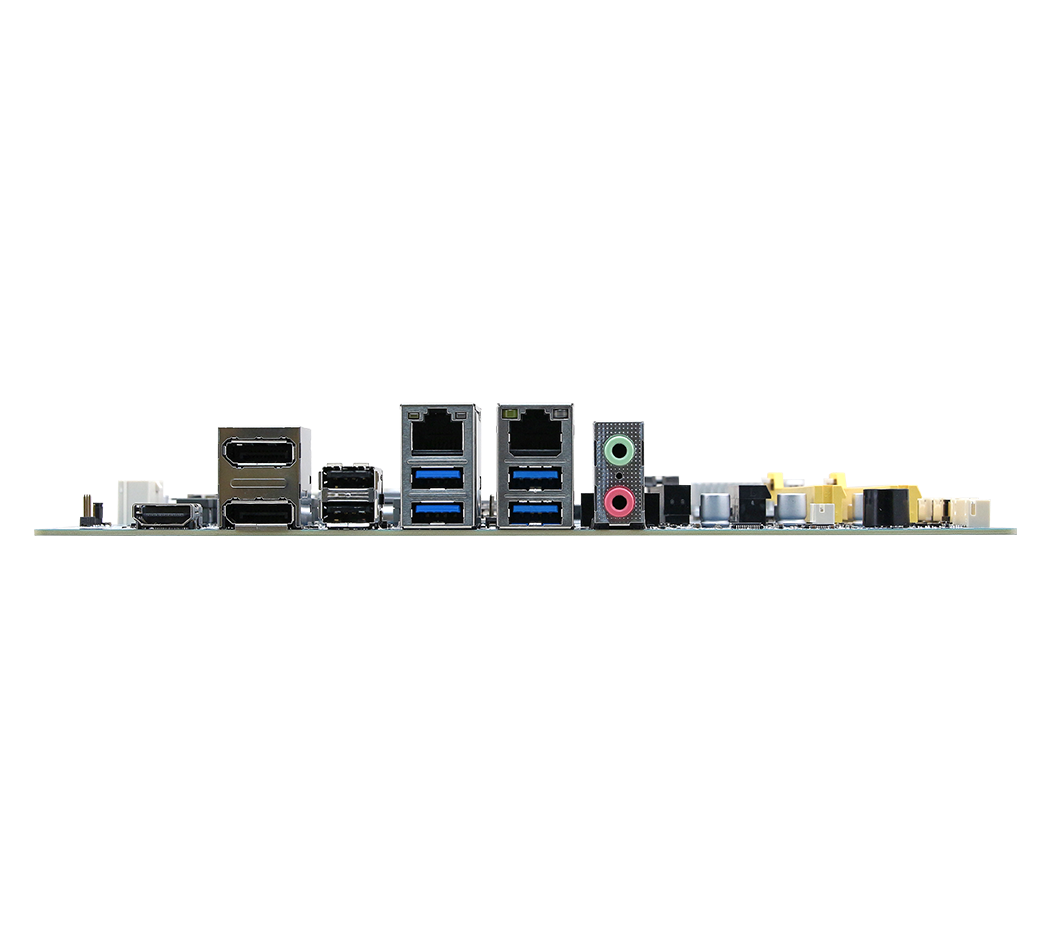

USB

2 x USB 2.0 Type A
4 x USB 3.2 Type A
4 x USB 2.0 by pin header
2 x USB 3.2 Gen1 by pin header

COM Port

5 x RS-232 by pin header
1 x RS-232/422/485 by pin header

SATA

3 x SATA III
1 x SATA III Shared with M.2

DIO

1 x 8-bit GPIO

MIO

1 x PS/2 Header
1 x LPT Header

Operating Temp.

0°C ~ 60°C (32°F ~ 140°F)

Storage Temp.

-20°C ~ 80°C (-4°F ~ 176°F)

Operating Humidity

5% ~ 90% Relative Humidity, Non-condensing

Weight

1.45lbs (0.65kg)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Power Mode

AT/ATX (Default Setting: ATX)

Dimension (L x W)

9.6" x 9.6" (243.84mm x 243.84mm)

Ordering Information

71842-IA

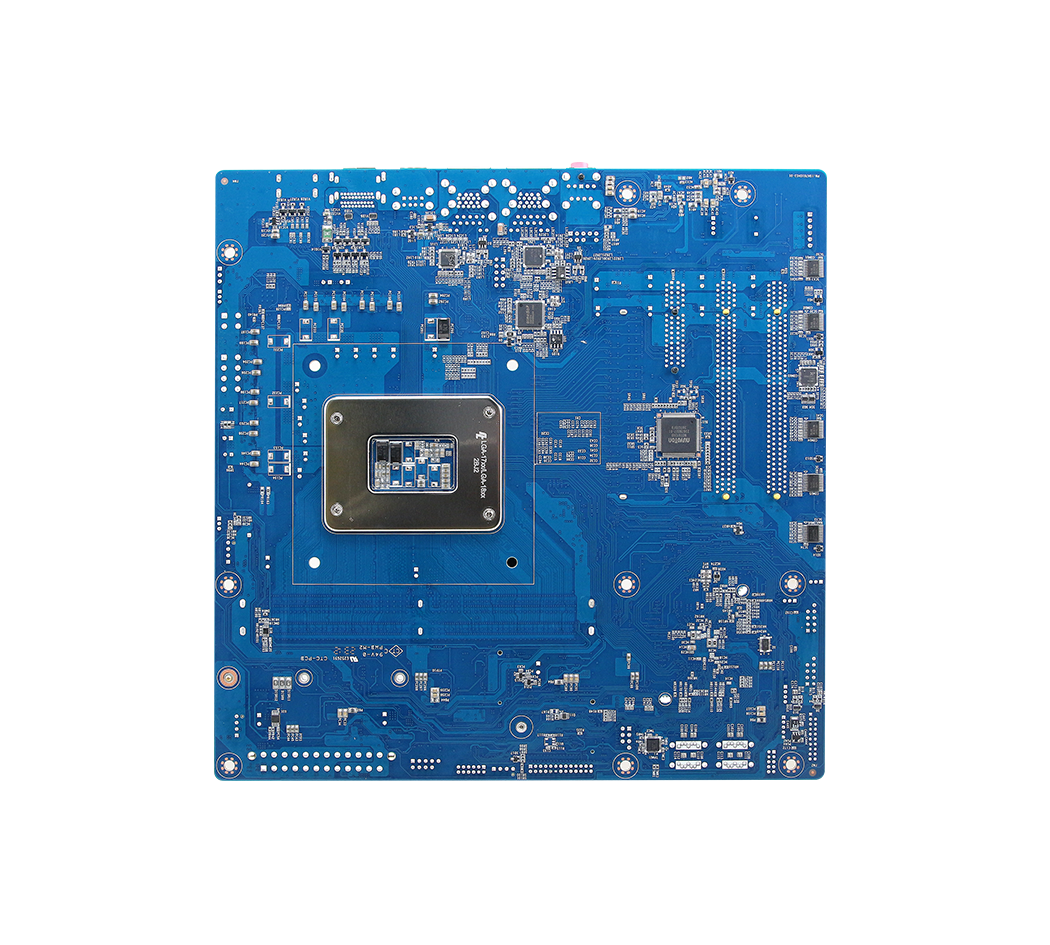

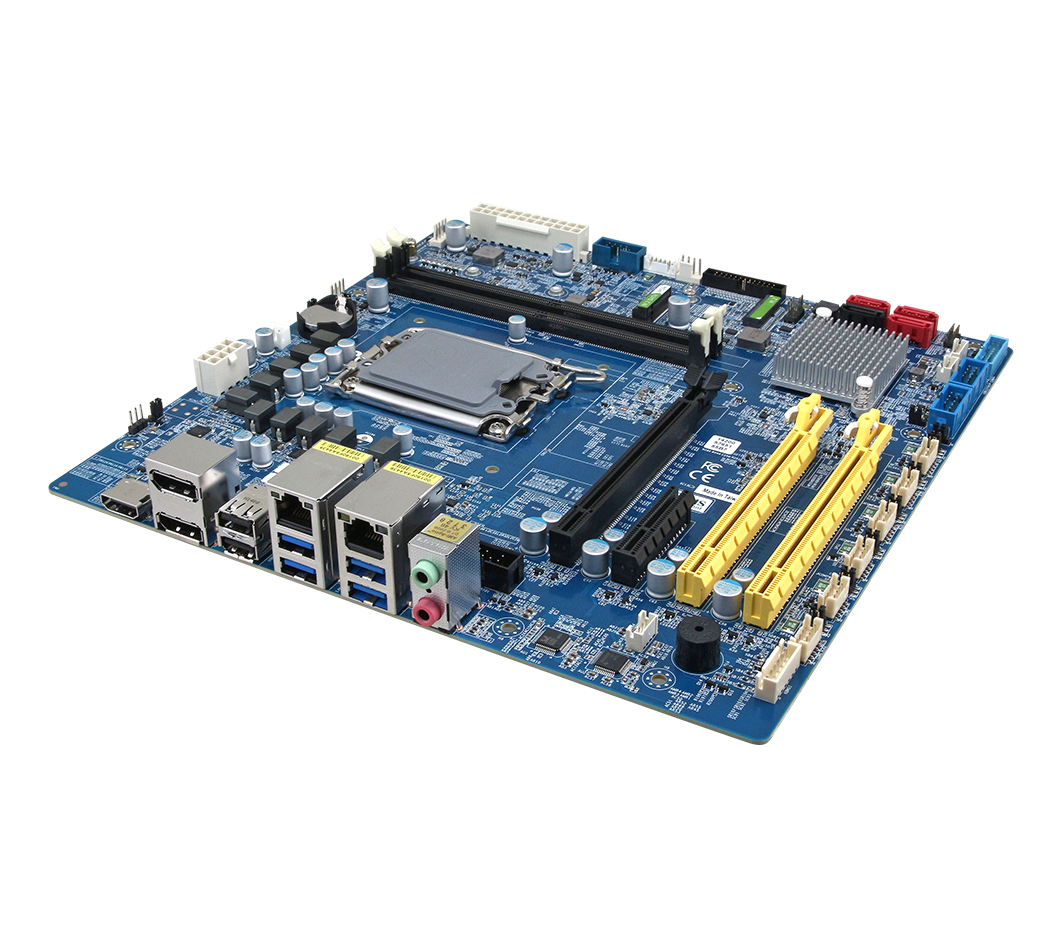

LGA 1700 socket supports 12th/13th Gen Intel® Core™ i9/i7/i5/i3 Processors Micro ATX Motherboard With Intel® H610E PCH
