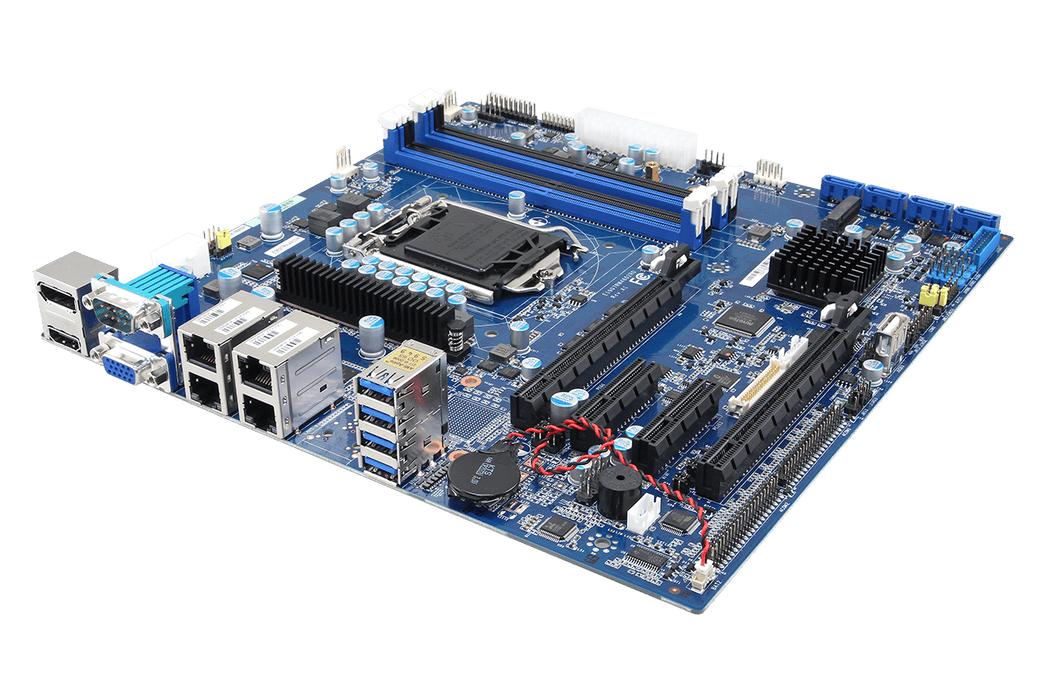

Processor

LGA 1200 Socket Supports 10th Generation Intel® Core™ i9/i7/i5/i3 / Xeon® (Workstation) Processors

Platform Controller Hub

Intel® W480E Chipset

System Memory

4 x 288-Pin DDR4 U-DIMM Socket Supports Up to 128GB (ECC Memory Support by CPU)

I/O Chipset

nuvoton NCT6106D

Watchdog Timer

H/W Reset, 5~255 Seconds/5~255 Minutes

BIOS

AMI uEFI BIOS, 256Mbit SPI Flash ROM

H/W Status Monitor

CPU Temperature Monitoring
Voltages Monitoring
CPU Fan Speed Control

TPM

infineon TPM 2.0

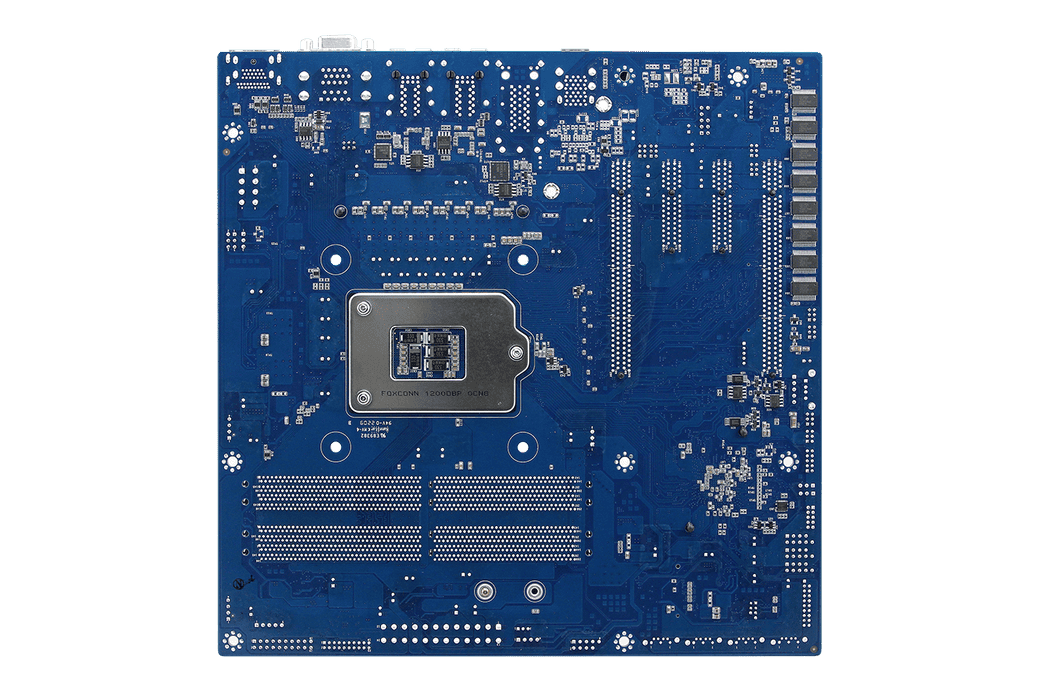

Board

Micro ATX

Expansion

2 x PCI-e x16 Slot for 1 x PCIe x16 or 2 x PCIe x 8(By Auto swith IC)
2 x PCIe x4
1 x M.2 (2260/2280) M-Key, Support SSD

Graphic Chipset

Intel® 10th Generation CPU Integrated

Spec. & Resolution

1 x VGA: 2048 x 1536@60Hz
1 x HDMI (1.4): 4096 x 2160@30Hz
1 x DP++: 4096 x 2304@60Hz

Multiple Display

Triple Display

LVDS

LVDS: 1920 x 1080 Dual channel 18/24-bits LVDS (Chrontel CH7511B-BFI eDP to LVDS)

Audio Codec

Realtek ALC888S HD Audio Decoding Controller

Audio Interface

Line-out, Mic-in

Audio Amplifier

2 x 6W 8Ω Amplifier

LAN Chipset

1 x Intel® I219LM Gigabit Ethernet PHY
1 x Intel® I210AT Gigabit Ethernet
2 x Intel® I225LM 2.5 Gigabit Ethernet Controller

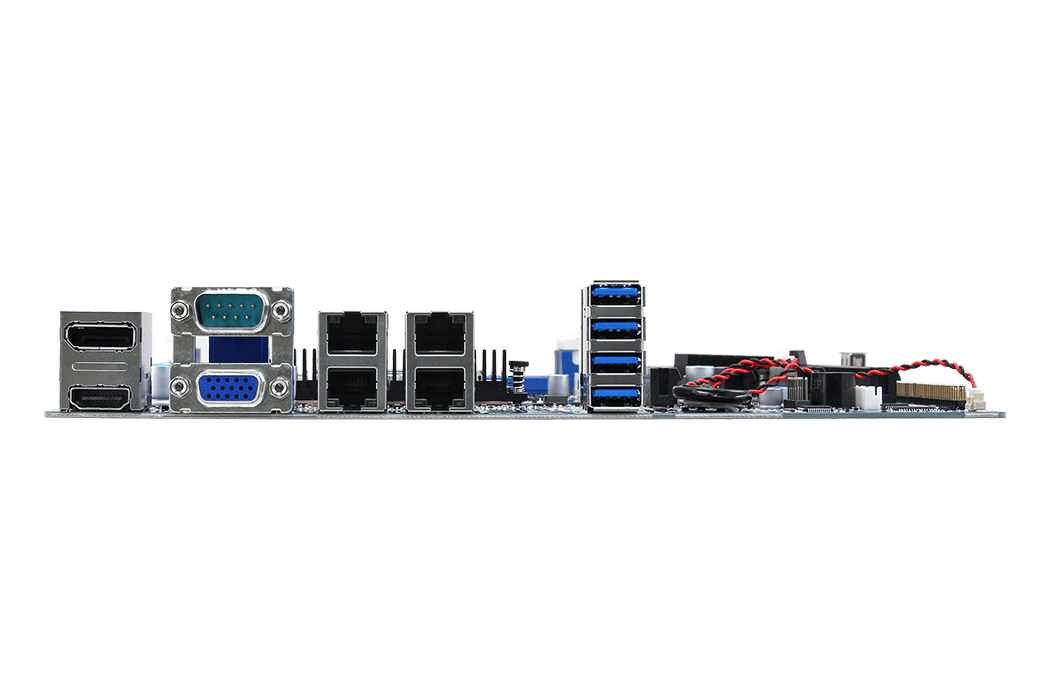

LAN Port

4 x RJ-45

Power Mode

AT/ATX (Default Setting: ATX)

OS

Windows 10, Linux

Certification Information

CE, FCC Class B, RoHS Compliant

USB

4 x USB 3.2 Gen1
1 x USB 2.0 Vertical type A
7 x USB 2.0 by pin header
2 x USB 3.2 Gen1 by pin header

COM Port

1 x RS-232 at IO
4 x RS232, 2 x RS232/422/485 (COM2 & 3 by BIOS selection)
4 x RS232 (By BOM option)

SATA

4 x SATA III

RAID

Support RAID 0, 1, 5, 10

DIO

1 x 16-bit GPIO

Operating Temp.

0~50°C, w/HDD/SSD, ambient with 0.5 m/s Air flow

Storage Temp.

-40~ +75°C (-40~167°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Weight

1.32lbs (0.6kg)

Power Requirement

+12V/+5V/5VSB/+3.3V/-12V

Power Mode

AT/ATX (Default Setting: ATX)

Dimension (L x W)

9.6" x 9.6" (243.84mm x 243.84mm)

Ordering Information

ERX-W480P-A1-01R
10th Generation Core™ & / Intel® Xeon®Process(Workstation) Processors Micro ATX Motherboard With Intel W480E Chipset (4 LAN version)
