RCC-CAR-HGD-02R

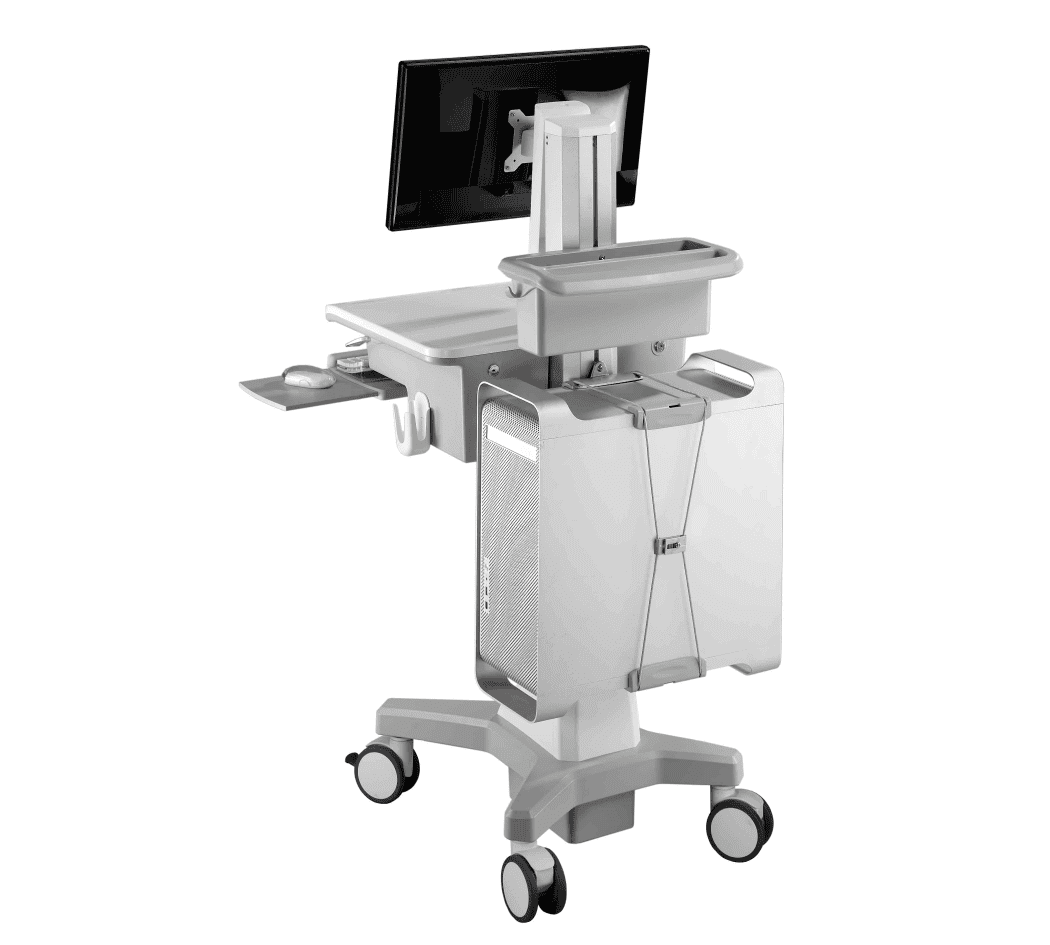

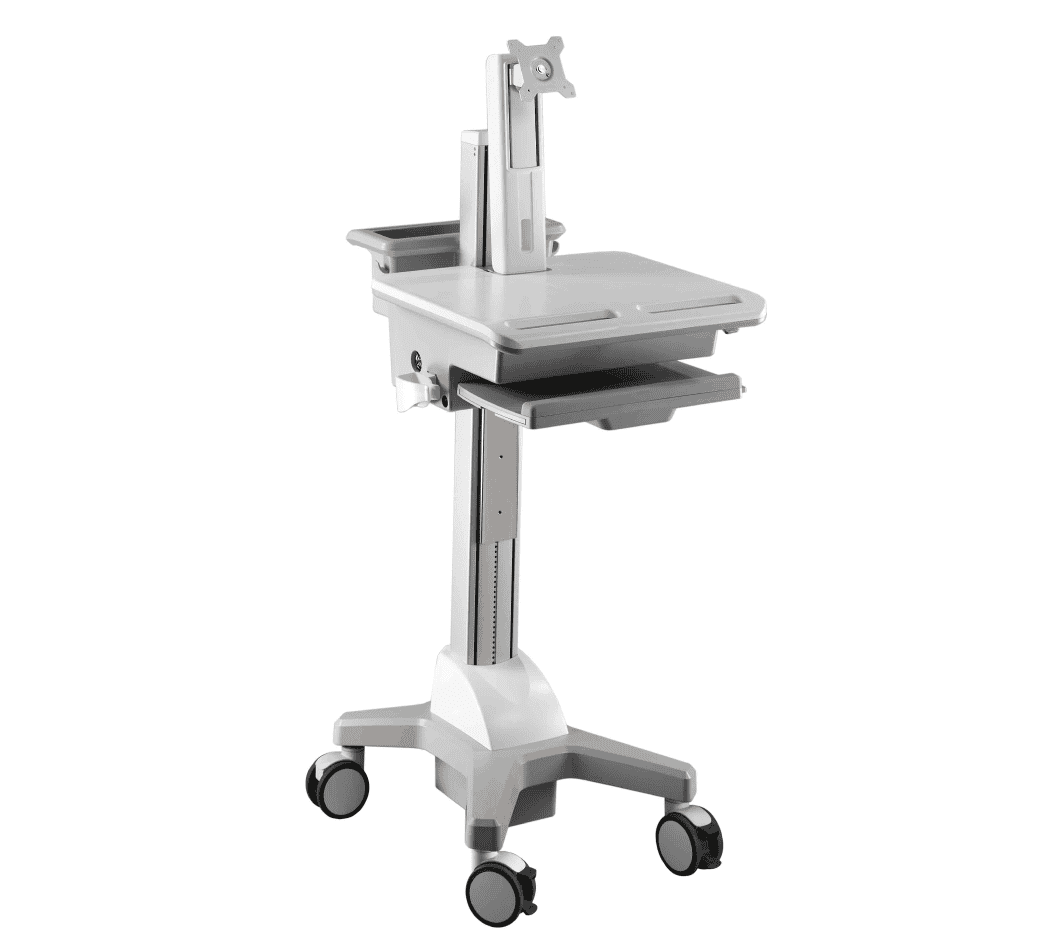

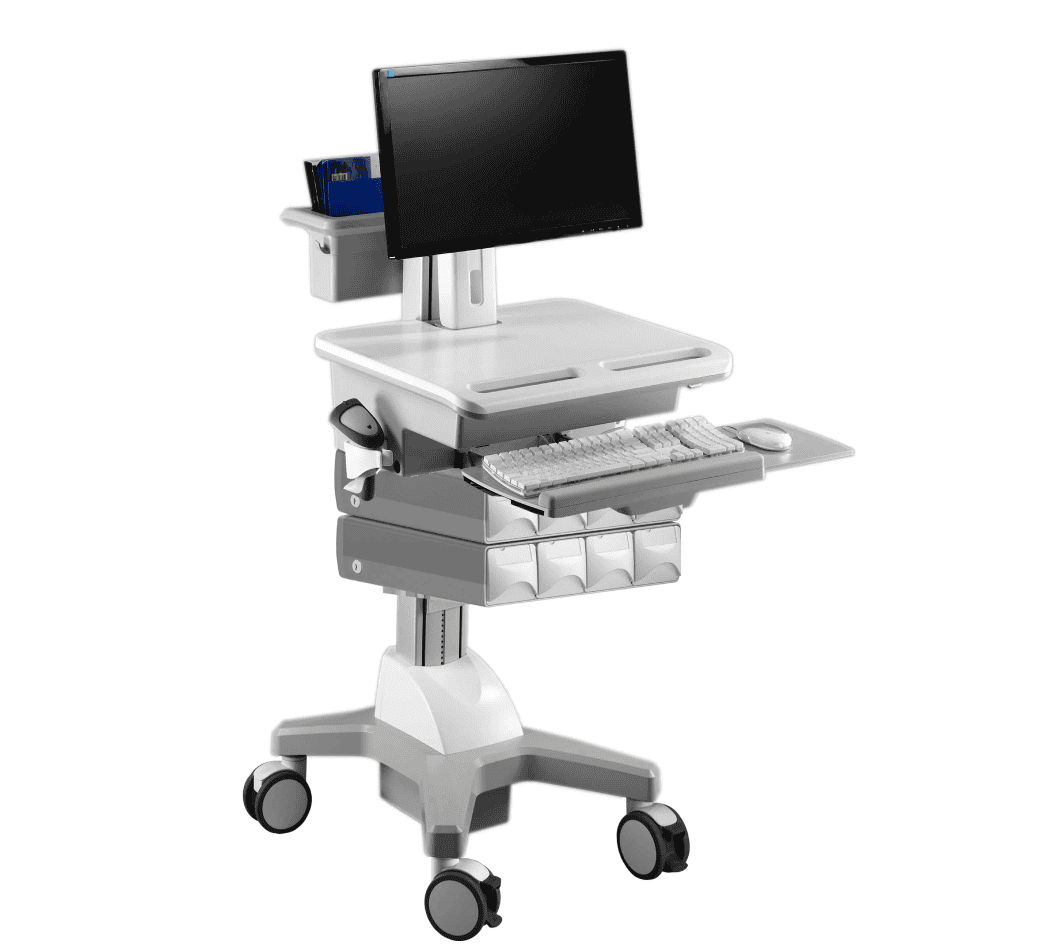

Medical Cart supports up to 27”display (CNH02)
Specification
Download
Complete System
Overall Load Capacity
15 kg
Net Weight
31 kg
Packaged Dimension
W1420 x D715 x H260 mm
Display System
Hinge Module Tilt
-5° ~ +25°
Hinge Module Pivot
360°
Hinge Module User Torque Adjust
Available
Display Support Mounting Pattern
100x100mm/75x75mm
Display Type
Single Monitor
Panel Size Support
≦27''
Display Support Weight Load
2 ~ 8 kg
Height Adjust Range
130 mm
Tension Torque Adjust
Yes
Cable Management
Yes
Working Space
Desk
Open Workspace
Dimension
517 x 261 mm ( 20.35" x10.28" )
Load
7.5 kg
Protection Skidproof at edge
Yes
Protection Rear Handle
Yes
Protection Surface Coating
Yes
Storage & Inputs
Compartment Max. Effective Dimension
W425 x D325 x H90 mm (16.73" x12.8" x3.54" )
Compartment Key Lock
Yes
Keyboard Tray Max. Effective Dimension
449 x 207 mm ( 17.68" X8.15" )
Keyboard Tray Max. Height from Desk Base
41.5 mm ( 1.63" )
Keyboard Tray Wrist Comfort
Yes
Keyboard Tray Tilt
Max. 12° (backward)
Mouse Pad Max. Working Dimension
217 x 213 mm ( 8.54" x 8.39" )
Mouse Pad Right-Left Slide in-&-out
Yes
Mouse Holder
Yes
Scanner Holder
Yes
Storage Bin
Yes
External CPU Holder
Yes
Base System
Caster No.
4
Caster Locking/ Brake
Front 2
Caster Low Noise
Yes
Lift Handle
Yes
Height Adjust Range
500 mm ( 19.7" )
Tension Torque Adjust
Yes
Environmental
RoHS/REACH Compliance
Yes
Ordering Information
Ordering Information
RCC-CAR-HGD-DH-01R
Storage Basket with Handle
RCC-CAR-HGD-DR-01R
Standard drawer and metal adapter for Medical Cart
RCC-CAR-HGD-DR-02R
4 bay drawer and metal adapter for Medical Cart
RCC-CAR-HGD-CH-01R
Camera holder
RCC-CAR-HGD-BR-01R
Bracket for Alcohol Hand Dispenser
RCC-ARM-HGD-01R
A-frame bedside arm including wall box for 8 kg AIO default
RCC-ARM-HGD-02R
Bedside arm including wall box support 6~12 kg
