  • Specification

  • Download

  • System Information

    Processor

    Quad Core CPU RK3566 ARM A55 64 bit, 1.8GHz

    System Memory

    4GB (LPDDR4)

    GPU

    OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1

    Battery Type

    Li-Ion Battery 2.200 mAh

    Battery Life

    Operation Battery Life: 3 hours (watching video);
    Stand-By Battery Life: 72 hours

    Camera

    Front 2MP with Auto-Focus

    Storage

    Storage

    64GB eMMC memory

    Audio

    Speaker Output

    0.8 Watts

    Software Support

    OS

    Android 13

    External I/O

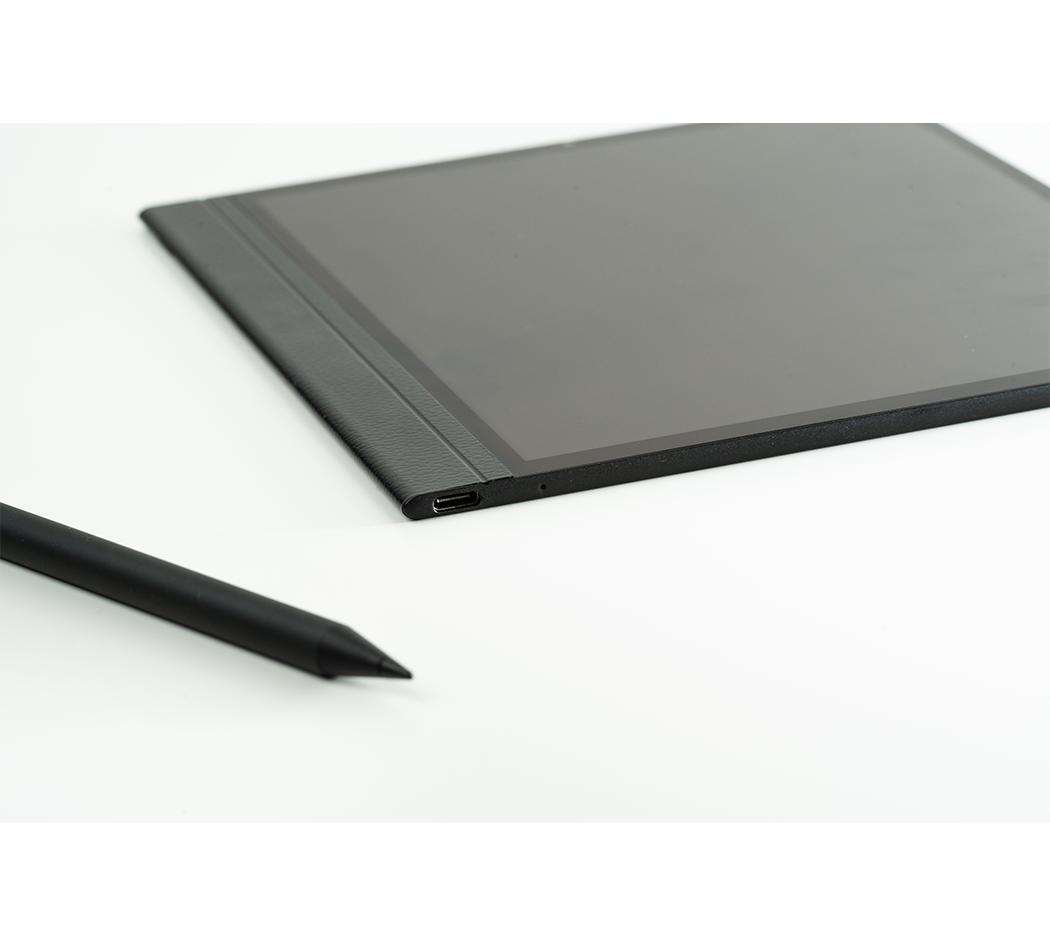

    USB Port

    1 x USB Type C 2.0

    Panel

    LCD Size

    10"

    Display Type

    Eco-Friendly Paper Display Full Reflective type, w/o FL

    Resolution

    1200 x 1600

    Pixel pitch

    0.12705 (H) x 0.12705 (V) mm

    Contrast ratio

    20:1

    Viewing angle

    120° (H) / 120° (V)

    Response time

    5 ms

    Touch Type

    Projective capacitive multi-touch up to 10 points

    Display color

    16.7 M

    Refresh Rate

    60 Hz

    Touch Input

    Finger and stylus pen

    Wireless Communication

    Bluetooth

    5.0

    WLAN

    Wi-Fi IEEE 802.11 b/g/n/a/ac 2.4/5GHz

    Mechanical & Environmental

    Operating Temp.

    0°C ~ 45°C

    Operating Humidity

    20 ~ 80% non-condensing

    Weight

    350 g

    Power Requirement

    Input: 5V, 2A / Output: 5V, 1A

    Dimension (W x H x D)

    184.4 x 221.5 x 4.7mm
