CAXA0

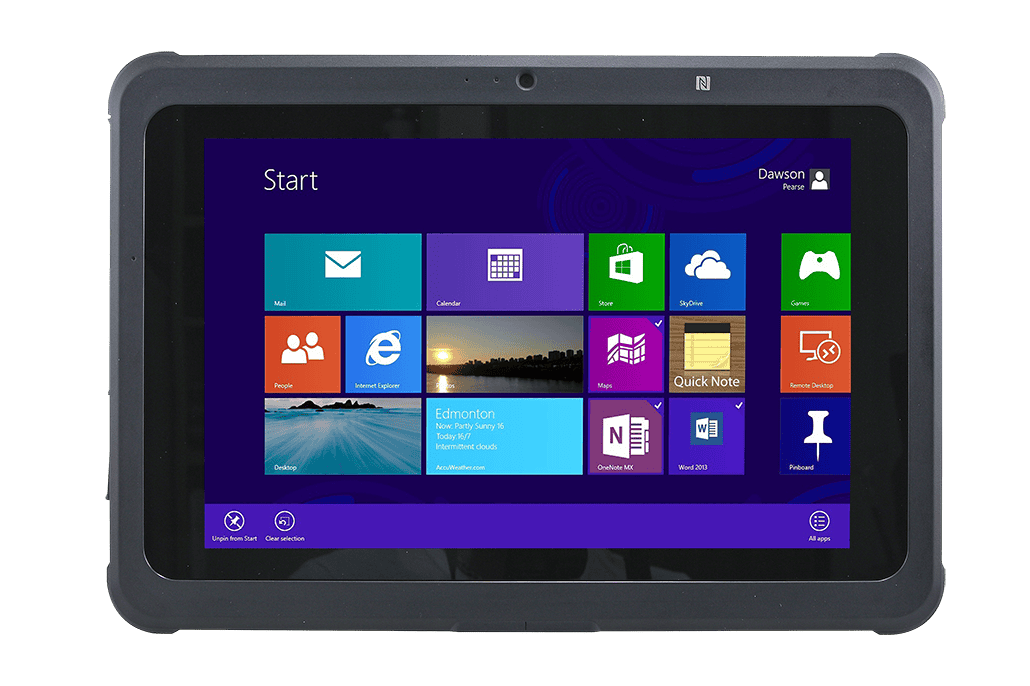

10.1" Semi-Rugged Tablet with Intel® Celeron® Processor N3350 / N4200
FEATURE
Intel® Celeron® Processor N3350/N4200
MIL-STD-810G & IP65 certified, 4-feet drop resistance
10.1” TFT color LCD 1280 x 800 HD
Corning gorilla glass, 10 point projected capacitive multi-touch panel
High mobility with multiple connectivity including WLAN, bluetooth, NFC
Light design, weight only 1Kg with battery
G-sensor, light sensor, 2M/8M camera
Option 1D/2D barcode scanner
Support Windows 10 and Android 11
Specification
Download
System Information
Processor
Intel® Celeron® Processor N3350/N4200
System Memory
Onboard LPDDR4 4GB / 8GB
Storage
Solid State Drive
M.2 128GB solid state drive
Power Requirement
Battery
28.44W Li-ion battery
Battery Operating Time
6 Hours
DC Input Connector
DC Jack
DC Input
+19V
Software Support
OS
Windows 10 IoT 64bit
Android 8.1 without NFC
Android 11 without NFC
Certification
Certification Information
Australia RCM
Canada ICES-003 / IC
China CCC / SRRC
Chile SUBTEL
Japan VCCI / MIC
Taiwan BSMI /NCC
USA FCC
UK UKCA
EU CE / RED / EN60601-1, EN60601-1-2 :
Austria、Belgium、Czech Republic、Denmark、Finland、France、Germany、Greece、Hungary、Ireland、Italy、Latvia、Liechtenstein、Luxembourg、Netherlands、Norway、Poland、Portugal、Romania、Slovakia、Slovenia、Spain、Sweden、Switzerland
Compliance : Costa Rica、Egypt、Hongkong、Sri Lanka
In-Box Accessory
Accessory
+19V 65W power adaptor
Panel
LCD Size
10.1"
Display Type
WXGA
Resolution
1280 x 800
Luminance
300 cd/m2
Touch Type
10 points projective capacitive

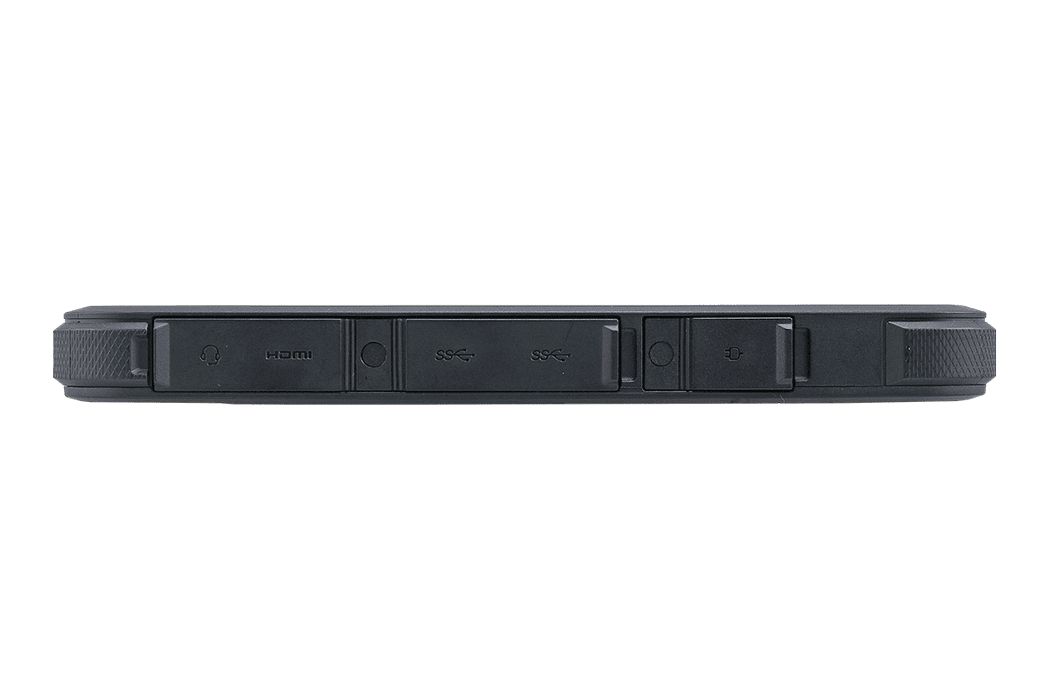

I/O
HDMI
1 x HDMI output
USB Port
2 x USB 3.0 Type A
Other
1 x Audio Jack
1 x Micro SD
1 x DC Jack
System Control
Control Buttons
1 x Power button
1 x Barcode scanner trigger
LED Indicator
1 x Power
Data Collection
Barcode Scanner
1D/2D Barcode scanner (optional)
NFC
ISO/IEC 14443 A/B, 15693/18092, NFCIP-1, NFCIP-2, support MIFARE and Felica
Camera
2MP Front camera
8MP Rear camera with auto focus
Wireless Communication
Bluetooth
Bluetooth 5.0
WLAN
802.11 a/b/g/n/ac
Mechanical & Environmental
Operating Temp.
0°C ~ 40°C (32°F ~104°F)
0°C ~ 30°C (32°F ~ 86°F) without dock or wall mount [EN60601]
0°C ~ 40°C (32°F ~104°F) with dock or wall mount [EN60601]
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity
40°C @ 95% relative humidity, non-condensing
Weight
1 kg with Battery
Vibration Test
MIL-STD-810G method 514.6 procedure 1
Shock Test
MIL-STD-810G method 516.6 procedure 1
Drop Test
4-Feet drop on concrete floor, MIL-STD-810G 516.6 procedure IV
IP Rating
IP65
Dimension (W x L x H)
281 x 193.3 x 19.95mm
Fanless
Fanless
Construction
Rubber + plastic
Component
Adapter
Input: 100~240Vac/50~60 Hz
Output: 65W adaptor (19V@3.15A adaptor)
Microphone
Front microphone
Packing List
Packing List
1 x CAXA0
1 x Power adapter
1 x Battery
Ordering Information
Ordering Information
CAXA0-1000A1-S04R
10.1"/1280x800/N3350/4GB/128GB/2USB/+19V/Android 8.1
CAXA0-1000A1-S05R
10.1"/1280x800/N3350/4GB/128GB/2USB/+19V/Windows 10
CAXA0-1000A1-S06R
10.1"/1280x800/N3350/4GB/128GB/2USB/+19V/Windows 10
CAXA0-1000A1-S07R
10.1"/1280x800/N4200/4GB/128GB/2USB/+19V/Windows 10
CAXA0-1000A1-S08R
10.1"/1280x800/N4200/4GB/128GB/2USB/+19V/Android 8.1
CAXA0-1000A1-S10R
10.1"/1280x800/N3350/4GB/128GB/2USB/+19V/Android 11
CAXA0-1000A1-S11R
10.1"/1280x800/N4200/4GB/128GB/2USB/+19V/Android 11
CAXA0-1000A1-S12R
10.1"/1280x800/N4200/8GB/128GB/2USB/+19V/Windows 10
CAXA0-DCA1-S03R
CAXA0 Desktop cradle /USB2.0x3/LAN/DC19V, without Adapter
CAXA0-WMA1-S03R
CAXA0 Wall Mount kit /USB2.0x3/LAN/DC19V, without Adapter
CAXA0-CSA1-S01R
Battery charging station for CAXA0, DC19V/65W Adapter
ACC-CAXA0-HS-01R
Hand Strap for CAXA0
ACC-CAXA0-SS-01R
Shoulder Strap for CAXA0
ACC-ADP-060M-01R
CAXA0 Medical Adapter
ACC-ADP-065N-01R
CAXA0 ITE Adapter
ACC-CAXA0BAT-02R
CAXA0 Battery
CAXA0 1D / 2D Barcode scanner
EU Power Cord for ACC-ADP-060M-01R E1702031000R
US Power Cord for ACC-ADP-060M-01R E1702031833R
JP Power Cord for ACC-ADP-060M-01R E1702031834R
UK Power Cord for ACC-ADP-060M-01R E170P060380R
EU Power Cord for ACC-ADP-065N-01R E170203183DR
US Power Cord for ACC-ADP-065N-01R E1702031835R
JP Power Cord for ACC-ADP-065N-01R E17120318001R
UK Power Cord for ACC-ADP-065N-01R E170P060370R
