HID-2340
23.8" Raptor Lake-PS Medical Panel PC with IET Expansion
FEATURE
Sleek light weight design
23.8" Full HD PCAP touch
Socketed FCLGA1700 Intel® 13th Gen Core™ Processor
1 COM, 2 LAN, 1 USB 2.0, 3 USB 3.0, 1 USB type C
1 x M.2 Key B 3042/3052/2280, 1 x M.2 Key E for WIFI, 1 x M.2 Key M for storage
Optional 5KV isolation USB/ COM/ LAN ports by IET BD-A module
Optional webcam/ WIFI/ NFC/ barcode scanner
Optional HDMI/Audio/USB2.0/Mini PCIe/COM by IET BD-B module
Optional capture card integration
Specification
Download
System Information
SBC
HID-2340 mother board
Processor
Socket Raptor Lake-PS Intel® Core™ Processor
Intel® Core™ 7 processor 160UL
Intel® Core™ 5 processor 120UL
System Memory
One 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 32GB max (min 8GB)
I/O Chipset
IT5782VG
Watchdog Timer
H/W reset, 1sec. – 65535sec./min.1sec. or 1min. step
H/W Status Monitor
CPU & system temperature monitoring and Voltages monitoring
TPM
Onboard NuvoTon NPCT754AADYX support TPM 2.0 (optional)
Platform Controller Hub
Integrated in processor (SOC)
Expansion
Expansion
1 x M.2 Key B 3042/3052/2280
1 x M.2 Key E for WIFI
1 x IET expansion
Storage
Storage
1 x M.2 Key M storage
1 x 2.5" SSD
Audio
Audio Codec
Realtek ALC888S
Speaker Output
2 x 2W
Ethernet
LAN Chipset
1 x Intel® I225LM
1 x Intel® I226LM
Ethernet Interface
10/100/1000/2500 Base-Tx GbE compatible
LAN Port
2 x RJ-45
Power Requirement
DC Input
+24V
Power Mode
AT/ATX (ATX is default setting)
DC Input Connector
Lockable DC Jack
Software Support
OS
Win10 / Win11/ Linux
Certification
Certification Information
Medical CE: EMC IEC/EN60601-1-2 & Safety IEC/EN 60601-1
FCC : Part 15 Class B
UL: AAMI ES60601-1
cUL: CAN/CSA-C22.2 No. 60601-1
CCC

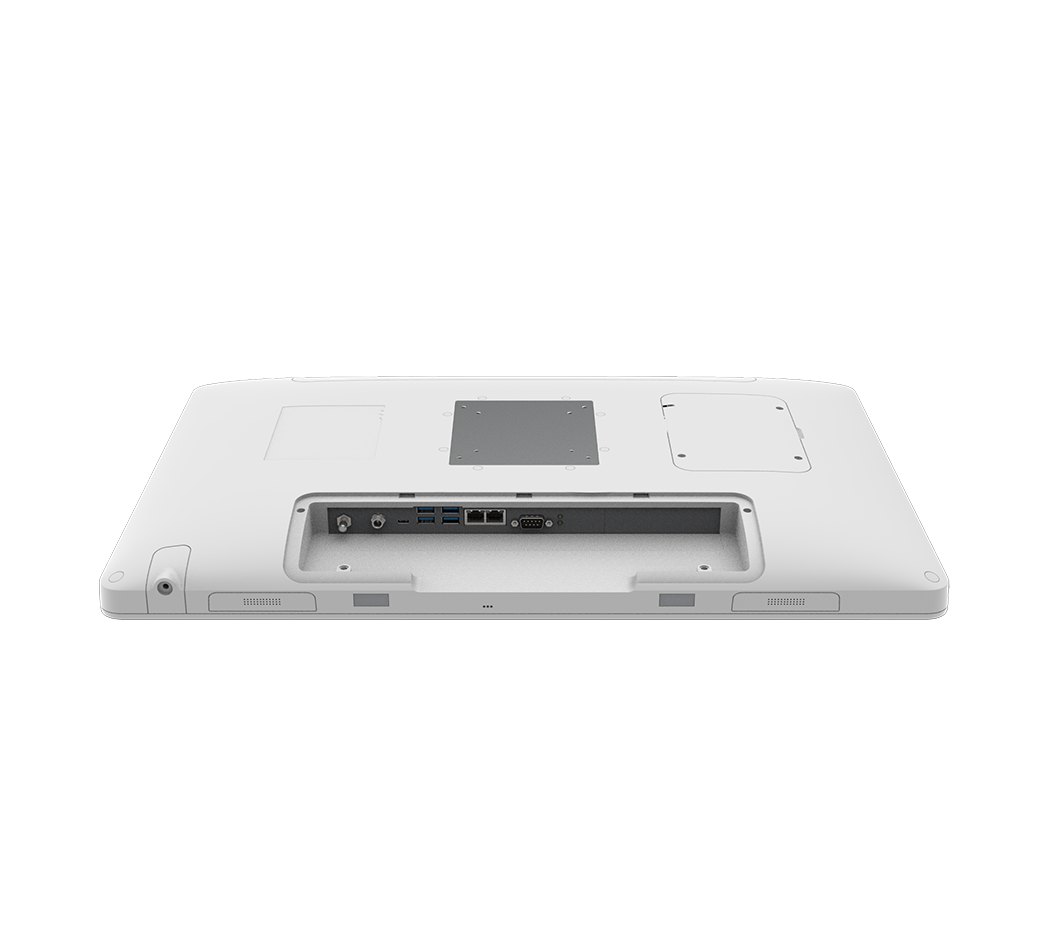

External I/O
USB Port
1 x USB 2.0 3 x USB 3.0
1 x USB type C (output for USB 3.1 & display, 5V/3A 15W, no power receiving function)
COM Port
1 x RS-232/422/485
Wireless LAN
Optional 802.11abgn+acR2+axR2 Wi-Fi 6E BT5.2
Panel
LCD Size
23.8"
Resolution
1920 x 1080
Luminance
250 cd/m2
Display Type
Full HD
Pixel pitch
274.5 x 274.5
Contrast ratio
3000
Response time
16 ms
Viewing angle
89(U), 89(D), 89(L), 89(R)
Touch Type
Projective capacitive multi-touch up to 10 points
Touch Controller
USB touch (EETI H8851A)
Touch Light Transmission
85%
Backlight
LED
Mechanical & Environmental
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.
-10°C ~ 60°C (14°F ~ 140°F)
Operating Humidity
40°C @ 95% relative humidity, non-condensing
Dimension (W x L x H)
592 x 382 x 49.5mm
Weight
6 kg

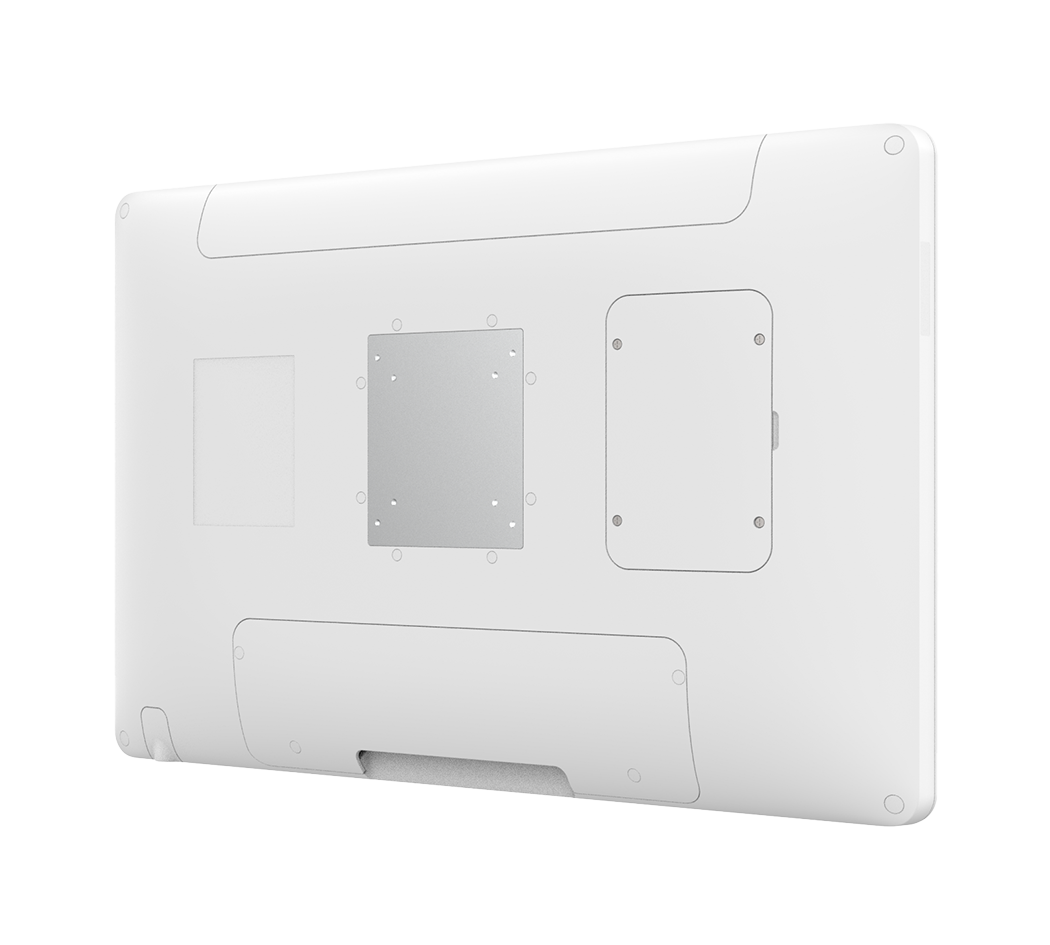

VESA
75x75, 100x100 mm
IP Rating
Front IP65
Back IP54
Construction - Front
White Plastic
Construction - Rear
White plastic
Vibration Test
With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis
Shock Test
With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms
Color
White plastic
System Fan
Fanless
Fanless
Yes
Finishing
Anti-microbial
Component
Adapter
Medical grade
Input: 100-240V~, 2.0-1.0A, 50-60Hz
Output: 120W adapter (24V/5A adapter)
Packing List
Packing List
1 x HID-2340 Medical panel PC
1 x Medical power adapter
4 x VESA screws M4*6mm
4 x HDD screws M3*4mm
Ordering Information
Ordering Information
HID-2340-123-A1R
23.8" Alder Lake Medical Multi-Touch Panel PC,Intel 12th Core i5-1235UL/8GB Memory/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/Light/Medical 24V adapter
HID-2340-126-A1R
23.8" Alder Lake Medical Multi-Touch Panel PC,Intel 12th Core i7-1265UL/8GB Memory/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/Light/Medical 24V adapter
HID-2340-120-B3R
23.8" Raptor Lake Medical Multi-Touch Panel PC,Intel 13th Core 5 120UL/8GB Memory/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/Light/Medical 24V adapter
HID-2340-160-B3R
23.8" Raptor Lake Medical Multi-Touch Panel PC,Intel 13th Core 7 160UL/8GB Memory/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/Light/Medical 24V adapter
E971XHI2340003R
WiFi module KIT for HID-2340
RCC-HID-BCSCAN-01R
Barcode scanner kit for HID/APC
E9697H10201R-A
DIP HID-2132 DB-A A1 isolation board with LAN/COM/USB
E9697H30002R-B-98
DIP HID-2340 DB-B A1 HDMI/2xAudio/2xUSB 2.0/Mini PCIe/COM
ACC-M2-80-CAP-01R
YUAN SC400N1 M2 AIO for HID-2340
ACC-M2-80-CAP-02R
YUAN SC400N2 M2 SDI for HID-2340
ACC-ARM-D55R
HID White Stand VESA 100x100/ 75x75
Power Cord:
E1702031000R EU Power Cord
E1702031833R US Power Cord
E170203183CR JP Power Cord
E170P060380R UK Power Cord
E1702031831R AU Power Cord
E170P060391R CN Power Cord
