Specification
Download
System Information
SBC
HID-2334 M/B + charger board
Processor
7th Generation Intel® Core Kaby Lake i5-7300U Processor
System Memory
2 x 260pin SODIMM socket up to 32GB per slot DDR4 2400 SDRAM
Watchdog Timer
H/W reset, 1sec. ~ 65535sec. and 1sec./step
H/W Status Monitor
CPU & system temperature monitoring and Voltages monitoring
Battery
Optional smart battery pack
14.4V 6900mAh, 99.4Wh
Platform Controller Hub
Integrated in processor (SOC)
Expansion
Expansion
1 x M.2 2230 1 x mPCIe with SATA or PCIE x1 mSATA
Storage
Storage
1 x 2.5 Drive bay
Audio
Audio Codec
Realtek ALC888S
Speaker Output
2 x 2W
Ethernet
LAN Chipset
1 x Intel® I211AT, 1 x Intel® I219LM
Ethernet Interface
10/100/1000 Base-Tx GbE compatible
Power Requirement
DC Input
+24V
DC Input Connector
Lockable DC Jack
Software Support
OS
Win10 / Linux
Certification
Certification Information
CE :
IEC/EN60601-1-2
FCC :
Part 15 class B
UL60601-1:
AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012,C1:2009/(R)2012 and A2:2010/(R)2012
CB:
IEC 60601-1/A1:2012 & EN 60601-1/A1:2013 (Ed 3.1)
EN 60601-1:2006+A11:2011+A1:2013+A12:2014

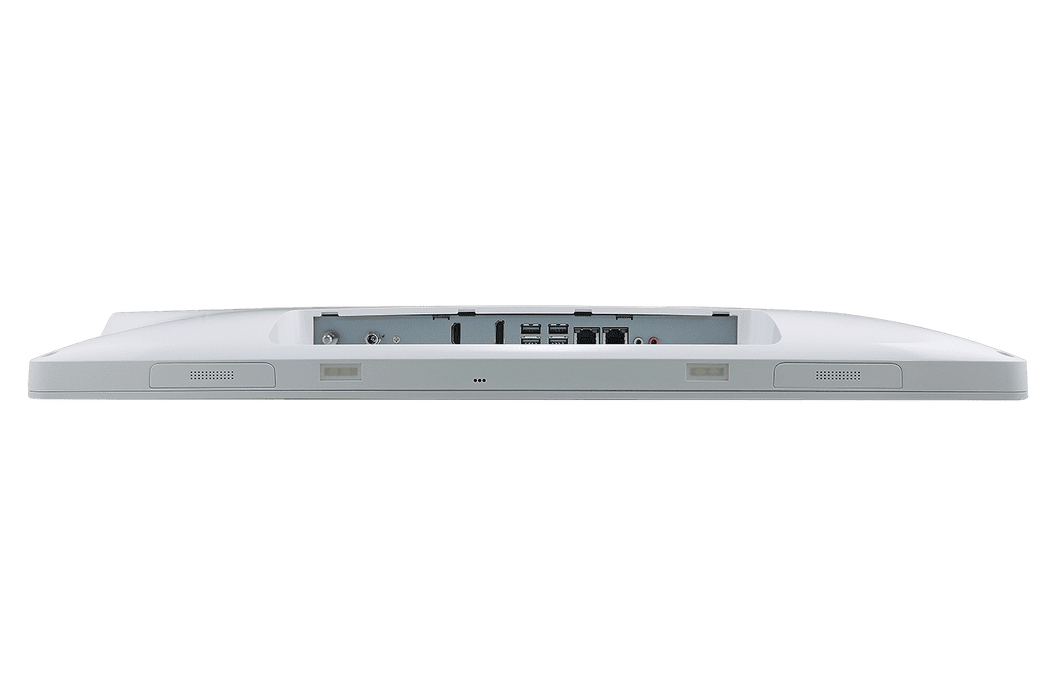

External I/O
USB Port
4 x USB 3.0
LAN Port
2 x RJ-45
Panel
LCD Size
23.8"
Resolution
1920 x 1080
Luminance
250 cd/m2
Display Type
Full HD
Pixel pitch
274.5×274.5
Contrast ratio
3000
Response time
16 ms
Viewing angle
89(U), 89(D), 89(L), 89(R)
Touch Type
Projective capacitive multi-touch up to 10 points
Touch Controller
EETI EXC84H5680
Backlight
LED
I/O
Camera
2.0M webcam
SATA
1 x SATA III
HDMI
1 x HDMI
Display Port
1 x DP
Data Collection
NFC
NFC RFID module built In
Data Communication
WLAN
Optional WiFi 1T1R 802.11b/g/n/ac/ BT4.0
Mechanical & Environmental
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.
-30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity
0% ~ 90% relative humidity, non-condensing
Dimension (W x L x H)
592 x 382 x 49.5mm
Weight
6.9 kg (without batteries and adapter)

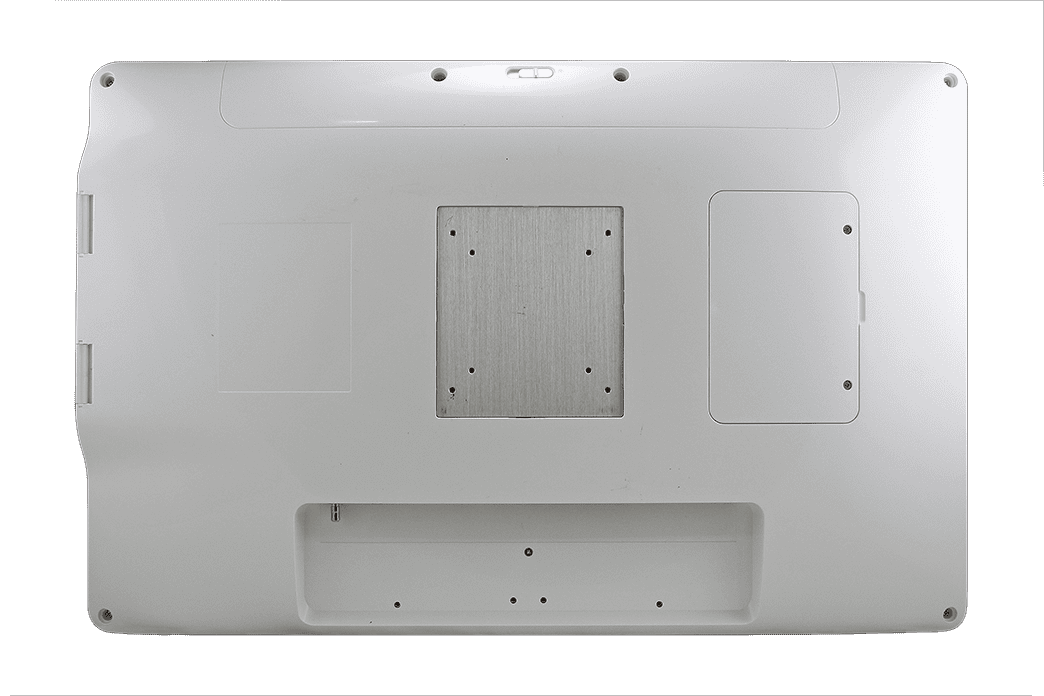

VESA
75x75, 100x100 mm
IP Rating
Front IP65
Construction - Front
White plastic
Construction - Rear
White plastic
Vibration Test
With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis
Shock Test
With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms
Color
White
System Fan
Fanless
Fanless
Yes
Finishing
Anti-microbial
Component
Adapter
Medical grade
120W/24V
Ordering Information
Ordering Information
HID-2334-730-A2R
HID 23.8 w/i5-7300U/4GB memory/LED/NFC/4USB3.0/SPK/24V medical adapter
Without: SSD/ Wifi/ Battery
ACC-HID-WIFI-02R
HID-2334 Wifi Kit
ACC-BAT-4S2P-01R
Rechargeable Lithium Ion Battery,4S2P
RCC-HID-BATCHR-01R
4 Bay Charging Station w/120W Power Adapter
RCC-HID-BCSCAN-01R
Barcode Scanner Kit for HID/APC
Power Cord:
E1702031000R EU Power Cord
E1702031833R US Power Cord
E170203183CR JP Power Cord
E170P060380R UK Power Cord
E1702031831R AU Power Cord
E170P060391R CN Power Cord
