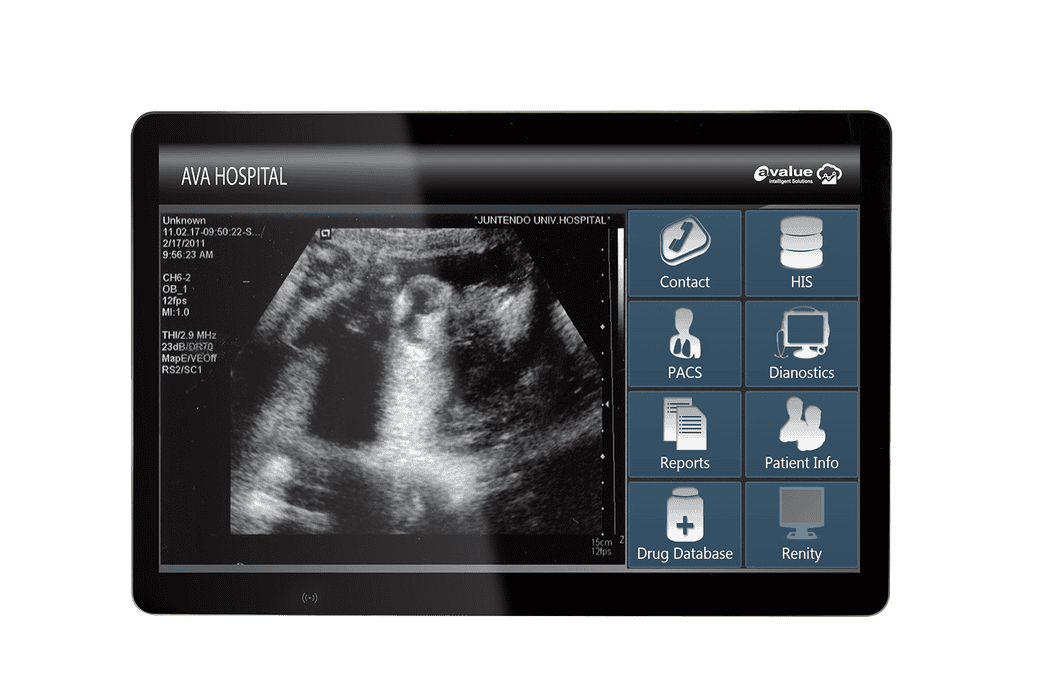

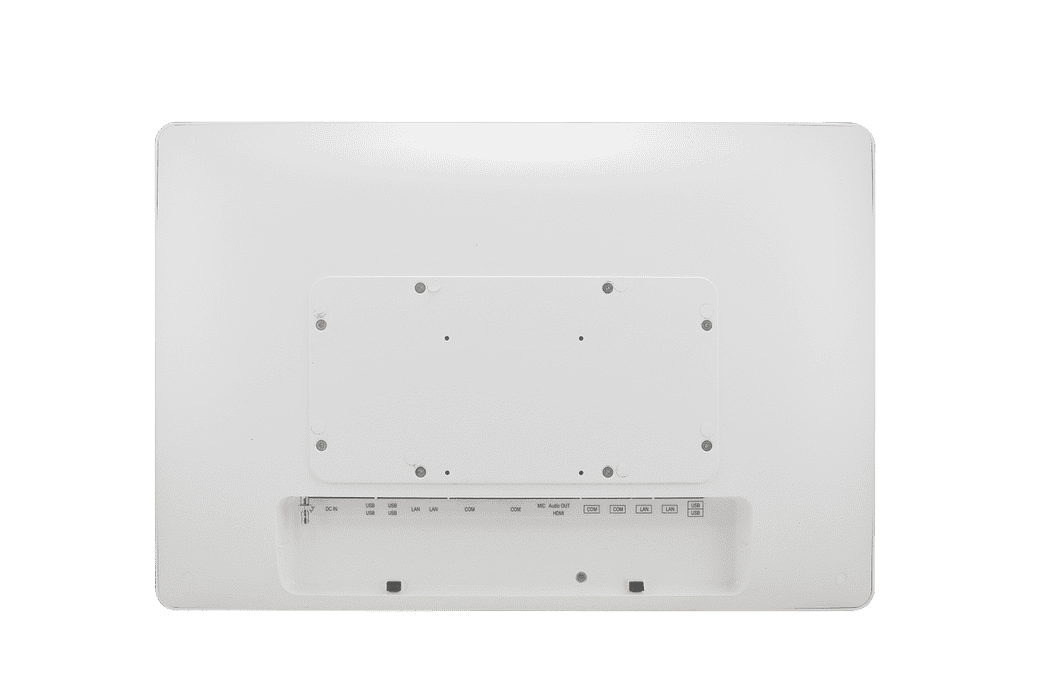

HID-2232
21.5" Multi-touch Medical Panel PC with DICOM Preset
FEATURE
21.5" display with PCAP multi-touch
1x SO-DIMM up to 16GB DDR4 SDRAM support anti-microbial finish
4x USB3.0, 1x RS-232/422/485, 1x RS-232 2x Intel® Gigabit LAN
Isolation USBX2/ COMX2/ LANX2 / HDMI/ mini PCIe by IET module
Preset DICOM mode (din 6868-157)
LED reading light bar
IP-65 on front panel protection
Specification
Download
System Information
Processor
6th Gen Intel® Core™ i5-6300U, 2-Core, 2.4GHz processor
System Memory
One 260-pin DDR4 SODIMM socket up to 16GB
TPM
Infineon TPM 2.0
Graphics Controller
Intel® HD Graphics 520
Platform Controller Hub
Integrated in Intel ® Skylake ULT Processor
Expansion
Expansion
1 x Mini PCIe full size (support half size) auto switch for mSATA or mini PCIe, USB 1 x mini PCIe full size (support half size) auto switch for mSATA or mini PCIe, USB (by IET module)
Storage
HDD
2.5 SSD
Other Storage Device
mSATA (optional)
Display
Graphic Chipset
Intel® HD Graphics 520
Spec. & Resolution
HDMI: 3840 x 2160 @ 24Hz (optional by IET module)
Audio
Audio Interface
Audio out and mic in
Audio Codec
Realtek ALC888S
Speaker Output
2 x 0.5W
Software Support
OS
Win10 / Linux
Certification
Certification Information
DIN 6868157 CE, FCC class B UL60601-1 4th edition

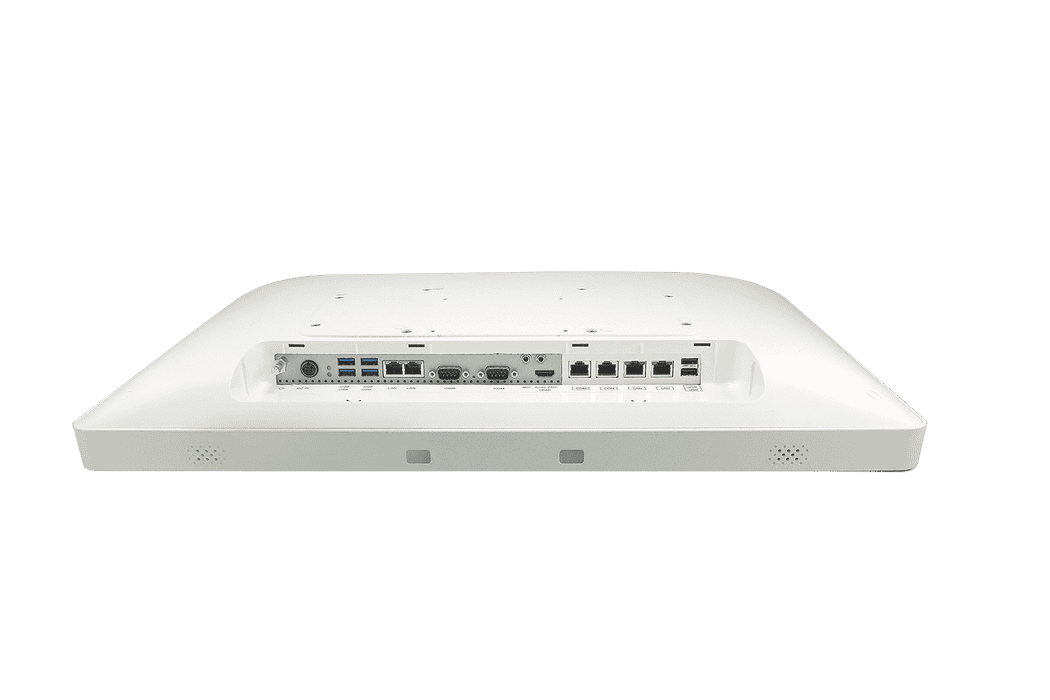

External I/O
USB Port
4 x USB3.0, 4 x USB2.0 by pin header 2 x USB2.0 (isolated 5KV), 1 x USB2.0 by pin header on IET module
LAN Port
1 x Intel ® I219LM Gigabit Ethernet 1 x Intel ® I211AT Gigabit Ethernet 2 x Intel ® I210AT Gigabit Ethernet (isolated 5KV) on IET module
Panel
LCD Size
21.5"
Resolution
1920 x 1080
Luminance
250 cd/m2
Display Type
TFT-LCD
Pixel pitch
248.25 x 248.25
Contrast ratio
3000
Viewing angle
178/178 °
Touch Type
Projective capacitive multi-touch up to 10 points
Touch Controller
USB interface, EETI
Touch Light Transmission
100% AG coating
Backlight
LED
DICOM compliant
DIN 6868157
LCD Panel
21.5 TFT-LCD
I/O
Reading light bar
LED type
Camera
2.0M CMOS (optional)
COM Port
1 x RS-232/422/485, 1 x RS-232 1 x RS-232 (isolated 5KV), 1x RS-232/422/485 (isolated 5KV) on IET module
HDMI
HDMI video out on IET module
Data Collection
NFC
USB interface supports ISO 14443-A (optional)
DC In / Out Connector
Input Power Connector
4 pin DC Jack
DC In / Out Characteristics
Input Voltage Range
100~240 Vac, 1.5~0.75A, 50~60Hz
Output Voltage Range
+24Vdc, 3.75A max. (90W)
Power Type
AT/ATX
Mechanical & Environmental
Operating Temp.
0°C~ 35° C (32°F ~ 95° F)
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity
0% ~ 90% relative humidity, non-condensing
Dimension (W x L x H)
521.0 mm x 326.0 mm x 56.5 mm
Weight
5.5 kg
IP Rating
Front Panel IP65 whole unit IPX1
Vibration Test
With SSD/mSATA: 1.5Grms, IEC 60068-2-64, radom, 5~500Hz, 30min/axis
Shock Test
With SSD/mSATA: 10Grms, IEC 60068-2-27, half sine, 11ms
Construction
Plastic
Surface
Anti-microbial finishing
Component
Adapter
AC/ DC medical power adapter 100~240 Vac, 1.5~0.75A, 50~60Hz Input voltage +24Vdc, 3.75A max. (90W) output voltage
Ordering Information
Ordering Information
HID-2232-630-A2R
21.5"/PCAP/DICOM/8GBmemory/128GB SSD/CAM
2COM/2LAN/4USB/HDMI/Line out/Mic in/Isolation
Isolation: 2COM (RJ45 type)/4USB/2LAN
WIFI/BT/24V 90W Medical power adapter
Power Cord:
EU E1702031000R
US E1702031833R
JP E170203183CR
UK E170P060380R
AU E1702031831R
