HID-1540
15.6” Alder Lake Medical Panel PC
FEATURE
Sleek light weight design
15.6” Full HD PCAP touch
Socketed Intel® 12th Gen Alder Lake-PS Core™ i7/i5/i3 Processor
1 x COM, 2 x LAN, 1 x USB 2.0, 3 x USB 3.2, 1 x USB Type C
1 x M.2 Key B 3042/3052/2280, 1 x M.2 Key E for WIFI, 1 x M.2 Key M for storage
Programmable LED light bar on both sides
Optional Webcam/ WIFI/ NFC
CE/FCC/Medical UL
Specification
Download
Related Information
System Information
SBC
HID-2340 mother board
Processor
12th Generation Intel® Core™ i7/i5/i3 Processor
System Memory
1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 32GB Max (Min 8GB)
I/O Chipset
IT5782VG
Watchdog Timer
H/W Reset, 1sec. – 65535sec./min.1sec. or 1min. step
H/W Status Monitor
CPU temperature monitoring voltage monitoring
TPM
Onboard NuvoTon NPCT754AADYX support TPM 2.0
Platform Controller Hub
Integrated in Processor (SOC)
Expansion
Expansion
1 x M.2 Key B 3042/3052/2280
1 x M.2 Key E for WIFI
Storage
Storage
1 x M.2 Key M storage
Audio
Audio Interface
Audio combo jack
Audio Codec
Realtek ALC888S
Speaker Output
2 x 5W
Ethernet
LAN Chipset
1 x Intel® I225LM
1 x Intel® I226LM
Ethernet Interface
10/100/1000/2500 Base-Tx GbE compatible
LAN Port
2 x RJ-45
Power Requirement
DC Input
+19V
Power Mode
AT/ATX (ATX is default setting)
DC Input Connector
Lockable DC Jack
Software Support
OS
Win10 / Win11 / Linux
Certification
Certification Information
CE : IEC/EN60601-1-2 FCC : Part 15 Class B UL60601-1
External I/O
Wireless LAN
Optional 802.11abgn+acR2+axR2 Wi-Fi 6E BT5.2
Panel
LCD Size
15.6"
Resolution
1920 x 1080
Luminance
300 cd/m2
Display Type
Full HD
Pixel pitch
0.17925 x 0.17925mm
Contrast ratio
1000
Response time
25 ms
Viewing angle
89(U), 89(D), 89(L), 89(R)
Touch Type
Projective capacitive multi-touch up to 10 points
Touch Controller
USB touch (EETI)
Touch Light Transmission
85%
Backlight
LED

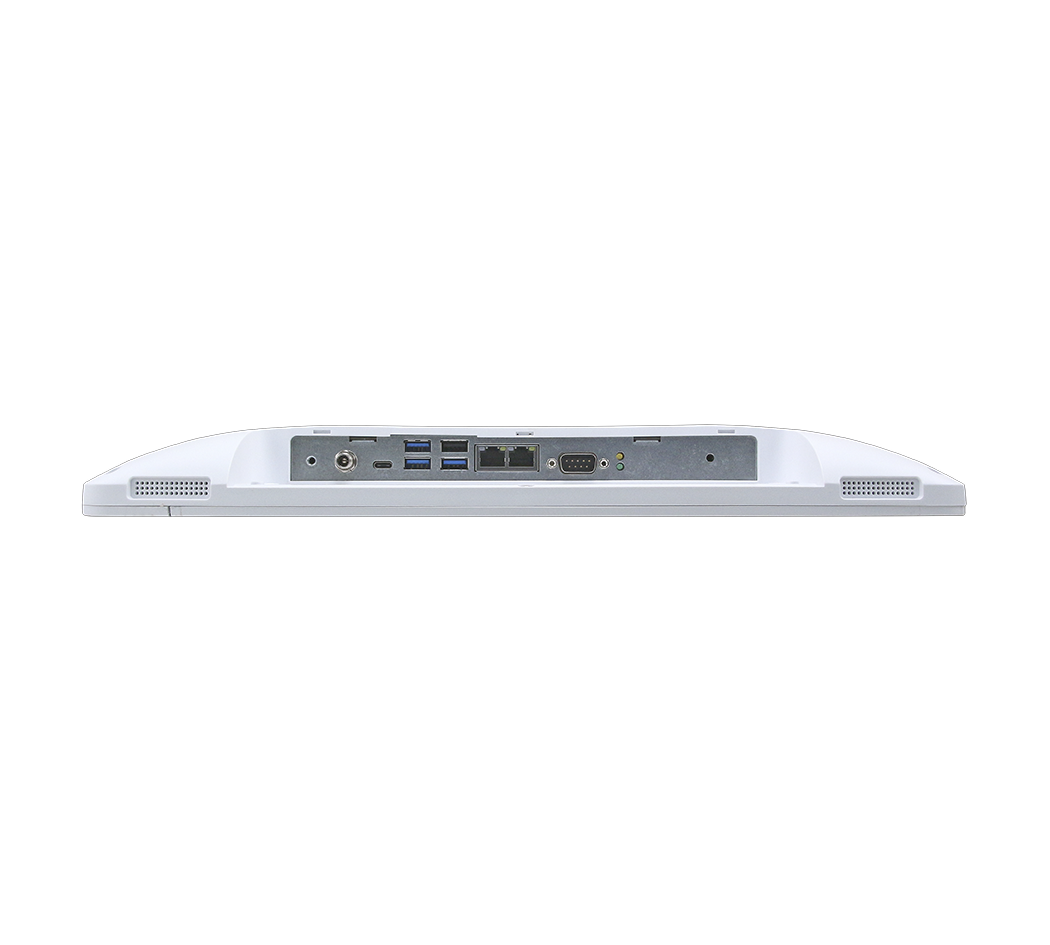

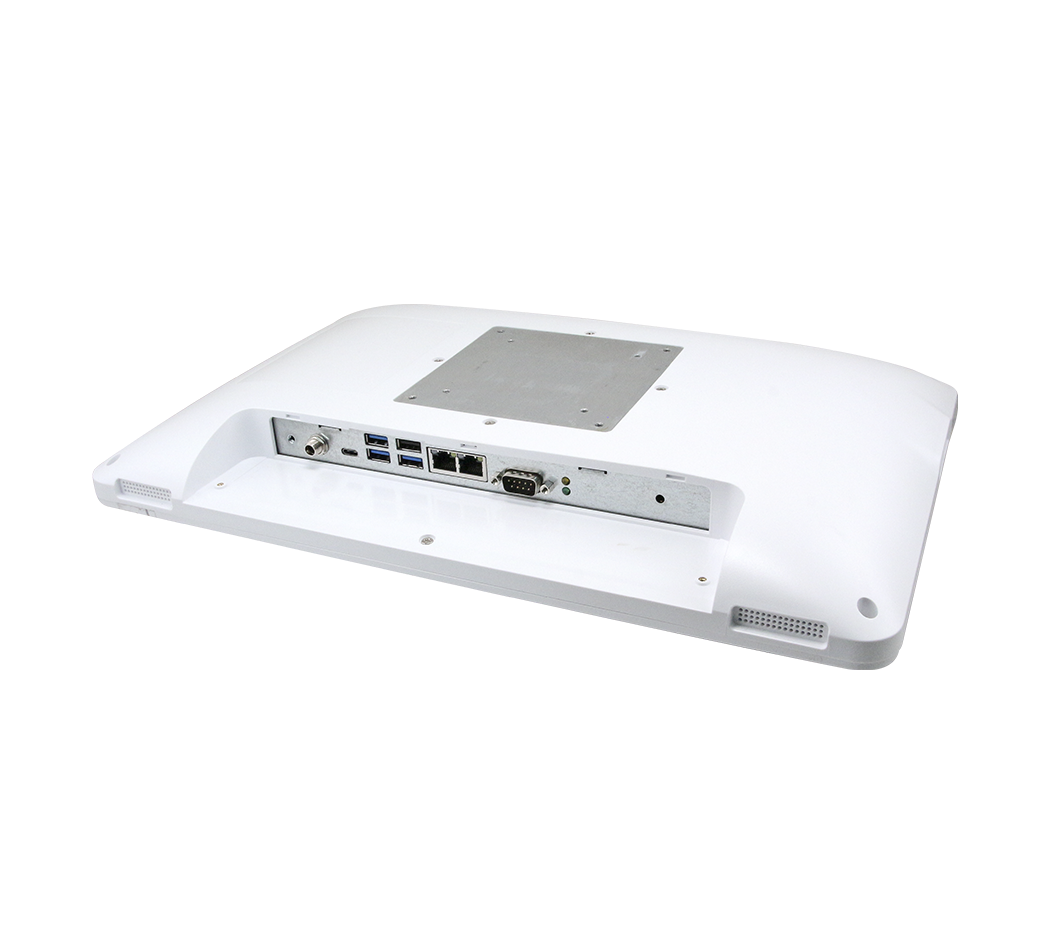

I/O
USB Port
1 x USB 2.0, 3 x USB 3.2
1 x USB Type C
COM Port
1 x RS-232/422/485
Mechanical & Environmental
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.
-30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity
0% ~ 90% Relative Humidity, Non-condensing
Dimension (W x L x H)
400 x 263 x 42.5mm
Weight
2.8 kg

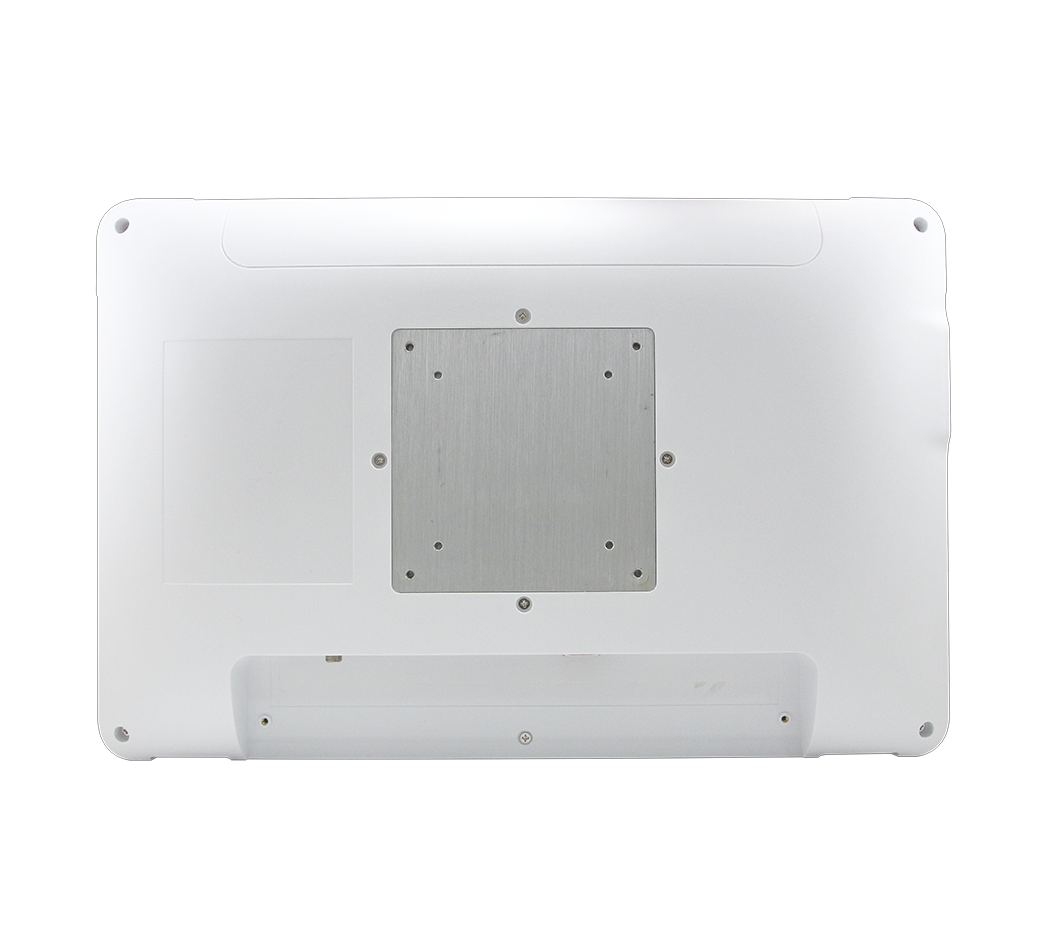

VESA
75x75, 100x100
IP Rating
Front IP65
Back IPX1
Construction - Front
White Plastic
Construction - Rear
White Plastic
Vibration Test
With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test
With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
Color
White
System Fan
Fanless
Fanless
Yes
Finishing
Anti-Microbial
Component
Adapter
Medical grade
Input: 100-240V~, 2.0-1.0A, 50-60Hz
Output: 19V 4.73A 90W
Ordering Information
Ordering Information
HID-1540-123-A1R
HID 15.6/i5-1235UL/8GRAM/4USB/2LAN/COM/TYPEC/CAM/Audio/SPK/LED/adapter
E971XHI1540000R
WiFi module KIT for HID-1540
ACC-ARM-D41R
VESA Stand 75/100 CA-MT01-07 White
Power Cord:
EU E170203183DR
US E1702031835R
JP E170203183BR
UK E170P060370R
AU E170P060392R
