Processor

Intel® Alder Lake-N Processor
Intel® Processor N97, 6M Cache, up to 3.60 GHz (12W)

CPU Cooler (Type)

Passive

System Memory

1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 16GB

I/O Chipset

EC-ITE: IT5782VG

Watchdog Timer

H/W reset, 1sec. – 65535sec./min.1sec. or 1min. step

H/W Status Monitor

CPU & system temperature monitoring and voltages monitoring

TPM

TPM 2.0

Expansion

1 x M.2 (Key-B, 2242/3042/3052, SATA only)
1 x M.2 (Key-E, 2230, PCIex1, USB2.0)

M.2

1 x M.2 Key-B 2242/3042/3052 for M.2 SATAIII SSD

Audio Codec

Realtek ALC888S

Speaker Output

2 x 5W

DC Input

+12V ~ +36V

Power Mode

AT/ATX (ATX is default setting)

DC Input Connector

Lockable DC Jack

OS

Win 10/11 Linux

Certification Information

CE : IEC/EN60601-1-2
FCC : Part 15 class B
UL60601-1

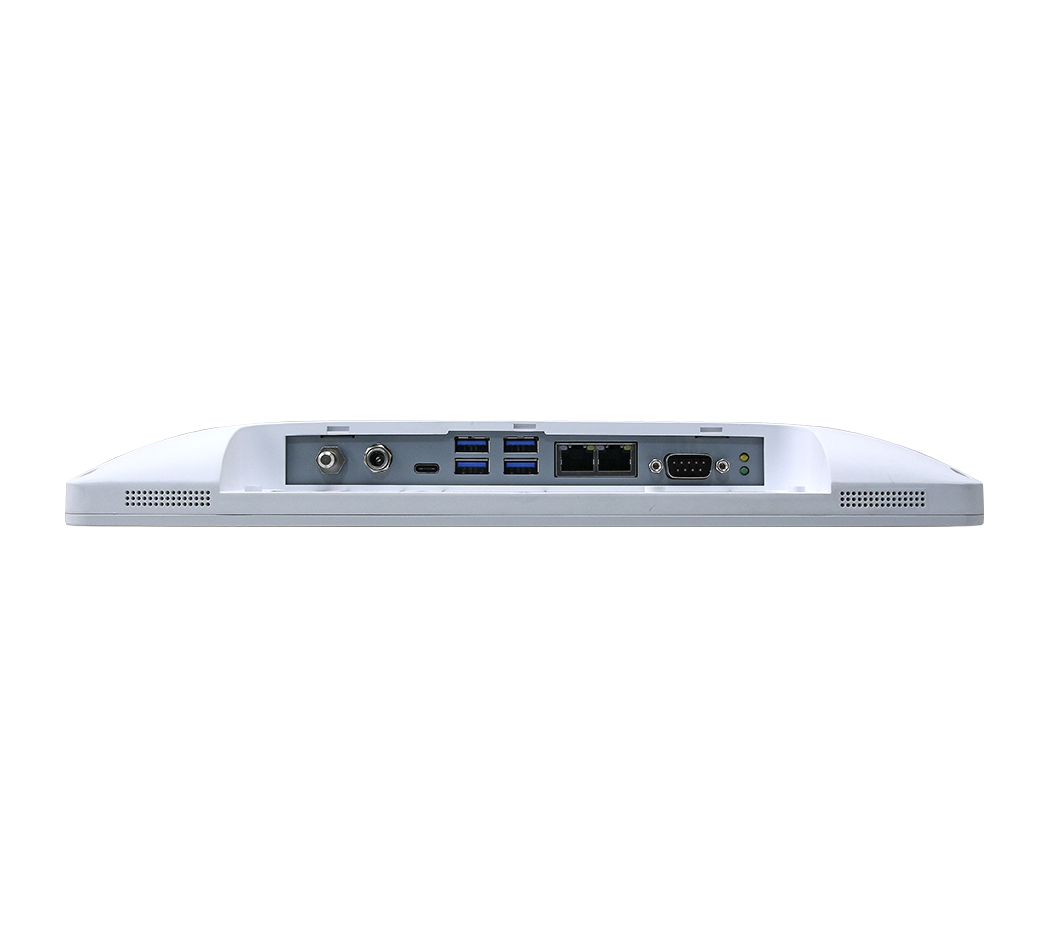

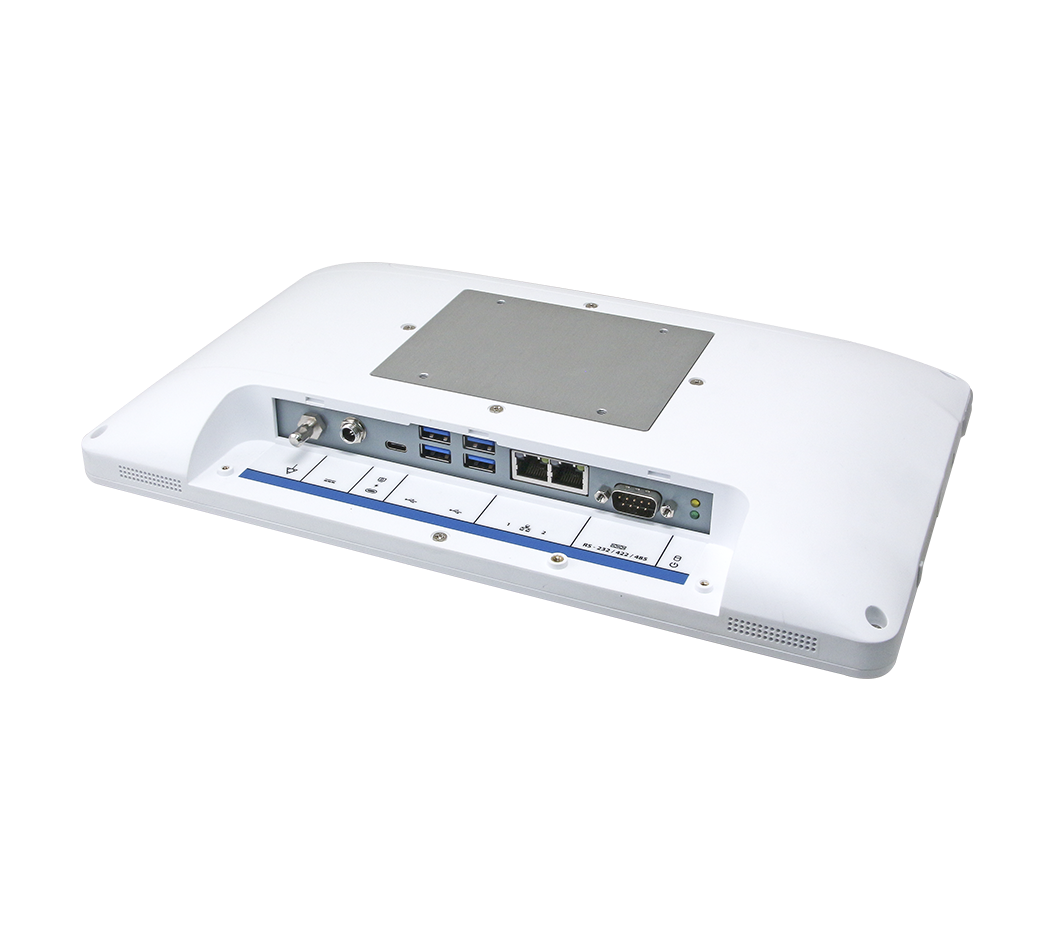

USB Port

4 x USB 3.2 at bottom
2 x USB 3.0 at side
1 X USB Type C
(PD Output 5V/3A 15W, USB, display function)

COM Port

1 x DB-9 COM1
RS-232(default)/422/485, selectable by BIOS & JUPMER,
RS-485 supports Auto Flow, Pin-9 selected by JUPMER for Ring(default)/+5V/+12V

LAN Port

2 x Intel® I226LM 2.5 Gigabit Ethernet

Indicator light

HDD LED (Yellow), Power LED (Green)

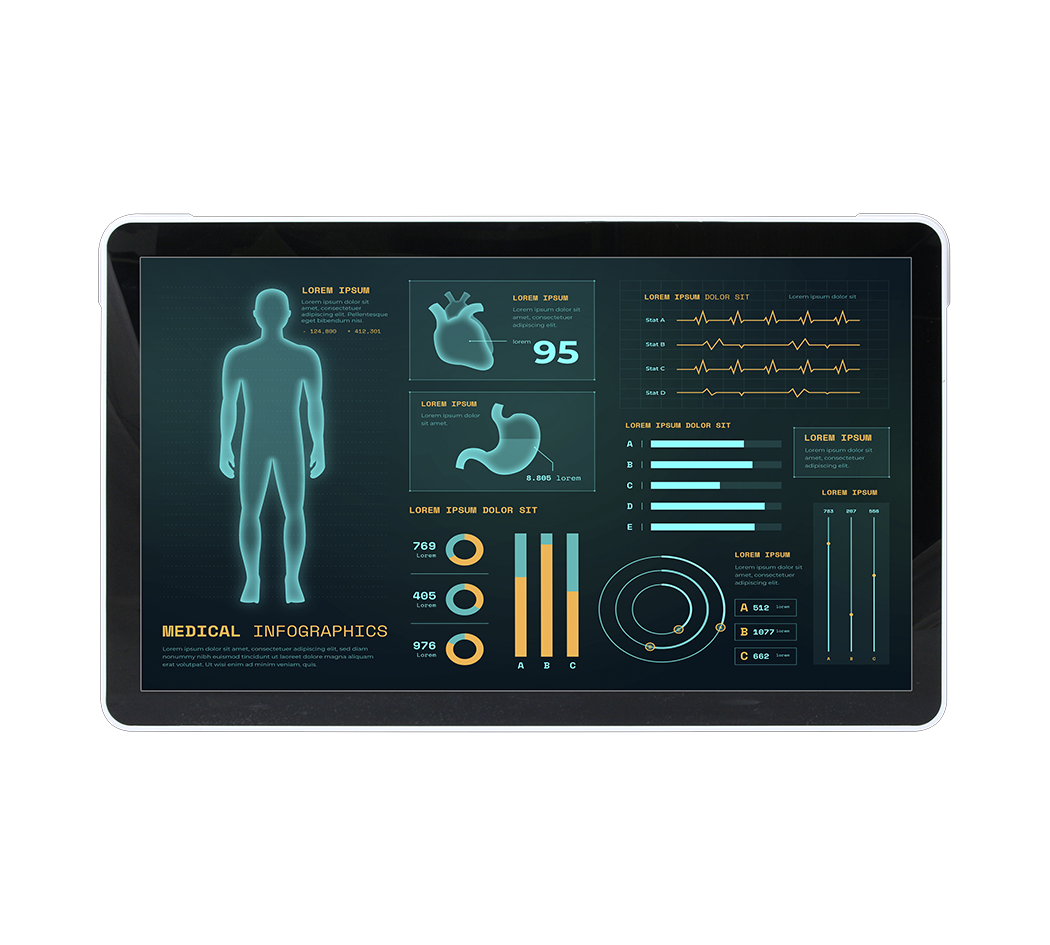

LCD Size

13.3"

Resolution

1920 x 1080

Luminance

300 cd/m2

Display Type

Full HD

Pixel pitch

0.153 x 0.153

Contrast ratio

600

Response time

27 ms

Viewing angle

89(U), 89(D), 89(L), 89(R)

Touch Type

Projective capacitive multi-touch up to 10 points

Touch Controller

EETI

Touch Light Transmission

85%

Backlight

LED

Bluetooth

Optional Wi-Fi + bluetooth 5.0 USB module
(Intel Wi-Fi 6E AX210 with PCB Antenna)

Operating Temp.

0°C ~ 40°C (32°F ~ 104°F)

Storage Temp.

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

40°C @ 95% relative humidity, non-condensing

Dimension (W x L x H)

198 x 325 x 38 mm

Weight

1.8 kg

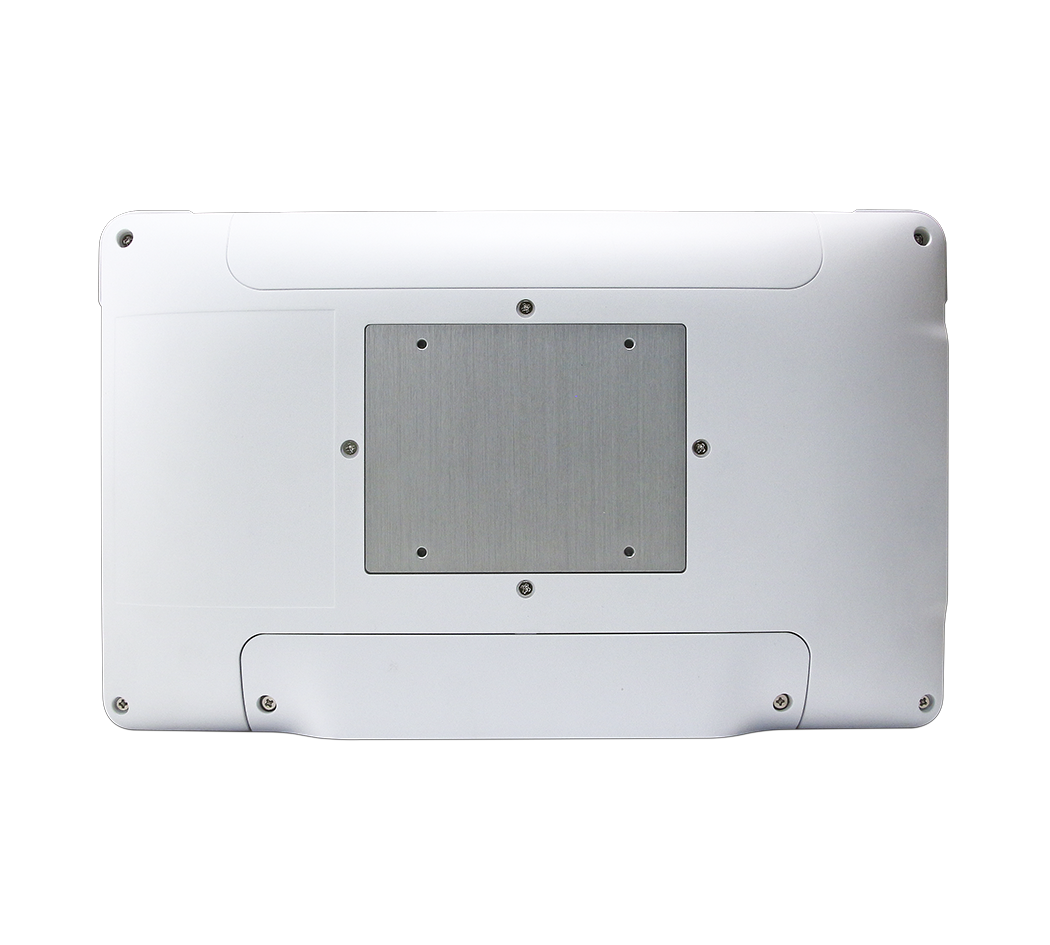

VESA

75x75 mm

IP Rating

IP65 front, IPX1 rear

Construction - Rear

White Plastic

Vibration Test

With SSD/mSATA: 1.5Grms, IEC 60068-2-64, radom, 5~500Hz, 30min/axis

Shock Test

With CF/SSD: 10Grms, IEC 60068-2-27, half sine, 11ms

Drop Test

Package drop test
Reference ISTA 2A, method : IEC-60068-2-32 Test:Ed
Test Ea : drop test

System Fan

Fanless

Fanless

Yes

Adapter

72W(24V/3A) medical adapter EDAC EM10686V

Packing List

1 x HID-1337
1 x Medical adapter

Ordering Information

HID-1337-N97-A1R
13.3" Alder Lake N Medical Multi-Touch Panel PC,Intel N97/8GB Memory/USBC/6USB/2LAN/COM/SPK/medical 24V adapter

E971XHI1337000R
WIFI Kit for HID-1337

ACC-ARM-D41R
VESA Stand 75/100 CA-MT01-07 White

Power Cord:

E1702031000R EU Power Cord

E1702031833R US Power Cord

E170203183CR JP Power Cord

E170P060380R UK Power Cord

E1702031831R AU Power Cord

E170P060391R CN Power Cord
