Specification
Download
Features
Programming API
HTML5 / W3C SMIL
Picture-in-picture (PiP)
Supported (Video + HDMI In)
Advanced settings
Autorun APK, remote firmware update,
Video Playback Engine
H.265 4K@60p
H.264 4K@30p
HTML5
Beacon (BLE)
Opt.:Supported
Intdependent Watchdog
Supported
Security
Administrator Password protected,
SSL/TLS, IEEE 802.1X
System
OS
Android 8.1 / 10 / Debian /12
CPU
ARM Dual-Core A72 + Quad-core A53,
64 bit 1.8GHz
GPU
Mali-T864
Memory
4GB
Storage
32GB eMMC
Video decoder
H.264/AVC @ level 5.1; up to 4Kx2K, 30fps
H.265/HEVC @ level 5.1 High-tier; up to 4Kx2K60fps
MPEG-4 @L0-5, up to 1080P 60fps
VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P 60fps
Expansion Slot (Internal)
M.2 slot
1 x M.2 3042 (B-Key) for 4G module
1 x M.2 2242 (B-Key) for M.2 SSD

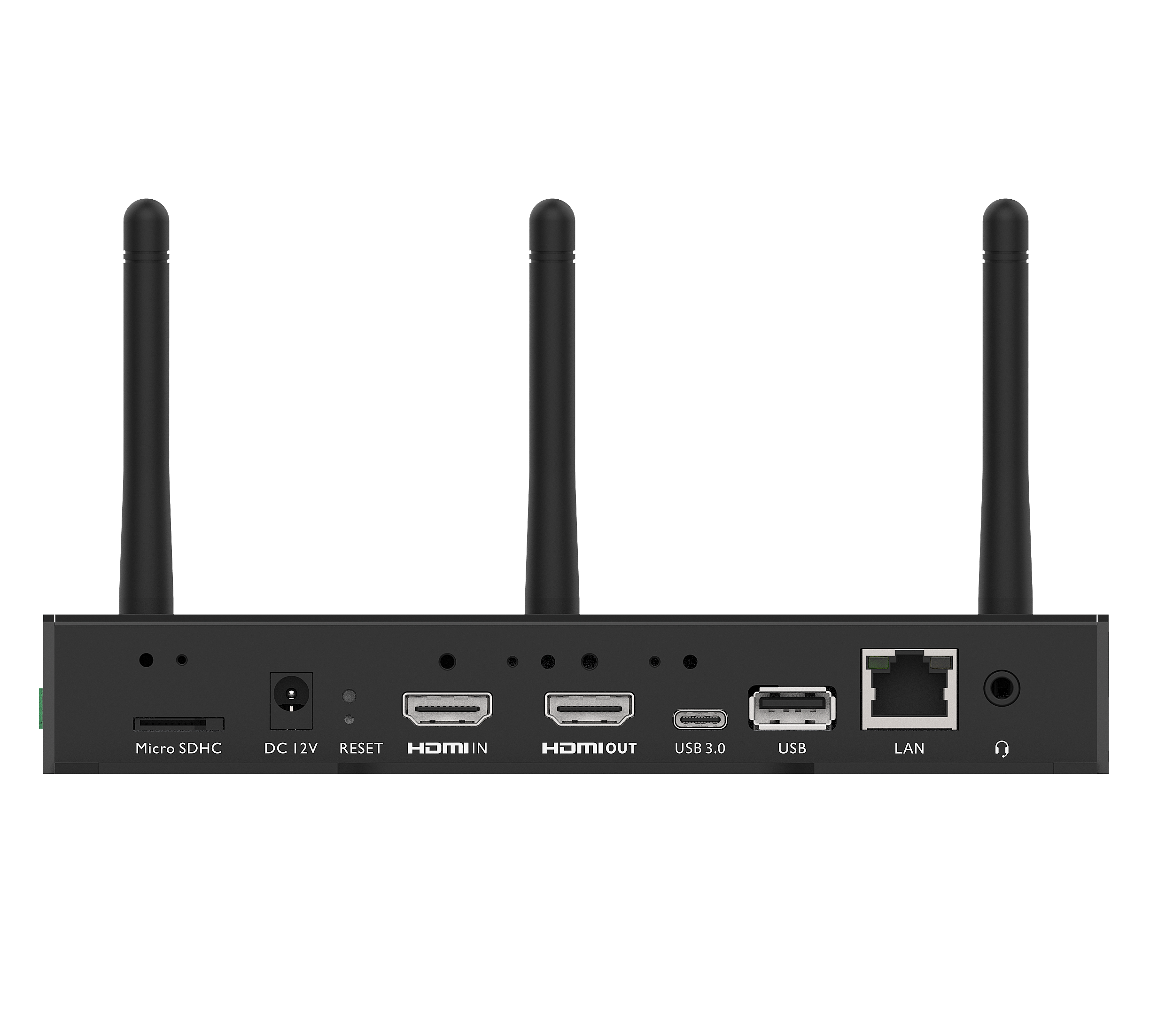

I/O Interface (External)
Ethernet
1 x RJ45, 10/100/1000 Gigabit BASE-T
DC Input
1 x DC Jack, 5.5 * 2.5mm
HDMI out
1 x HDMI 2.0b with CEC
4K UHD, 3840*2160 @60fps
Audio out
1 x 3.5mm (4-ring Apple-like)
Storage Expansion
1 x Micro SDHC slot
USB 2.0
1 x USB2.0
USB Type C
1 x USB3.0 TypeC
ADB
1 x Micro USB ADB
COM port
1 x 2.5mm phone jack (Tx / Rx / GND)
GPIO
1 x phoenix type 12 pin, 8 GPIO
Reset Button
Yes
Power Status LED
Yes
Kensington lock
1
Antenna
1 x SMA Connector
Connectivity
WLAN
Opt.:802.11 b/g/n
BLE/Beacon
Opt.:Supported 4.0
Input Voltage (V)
DC 12V , 3A
Power Consumption (max, W)
36W
4G LTE
M.2 module
Mechanical
Dimension (WxDxH) (mm / inch)
180 x 118 x 27 mm (7.08" x 4.66" x 1.06" inch)
Packing Dimension
270 x 230 x 90 mm (10.63 x 9.06 x 3.54 inch)
Net. Weight (Gm/Lb)
400g / 0.884 lbs
Weight (Gm/Lb)
1.14Kg / 2.51 lbs
Mounting type
Easy wall mount
VESA mount 10x10 cm
Material
Durable Aluminum
Environment
Operating Temperature(°C /°F)
-40°C to 70°C (-40°F to 158°F)
Storage Temperature (package included) (°C /°F)
-40°C to 80°C (-40°F to 176°F)
Ambient Relative Humidity
5% to 90% (non-condensing)
Certification & Safety
Certification
CE / FCC / RoHS / BSMI
Warranty
Warranty Period
2 Years
Accessory
Adapter
1 x DC Adaptor
Power cord / Plug
US / AU / UK / EU Plug (Option by Region)
Anntena
1 x dipole antenna 2dbi
Screw
2 x M2 * 4
4 x M2 * 8
Bracket
1 x DC Cover
1 x HDMI Cover
1 x Micro SD Cover
Tape
2 x Velcro Strip
Cable
2 x HDMI
Connector
1 x GPIO connector
QSC
1
