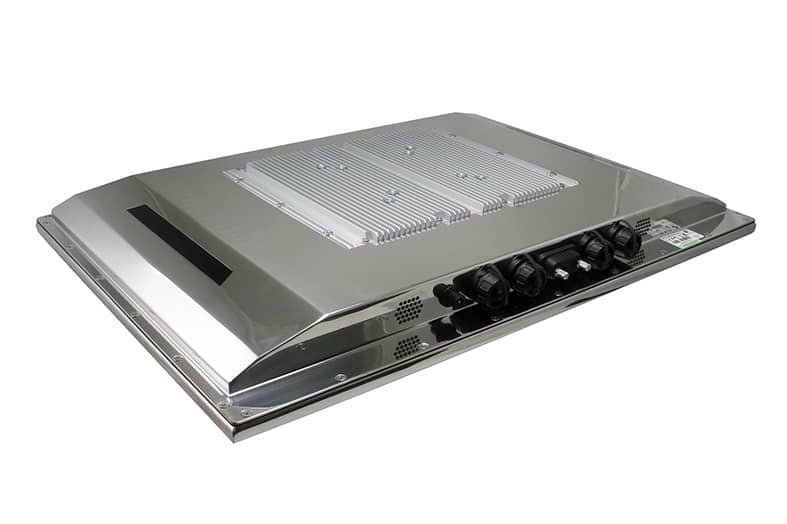

SPC-22W9
22" Intel Atom® E3845/Celeron® J1900 Processors Fanless Stainless Steel Chassis Touch Panel PC with Full IP-65
FEATURE
Intel Atom® E3845/Celeron® J1900 Processors
One 204-pin DDR3L SODIMM socket supports up to 8GB DDR3L 1333 SDRAM
1 LAN, 2 USB, 1 COM
Dual Intel I210IT Gigabit LAN
Wide voltage +12V ~ +26V input, ErP power
Backlight controlled by PWM
Full system IP65
Timer-power-on
Specification
Download
System Information
Processor
Intel Atom® E3845/Celeron® J1900 Processors
Intel Atom® Processor E3845, 2M Cache, 1.91 GHz
Intel® Celeron® Processor J1900, 2M Cache, up to 2.0 GHz
System Memory
1 x 204-pin DDR3L 1333MHz SO-DIMMup to 8 GB
I/O Chipset
EC ITE IT8528E
Watchdog Timer
H/W reset, 1sec. ~ 65535sec./1sec.step
H/W Status Monitor
Monitoring CPU & system temperature and voltage
SBC
EBM-BYT
CPU Cooler (Type)
Fanless heatsink
Expansion
Expansion
1 x Mini PCIe support mSATA
1 x Mini PCIe support SIM card
Display
Graphic Chipset
Intel® Valleyview SoC integrated graphics
supports dual display
Spec. & Resolution
HDMI:Max. Resolution 1920x1200@ 60Hz
Audio
Audio Codec
Realtek ALC888S
Audio Interface
Line-out
Speaker Output
2 x 5W
Ethernet
LAN Chipset
1 x Intel® I210IT
Ethernet Interface
10/100/1000 Base-Tx GbE compatible
Power Requirement
DC Input
+12V ~ +26V
ACPI
Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant
Software Support
OS
Win 7 / Win 8 / Linux
Certification
Certification Information
CE / FCC Class A
Panel
LCD Size
22"
Display Type
WSXGA
Resolution
1680 x 1050
Pixel pitch
0.282mm(H) x 0.282mm(V)
Luminance
250 cd/m2
Contrast ratio
1000
Viewing angle
80 (U), 80 (D), 85 (L), 85 (R)
Response time
5 ms
Backlight
LED
Touch Type
5 wires resistive
Touch Light Transmission
80%
Touch Controller
Onboard USB touch (EETI)
External I/O
USB Port
3 x USB 2.0
LAN Port
1 x RJ-45
COM Port
1 x RS-232
Internal I/O
SATA
1 x SATA II
System Control
LED Indicator
HDD LED, power LED
Mechanical & Environmental
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity
20% ~ 80% Relative humidity, non-condensing
Dimension (W x L x H)
546 x 378 x 69mm
Weight
9 Kg
Vibration Test
With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis
Shock Test
With CF/SSD : 10Grms, IEC 60068-2-27, half sine, 11ms
Drop Test
ISTA 2A, IEC-60068-2-32 Test:Ed
IP Rating
Whole system IP65
Mounting Kit
Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Power Mode
AT/ATX (ATX is default)
System Fan
Fanless
Construction - Front
Stainless steel
Construction - Rear
Stainless steel
Component
Adapter
Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter) AC-DC adapter AC-DC adapter
Ordering Information
Ordering Information
SPC-22W9-384-A4R
22 WSXGA Waterproof Stainless Panel PC with Intel® Atom Quad-Core E3845 1.91GHz D1-CPU/4GR/32GSSD/1LAN/1COM/3USB/True Flat Rear Case
SPC-22W9-190-A4R
22 WSXGA Waterproof Stainless Panel PC with Intel® J1900 2.00 GHz D1-CPU/4GR/32GSSD/1LAN/1COM/3USB/True Flat Rear Case/No Speakers
ACC-ARM-D1R
VESA STAND, 75mm & 100 mm
ACC-ARM-D23R
VESA STAND, 75mm & 100 mm
ACC-SPC-WIFI-1R
Wifi Kits for SPC-15/17/22 802.11b/g/n MPCIe/2Antenna/Cable
E1702031833R
USA Power Cord
E1702031000R
EU Power Cord
E1702031834R
Japan Power Cord
E1702031830R
UK Power Cord
E1702031831R
Australia Power Cord
