Specification
Download
System Information
Processor
Intel Atom® x5-Z8350 Processor
System Memory
2GB/4GB LPDDR3
Storage
Storage
32GB/ 64GB eMMC
Power Requirement
DC Input
DC 12~24V
Software Support
OS
WINDOWS 10 2019 / Linux Ubuntu 19.04
Certification
Certification Information
CE/FCC Part 15, Subpart B
Panel
LCD Size
21.5"
LCD Panel
TFT LCD
Display Type
Full HD
Resolution
1920x1080
Pixel pitch
0.24795 x 0.24795 mm
Luminance
250 cd/m2(typ)
Contrast ratio
3000 (Typ.)
Viewing angle
160 (U), 178 (D), 160 (L), 178 ( R)
Response time
25m (GtG Typ.)
Backlight
LED
Touch Type
PCAP
Touch Light Transmission
86%

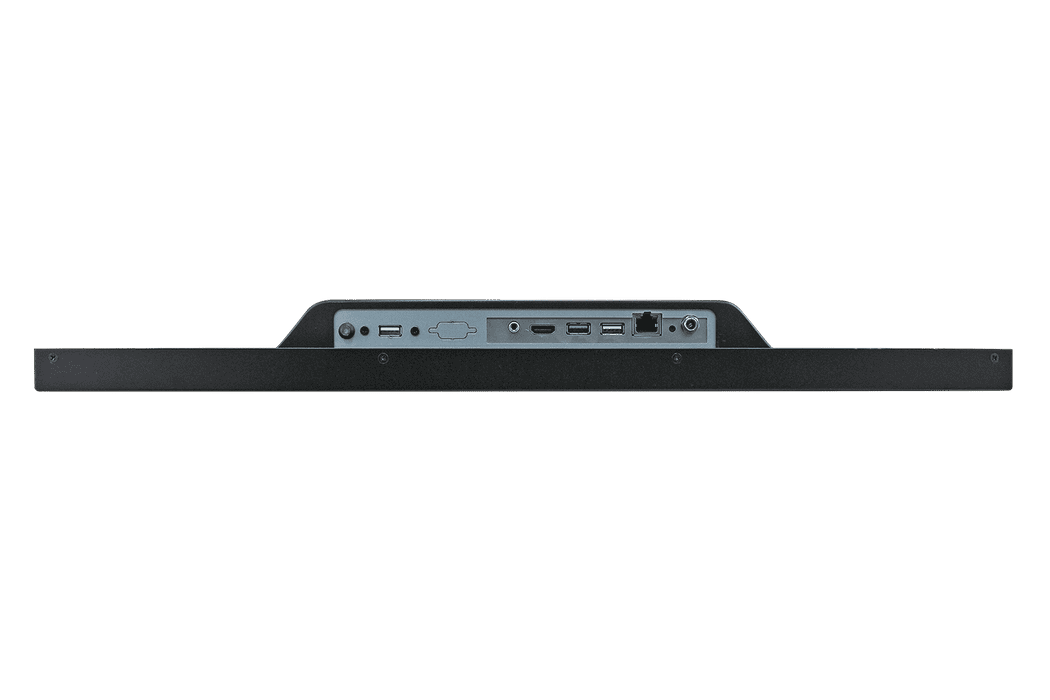

External I/O
USB Port
1 x USB 3.0, 2 x USB 2.0
Video Port
1 x HDMI 1.4 output
Audio Port
1 x Line out
Wireless LAN Antenna
1 x SMA type connector
Data Communication
WLAN
WIFI 802.11 b/g/n/ac
Mechanical & Environmental
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Weight
5.6 kg
IP Rating
Front IP65
Mounting Kit
Stand/VESA 100 x 100mm (Optional)
Dimension (W x L x D)
509 x 304.8 x 51.3mm
Power Requirement
DC 12~24V
Power Mode
AT mode (Default)
Construction
Metal
Component
Adapter
Input: 100~240 Vac/50~60 Hz, Output: 60W Adapter (12V @ 5A Adapter)
Ordering Information
Ordering Information
SID-21W03-5004-A1R : SID-21W03 2GB 32GB / Linux
SID-21W03-5005-A1R : SID-21W03 2GB, 32GB / Win 10
SID-21W03-5007-A1R : SID-21W03 4GB, 64GB / Linux
SID-21W03-5008-A1R : SID-21W03 4GB, 64GB / Win 10
Chipset Driver
1
Audio Driver
1
Manual
1
Other Driver
4
Chipset Driver
Total 1 Files
Audio Driver
Total 1 Files
Manual
Total 1 Files
