Processor

Onboard Intel Bay trail/ Apollo Lake/ SkyLake-U/ KabyLake-U

System Memory

Intel Bay trail/ Apollo Lake platform with 1 x 204-pin DDR3L 1333MHz SO-DIMM up to 8 GB
Intel SkyLake-U/ KabyLake-U platform with 1 x 260-pin DDR4 2133MHz SO-DIMM up to 16 GB

I/O Chipset

EC ITE IT8528E

Watchdog Timer

H/W reset, 1sec. ~ 65535sec./1sec.step

H/W Status Monitor

Monitoring CPU & system temperature and voltage

SBC

ARC-BYT/ARC-APL/ARC-SKLU/ARC-KBLU

CPU Cooler (Type)

Fanless heatsink

Other

3 x Knockouts for antenna mounting

Expansion

1 x mSATA supports on the 1st mini PCIe slot, auto switch for mSATA or mini PCIe
1 x 80-pin IET interface

Storage

1 x 2.5 Drive bay(7mm HDD restricted)

HDD/ SSD

1 x SATA3

Other Storage Device

1 x mSATA support on the 1st mini PCIe slot, auto switch for mSATA or mini PCIe

Graphic Chipset

Onboard Intel Bay trail/ Apollo Lake/ SkyLake-U/ KabyLake-U SoC integrated Graphics
Supports optional dual display

Spec. & Resolution

HDMI: Max. Resolution 4096x2160 @ 24Hz (optional by IET module)

Audio Codec

Realtek ALC888S

Speaker Output

2 x 2W

Ethernet Interface

10/100/1000 Base-Tx GbE compatible

DC Input

DC IN by Model

DC Input Connector

Lockable DC Jack (default)
Optional for phoenix connector

ACPI

Single power ATX support S0, S3, S4, S5 and ACPI 3.0 compliant

OS

Windows 10, Linux

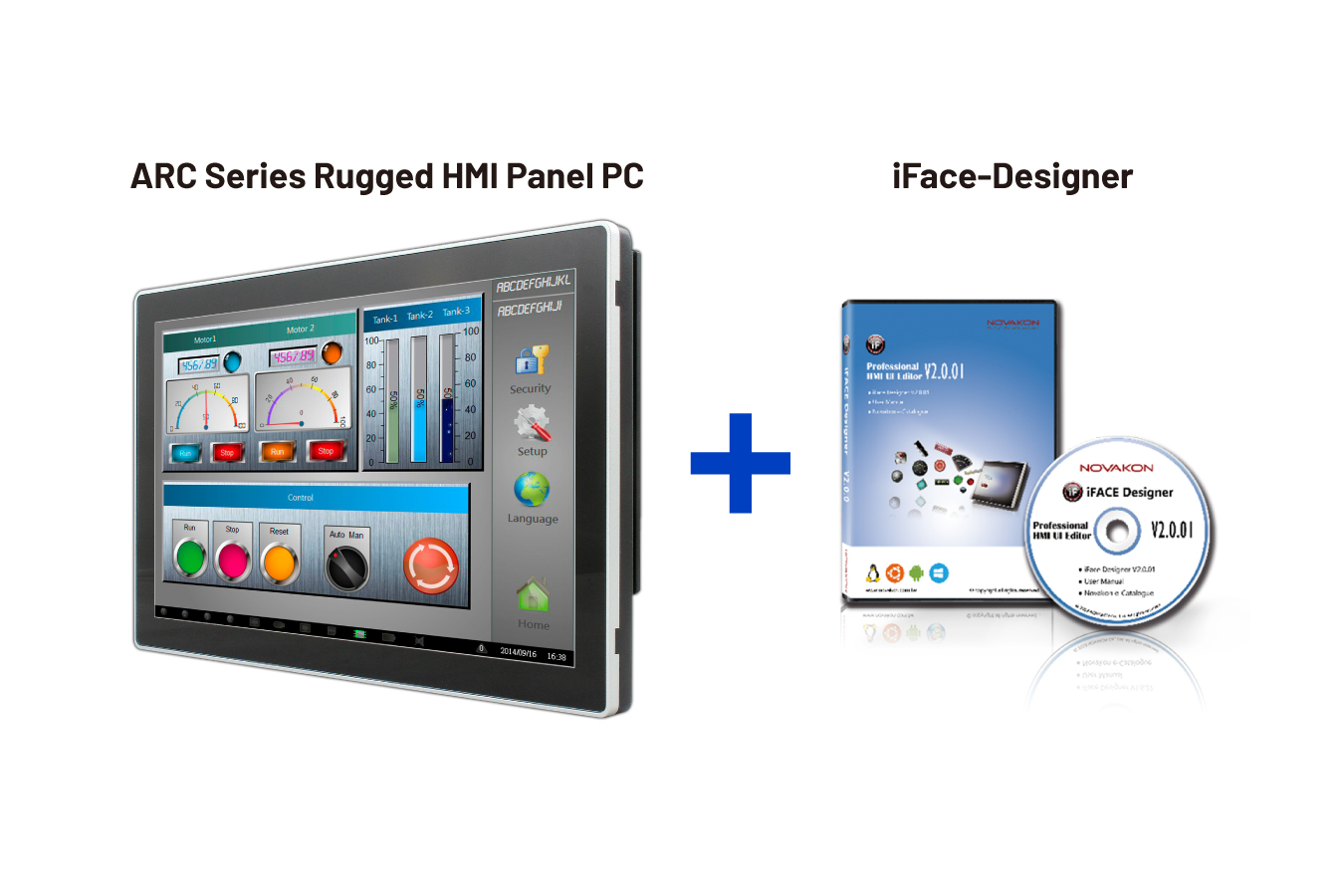

Operating System for iFACE Editor:
• Windows 7 – iFACE Designer 1.6.71
• Windows 10 64 bits – iFACE Designer 2.0.01
Operating System for iFACE Runtime:
• Windows 10
• Ubuntu 16

Certification Information

CE / FCC Class B

LCD Size

10.4"/ 12.1"/ 15"/ 17" 4:3
10.1"/ 15.6" / 21.5" 16:9

Backlight

LED

Touch Type

Projective capacitive multi-touch up to 10 points
5-wire Resistive Touch

USB Port

4 x USB (2 x double deck)

LAN Port

2 x RJ-45

COM Port

1 x RS-232/422/485, selectable by BIOS, RS-485 supports Auto Flow, Pin-9 selected by Ring/+5V/+12V)
1 x RS-232

SATA

1 x SATA III

DIO

16-bit GPIO

LED Indicator

HDD LED, power LED

Operating Temp.

Wide Temp (E3845/E3950 -20~+60C, i5-6300U/N3350 -10~+50°C) for A model
Wide Temp (J1900, i5-6300U, N3350 , J3455 -10~+50°C) for B model

Storage Temp.

-20°C ~ 60°C

Operating Humidity

0% ~ 90% Relative humidity, Non-condensing

Dimension (W x L x H)

By Model

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis

Shock Test

Operating with SSD/CFast/mSATA : MIL-STD-810G, method 516.6, procedure I, functional shock=20G

Drop Test

ISTA 2A, IEC-60068-2-32 Test:Ed

IP Rating

Front panel IP65
Back cover IP41

Mounting Kit

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Panel mount with mounting kits

Power Requirement

DC +12V ~ +26V(9~36 for APL), wide voltage single power input
TVS component for surge protection
Reverse current/voltage protection

Power Mode

AT/ATX (ATX is default)

System Fan

Fanless

Construction - Front

Die casting with cover lens

Construction - Rear

Black die casting

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz
Output: 60W adapter (12V @ 5A adapter) AC-DC adapter
