FPC-21W42

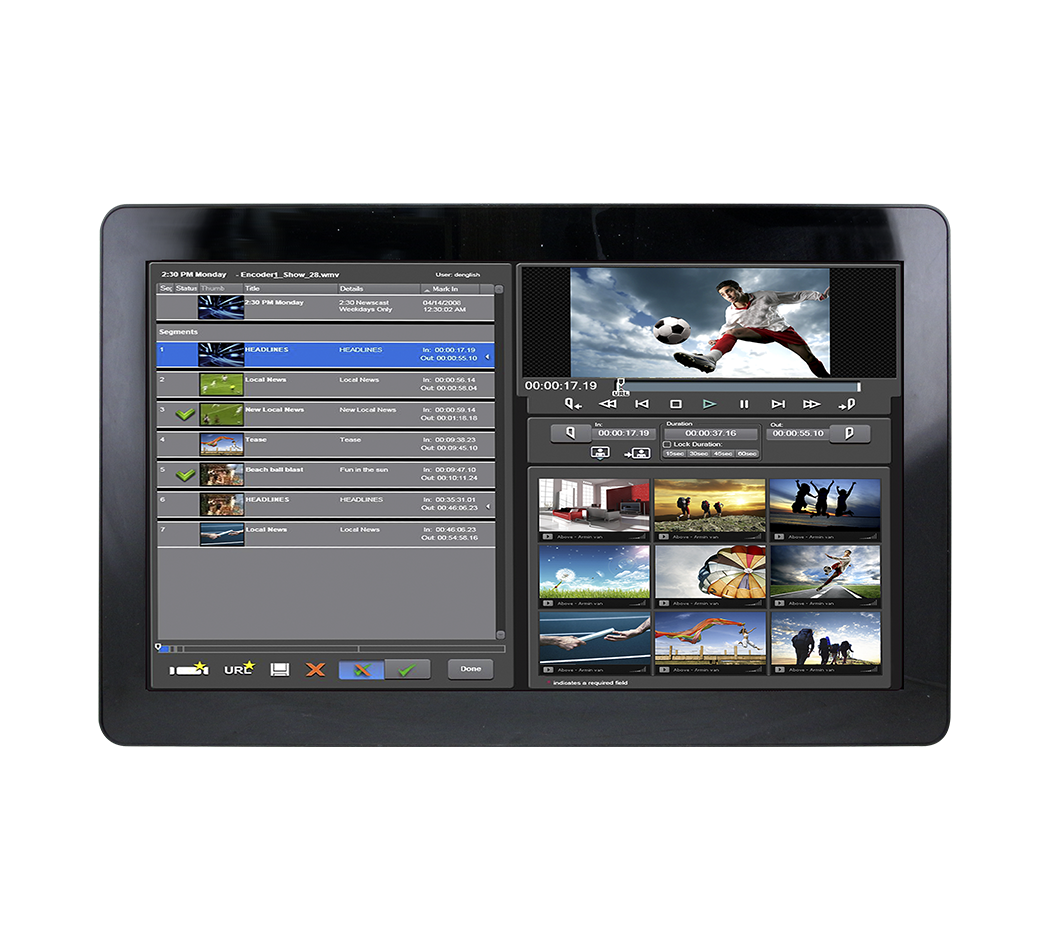

21.5” 13th Generation Intel® Core™ i3/ i5/ i7 Processors Full-flat Rugged Multi-touch Panel PC With Active Cooling and Expansion Slot
FEATURE
Onboard Raptor Lake S 13th Intel® Core™ i3/ i5/ i7 Processor
2 x 262-pin DDR5 4800 MHz SO-DIMM sockets support up to 64GB
1 x HDMI, 2 x DP, 2 x COM, 4 x USB 3.2, 2 x USB 2.0
2 x Intel® Gigabit Ethernet (2.5GbE & 1GbE)
1 x 2.5” SATA SSD (optional), 1 x 2280 & 2242 M.2 M-Key with PCIe x4 & SATA 3.0 signal (optional)
1 x PCIe x16 expansion slot
3 x Independent displays supported (Intel Virtualization)
Wi-Fi & bluetooth (optional)
Mic-in, line-out
TPM 2.0
CPU cooler and system fan design
PSU 300W power supply
Specification
Download
Related Information
System Information
Processor
13th Generation Intel® Core™ i3/ i5/ i7 Processors
Intel® Core™ i7-13700TE (35W, 30M Cache, up to 1.10 GHz)
Intel® Core™ i5-13500E (65W, 24M Cache, up to 2.40 GHz)
Intel® Core™ i3-13100TE (35W, 12M Cache, up to 2.40 GHz)
System Memory
2 x 262-pin DDR5 4800 MHz SO-DIMM sockets support up to 64GB (non ECC only)
I/O Chipset
Fintek® F81966AB-I
Watchdog Timer
H/W Reset, 5~255 Seconds/5~255 Minutes
H/W Status Monitor
CPU Temperature Monitoring
Voltage Monitoring
CPU Fan Speed Control
TPM
TPM 2.0
SBC
MX610H
CPU Cooler (Type)
1 x PWM FAN for CPU
Expansion
Expansion
1 x PCIe x16 Gen4 Slot
1 x M.2 (2230) E-Key support WiFi module, with 1 x PCI-e x1 & USB 2.0 (CNVi Supported)
Storage
Solid State Drive
1 x 2.5” Drive Bay design (optional)
Other Storage Device
1 x 2280 & 2242 M.2 Slot M Key with PCIe x4 & SATA 3.0 signal (optional)
Display
Graphic Chipset
Intel® UHD Graphic
Spec. & Resolution
2 x DP: Up to 4096×2304 @60Hz
1 x HDMI: Up to 3840x2160 @30Hz
Audio
Audio Codec
Realtek® ALC897
Audio Interface
Mic-in
Line-out
Speaker Output
2 x 5W
Ethernet
LAN Chipset
1 x Intel® I219-LM GbE LAN PHY
1 x Intel® I225-V 2.5GbE LAN
Power Requirement
Power Supply Unit
PSU Flex ATX 300W, 100-240V~, 5-2.5A, 50-60Hz
Power Mode
AT/ATX by jumper (Default Setting: ATX)
Power Connector Type
AC Power input 3P (Male) Connector
Software Support
OS
Win10 / Win11 / Linux
Certification
Certification Information
CE / FCC Class A / VCCI / UKCA
Panel
LCD Size
21.5", 16:9
Display Type
Full HD
Resolution
1920 x 1080
Pixel pitch
247.95um(H) x 247.95um(V)
Luminance
250 cd/m²
Contrast ratio
1000
Viewing angle
89 (U), 89 (D), 89 (L), 89 (R)
Response time
14 ms
Backlight
LED
Touch Type
Projective capacitive multi-touch up to 10 points
Touch Light Transmission
89 %
Touch Controller
USB touch (EETI)

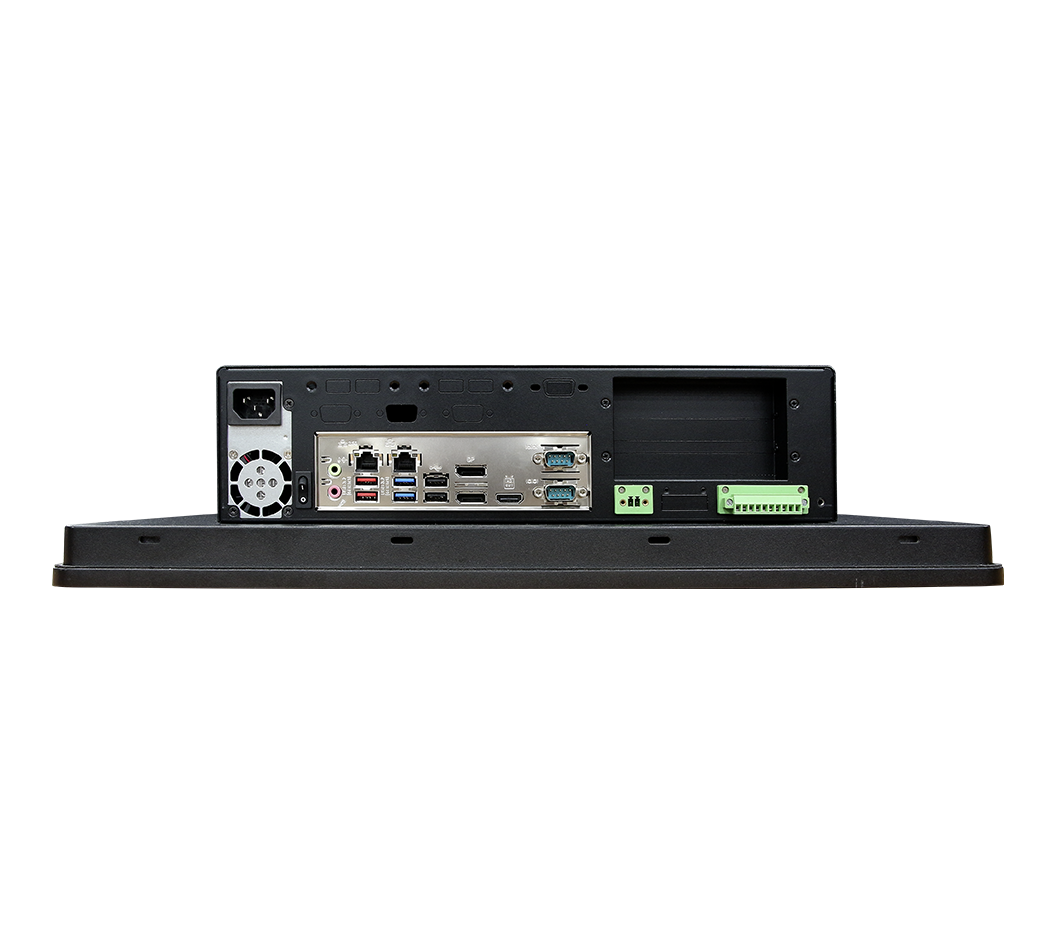

External I/O
USB Port
4 x USB 3.2 Gen 1
2 x USB 2.0
Video Port
2 x DP
1 x HDMI
LAN Port
1 x Intel® I219-LM GbE LAN PHY
1 x Intel® i225-V 2.5GbE LAN
COM Port
2 x RS232(default)/422/485
2 x RS232 (optional)
DIO Port
1x8-bit GPIO (optional)
Switch
1x Extend Power Switch (optional)
System Control
LED Indicator
HDD LED, power LED
Wireless Communication
WLAN
M.2 keyA/E 802.11ax Dual-band, BT5.2,AX210.NGWGIE.NV, 99ARN4,Intel (optional)
Bluetooth
BT5.2 (optional)
Mechanical & Environmental
Operating Temp.
0°C ~ 45°C
Storage Temp.
-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity
40°C @ 95% Relative Humidity, Non-condensing
Dimension (W x L x H)
538 x 341 x 122 mm
Weight
12.6 Kg
Vibration Test
With SSD/M.2 SSD : 1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30mins/axis
Shock Test
Operating with SSD/M.2 : MIL-STD-810G, method 516.6, procedure I, functional shock=10G
Drop Test
ISTA 2A, IEC-60068-2-32 Test:Ed
IP Rating
Front IP65
Mounting Kit
Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm
Panel mount with mounting kits
Power Mode
AT/ATX by jumper (Default Setting: ATX)
System Fan
1 x PWM FAN for System
Construction - Front
Aluminum Die-casting
Construction - Rear
Metal black
Component
Adapter
PSU Flex ATX 300W
Ordering Information
Ordering Information
E1702031833R
USA Power Cord
E1702031000R
EU Power Cord
E1702031834R
Japan Power Cord
E1702031830R
UK Power Cord
E1702031831R
Australia Power Cord
