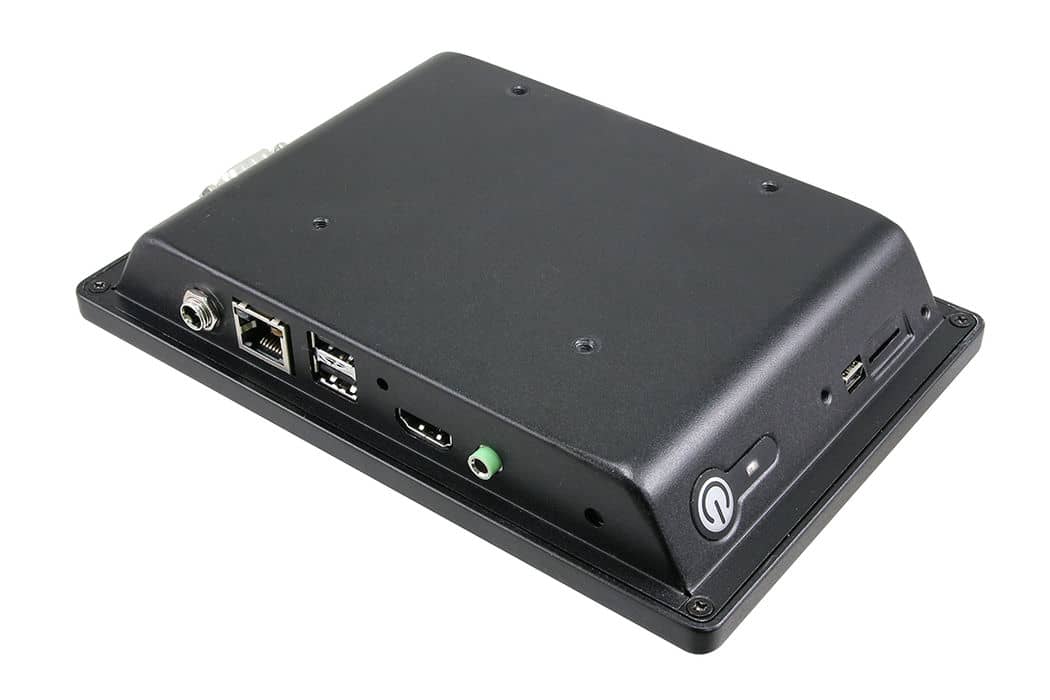

BFC-07R1
7 IMX6 P-CAP Panel PC
FEATURE
NXP i.MX6 Quad CPU
4GB eMMC
1GB DDR3 memory
7" , 1280 x 800
HDMI output with screw lock
RS232 x 1, or Optional Debug Port, or Optional Can Bus
Speaker x 1
MIC x 1
SD socket
USB2.0 Type A x2, USB 2.0 x1 (wafer), USB OTGx1
Gigabit LAN with Micrel MIC2788 Ethernet PHY
12-26V DC input, typical 12V DC input
Optional Powered LAN (802.3AT)
Specification
Download
System Information
Processor
NXP i.MX6 Quad CPU
Platform Controller Hub
i.MX6
System Memory
1 X Onboard DDR3 1GB
SBC
RSC-IMX61
Storage
Storage
1 x On board 4GB eMMC
Display
Spec. & Resolution
1024 x 800
Audio
Audio Codec
WM8962
Power Requirement
DC Input
DC 12~26V
DC Input Connector
Lockable DC Jack
Power Supply Unit
DC in-Power adapter / Power cord , Powered LAN (802.3AT) in-Without Power adapter / Power cord
Software Support
OS
Android 6.0
Certification
Certification Information
CE
FCC Class B
External I/O
USB Port
1 x USB 2.0(double deck)
1 x Mini-USB connector
COM Port
1 x RS232 COM Port
Optional Debug Port
Optional Can Bus
Mechanical & Environmental
Operating Temp.
-20°C ~ 55°C (-4°F ~ 131°F)
Storage Temp.
-30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity
0% ~ 90% Relative humidity, non-condensing
Dimension (W x L x H)
184.3 x 124.3 x 30.5mm
Weight
1.5 kg
Vibration Test
With eMMC : 2Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 30min/axis
Shock Test
With eMMC : 10Grms, IEC 60068-2-29, Half Sine, 11ms
Power Requirement
Powered LAN
Dimension (L x W)
185.55mm x 125.55mm x 30.5mm
System Fan
Fanless
Construction - Front
Black
Construction - Rear
Black
Ordering Information
Ordering Information
BFC-07R1X6Q-00R
7" IMX6 Quad,1G/4G, P-CAP Panel PC (A0)
BCC-WLAN-04R
Wi-Fi 802.11a/b/g/n/ac + Bluetooth4.1 Module with PCI-e Half-Mini Card
