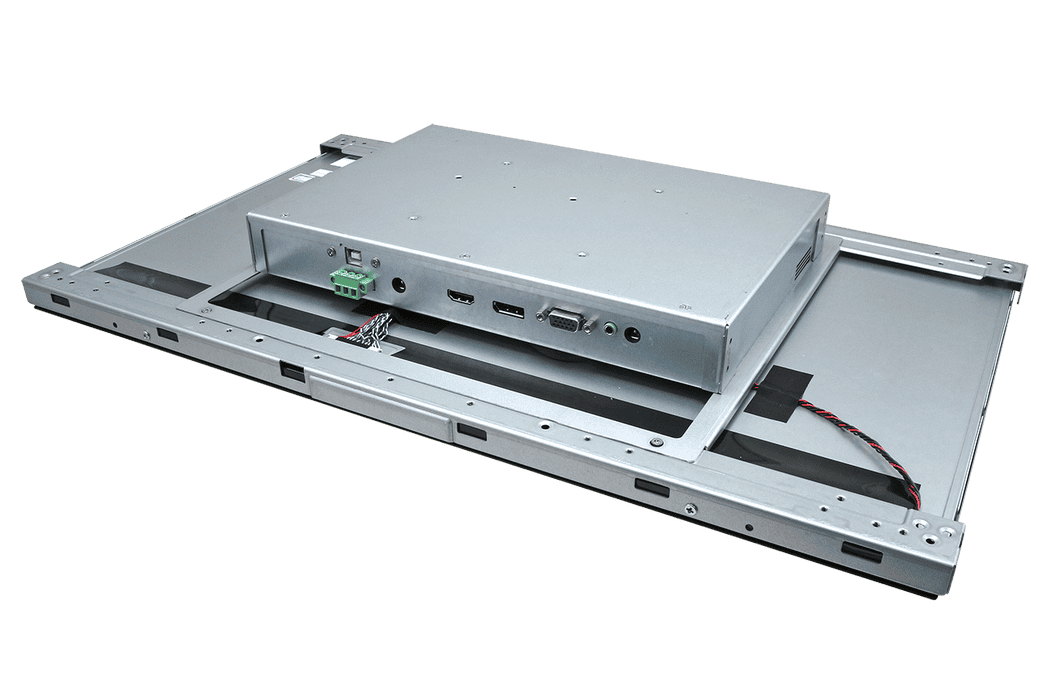

OFM-21W00
21.5” Full-HD PCAP Multi-Touch Fanless Open Frame Monitor
FEATURE
21.5" Full-HD open frame PCAP touch monitor
HDMI, Display Port, VGA input, Line in
USB type B for touch function
Slim & strength design
Fanless operation from 0° ~ 45°C
Default with +12V DC in (Option for wide voltage 9~36V DC in)
Various mounting kits compliance with OFT series
Option for Bi-Direction WIFI-6 interactive module for USB signal and image
Specification
Download
Expansion
Expansion
Option for Bi-Direction WIFI-6 interactive module for USB signal and image
Audio
Audio Interface
1x Line in
Speaker Output
2 x 5W
Certification
Certification Information
CE / FCC Class A

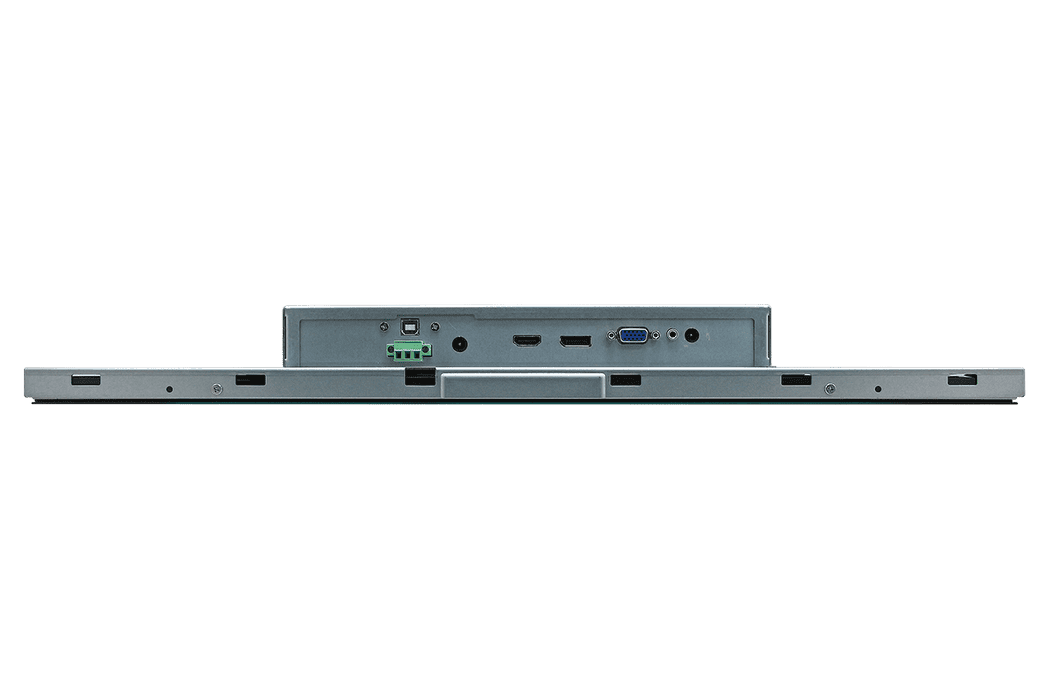

External I/O
USB Port
USB Type B connector for touch function
HDMI
1x HDMI 1.4a (HDCP 1.3)
Display Port
1x Display Port 1.2 (HDCP 1.3)
VGA
1x 15 PIN D-SUB VGA connector
Panel
LCD Size
21.5", 16:9
Display Type
Full HD
B/L Inverter/Converter
LCD built in
Resolution
1920 x 1080
Pixel pitch
0.24795mm(H) x 0.24795mm(V)
Luminance
250 cd/m2
Contrast ratio
2000
Viewing angle
89 (U), 89 (D), 89 (L), 89 (R)
Response time
35 ms
Backlight
LED
Touch Type
Projective capacitive multi-touch supports up to 10 points
Touch Light Transmission
89%
Touch Controller
EETI
System Control
LED Indicator
Power Led
Control Buttons
OSD function key (Power/ Menu/ Up/ Down)
Mechanical & Environmental
Operating Temp.
0°C ~ 45°C
Storage Temp.
-20°C ~ 60°C
Operating Humidity
0% ~ 90% Relative humidity, non-condensing
Dimension (W x L x H)
501.9 x 294.2 x 53.4 mm
Weight
4.1 Kg
Vibration Test
1.5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 0.5hr/axis
Shock Test
Operating: IEC 60068-2-27 testing procedures, 10G for operation mode
Drop Test
ISTA 2A, IEC-60068-2-32 Test:Ed
Mounting Kit
Option for flush / Panel / Wall mount with mounting kits
VESA
75 x 75 mm
100 x 100 mm
Power Requirement
+12V DC in by DC Jack
Optional +9~36V DC in by phoenix connector
System Fan
Fanless
Ordering Information
Ordering Information
OFM-21W00-X0003-2R
21.5" 1920x1080 220nits LED Panel, Open Frame Monitor with P-Cap Touch HDMI in/DP in/VGA in/Audio Line in/USB(B) for touch/OSD key/speaker/12V input/Without Adapter
ACC-OFP-21-PMT-01R
Panel Mount Kits for OFP-21W series
ACC-OFP-21-WMT-01R
Wall Mount Kits for OFP-21W series
ACC-ADP-060N-07R
AC/DC adapter 12V/5A 90 Plug Type
E1702031833R
USA Power Cord
E1702031000R
EU Power Cord
E1702031834R
Japan Power Cord
E1702031830R
UK Power Cord
E1702031831R
Australia Power Cord
